BRIGHT SHOWERS High-Pressure Handheld Shower Head and Brass Column System

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your BRIGHT SHOWERS High-Pressure Handheld Shower Head and Brass Column System, Model BSB2700-02. This system is designed to upgrade your existing shower setup, offering a luxurious rain shower experience combined with the convenience of a high-pressure handheld shower head. Its solid brass construction and brushed nickel finish ensure durability and a modern aesthetic.

The system features an adjustable height slider for the handheld shower and a two-way diverter for easy switching between the overhead rain shower and the handheld unit. Installation is simplified with options for 3M adhesive or screw mounting, eliminating the need for extensive plumbing modifications.

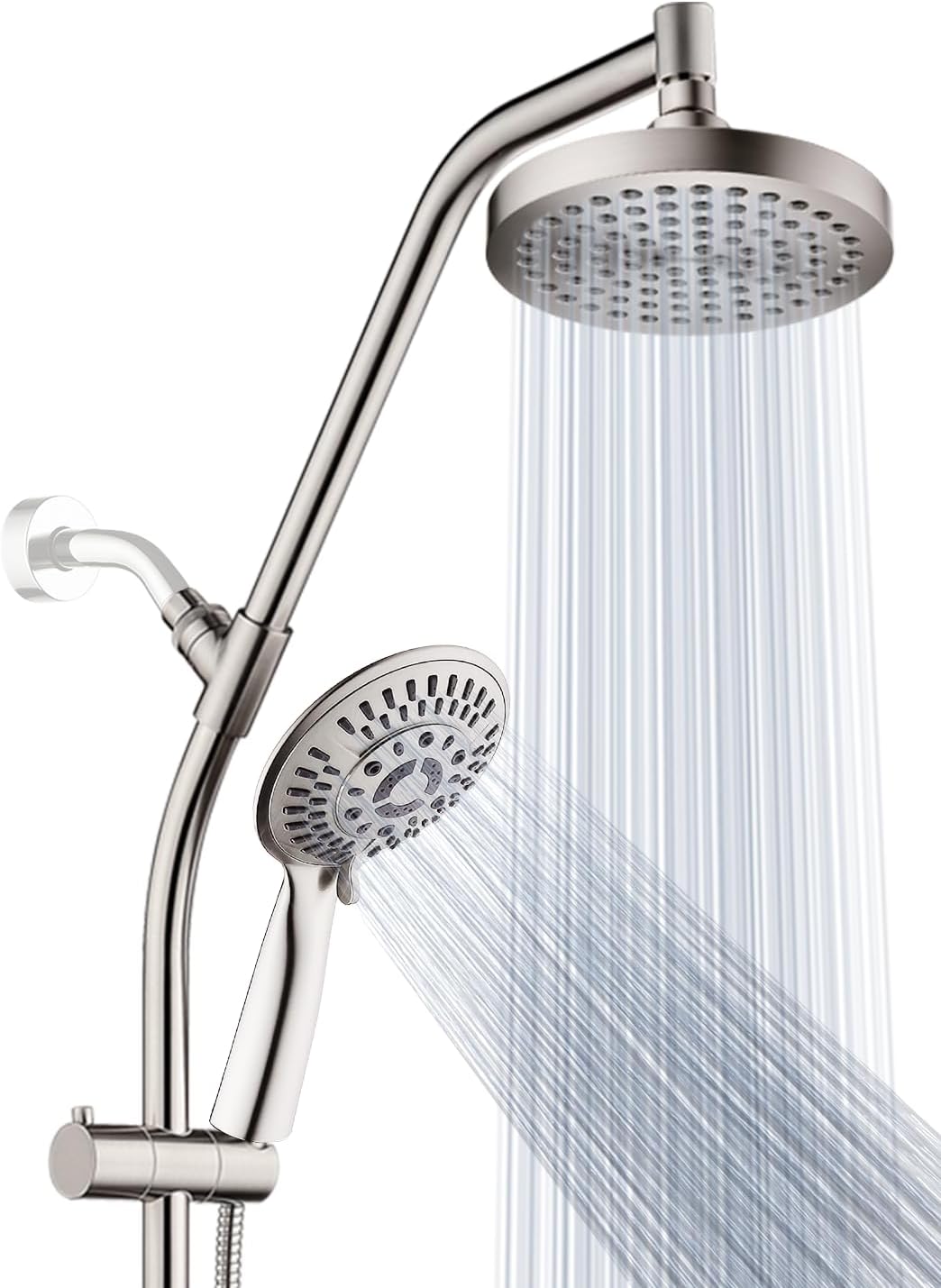

Image 1.1: Overview of the BRIGHT SHOWERS High-Pressure Handheld Shower Head and Brass Column System, showcasing the rain shower head, handheld shower head, and the brushed nickel finish.

2. Safety Information

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage or personal injury.

• Ensure all water supply lines are turned off before beginning installation.
• Use appropriate tools and wear safety glasses during installation.
• Do not overtighten connections, as this may damage components.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Regularly inspect the system for leaks or damage. Address any issues promptly.
• Keep small parts out of reach of children.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Brass Shower Column
• Brass Diverter (with ceramic cartridge)
• Brass Shower Arm
• Handheld Shower Head (ABS plastic)
• Rain Shower Head (ABS plastic)
• 1.5m Stainless Steel Shower Hose
• Teflon Tape
• Mounting Hardware (3M adhesive tape and screws)

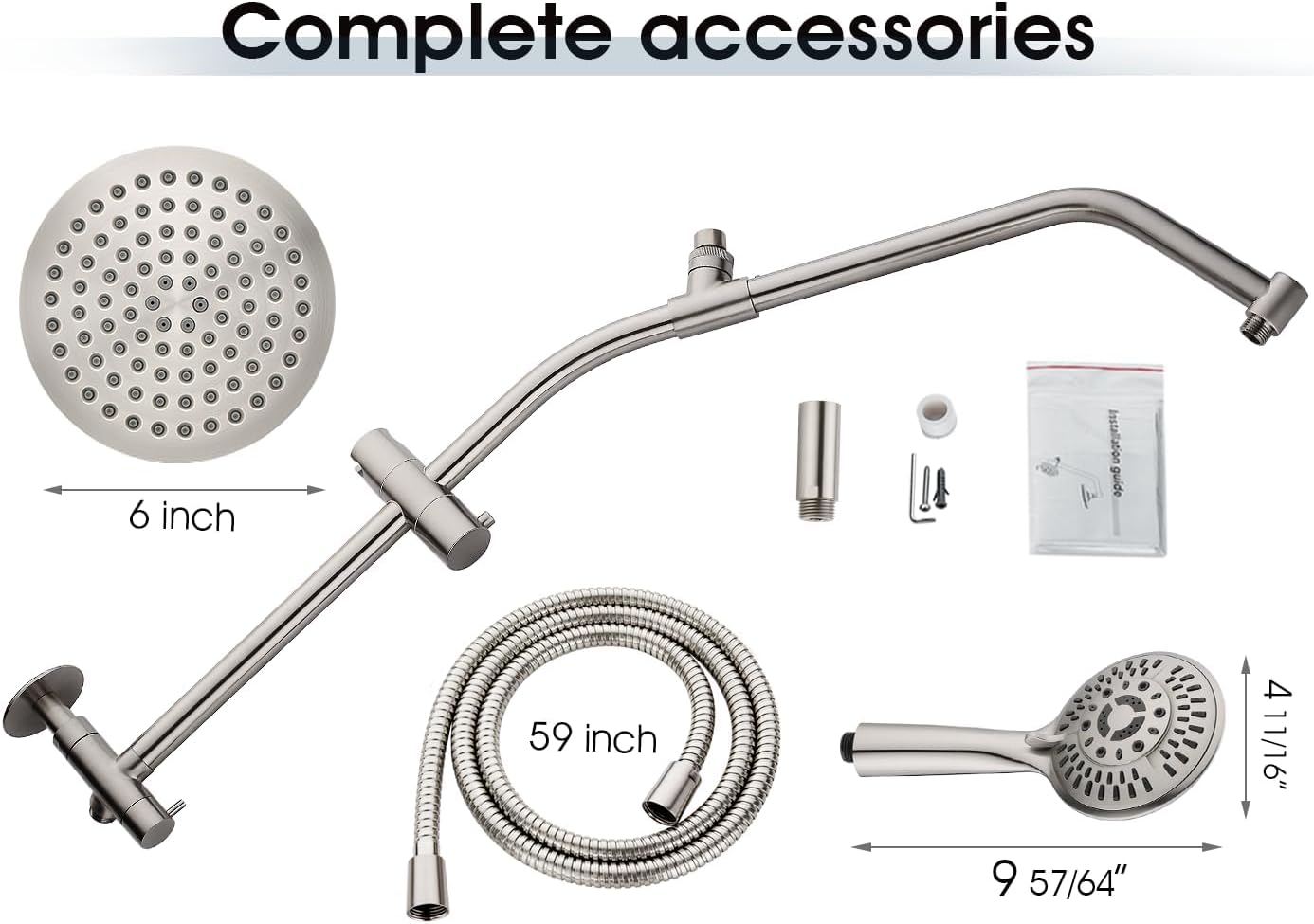

Image 3.1: All components included in the BRIGHT SHOWERS shower system package. This image displays the rain shower head, brass shower column with integrated diverter and handheld shower holder, stainless steel hose, handheld shower head, and various small parts like mounting hardware and Teflon tape.

4. Setup and Installation

This shower system is designed for easy installation without modifying existing in-wall plumbing.

4.1 Preparation

1. Turn off the main water supply to your shower.
2. Remove your existing shower head and arm. Clean the existing shower arm threads thoroughly.
3. Ensure the wall surface where the lower part of the column will be mounted is clean and dry.

4.2 Installation Steps

1. Attach the Brass Shower Arm: Apply Teflon tape to the threads of your existing shower arm. Screw the new brass shower arm onto the existing shower arm. Ensure it is tightened securely but do not overtighten.
2. Connect the Shower Column: The upper part of the brass shower column connects to the new brass shower arm. Ensure the connection is secure.
3. Mount the Lower Column Support:
   • Adhesive Method: Clean and dry the wall surface. Apply the provided 3M adhesive tape to the back of the lower column support bracket. Press firmly against the wall at the desired height, ensuring it is level. Allow sufficient time for the adhesive to cure (typically 24 hours) before applying weight.
   • Screw Method: Mark the drilling points for the lower column support bracket. Drill pilot holes and insert wall anchors if necessary. Secure the bracket to the wall using the provided screws.
4. Attach Rain Shower Head: Screw the rain shower head onto the top of the shower column. Use Teflon tape on the threads for a watertight seal.
5. Connect Handheld Shower Hose: Connect one end of the stainless steel shower hose to the handheld shower head and the other end to the diverter valve on the shower column. Ensure washers are in place for a leak-free connection.
6. Place Handheld Shower Head: Insert the handheld shower head into its adjustable holder on the shower column.
7. Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Tighten any leaking connections gently.

Image 4.1: Installation diagram illustrating key dimensions and connection points for the BRIGHT SHOWERS shower system. It shows the minimum distance from the water inlet, the overall height of the column, and the recommended range for the existing shower arm length (L1).

5. Operating Instructions

5.1 Water Flow Diverter

The system features a two-way diverter valve located on the shower column, allowing you to switch between the rain shower head, the handheld shower head, or use both simultaneously.

• Rotate the diverter handle to select your desired water outlet.
• Typically, one position activates the rain shower, another activates the handheld shower, and an intermediate position allows both to operate.

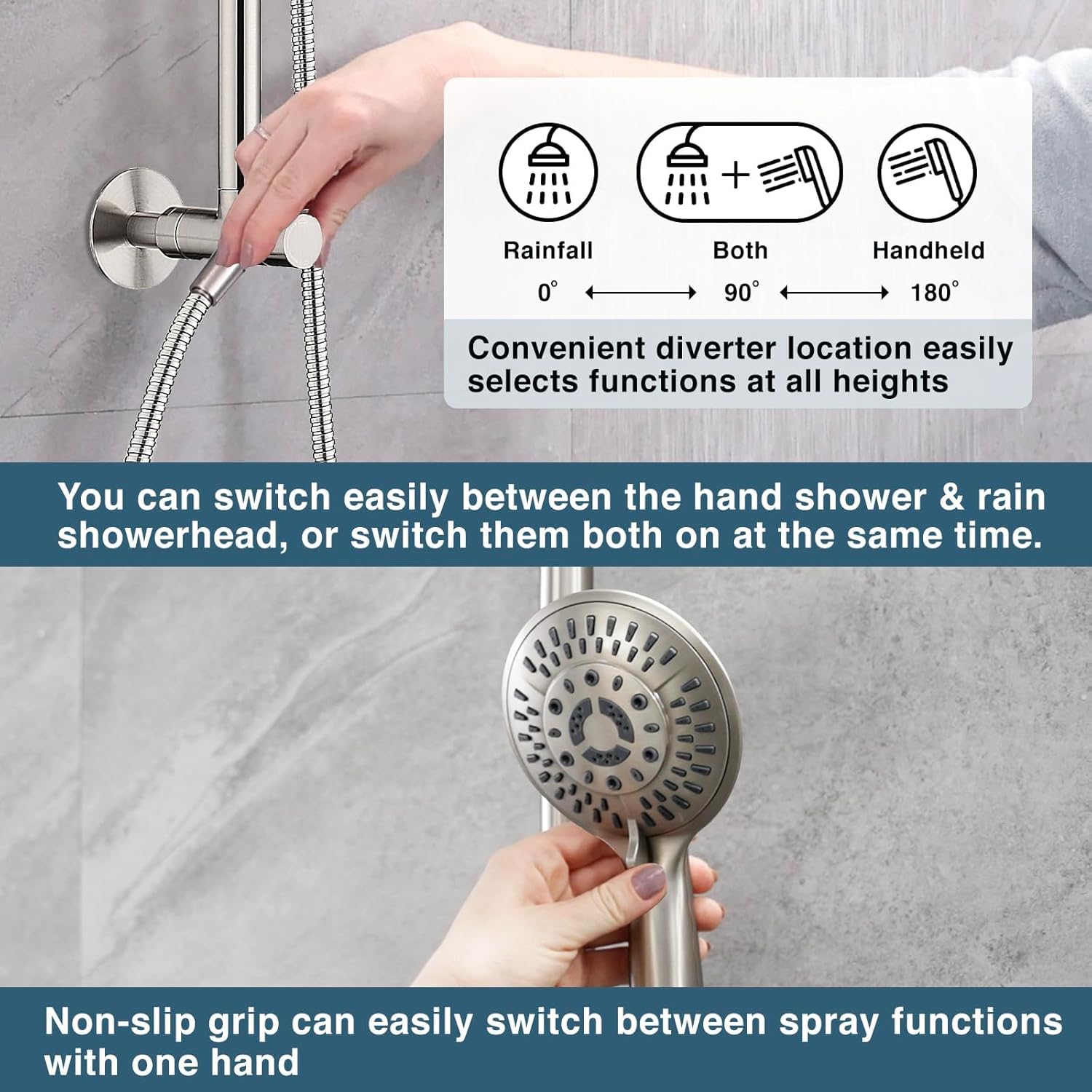

Image 5.1: This image illustrates the diverter valve on the shower column, showing its three main positions: Rainfall (0 degrees), Both (90 degrees), and Handheld (180 degrees). The diverter's convenient location allows for easy function selection at various heights.

5.2 Handheld Shower Head Spray Settings

The handheld shower head offers multiple spray settings for a customized shower experience.

• Rotate the spray face of the handheld shower head to cycle through the available settings.
• Settings typically include: Pressure Misty, Rain, Rinse, Massage, and Pause.

Image 5.2: Close-up of the handheld shower head, highlighting its non-slip grip and the mechanism for switching between spray functions with one hand.

Image 5.3: Visual representation of the five functional spray settings available on the handheld shower head: Pressure Misty, Rain, Rinse, Massage, and Pause. Each setting provides a distinct water flow pattern.

5.3 Adjustable Handheld Shower Holder

The handheld shower holder can be adjusted vertically along the shower column to accommodate users of different heights.

• Gently press the release button or lever on the holder (if present) or slide the holder up or down the column to the desired position.
• Ensure the holder is securely locked in place before releasing the handheld shower head.

Image 5.4: This image demonstrates the adjustable height feature of the handheld shower holder on the BRIGHT SHOWERS column, showing how it can be positioned for hands-free convenience for both adults and children.

6. Maintenance

6.1 Cleaning

• Clean the shower heads and column regularly with a soft cloth and mild soap or a non-abrasive bathroom cleaner.
• Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the brushed nickel finish.
• For mineral deposits (limescale) on the shower nozzles, gently rub them with your finger or a soft brush to dislodge the buildup.

6.2 General Care

• Periodically check all connections for tightness to prevent leaks.
• Ensure the shower hose is not kinked or twisted, which can reduce water flow and damage the hose.

7. Troubleshooting

8. Specifications

9. Warranty and Support

BRIGHT SHOWERS products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official BRIGHT SHOWERS website.

If you encounter any issues or have questions regarding your shower system, please contact BRIGHT SHOWERS customer support. Have your model number (BSB2700-02) and purchase information ready when contacting support.

Return Policy: This product is subject to a 30-day return/replacement policy from the date of purchase. Please consult your retailer for full details.
