1. Product Overview
The Filtrete 14x24x1 MPR 300 Air Filter, manufactured by 3M, is designed to capture unwanted particles from your household air, contributing to a cleaner and fresher home environment. Featuring exclusive Filtrete 3-in-1 technology, with an MPR 300 and MERV 5 rating, this AC filter effectively captures lint, household dust, and dust mite debris, allowing cleaner air to circulate. It offers superior performance compared to fiberglass, washable, and non-electrostatic air filters.
This filter is intended for use in furnaces, air conditioners, or HVAC systems. For optimal performance, it is recommended to change your furnace filter at least every 90 days.

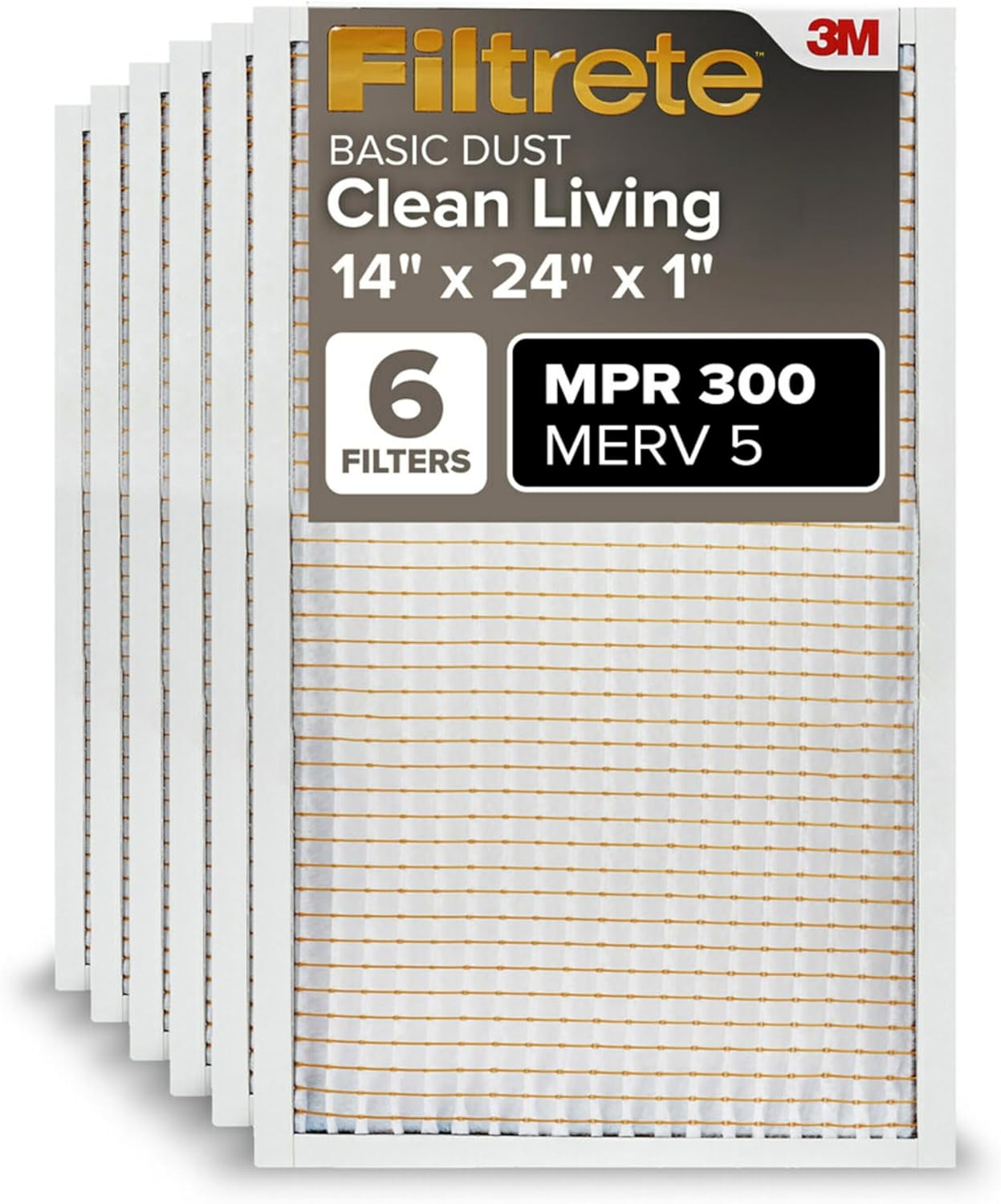

Image: Filtrete 14x24x1 Air Filter, showing its pleated design and sturdy frame.
2. Specifications
| Feature | Detail |
|---|---|
| Nominal Size | 14x24x1 inches |
| Actual Dimensions | 13.81 x 23.81 x 0.81 inches |
| MPR Rating | 300 |
| MERV Rating | 5 |
| Material | Polypropylene |
| Filter Type | Pleated |
| Lifespan | Up to 3 months |
| Compatible Devices | Air Conditioner, Furnace, HVAC System |
| Item Model Number | BD23-6PK-1E |
Image: Diagram illustrating the 14-inch width, 24-inch height, and 1-inch depth of the filter.
3. Setup and Installation
Installing your Filtrete air filter is a straightforward process. Always ensure your HVAC system is turned off before attempting to replace the filter.
- Remove Old Filter: Locate your existing air filter slot, typically found in your furnace, air handler, or a return air vent. Carefully slide out the old filter. Note the direction of the airflow arrow on the old filter.
- Prepare New Filter: Unpack your new Filtrete 14x24x1 filter. Identify the airflow arrow printed on the filter frame. This arrow indicates the direction air should flow through the filter.
- Insert New Filter: Slide the new filter into the slot, ensuring the airflow arrow points towards the furnace or air handler (the direction of air return). The filter should fit snugly without excessive gaps.
- Secure Access Panel: Close and secure any access panels or covers you opened to reach the filter slot.
Image: Visual guide showing three steps for easy filter installation: 1. Remove plastic & label, 2. Find arrow & point towards the unit, 3. Place filter into center unit or wall unit.
Video: A detailed demonstration of installing a Filtrete 14x24x1 Air Filter, showing the process of removing the old filter and inserting the new one into a furnace unit.
4. Operating Instructions
Once the Filtrete air filter is correctly installed, your HVAC system can be operated as usual. The filter works continuously to clean the air as it passes through the system. No special operating procedures are required for the filter itself.
The Filtrete MPR 300 filter is designed to capture basic dust and lint, improving indoor air quality without significantly restricting airflow. This helps maintain the efficiency of your heating and cooling system.
Image: Illustrates the compatibility of Filtrete filters with both furnace and air conditioning units, showing a filter being installed in each type of system.
5. Maintenance
Regular filter replacement is crucial for maintaining indoor air quality and the efficiency of your HVAC system. The Filtrete 14x24x1 filter is designed to last up to 3 months.
- Replacement Frequency: Change your filter at least once every 90 days (3 months). In homes with pets, allergies, or higher dust levels, more frequent changes (e.g., every 30-60 days) may be beneficial.
- Visual Inspection: Periodically inspect the filter for visible dirt and debris. A heavily soiled filter indicates it's time for replacement, regardless of the 90-day schedule.
- Smart App Reminders: Utilize the Filtrete Smart App (available on iOS and Android) to set personalized 30-, 60-, or 90-day reminders for filter changes. Scan the barcode on your filter to easily set up alerts.
Image: Shows a person using the Filtrete Smart App on a smartphone, with steps to download the app, scan the barcode, and set alerts for filter change reminders.
Video: A close-up view of the Filtrete air filter, highlighting its construction and features, useful for understanding what to look for during inspection.
6. Troubleshooting
Most issues related to air filters are resolved by proper installation and timely replacement. If you experience problems, consider the following:
- Reduced Airflow: If you notice a decrease in airflow from your vents, the filter might be clogged. Replace it with a new one. Ensure the airflow arrow is pointing in the correct direction.
- Increased Dust: If dust levels in your home increase, it's likely time to change your filter. A dirty filter loses its effectiveness.
- Unusual Noises: A whistling sound can sometimes indicate that the filter is not seated correctly or is too restrictive for your system. Double-check the fit and consider if a lower MERV rating might be more suitable for your specific HVAC unit, though MERV 5 is generally considered low restriction.
Video: A comparison between Filtrete 300 and 700 series filters, explaining the differences in MERV ratings and their impact on filtration and airflow, which can help in troubleshooting airflow issues.
7. Warranty Information
This 3M product is covered by a Limited Warranty. It is warranted to be free from defects in material and manufacture. The user is responsible for determining whether the product is fit for a particular purpose and suitable for the user’s application.
If this 3M product is found to be defective, your exclusive remedy and 3M’s sole obligation shall be, at 3M’s option, to replace the 3M product or refund the purchase price of the 3M product. This warranty does not cover normal wear and tear, or damage resulting from accident, misuse, alteration, or lack of reasonable care.
8. Support
For further assistance, product inquiries, or to report a defective product, please contact Filtrete customer support through the official Filtrete website or refer to the contact information provided on the product packaging.
