1. Introduction
This instruction manual provides detailed guidance for the AFER AUTOMATISMOS VDS GEKO 400 Kg sliding gate motor kit. This 220V automation kit includes two VDS ECO rolling code 433Mhz remote controls. The VDS GEKO motor is designed for sliding gates weighing up to 400 kg, making it suitable for residential use, private parking areas, and community installations.
The electromechanical gear motor features an injected aluminum structure. The Euro 230 control board is housed inside the motor. Its compact size and straightforward mounting design facilitate quick installation for sliding gates up to 400 kg, making it an efficient choice for domestic applications.
2. Product Components
The AFER AUTOMATISMOS VDS GEKO 400 Kg Sliding Gate Motor Kit includes the following components:
- VDS GEKO Motor
- Mounting Bracket
- Integrated Control Board
- Two VDS ECO 433Mhz Remote Controls
- Installation Manual
Figure 2.1: Overview of the VDS GEKO 400 Kg sliding gate motor kit, including the motor unit and two remote controls.
3. Setup and Installation
Detailed installation instructions are provided in the included Installation Manual. It is recommended that installation be performed by qualified personnel to ensure proper function and safety. The motor is designed for easy mounting on sliding gates.
3.1 Motor Overview

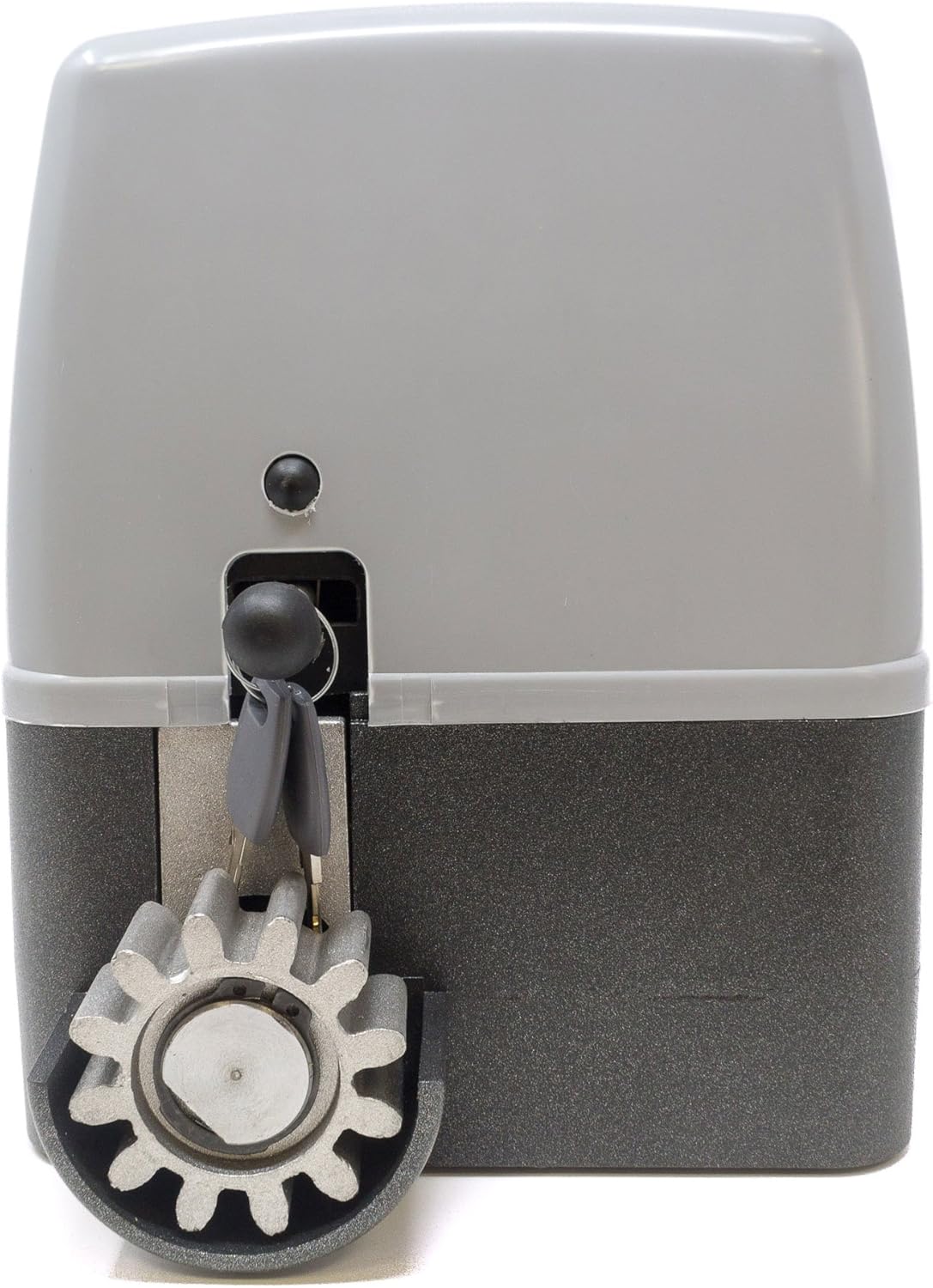

Figure 3.1: Close-up view of the VDS GEKO motor, showing the manual release mechanism and keys.
3.2 Control Board
The integrated control board manages all motor functions. Refer to the Installation Manual for wiring diagrams and configuration settings.
Figure 3.2: The integrated Euro 230 control board located inside the motor housing.
3.3 Internal Components
The motor's robust internal components ensure reliable operation for sliding gates.
Figure 3.3: Internal view of the VDS GEKO motor, highlighting the electromechanical gear motor and wiring.
4. Operating Instructions
The gate motor is operated using the included VDS ECO 433Mhz remote controls. Ensure the remote controls are programmed according to the instructions in the Installation Manual.
4.1 Remote Control Functionality
- Press a programmed button on the remote control to open or close the gate.
- Pressing the button again during operation will stop the gate.
- The remote controls utilize rolling code technology for enhanced security.

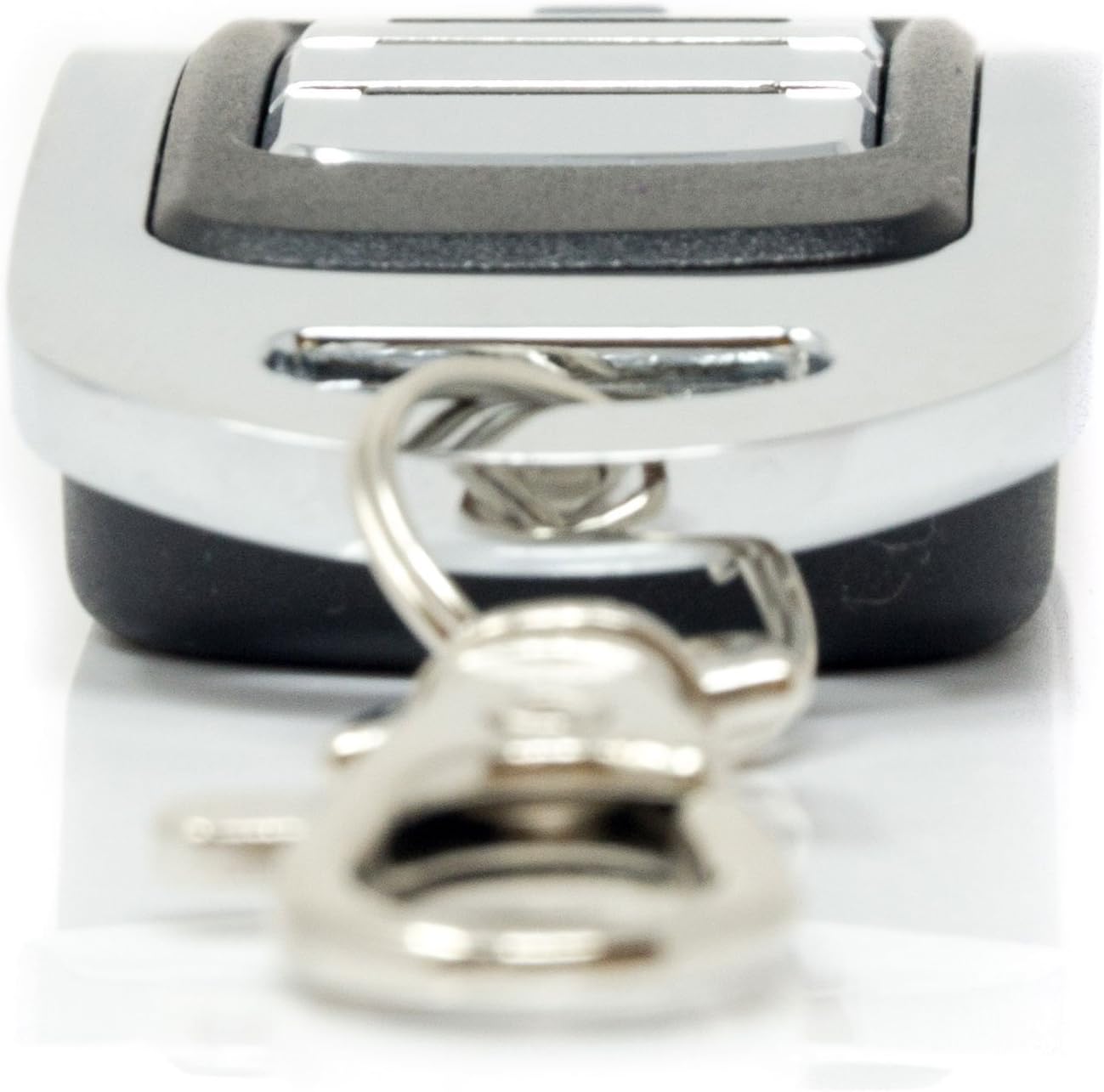

Figure 4.1: A VDS ECO 433Mhz remote control, used for operating the gate motor.
Figure 4.2: Side view of the VDS ECO 433Mhz remote control, highlighting its compact design.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your VDS GEKO gate motor. It is recommended to perform the following checks periodically:
- Visual Inspection: Check for any signs of wear, damage, or loose connections on the motor, gate, and mounting hardware.
- Cleaning: Keep the motor housing and gear clean from dirt, dust, and debris.
- Lubrication: Ensure all moving parts of the gate and motor mechanism are adequately lubricated as specified in the Installation Manual.
- Safety Features: Verify that all safety features, such as photocells (if installed) and obstacle detection, are functioning correctly.
For detailed maintenance procedures, refer to the comprehensive Installation Manual provided with your kit.
6. Troubleshooting
If you encounter issues with your VDS GEKO gate motor, consult the following basic troubleshooting steps. For more complex problems, refer to the Installation Manual or contact technical support.
- Gate Not Responding:
- Check if the motor has power.
- Ensure remote control batteries are not depleted.
- Verify that no obstacles are blocking the gate's path.
- Gate Stops Mid-Operation:
- Check for any physical obstructions.
- Inspect safety sensors (photocells) for alignment or blockage.
- Unusual Noises:
- Inspect for loose components or debris in the gear mechanism.
- Ensure proper lubrication of moving parts.
If the problem persists after attempting these steps, it is recommended to contact AFER AUTOMATISMOS technical support.
7. Specifications
| Feature | Specification |
|---|---|
| Manufacturer | VDS |
| Color | Metal and Grey |
| Maximum Supported Weight | 400 Kilograms |
| Batteries Included | No |
| Batteries Required | No |
| ASIN | B07FC9T83M |
8. Warranty Information
All AFER AUTOMATISMOS products, including the VDS GEKO 400 Kg Sliding Gate Motor Kit, come with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets quality standards. Please retain your proof of purchase for warranty claims.
9. Support Contact
AFER AUTOMATISMOS is committed to providing excellent customer service and professional support. If you require assistance with installation, operation, maintenance, or troubleshooting, please do not hesitate to contact our technical support team:
- Phone: 910 299 248
- Mobile: 654 042 298
Our professionals are available to provide free, expert assistance.
