Introduction
This manual provides essential information for the Enginetech Engine Rebuild Overhaul Kit, designed for 2003-2005 Chevrolet Cavalier and Sunfire models with the 2.2L DOHC L61 Ecotec VIN "F" engine. This kit contains high-quality components manufactured under ISO, QS, and TS quality systems, ensuring durability and performance for your engine overhaul project. Please read this manual thoroughly before beginning any work.
Kit Contents
The Enginetech Engine Rebuild Overhaul Kit includes the following high-quality components. Please verify all parts are present and undamaged upon receipt.
- Full Gasket Set: Includes Multi-Layer Steel (MLS) Head Gaskets and other necessary gaskets.
- Hyper-Eutectic Dish-Top Pistons: With Coated Skirts. Available in STD, 020, 030 sizes.
- Premium Piston Rings: Available in STD, 020, 030 sizes.
- Main Bearings: Available in STD, 010, 020 sizes.
- Rod Bearings: Available in STD, 010, 020 sizes.
- Balancer Bearings
- Full Upper Timing Set
- Oil Pump Repair Kit
- Valve Stem Seals
Component Visuals
Figure 1.1: Overall view of the Enginetech Engine Rebuild Overhaul Kit components.

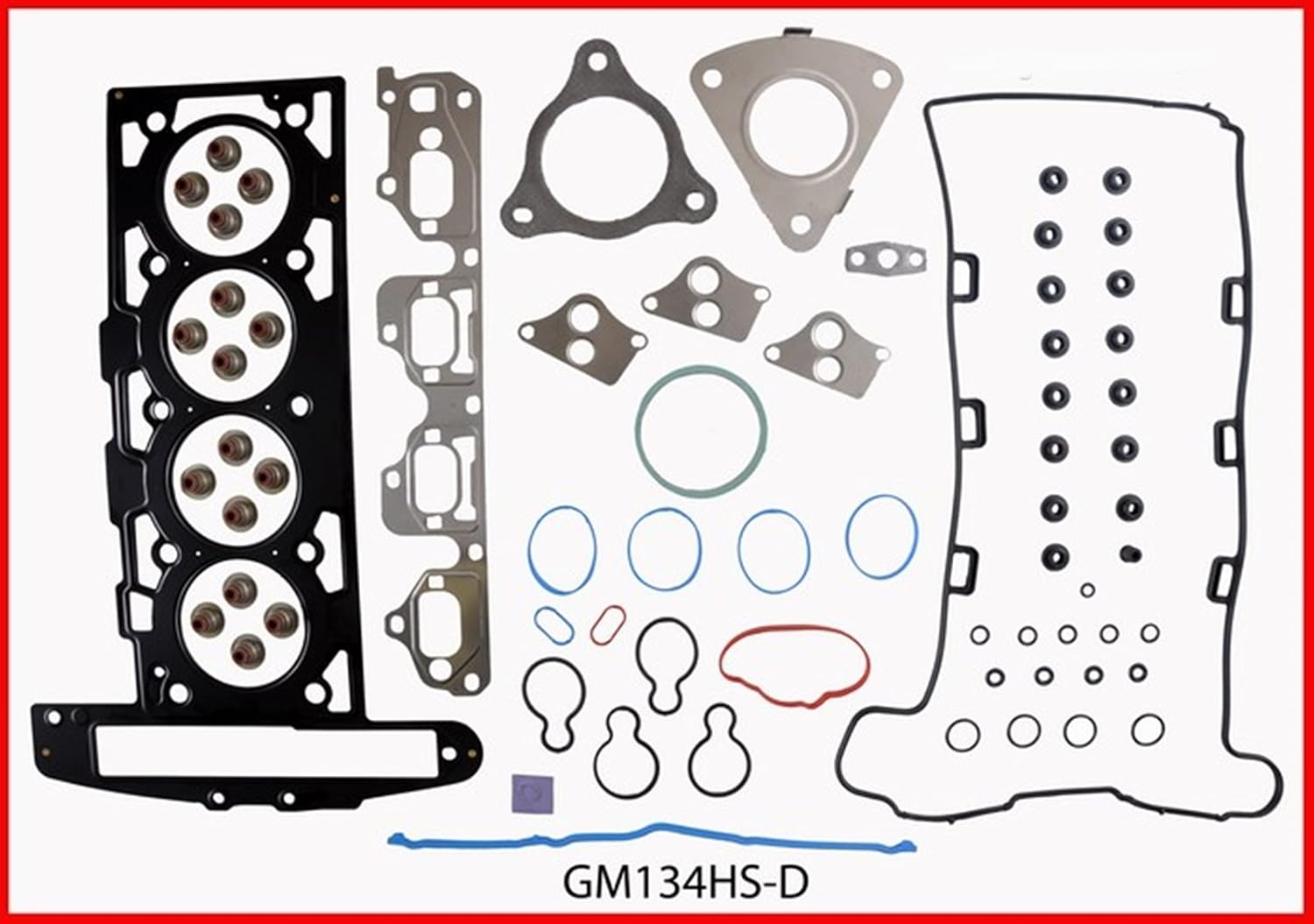

Figure 1.2: Detailed view of the Full Gasket Set (GM134HS-D), including MLS head gaskets.
Figure 1.3: Additional gasket components (GM134CS-A) for comprehensive sealing.
Figure 1.4: Example of a Hyper-Eutectic Dish-Top Piston (P5040(4)) with coated skirts.

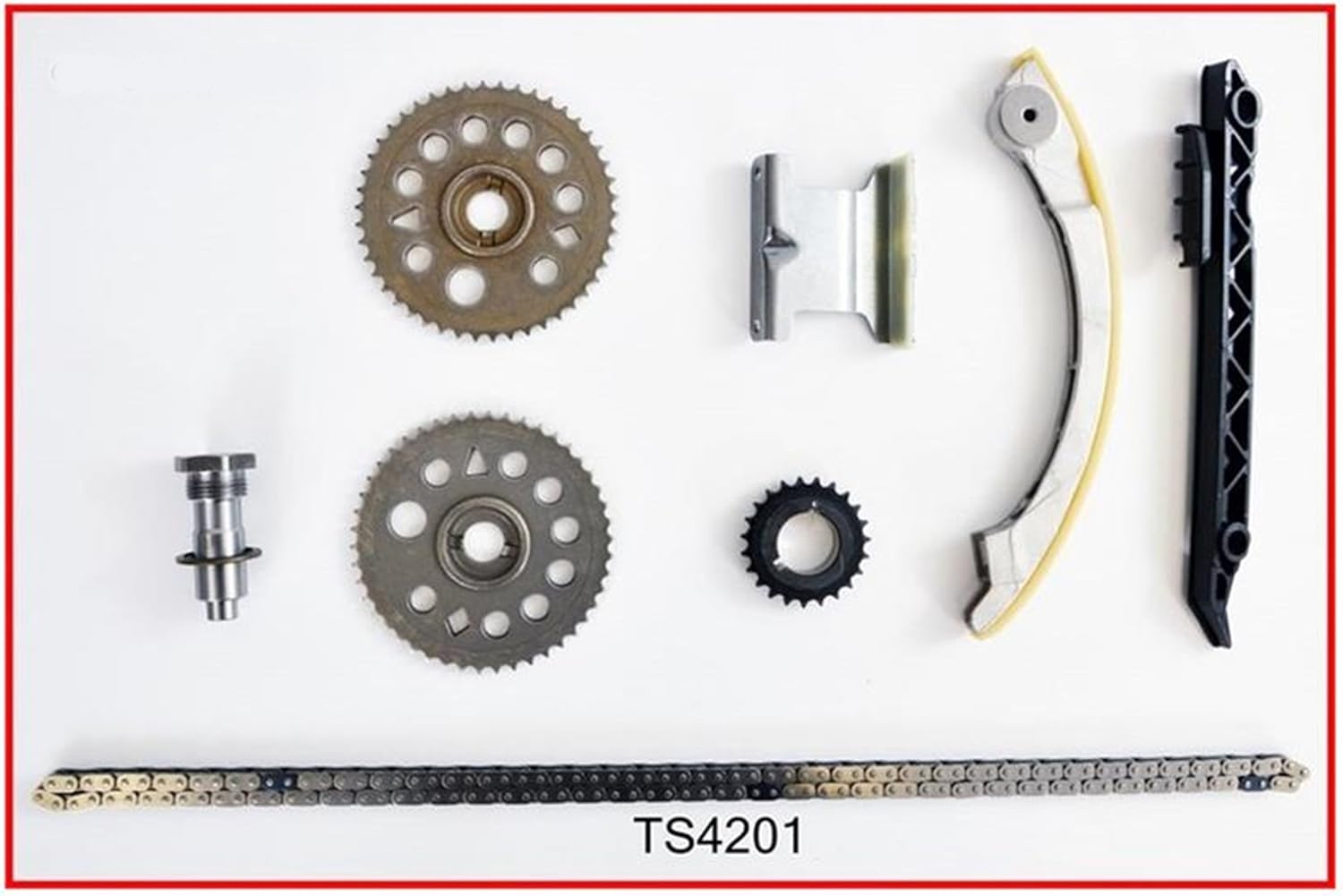

Figure 1.5: Components of the Full Upper Timing Set (TS4201).
Figure 1.6: Contents of the Oil Pump Repair Kit (EK349).

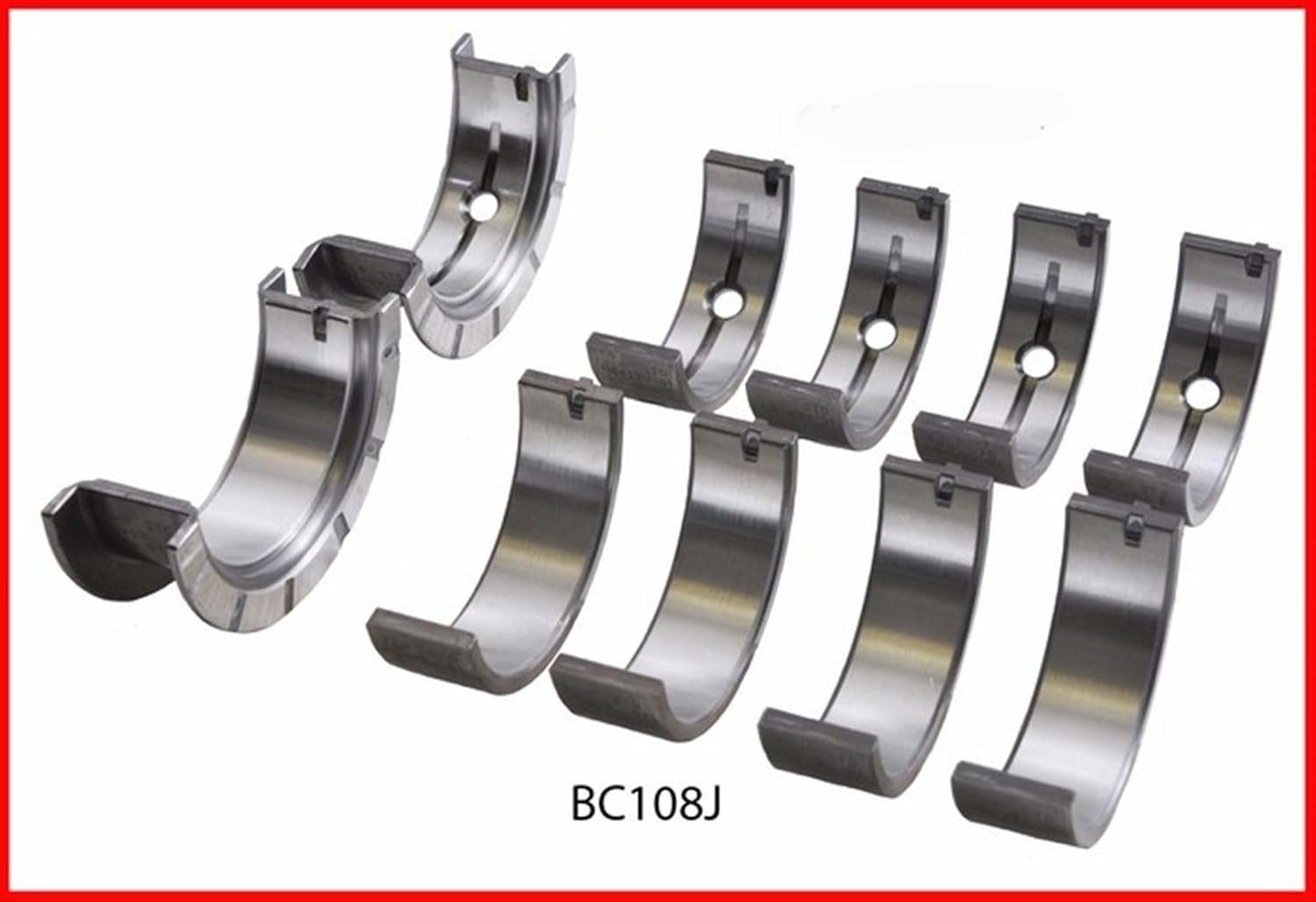

Figure 1.7: Main Bearings (BC108J) for crankshaft support.
Figure 1.8: Rod Bearings (BB105J) for connecting rod journals.
Figure 1.9: Balancer Bearings (CC432) for the engine's balance shaft.
Compatibility and Application
This Enginetech Engine Rebuild Overhaul Kit is specifically designed for the following vehicle applications:
- Make: Chevrolet
- Model: Cavalier, Sunfire
- Years: 2003, 2004, 2005
- Engine: 2.2L DOHC L61 Ecotec (VIN "F")
Ensure your vehicle matches these specifications before proceeding with installation. Incorrect application may lead to component failure or improper engine operation.
Installation Guidelines
Engine rebuilding is a complex process that requires specialized knowledge, tools, and adherence to manufacturer specifications. This kit provides the necessary components, but detailed installation instructions for your specific engine model should be obtained from a reputable service manual (e.g., Haynes, Chilton, or OEM service manual).
General Recommendations:
- Professional Installation: It is highly recommended that installation be performed by a certified automotive technician.
- Cleanliness: Maintain an exceptionally clean work environment. Any debris can severely impact engine longevity.
- Torque Specifications: Always adhere to the vehicle manufacturer's torque specifications for all fasteners.
- Lubrication: Properly lubricate all moving parts and bearings during assembly with appropriate engine assembly lube or clean engine oil.
- Pre-Assembly Checks: Verify all clearances (e.g., bearing clearances, piston ring end gap) are within manufacturer specifications before final assembly.
- Fluid Management: Ensure all engine fluids (oil, coolant) are drained and refilled according to manufacturer guidelines after the rebuild.
Failure to follow proper installation procedures can result in severe engine damage and void any applicable warranties.
Post-Rebuild Operation and Break-in
After completing the engine rebuild, a proper break-in procedure is critical to ensure the longevity and performance of the new components, especially piston rings and bearings.
Break-in Recommendations:
- Initial Start-up: Ensure adequate oil pressure is established immediately upon initial start-up.
- Vary RPMs: For the first 500-1000 miles, avoid prolonged periods at a constant RPM. Vary engine speed to properly seat piston rings.
- Avoid Heavy Loads: Do not tow, race, or subject the engine to heavy loads during the break-in period.
- Oil Changes: Perform an initial oil and filter change at approximately 500 miles to remove any break-in contaminants. Follow the vehicle manufacturer's recommended oil change intervals thereafter.
- Monitor Gauges: Continuously monitor oil pressure, coolant temperature, and other engine gauges during the break-in period for any abnormalities.
Maintenance
Proper maintenance is crucial for the long-term health of your rebuilt engine. Adhere to the vehicle manufacturer's recommended maintenance schedule.
- Regular Oil Changes: Use high-quality engine oil and filters at recommended intervals.
- Coolant System: Maintain proper coolant levels and ensure the cooling system is functioning efficiently.
- Air Filter: Replace the air filter regularly to prevent contaminants from entering the engine.
- Spark Plugs: Inspect and replace spark plugs as per the vehicle's service schedule.
- Listen for Abnormalities: Pay attention to any unusual noises, vibrations, or changes in engine performance, and address them promptly.
Troubleshooting
While this kit provides quality components, issues can arise during or after an engine rebuild. This section offers general guidance.
| Symptom | Possible Cause | Action |
|---|---|---|
| Low Oil Pressure | Incorrect bearing clearances, faulty oil pump, clogged oil pickup, low oil level. | Check oil level. Verify oil pump operation. Re-check bearing clearances. Consult service manual. |
| Engine Overheating | Improperly installed head gasket, air in cooling system, faulty thermostat, restricted coolant flow. | Bleed cooling system. Inspect head gasket installation. Check thermostat. |
| Excessive Smoke from Exhaust | Improperly seated piston rings, worn valve stem seals, incorrect PCV system operation. | Ensure proper break-in. Verify valve stem seal installation. Check PCV system. |
| Unusual Engine Noises | Incorrectly torqued fasteners, component interference, bearing issues, valvetrain problems. | Immediately investigate source of noise. Stop engine if severe. Consult professional. |
For complex issues, it is strongly recommended to consult a qualified automotive technician or the vehicle manufacturer's service manual.
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Enginetech |
| Manufacturer | ENGINETECH |
| Model Number | R-RCC134JP |
| Item Weight | Approximately 1 pound (packaging weight may vary) |
| Application | 2003-2005 Chevrolet Cavalier / Sunfire 2.2L DOHC L61 Ecotec VIN "F" |
| Piston/Ring Sizes Available | STD, 020, 030 |
| Rod/Main Bearing Sizes Available | STD, 010, 020 |
| Quality Standards | Manufactured by companies with ISO, QS & TS quality systems |
Warranty and Support
Enginetech is committed to providing high-quality products. If you encounter any issues with your kit or require a different size part than ordered, please contact the seller directly for assistance.
- Exchanges: If a different size part is needed, do not initiate a return through the marketplace. Instead, send a direct message to the seller specifying the required exchange.
- Product Issues: For any issues with the kit components, please send a message to the seller with details of the problem and a call-back phone number. The seller aims to resolve issues quickly.
- Contact Seller: For all support inquiries, please refer to your purchase platform for seller contact information (e.g., "Redline Engine Supply" on Amazon).
This information is provided for general guidance. Specific warranty terms and conditions may apply and are typically provided by the seller at the time of purchase.
