1. Introduction
The Sellerocity Pressure Washer Wand Saver Quick Connect Socket is designed to enhance the stability and longevity of your pressure washer lance. This brass coupler features a 1/4 inch NPT female inlet and a 1/4 inch quick connect socket outlet, incorporating a 3/4 inch shoulder. This design provides crucial support to the lance, particularly when using extensions or heavy accessories, thereby reducing the risk of fracture or breakage at the connection point. It is rated for up to 4000 PSI and 300°F, ensuring robust performance in demanding pressure washing applications.
2. Safety Information
- Always ensure the pressure washer system is completely depressurized before connecting, disconnecting, or servicing any components.
- Wear appropriate personal protective equipment, including eye protection, during operation.
- Verify all connections are secure and free from leaks before starting the pressure washer.
- Do not exceed the maximum operating pressure (4000 PSI) or temperature (300°F) of this device or your pressure washer system.
3. Product Overview
The Wand Saver is a durable brass fitting engineered to provide a stable connection between your pressure washer lance and quick-connect accessories. Its key feature is the integrated 3/4 inch shoulder, which distributes stress along a wider area of the lance, preventing common failure points.
Figure 1: Quick Connect End of the Wand Saver. This image displays the quick connect socket, designed for easy attachment and detachment of pressure washer accessories.
Figure 2: NPT Threaded Inlet of the Wand Saver. This image highlights the 1/4 inch NPT female threads, which connect to the pressure washer lance.
Figure 3: Side Profile of the Wand Saver. A complete view of the brass unit, illustrating its compact and robust design.
4. Setup and Installation
Follow these steps to properly install the Sellerocity Pressure Washer Wand Saver:
- Preparation: Ensure your pressure washer is turned off and the system is fully depressurized.
- Identify Connection Points: Locate the 1/4 inch NPT male threaded end of your pressure washer wand or lance.
- Apply Thread Sealant: Apply PTFE thread seal tape (Teflon tape) to the male threads of your pressure washer wand/lance to ensure a watertight seal.
- Attach Wand Saver: Thread the 1/4 inch NPT female end of the Wand Saver onto the male threads of your pressure washer wand/lance. Hand-tighten first, then use a wrench to snug it securely. Ensure the 3/4 inch shoulder of the Wand Saver makes firm contact with the lance, providing the intended support.
Figure 4: Wand Saver and Lance Connection. This image shows the Wand Saver ready to be attached to a pressure washer lance.
- Connect Accessory: Once the Wand Saver is securely attached to your lance, insert the 1/4 inch quick connect plug of your desired accessory (e.g., nozzle, extension, foam cannon) into the quick connect socket of the Wand Saver. Push firmly until it clicks into place. Pull on the accessory to confirm it is securely locked.

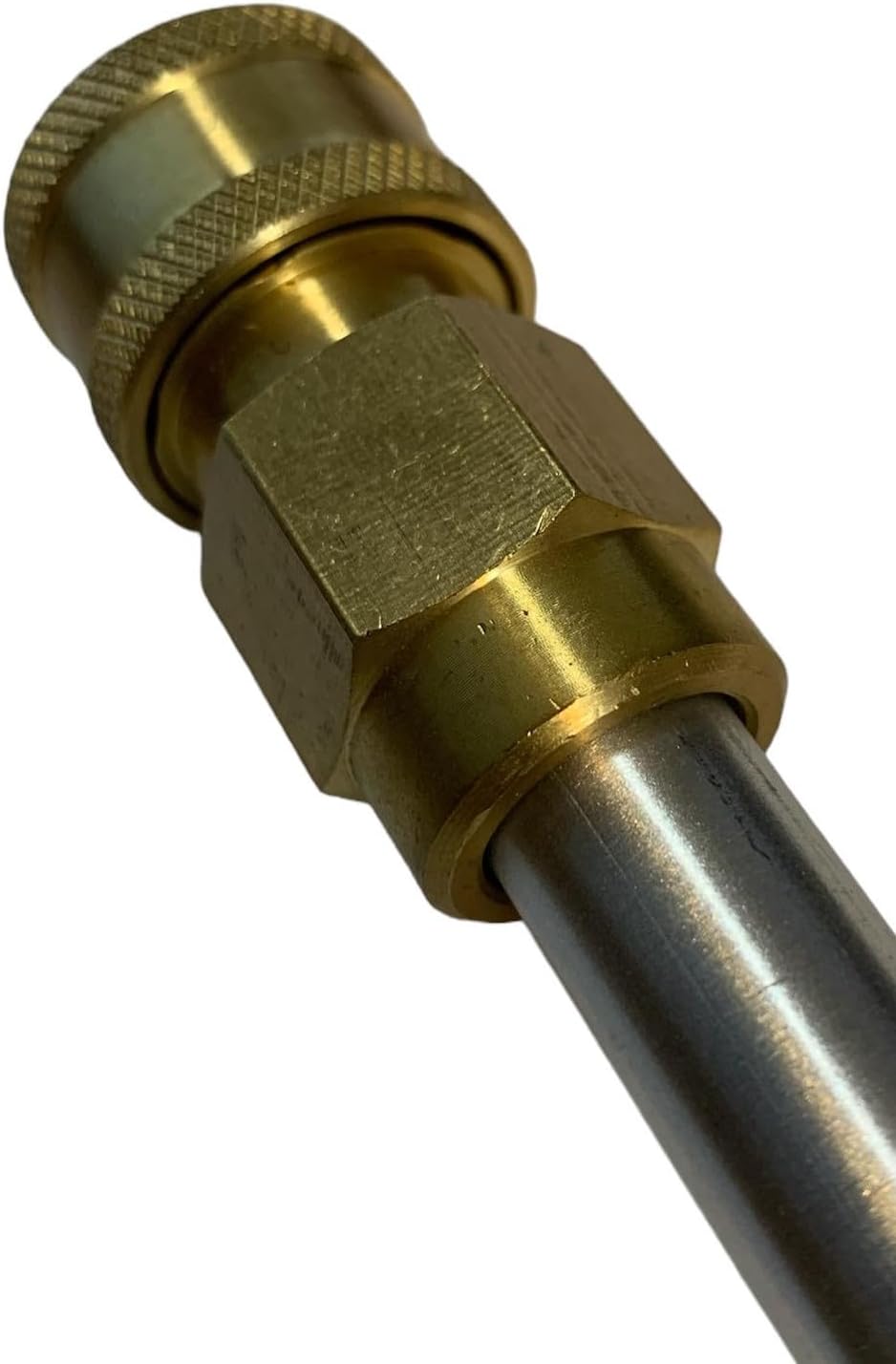

Figure 5: Wand Saver Fully Connected. This image illustrates the Wand Saver properly installed on a lance, with the shoulder providing stability.
5. Operation
After successful installation, the Wand Saver functions as a standard quick connect socket with the added benefit of enhanced stability. Operate your pressure washer according to its manufacturer's instructions. The reinforced connection provided by the Wand Saver helps to distribute stress more evenly, reducing the likelihood of damage to your lance, especially when using longer extensions or heavier attachments.
6. Maintenance
- Inspection: Regularly inspect the Wand Saver for any signs of wear, corrosion, or damage. Check the quick connect mechanism for smooth operation.
- Cleaning: Keep the quick connect socket and threads clean and free of debris. A small amount of silicone grease can be applied to the quick connect mechanism to maintain smooth action, if necessary.
- Storage: Store the Wand Saver in a clean, dry environment when not in use to prevent corrosion and prolong its lifespan.
7. Troubleshooting
- Leakage at NPT Connection: If water leaks from the threaded connection, ensure sufficient PTFE thread seal tape was applied and that the connection is tightened securely.
- Difficulty Connecting/Disconnecting Accessories: Check the quick connect socket for any debris or obstructions. Ensure the quick connect plug on your accessory is clean and undamaged.
8. Specifications
| Material | Brass |
| Inlet Connection Type | 1/4 inch NPT Female |
| Outlet Connection Type | 1/4 inch Quick Connect Socket |
| Maximum Operating Pressure | 4000 PSI |
| Maximum Operating Temperature | 300°F |
| Number of Ports | 2 |
| UPC | 689003338862 |
9. Warranty and Support
This Sellerocity Pressure Washer Wand Saver Quick Connect Socket comes with a 6-month no hassle warranty. For any questions, technical assistance, or warranty claims, please refer to Sellerocity's official customer support channels or contact your retailer.
