iMah 2.4V 750mAh Ni-MH Cordless Phone Battery Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your iMah 2.4V 750mAh Ni-MH replacement battery pack. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of your battery.

The iMah BT-800 / BT-8300 series batteries are designed as direct replacements for various cordless phone models, offering a 2.4V 750mAh Ni-MH power source.

2. Compatibility

This iMah 2.4V 750mAh Ni-MH battery pack is compatible with a wide range of cordless telephone models and replaces several original battery part numbers. It is crucial to verify your phone's model number and the original battery's part number, cell size, and connector type before installation.

Compatible Battery Part Numbers:

• BT-800, BT-8001, BT-8300
• BT-1011, BT-1018, BT-1022, BT-1031
• BT184342, BT284342
• BT18433, BT28433
• BT-6010, BT-8000

Compatible Cordless Phone Models:

VTech DECT 6.0 Phone Systems: CS6209, CS6219, CS6219-2, CS6219-3, CS6219-4, CS6229, CS6229-2, CS6229-3, CS6229-4, CS6229-5, DS3101, DS3111-2, DS6111, DS6111-2, DS6111-3, DS6111-4, DS6115-2, DS6121, DS6121-2, DS6121-3, DS6121-4, DS6121-5, DS6122-5, DS6201, DS6211, DS6211-2, DS6211-3, DS6211-4, DS6221, DS6221-2, DS6221-3, DS6221-4, DS6221-5, DS6222-4, DS6222-5, DS6301, DS6321, DS6321-3, DS6321-4, DS6322, DS6322-3, DS6322-4, ip-8300, ip-831, IS6110, VS6121-4, VT-6042, VT-6043, VT-6052, VT-6053.

AT&T DECT 6.0 Phone Systems: CL74209, CL74309, CL80109, CL81109, CL81209, CL81309, CL82109, CL82209, CL82309, CL82359, CL82409, CL82509, CL82589, CL82609, CL82659, CL82859, CL84109, CL84209, CL84309, EL51109, EL51209, EL51359, EL52109, EL52209, EL52259, EL52309, EL52409, SL80108, SL81108, SL82000, SL82108, SL82118, SL82208, SL82218, SL82308, SL82318, SL82408, SL82418, SL82518, SL82558, SL82618, SL82658, TL90078, TL92278, TL92328, TL92378.

Uniden Phone Systems: Wxi3077, DECT3080, DECT4066, DECT4096.

Motorola Phone Systems: L601M, L602, L603M, L701, L702M, L903, L513CBT.

GE Phone Systems: 36407.

Sanik Phone Systems: 2SN-AAA55H-S-J1, 2SN-AAA65H-S-J1, 2SN-AAA70H-S-J1.

Radio Shack Phone Systems: 23-546, 23-930, 43-206, R6042.

Always compare the battery cell size and connector type with your original battery to ensure proper fit and function.

Image: Comprehensive compatibility table for iMah Ryme B-series batteries, detailing various models, sizes, capacities, and connector types (round hole vs. square hole).

3. Installation

Follow these steps to correctly install your new iMah replacement battery:

1. Power Off Device: Ensure your cordless phone handset is powered off and disconnected from its charging base.
2. Locate Battery Compartment: Open the battery compartment cover on the back of your phone handset. This usually involves sliding a cover or pressing a latch.
3. Remove Old Battery: Carefully disconnect the old battery pack from the phone's connector. Remove the old battery from the compartment.
4. Verify New Battery: Before inserting, confirm that the new iMah battery's connector type (square hole) matches your phone's receptacle and that the battery dimensions are appropriate for the compartment.

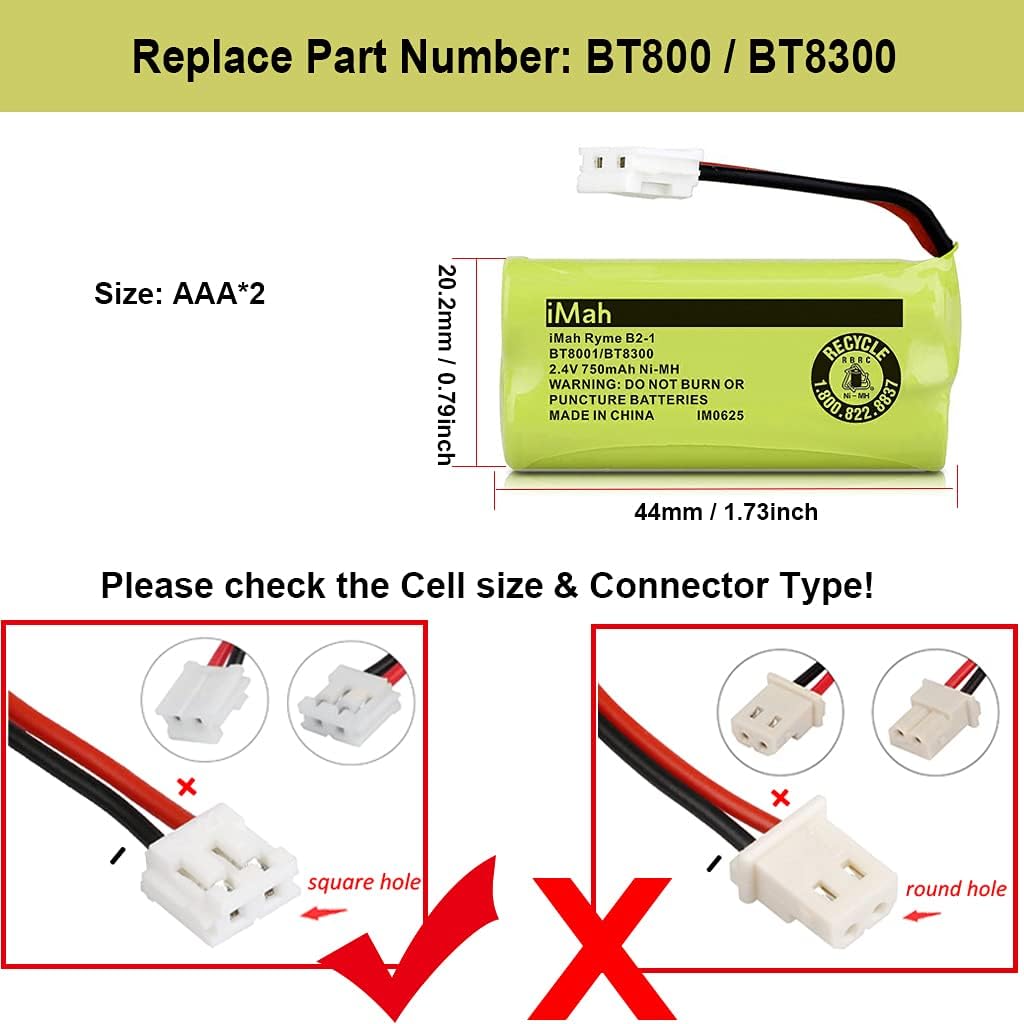

Image: The iMah 2.4V 750mAh Ni-MH battery showing its dimensions (44mm x 20.2mm) and illustrating the correct square-hole connector type for compatibility, contrasting it with an incompatible round-hole connector.

5. Connect New Battery: Plug the new iMah battery pack's connector firmly into the phone's battery terminal. Ensure it clicks into place securely.
6. Position Battery: Place the battery pack neatly inside the compartment, ensuring no wires are pinched.
7. Close Compartment: Replace the battery compartment cover until it is securely closed.
8. Initial Charge: Place the handset on its charging base for an initial charge of at least 12-16 hours, even if the phone indicates a full charge sooner. This conditions the battery for optimal performance.

Image: A detailed close-up of the iMah battery's two-pin connector, highlighting its square-hole design for proper connection.

4. Operating Instructions

Charging

• For the first use, charge the battery for 12-16 hours to ensure full conditioning.
• Regularly return the handset to its charging base when not in use to maintain charge.
• Avoid leaving the battery completely discharged for extended periods, as this can reduce its lifespan.

Usage

• The battery provides 2.4V power with a 750mAh capacity, suitable for typical cordless phone usage.
• Battery life will vary based on phone usage patterns, talk time, and standby time.

5. Maintenance

• Regular Charging: Keep the handset on its charging base when not in use to ensure the battery remains charged.
• Avoid Extreme Temperatures: Do not expose the battery to extreme heat or cold, as this can degrade performance and shorten lifespan.
• Proper Storage: If storing the battery for an extended period, charge it to about 50% capacity and store it in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
• Cleaning: Keep battery contacts clean and free of dust or corrosion.
• Recycling: When the battery reaches the end of its life, dispose of it responsibly according to local recycling regulations for Ni-MH batteries. Do not dispose of in household waste.

6. Troubleshooting

Battery Not Holding Charge:

• Ensure the battery was fully charged for 12-16 hours initially.
• Check if the phone's charging contacts and battery contacts are clean and making proper connection.
• Verify that the charging base is powered and functioning correctly.
• Ni-MH batteries have a limited lifespan. If the battery is old, it may need replacement.

Phone Not Powering On After Battery Installation:

• Confirm the battery connector is securely plugged into the phone's terminal.
• Ensure the battery is correctly oriented within the compartment.
• Place the handset on the charging base for a few minutes to see if it powers on.

Incorrect Fit:

• Double-check the battery dimensions and connector type against your original battery and phone specifications. Refer to the compatibility section and images.
• Ensure no wires are obstructing the battery compartment cover.

7. Specifications

Image: The iMah battery displaying its key specifications including 2.4V voltage, 750mAh capacity, 19.8g weight, and AAA*2 Ni-MH cell type.

8. Warranty and Support

iMahDirect provides a 24-month warranty from the date of purchase, covering all quality-related issues. If you encounter any problems with your iMah battery pack within this period, please contact iMahDirect for support.

For further assistance or inquiries, please refer to the contact information provided with your purchase or visit the official iMah website.
