1. Introduction
The Panasonic WhisperGreen Select Dual Speed Ceiling Mount Exhaust Fan (Model FV-0511VKS2) is designed to provide efficient and quiet ventilation for various rooms in your home. This fan operates at an "always on" low speed to maintain fresh air and can increase to a higher speed when activated by a switch or sensor, automatically returning to low speed after a user-set time. Its superior performance exceeds industry standards set by ASHRAE and ENERGY STAR, offering certified CFM performance at 0.5 w.g. and low sone levels. The Flex-Z Fast Bracket simplifies installation, allowing for easy positioning without attic access and supporting both 4" and 6" ducting. This manual provides essential information for the safe and effective setup, operation, and maintenance of your fan.
2. Safety Information
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect power at the service panel before working on the fan.
- All wiring must comply with local electrical codes and ordinances.
- Do not install this fan in a cooking area or where it may be exposed to excessive heat or grease.
- Ensure proper grounding to prevent electrical shock.
- Wear safety glasses and gloves during installation.
- Keep children and unauthorized persons away from the installation area.
- Do not use this fan with any solid-state speed control device unless specifically designed for it.
3. Setup and Installation
The Panasonic WhisperGreen Select fan features a Flex-Z Fast Bracket for simplified installation. Professional installation is encouraged for electrical wiring.
3.1. Unboxing and Components
Carefully remove all components from the packaging. Verify that all parts are present before beginning installation.
Figure 1: Overview of the Panasonic WhisperGreen Select Exhaust Fan (Model FV-0511VKS2) showing the main unit, duct connector, and electrical housing.
3.2. Key Product Features
Understand the core features that make this fan efficient and versatile.
Figure 2: Diagram highlighting key features including SmartFlow Technology for true airflow, whisper quiet operation (0.3 to 0.8 Sones), Flex-Z Fast bracket for easy installation, a 6-year motor warranty, and customization options with add-on modules.
3.3. Dimensions and Room Suitability
Ensure the fan's dimensions are suitable for your installation space and room size.
Figure 3: Dimensional drawing of the fan unit, indicating a 13" x 13" footprint and 7.5" depth. It supports 4" or 6" ducting. The fan is suitable for various room sizes, with recommendations for higher CFM in frequently used areas.
3.4. Flex-Z Fast Installation System
The Flex-Z Fast bracket allows for flexible, fast, and trouble-free installation, even from below the ceiling. This system simplifies mounting the fan housing between joists.

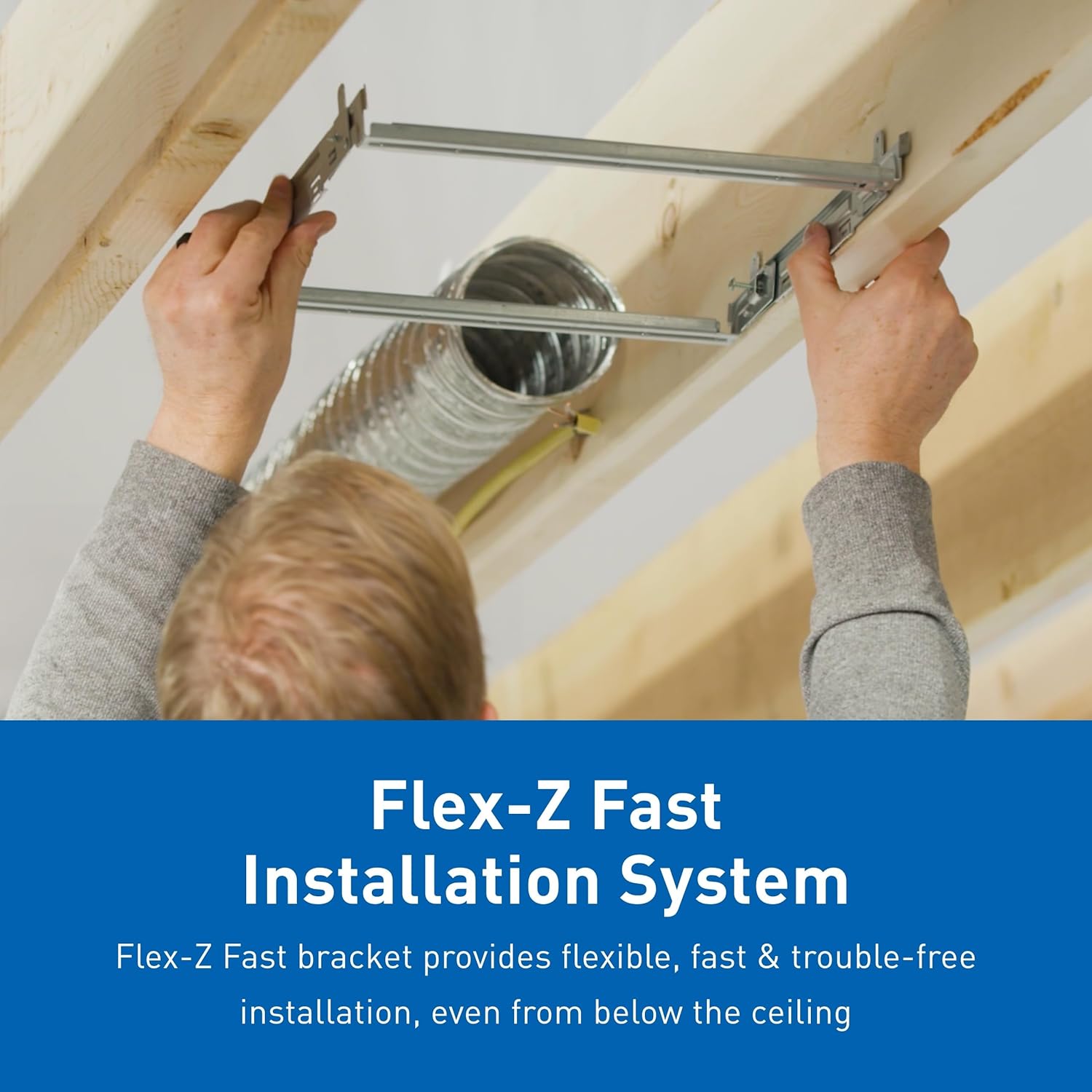

Figure 4: Demonstration of the Flex-Z Fast bracket being installed into ceiling joists, illustrating its ease of use for mounting the fan housing.
Video 1: Official product video demonstrating the installation process of the WhisperGreen Select Ventilation Fan, including the use of the Flex-Z Fast bracket and electrical connections. Professional installation is recommended.
4. Operating Instructions
The WhisperGreen Select fan offers dual-speed operation and customizable airflow settings to suit your needs.
4.1. Multi-Speed CFM Operation
The fan operates quietly at an "always on" low speed to maintain fresh air. It increases to a higher speed when activated by a switch or sensor, then automatically returns to low speed after a user-set time.
Figure 5: Detailed view of the internal switch for selecting the desired CFM (Cubic Feet per Minute) airflow, allowing customization based on room size and ventilation requirements.
4.2. Customizable with Add-On Modules
The Panasonic WhisperGreen Select fans can accommodate up to 3 add-on modules (sold separately) to create a system tailored to your specific needs. These modules include Smart Action Motion Sensor, Condensation Sensor, and Multi-Speed with Time Delay.
Figure 6: Illustration of optional add-on modules that can enhance the fan's functionality, such as motion sensing, condensation detection, and multi-speed with time delay. These modules are sold separately.
4.3. Understanding CFM and Sones
CFM (Cubic Feet per Minute) indicates the volume of air moved by the fan, directly correlating to its power and suitability for room size. Sones measure the sound level of the fan, with lower sone ratings indicating quieter operation.
Figure 7: Infographic explaining CFM (Cubic Feet per Minute) and its correlation with room size, providing guidance on selecting appropriate airflow for small, medium, and large spaces.
Figure 8: Infographic illustrating Sones as a measure of sound, comparing the fan's quiet operation (0.3-0.8 Sones) to common household noises like a running fridge or office environment.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your exhaust fan. Always disconnect power before performing any maintenance.
- Cleaning the Grille: Periodically wipe the grille with a soft, damp cloth to remove dust and debris. Do not use abrasive cleaners.
- Cleaning the Fan Blade: If necessary, remove the grille and carefully wipe the fan blade with a damp cloth. Ensure the blade is dry before reassembling.
- Motor Lubrication: The fan motor is permanently lubricated and requires no additional oiling.
- Ductwork Inspection: Annually inspect the ductwork for any blockages or leaks that could reduce fan efficiency.
6. Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate. | No power, loose wiring, tripped circuit breaker. | Check power supply, ensure all connections are secure, reset circuit breaker. |
| Fan is noisy. | Loose mounting, dirty fan blade, ductwork obstruction. | Ensure fan is securely mounted, clean fan blade, check ductwork for obstructions. |
| Low airflow. | Dirty fan blade/grille, ductwork obstruction, incorrect CFM setting. | Clean fan blade and grille, clear ductwork, verify CFM setting is appropriate for room size. |
| Excessive vibration. | Unbalanced fan blade, loose mounting screws. | Inspect fan blade for damage or debris, tighten all mounting screws. |
7. Specifications
Detailed technical specifications for the Panasonic WhisperGreen Select Exhaust Fan (FV-0511VKS2).
- Brand: Panasonic
- Model Name: FV-0511VKS2
- Electric Fan Design: Exhaust Fan
- Color: White
- Product Dimensions: 13"D x 13"W x 7.4"H
- Room Type: Bathroom, Garage, Living Room, Laundry Rooms
- Special Feature: Adjustable CFM output, SmartFlow technology, Easy installation
- Noise Level: 0.8 Sones
- Wattage: 20 watts
- Air Flow Capacity: 110 Cubic Feet Per Minute (CFM)
- Voltage: 120 Volts
- Control Method: App (with optional modules)
- Blade Material: Plastic
- Efficiency: 11.1 CFM/Watt
- Number of Power Levels: 3 (Adjustable CFM settings)
- Item Weight: 1 pounds (16 ounces)
- Included Components: Cord
- Indoor/Outdoor Usage: Indoor
- UPC: 885170337305
8. Warranty and Support
This Panasonic WhisperGreen Select Exhaust Fan comes with a Manufacturer Warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the warranty card included with your product or visit the official Panasonic website.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts and optional modules, please contact Panasonic Customer Service. Contact information can typically be found on the product packaging, the official Panasonic website, or through your authorized dealer.
