Dunlop Geomax MX33 70/100-10 Rear Tire User Manual

1. Product Overview

The Dunlop Geomax MX33 is an advanced off-road rear tire engineered for superior performance on soft-to-intermediate terrain. This tire incorporates innovative technologies in its construction, compound, and tread pattern to enhance durability, grip, and handling characteristics.

Key features include:

• Advanced Apex Design: Features a taller, thinner apex in the tire construction for improved shock absorption and ride smoothness.
• Carcass Tension Control System: Optimizes component tension distribution, allowing the tire to absorb shock while maintaining necessary flexibility for straight-line tracking.
• Enhanced Rubber Compound: Utilizes a higher molecular weight polymer and carbon micro-particles for increased durability and grip.
• Multiple Block Distribution Technology: Increases the number of knobs on shoulders and center, varying their height and angles for more biting edges, superior traction, and improved handling.
• Tie Bars: Connects each knob to improve durability by reducing flex at the base.

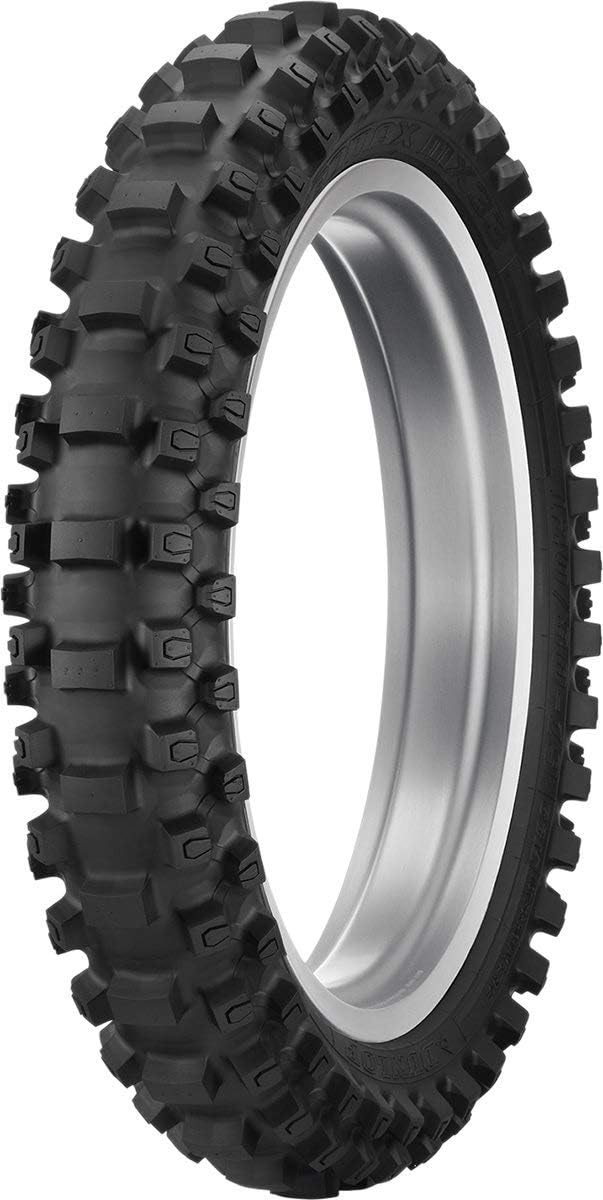

Image 1.1: Side view of the Dunlop Geomax MX33 70/100-10 Rear Tire, showcasing its tread pattern and overall profile.

2. Setup and Installation

Proper installation is crucial for tire performance and safety. It is highly recommended that tire installation be performed by a qualified professional using appropriate tools and techniques.

2.1 Pre-Installation Checks

• Verify that the tire size (70/100-10) matches the vehicle's specifications.
• Inspect the tire for any manufacturing defects or shipping damage prior to mounting.
• Ensure the rim is clean, free of damage, and compatible with the tire.

2.2 Mounting Instructions

1. Lubricate the tire beads and rim flanges with a suitable tire mounting lubricant.
2. Carefully mount one bead of the tire onto the rim.
3. Insert the inner tube (if applicable) and ensure the valve stem is correctly positioned through the rim hole.
4. Mount the second bead onto the rim, taking care not to pinch the inner tube.
5. Inflate the tire slowly to seat the beads. Listen for two distinct pops as the beads seat against the rim. Do not exceed the maximum seating pressure indicated on the tire sidewall.
6. Once beads are seated, adjust the tire pressure to the recommended operating pressure for your vehicle and riding conditions.

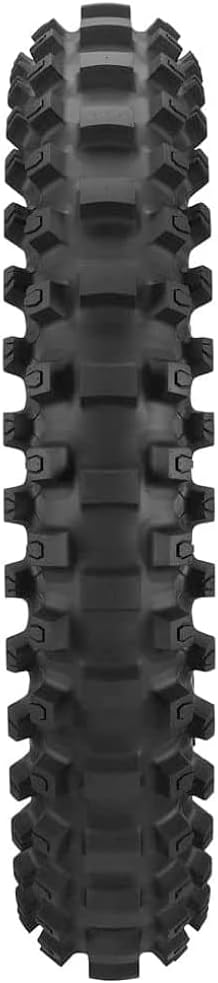

Image 2.1: Top-down view of the Dunlop Geomax MX33 tire, highlighting the aggressive tread pattern designed for off-road traction.

3. Operating Guidelines

To maximize the performance and lifespan of your Dunlop Geomax MX33 tire, adhere to the following guidelines:

3.1 Tire Pressure

• Always refer to your vehicle manufacturer's recommendations for optimal tire pressure.
• Check tire pressure before each ride when the tires are cold.
• Adjust pressure based on terrain, rider weight, and riding style. Lower pressures may be used for softer terrain to increase contact patch, but should be within safe limits to prevent rim damage or tire instability.

3.2 Terrain Suitability

The Geomax MX33 is specifically designed for soft-to-intermediate off-road conditions. While it offers versatility, extreme hard-pack or asphalt use may accelerate wear and reduce performance.

3.3 Break-in Period

New tires require a break-in period. Ride cautiously for the first few miles to allow the tire surface to scuff in and for you to become accustomed to the new tire's handling characteristics.

4. Maintenance

Regular maintenance extends tire life and ensures consistent performance.

4.1 Inspection

• Periodically inspect the tire for cuts, punctures, cracks, or any signs of damage.
• Check tread depth regularly. Replace the tire when the tread wear indicators are visible or when the tread depth is insufficient for safe operation.
• Examine the sidewalls for bulges or deformities.
• Ensure the valve stem is intact and not leaking air.

4.2 Cleaning and Storage

• Clean tires with mild soap and water after riding, especially if exposed to harsh chemicals or mud.
• Store tires in a cool, dry place away from direct sunlight, heat sources, and ozone-generating equipment (e.g., electric motors).

Image 4.1: Detailed view of the Dunlop Geomax MX33 tire's tread pattern, illustrating the Multiple Block Distribution Technology.

5. Troubleshooting

This section addresses common issues related to tire performance.

5.1 Uneven Wear

Uneven wear can be caused by incorrect tire pressure, suspension issues, or aggressive riding styles. Regularly check tire pressure and inspect suspension components. If uneven wear persists, consult a professional.

5.2 Loss of Air Pressure

A gradual or sudden loss of air pressure indicates a puncture, a faulty valve stem, or improper bead seating. Inspect the tire for foreign objects, check the valve stem, and ensure the tire beads are fully seated. If a puncture is found, professional repair or replacement is necessary.

5.3 Tire Damage

Any significant cuts, bulges, or impact damage to the tire should be addressed immediately. Do not ride on a damaged tire. Seek professional assessment for repair or replacement.

6. Specifications

7. Safety Information

Always prioritize safety when handling, installing, and operating with tires. Improper use or maintenance can lead to serious injury or death.

• Never exceed the maximum load capacity or inflation pressure indicated on the tire sidewall.
• Regularly inspect tires for wear and damage. Replace worn or damaged tires immediately.
• Ensure proper tire pressure is maintained according to vehicle manufacturer specifications.
• Professional installation is recommended to prevent injury and ensure correct mounting.
• This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning). Handle with care and wash hands after contact.

8. Warranty and Support

For information regarding the product warranty or for technical support, please contact Dunlop customer service directly. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the official Dunlop website or through your authorized dealer.
