IG INGLAM 1875W Hair Dryer User Manual

1. Important Safety Instructions

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

• DANGER – As with most electrical appliances, electrical parts are electrically live even when the switch is off. To reduce the risk of death by electric shock:
1. Always unplug this appliance immediately after using.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. If an appliance falls into water, unplug it immediately. Do not reach into the water.
• WARNING – To reduce the risk of burns, electrocution, fire, or injury to persons:
1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped, damaged, or dropped into water.
5. Keep the cord away from heated surfaces. Do not pull, twist, or wrap cord around the appliance.
6. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
7. Never use while sleeping.
8. Never drop or insert any object into any opening.
9. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
10. Do not use an extension cord with this appliance.
11. Do not direct hot air toward eyes or other heat-sensitive areas.
12. Attachments may be hot during use. Allow them to cool before handling.
13. Do not place appliance on any surface while it is operating.
14. While using the appliance, keep your hair away from the air inlets.
15. Do not use with a voltage converter.

2. Product Overview

The IG INGLAM 1875W Hair Dryer is designed for efficient and healthy hair drying, featuring advanced ionic technology and multiple settings for versatile styling.

Figure 2.1: IG INGLAM 1875W Hair Dryer with included concentrator nozzles.

Key Features:

• 1875W Powerful Motor: Delivers strong and stable airflow for quick drying.
• Negative Ionic Technology: Releases millions of nano ions to smooth hair, reduce frizz, and enhance shine.
• Adjustable Settings: 2 speed settings (Off/Low/High) and 3 heat settings (Cool/Warm/Hot) for customized drying.
• Cool Shot Button: Locks in curls, waves, and styles with a burst of cool air.
• Included Attachments: Comes with two concentrator nozzles for precise styling.
• Removable Lint Filter: Allows for easy maintenance and extends motor life.
• Safety Plug: Features an ALCL Safety Plug for earth leakage protection.
• Long Power Cord: Equipped with a 9 ft professional cord for convenience.

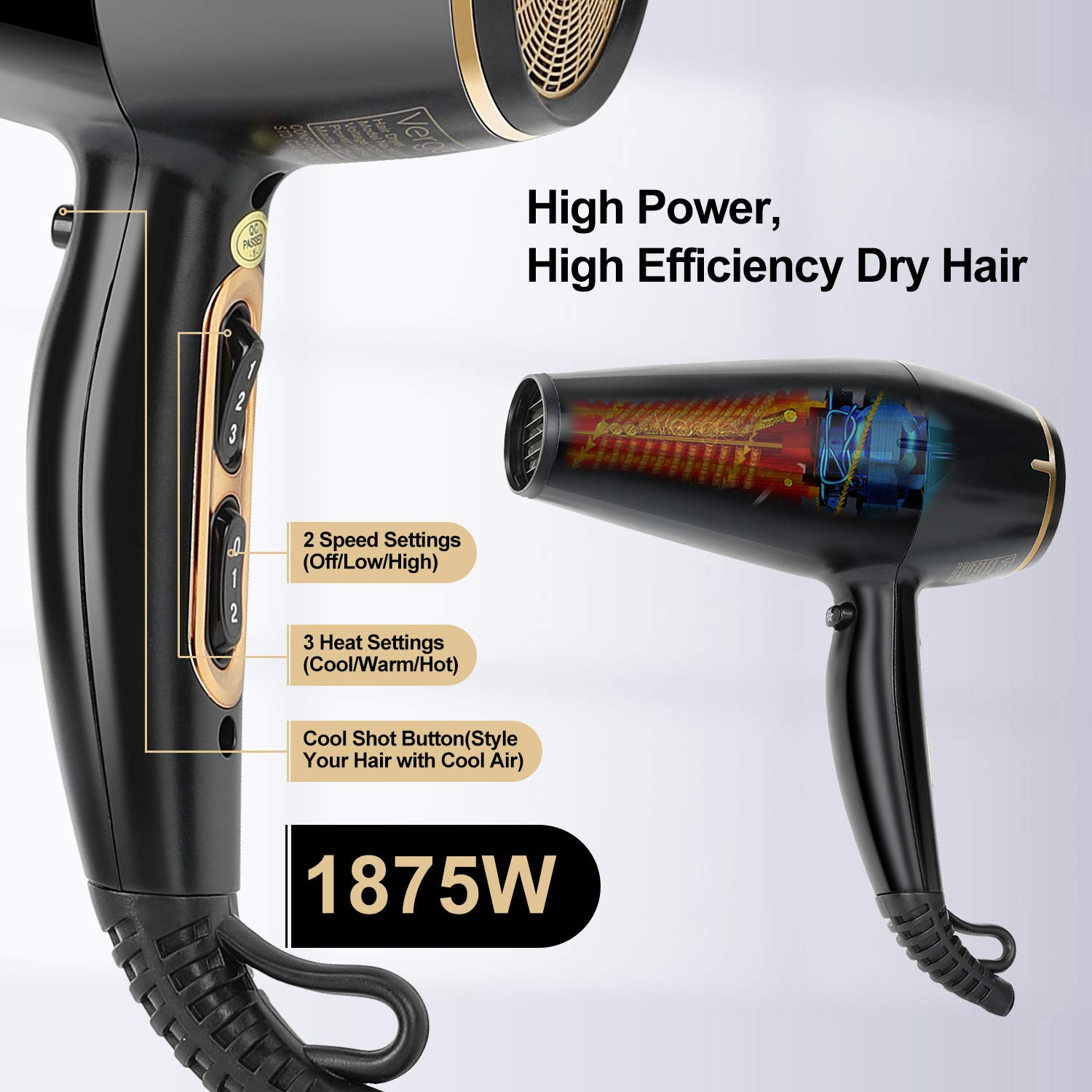

Figure 2.2: Detailed view of the hair dryer's control panel, highlighting speed, heat, and cool shot settings.

Figure 2.3: Illustration of the negative ion technology at work, promoting smooth and beautiful hair across various hair lengths.

Figure 2.4: Key design elements of the hair dryer: long power cord, removable air filter for easy cleaning, ALCL safety plug for protection, and a convenient hang loop.

Figure 2.5: The two included attachments: a smoothing nozzle for wide airflow and a styling concentrator for targeted high-speed airflow.

3. Setup

Follow these steps to set up your IG INGLAM Hair Dryer for first use:

1. Unpack the Dryer: Carefully remove the hair dryer and all accessories from the packaging. Ensure all components are present, including the hair dryer unit and the two concentrator nozzles.


Figure 3.1: The hair dryer and its accessories as they appear in the product packaging.

2. Attach Nozzles (Optional): Select the desired concentrator nozzle (smoothing or styling) and firmly attach it to the front of the hair dryer. The nozzles are designed to snap securely into place.
3. Connect to Power: Unwind the power cord and plug the ALCL safety plug into a standard electrical outlet. Ensure the outlet voltage matches the specifications of the hair dryer.

4. Operating Instructions

Your IG INGLAM Hair Dryer offers flexible settings for various styling needs.

1. Power On/Off: Locate the speed switch on the handle. Slide it to position '1' for Low speed or '2' for High speed to turn the dryer on. Slide it to '0' to turn the dryer off.
2. Adjust Heat Settings: Use the heat switch, typically located above the speed switch. Select from 'Cool' (no heat), 'Warm' (medium heat), or 'Hot' (high heat) according to your preference and hair type.
3. Use Cool Shot: Press and hold the 'Cool Shot' button (usually a separate button) to instantly deliver a burst of cool air. This is ideal for setting your hairstyle after drying. Release the button to return to the selected heat setting.
4. Using Concentrator Nozzles:
   • Smoothing Nozzle: Provides a wide, gentle airflow, ideal for general drying and smoothing hair.
   • Styling Concentrator: Delivers a concentrated, high-speed airflow, perfect for precise styling and creating specific looks.
5. Drying Technique: Hold the dryer approximately 6-8 inches away from your hair. Move the dryer continuously to prevent overheating any single section of hair.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your hair dryer.

1. Cleaning the Removable Air Filter:
   • Ensure the hair dryer is unplugged and completely cool before cleaning.
   • Gently twist or pull off the rear air filter cover.
   • Remove any accumulated lint, dust, or hair from the filter screen using a soft brush or cloth.
   • Replace the filter cover, ensuring it clicks securely into place.
2. General Cleaning: Wipe the exterior of the hair dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Storage: When not in use, store the hair dryer in a cool, dry place. Do not wrap the power cord tightly around the dryer, as this can damage the cord. Use the integrated hang loop for convenient storage.

6. Troubleshooting

If you encounter issues with your hair dryer, refer to the following common problems and solutions:

7. Specifications

Technical specifications for the IG INGLAM 1875W Hair Dryer.

Figure 7.1: Product dimensions of the hair dryer and its included concentrator nozzles.

8. Warranty and Support

IG INGLAM stands behind the quality of its products.

• Warranty: This product comes with a ONE-YEAR replacement guarantee.
• Customer Service: Life-long customer service is provided by IG INGLAM. If you have any questions, concerns, or require assistance, please feel free to contact us.
• Contact Information: For support, please refer to the contact details provided on the product packaging or the official IG INGLAM website.
