Carepeutic Touch Screen Oxy-Energized Water Jet Foot & Leg Spa Massager User Manual

1. Product Overview

The Carepeutic Touch Screen Oxy-Energized Water Jet Foot & Leg Spa Massager is designed to provide a luxurious and therapeutic foot and leg spa experience. Utilizing the essential benefits of warm water exercise and hyperthermia healing rehabilitation, this device offers a natural and effective way to ease foot pain and refresh meridians of the lower body. It features an advanced touch screen panel, motorized massage rollers, oxy-energized rotating nodes, water jet surfing system, air bubble and red light therapy, and a smart thermal control system to maintain water temperature.

Figure 1.1: Carepeutic Foot and Leg Spa Massager (Closed View)

2. Important Safety Information

Please read all instructions carefully before using the foot spa massager. Failure to follow these safety guidelines may result in injury or damage to the product.

• Ensure the device is unplugged when not in use or during cleaning.
• Avoid submerging the unit in water beyond the specified fill line.
• Supervise children during use to prevent accidents.
• Consult a healthcare provider if you have a medical condition, are pregnant, or have any concerns about using this device.
• Do not use if the power cord or plug is damaged.
• Keep the unit away from heat sources and direct sunlight.
• Do not stand in the unit. Use only while seated.

3. Product Components

Familiarize yourself with the main components of your Carepeutic Foot Spa Massager:

• Touch Screen Control Panel: For power, temperature, massage, timer, and bubble/red light functions.
• Water Basin: Large capacity for calf-deep water soaking.
• Motorized Massage Rollers: Four rollers for sole massage.
• Oxy-Energized Rotating Nodes: Sixteen nodes for enhanced massage.
• Water Jets: Two powerful jets for water circulation and moist hot air bubbles.
• Red Light Therapy: Integrated for therapeutic benefits.
• Drain Hose: For convenient water drainage.
• Mobile Casters & Pull Handle: For easy movement and storage.
• Herbal Bag Container: Built-in for bath salts or tea bags.

Figure 3.1: Internal Components of the Foot Spa

Figure 3.2: Touch Screen Control Panel

4. Initial Setup

Follow these steps to set up your foot spa massager for first use:

1. Placement: Place the foot spa on a flat, stable, and waterproof surface. Ensure it is near a power outlet and in a comfortable seating area.
2. Fill with Water: Open the lid and fill the water basin with warm or cold water, depending on your preference. Do not exceed the maximum fill line indicated inside the basin.
3. Add Enhancements (Optional): If desired, place bath salts, essential oils, or a tea bag into the built-in herbal bag container.
4. Power Connection: Plug the power cord into a standard electrical outlet.

Figure 4.1: Proper Seating Position for Use

5. Operating Instructions

This section details how to operate your Carepeutic Foot Spa Massager using the touch screen panel.

5.1 Basic Operation

1. Power On: Press the On/Off button on the touch screen panel to turn on the unit. The LED display will illuminate.
2. Set Water Temperature: Use the Temp+ and Temp- buttons to adjust the desired water temperature. The smart thermal control system will automatically activate or deactivate heating to maintain the set temperature.
3. Select Massage Mode: Press the Massage button to cycle through the three different rolling massage modes provided by the motorized rollers and oxy-energized nodes.
4. Activate Bubbles & Red Light: Press the Red Light Air Bubble button to activate the air bubble function and red light therapy. This stimulates blood flow and soothes muscles.
5. Set Timer: Use the Timer button to set the desired duration for your spa session.
6. Begin Massage: Once settings are adjusted, place your feet into the water basin and enjoy the massage.
7. Power Off: After use, press the On/Off button to turn off the unit.

5.2 Using the Touch Screen Panel

The advanced touch screen panel is waterproof and features LED backlighting for easy visibility. Each icon corresponds to a specific function:

• On/Off: Power the unit on or off.
• Temp+ / Temp-: Increase or decrease water temperature.
• Timer: Set the operating time.
• Massage: Cycle through different massage programs.
• Red Light Air Bubble: Activate bubble and red light therapy.

Figure 5.1: Water Jets and Bubbles in Operation

6. Maintenance and Cleaning

Regular maintenance ensures the longevity and hygienic operation of your foot spa massager.

1. Draining Water: After each use, unplug the unit. Use the integrated drain hose to empty the water from the basin. Position the hose over a drain or bucket and allow all water to flow out.
2. Cleaning the Basin: Wipe the interior of the basin with a soft cloth and mild, non-abrasive cleaner. Rinse thoroughly with clean water. Do not use harsh chemicals or abrasive pads.
3. Cleaning Rollers and Nodes: Periodically clean the massage rollers and nodes with a small brush to remove any debris or residue.
4. Exterior Cleaning: Wipe the exterior of the unit with a damp cloth.
5. Storage: Ensure the unit is completely dry before storing. Use the pull handle and mobile casters to move the unit to a dry, cool place away from direct sunlight.

7. Troubleshooting Guide

If you encounter any issues with your foot spa massager, refer to the following table for common problems and solutions:

8. Product Specifications

Detailed specifications for the Carepeutic Touch Screen Oxy-Energized Water Jet Foot & Leg Spa Massager:

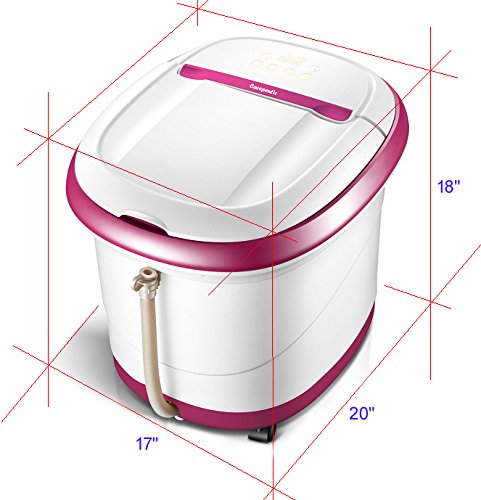

Figure 8.1: Product Dimensions

9. Warranty and Customer Support

For information regarding the product warranty, please refer to the warranty card included with your purchase or contact the manufacturer directly. Warranty terms and conditions may vary.

If you require further assistance, have questions not covered in this manual, or need to report a defect, please contact Carepeutic customer support. Contact details can typically be found on the product packaging or the manufacturer's official website.
