EAGLEGGO DC47-00019A Dryer Heating Element Replacement Manual

1. Introduction

This manual provides detailed instructions for the installation, testing, and maintenance of the EAGLEGGO DC47-00019A Dryer Heating Element. This replacement part is designed for various Samsung, Maytag, and Whirlpool dryer models, restoring proper heating function to your appliance. Please read all instructions carefully before proceeding with installation or repair.

2. Product Features & What's Included

The EAGLEGGO DC47-00019A Dryer Heating Element is a 240V 5300W replacement part, constructed with high-quality materials for durability and efficient heating. It is a non-original aftermarket part designed to meet or exceed original specifications.

Key Features:

Heater Element for Samsung Dryer DC47-00019A, 240V 5300W
Replacement for Whirlpool 35001247, 2068550
Dimensions: Length: 25cm, Width: 16.5cm
Replaces part numbers PS2038533, AP4201899, 35001247
Constructed with over 95% nickel chromium for high corrosion resistance and longevity.
Features 25% longer heating wire for even heat distribution and reduced breakage.

Package Contents:

1 x DC47-00019A Dryer Heating Element Assembly
Additional thermal fuses and thermistor (quantities may vary)

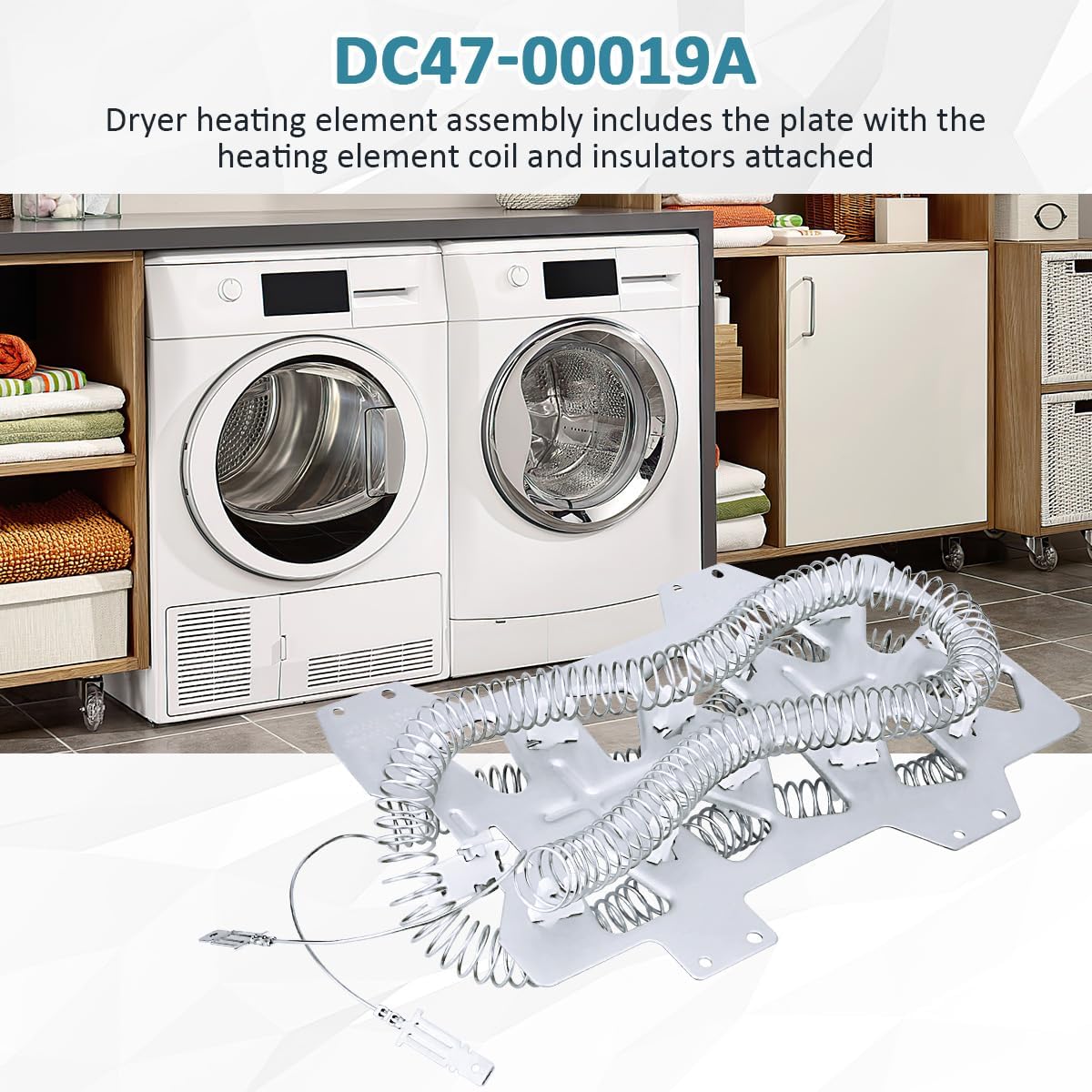

Figure 1: The complete EAGLEGGO DC47-00019A Dryer Heating Element assembly, including the heating coil and attached insulators.

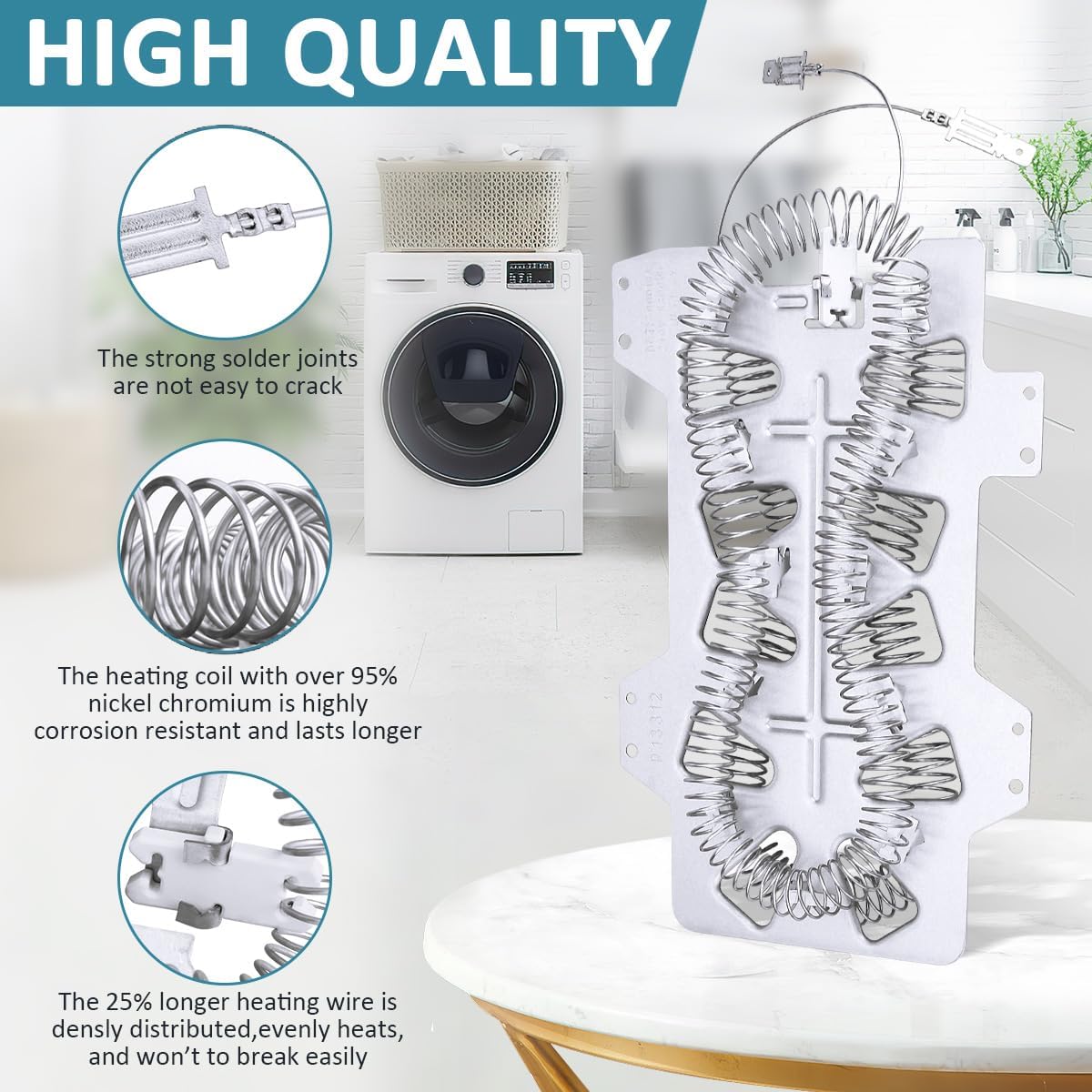

Figure 2: Close-up view of the heating element's high-quality construction, highlighting strong solder joints and the nickel chromium heating coil.

Video 1: Overview of the Funmit DC47-00019A Dryer Heating Element Kit, showcasing the main heating element and included components like thermal fuses and thermistor.

3. Compatible Models

The DC47-00019A heating element is compatible with a wide range of Samsung, Maytag, and Whirlpool dryer models. Please verify your dryer's model number against the list below to ensure compatibility. You can typically find the model number on a label inside the dryer door or on the back of the unit.

Partial List of Compatible Samsung Dryer Models:

DV203AES
DV203AEW
DV206AES
DV206LEW
DV209AEW
DV210AES
DV210AEW
DV218AEB
DV218AES
DV218AEW
DV219AEB

DV219AEW

DV220AEW

DV221AEG

DV221AES

DV229AEG

DV231AEW

DV2C6BEW

DV306BEW

DV306LEW

DV316BEC

DV316BEW

DV316HEC

DV316LES

DV316LEW

DV317AEG

DV317AES

DV317AEW

DV328AEG

DV328AER

DV328AEW

DV330AEB

DV330AEW

DV331AER

DV331AEW

DV337AEG

DV337AEL

DV337AER

DV337AEW

DV338AEB

DV338AEW

DV339AEG

DV339AEL

DV339AER

DV339AES

DV339AEW

DV340AEG

DV340AER

DV350AEG

DV350AEP

DV350AER

DV350AEW

DV361EWBEWR

DV363EWBEUF

DV365ETBGSF

DV365ETBGWR

DV393ETPARA

DV393ETPAWR

DV395ETPARA

DV395ETPASU

DV395ETPAWR

DV3C6BEW

DV400EWHDWR

DV405ETPAGR

DV405ETPASU

DV405ETPAWR

DV407AEW

DV409AER

DV409AEW

DV409SEL

DV410AER

DV410AEW

DV419AES

DV419AEU

DV419AEW

DV422EWHDWR

DV428AEL

DV428AEW

DV42H5000EW

DV42H5200EF

DV42H5200EP

DV42H5200EW

DV42H5400EF

DV42H5400EW

DV431AEP

DV431AEW

DV433ETGJWR

DV438AEL

DV438AER

DV448AEE

DV448AEP

DV448AEW

DV456ETHDSU

DV456EWHDSU

DV456EWHDWR

DV45H7000EW

DV45H7200EW

DV45H7400EP

DV476ETHASU

DV476ETHAWR

DV484ETHASU

DV484ETHAWR

DV48H7400EP

DV48H7400EW

DV501AEW

DV50F9A6EVW

DV50F9A7EVP

DV50F9A7EVW

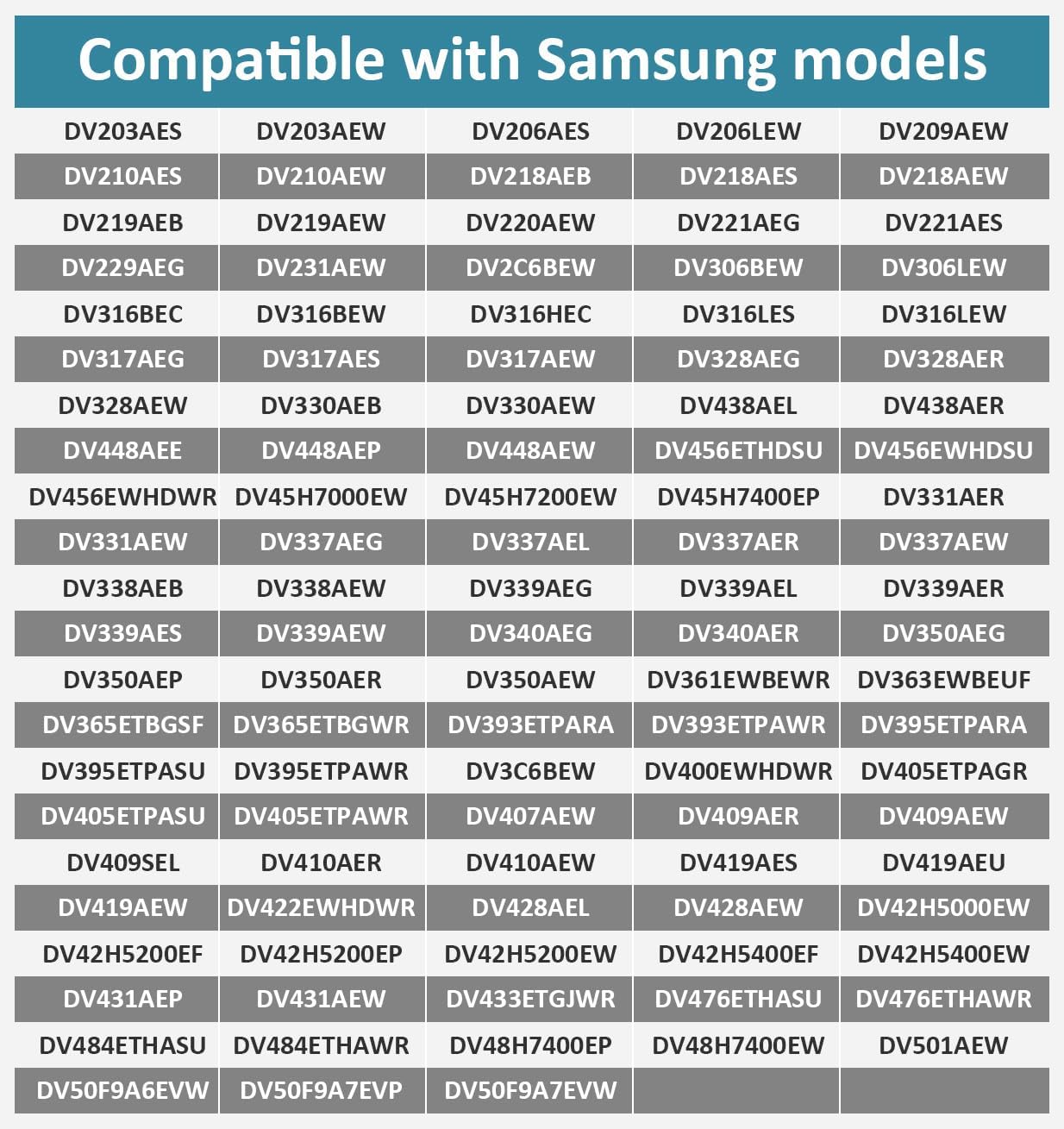

Table of compatible Samsung dryer models

Figure 3: A visual representation of compatible Samsung dryer models for the DC47-00019A heating element.

4. Safety Information

WARNING: Appliance repair can be dangerous. Always disconnect power to the appliance before beginning any repairs. Failure to do so may result in serious injury or death.

Always unplug the dryer from the power outlet before servicing.
Turn off the circuit breaker supplying power to the dryer.
Wear appropriate personal protective equipment, such as gloves and safety glasses.
If you are unsure about any step, consult a qualified appliance technician.
Ensure proper ventilation when working with appliances.

5. Installation Instructions

Replacing a dryer heating element typically involves disassembling the dryer's outer casing to access the heating element housing. The process may vary slightly depending on your specific dryer model. Refer to your dryer's service manual for model-specific disassembly instructions.

General Steps:

Disconnect Power: Unplug the dryer and turn off the circuit breaker.
Access Rear Panel: Remove screws securing the rear access panel of the dryer.
Locate Heating Element: The heating element is typically housed in a metal chamber at the bottom rear of the dryer.
Disconnect Wires: Carefully disconnect the electrical wires from the old heating element, thermal fuses, and thermistor. Note their positions for reassembly.
Remove Old Element: Unscrew and remove the old heating element assembly from its housing.
Install New Element: Place the new DC47-00019A heating element assembly into the housing and secure it with screws.
Connect Wires: Reconnect the electrical wires to the new heating element, thermal fuses, and thermistor in their correct positions.
Reassemble Dryer: Reattach the rear access panel and any other parts removed during disassembly.
Restore Power: Plug the dryer back in and turn on the circuit breaker.
Test Dryer: Run a short cycle to ensure the dryer heats properly.

Video 2: Demonstrates the process of accessing and replacing a Samsung dryer heating element, including removal of the old part and installation of the new one.

Video 3: A seller-provided video showing a quick overview of the installation process for the heating element, emphasizing ease of installation.

6. Testing the Heating Element and Fuses

Before and after installation, it's recommended to test the heating element and associated thermal fuses/thermistor for continuity using a multimeter. This helps diagnose issues and confirm proper function.

Testing Steps:

Set Multimeter: Set your multimeter to the Ohms (Ω) setting, preferably with an audible continuity test feature.
Test Heating Element: Place one probe on each terminal of the heating element. A reading of around 8-12 Ohms (or an audible beep) indicates good continuity. An 'OL' (open line) or infinite reading means the element is broken.
Check for Grounding: Place one probe on a heating element terminal and the other on the metal frame of the element. There should be no continuity (no beep, 'OL' reading). If there is continuity, the element is shorted to ground and needs replacement.
Test Thermal Fuses/Thermistor: For each fuse/thermistor, place one probe on each terminal. An audible beep or a very low Ohm reading indicates good continuity. An 'OL' reading means the fuse is blown or the thermistor is faulty.

Video 4: A quick guide on how to check the Samsung heating element for continuity using a multimeter, including testing for shorts to ground.

Video 5: Provides a quick look at how to test a heated element and its associated components for proper function.

7. Troubleshooting Common Issues

If your dryer is not heating or taking too long to dry, the heating element is a common culprit. However, other factors can contribute to heating problems.

Symptoms of a Faulty Heating Element:

No heat or not enough heat.
Dryer takes too long to dry clothes.
Dryer gets too hot.
Dryer will not shut off.

Symptoms fixed by DC47-00019A heating element

Figure 4: Illustrates common dryer symptoms that can be resolved by replacing the DC47-00019A heating element.

Other Potential Causes for No Heat:

Blown Thermal Fuse: Often caused by restricted airflow. Replace the fuse and address the airflow issue.
Faulty Thermistor/Thermostat: These regulate temperature. Test for continuity.
Restricted Airflow (Lint Buildup): This is a primary cause of heating element and thermal fuse failure. Regularly clean the lint trap and the dryer's exhaust vent. A clogged vent can cause the dryer to overheat, leading to component failure and potential fire hazards.
Broken Heating Element Coil: The coil itself can become brittle and snap over time.

Comparison of new vs. old heating element

Figure 5: A visual comparison between a new heating element and an old, potentially damaged one, showing the difference in coil integrity.

8. Specifications

Attribute	Value
Brand	EAGLEGGO
Model Number	DC47-00019A
Item Weight	1.01 pounds
Package Dimensions	10.87 x 6.89 x 2.83 inches
Material Type	Stainless Steel
Color	Silver
Voltage	240V
Wattage	5300W

Figure 6: Detailed product dimensions of the DC47-00019A heating element for accurate fitment.

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the EAGLEGGO store on Amazon. It is recommended to keep your purchase receipt for warranty claims.

EAGLEGGO Store: Visit the EAGLEGGO Store
