Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Monte Carlo Clarity 52-inch Hugger Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference. This fan features a 17-watt integrated LED light kit, three matte white blades, and includes both a hand-held remote and a wall control for convenient operation.

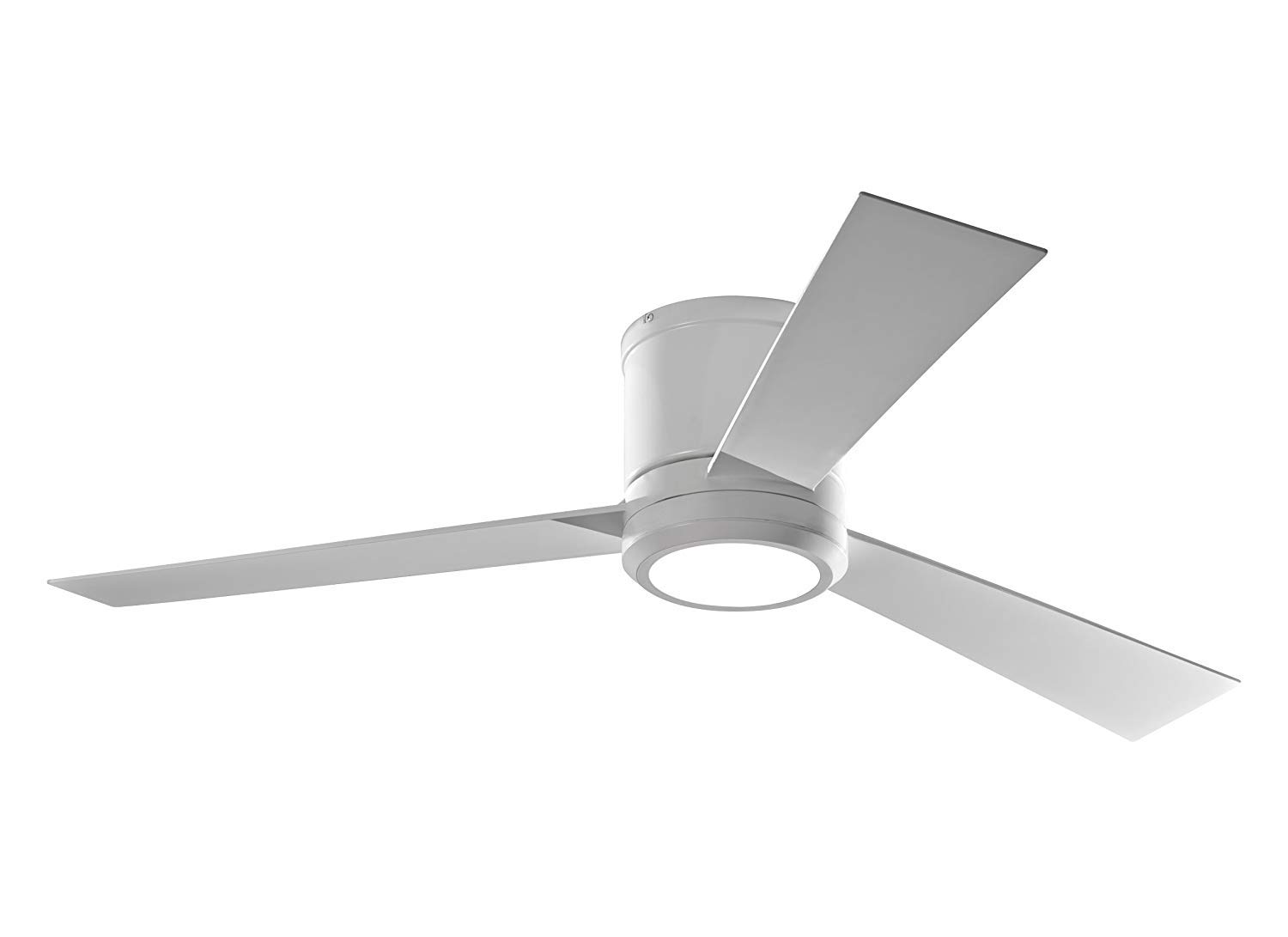

Image: The Monte Carlo Clarity 52-inch Hugger Ceiling Fan in matte white, featuring three blades and an integrated LED light, installed flush against a ceiling in a contemporary living space.
Important Safety Instructions
To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Read all instructions before installing the fan.
- Ensure the installation site is suitable for a ceiling fan and can support the fan's weight (approximately 17 lbs).
- All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician.
- Before installation or servicing, disconnect power by turning off the circuit breakers at the main fuse box.
- The fan must be mounted to an outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less."
- Maintain a minimum clearance of 7 feet from the floor to the trailing edge of the blades.
- Do not operate the fan with damaged blades. Replace all blades if any are damaged.
- Avoid placing objects in the path of the fan blades.
Package Contents
Verify that all components are present before beginning installation:
- Ceiling Fan Motor Assembly
- Fan Blades (3)
- LED Light Kit
- Remote Control
- Wall Control
- Mounting Bracket
- Hardware Pack (screws, washers, wire nuts)
- Instruction Manual
Setup and Installation
Professional installation is recommended. Ensure power is disconnected at the circuit breaker before proceeding.
- Prepare the Mounting Location: Securely attach the mounting bracket to a UL-listed outlet box capable of supporting a ceiling fan. Ensure the outlet box is directly supported by the building structure.
- Wiring Connections: Connect the fan's electrical wires to the household supply wires according to the wiring diagram provided in the separate wiring guide (if applicable) and local electrical codes. Use the provided wire nuts and ensure all connections are secure.
- Attach Motor Assembly: Carefully lift the fan motor assembly and attach it to the mounting bracket. Ensure all safety cables and screws are properly secured.
- Install Fan Blades: Attach the three fan blades to the motor hub using the provided screws. Ensure all blades are securely fastened.
- Install LED Light Kit: Connect the LED light kit wiring to the fan motor assembly. Secure the light kit housing to the fan.
- Remote Control Setup: Install batteries into the remote control. Follow the instructions in the remote control guide to pair it with your fan.
Image: A detailed view of the Monte Carlo Clarity 52-inch Hugger Ceiling Fan, highlighting its sleek motor housing and integrated LED light, designed for flush-mount installation.
Operating Instructions
Your Monte Carlo Clarity fan can be operated using the included hand-held remote control or the wall control.
Fan Operation
- Power On/Off: Press the fan power button on the remote or wall control to turn the fan on or off.
- Speed Control: Select from three fan speeds (Low, Medium, High) using the corresponding buttons on the remote or wall control.
- Direction Reversal: The fan features a reversing function for seasonal use. In warm weather, the fan should rotate counter-clockwise to create a downdraft, providing a cooling effect. In cool weather, the fan should rotate clockwise to create an updraft, circulating warm air near the ceiling. Refer to your remote/wall control guide for specific button location.
Light Operation
- Light On/Off: Press the light button on the remote or wall control to turn the LED light on or off.
- Dimming Function: To dim the light, press and hold the light button. Release the button when the desired brightness level is reached.
Image: A close-up view of the Monte Carlo Clarity 52-inch Hugger Ceiling Fan's central hub, showcasing the integrated LED light and the sleek matte white finish.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Periodically clean the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Blade Tightness: Check blade screws periodically to ensure they are tight. Loose blades can cause wobbling and noise.
- Light Kit: The LED light kit is integrated and designed for long life. Do not attempt to replace individual LEDs.
- Lubrication: The motor is permanently lubricated and does not require additional oiling.
Troubleshooting
Before attempting any repairs, ensure power is disconnected at the circuit breaker.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan will not start | No power to fan; Loose wire connections; Remote control not paired. | Check circuit breaker and wall switch; Verify all wire connections are secure; Re-pair remote control according to its instructions. |
| Fan wobbles | Loose blade screws; Improperly balanced blades; Loose mounting bracket. | Tighten all blade screws; Use a blade balancing kit (not included); Ensure mounting bracket is securely fastened to the outlet box. |
| Light will not turn on | Loose wire connection to light kit; Faulty LED light kit. | Check light kit wiring connections; Contact customer support for a replacement light kit if necessary. |
| Remote control not working | Dead batteries; Remote not paired; Interference. | Replace batteries; Re-pair remote control; Ensure no obstructions or strong interference sources are present. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Monte Carlo |
| Model Number | 3CLYR52RZWD-V1 |
| Product Dimensions | 52"D x 52"W x 9.2"H |
| Item Weight | 17 Pounds |
| Number of Blades | 3 |
| Blade Material | Plastic |
| Finish Type | Matte White |
| Light Type | Integrated 17 Watt LED, Dimmable |
| Motor Type | Premium Power Triple Capacitor 153 X 18 mm Torque-Induction Motor |
| Air Flow Capacity | 4710 Cubic Feet Per Minute (CFM) |
| Number of Speeds | 3 |
| Control Method | Remote Control, Wall Control |
| Indoor Outdoor Usage | Indoor |
| Voltage | 120 Volts |
Image: EnergyGuide label indicating an estimated yearly energy cost of $10 and an airflow of 2804 Cubic Feet Per Minute for a similar ceiling fan model.
Warranty and Support
Your Monte Carlo Clarity 52" Hugger Ceiling Fan is covered by a Limited Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use. For detailed warranty terms and conditions, please refer to the warranty documentation included with your purchase or visit the Monte Carlo official website.
For technical assistance, troubleshooting, or to inquire about replacement parts, please contact Monte Carlo Customer Support. Contact information can typically be found on the manufacturer's website or in your product packaging.
