Joie i-GEMM SIGNATURE Travel System Instruction Manual

1. Introduction

Thank you for choosing the Joie i-GEMM SIGNATURE Travel System. This manual provides essential information for the safe and correct use of your product, model C1404ABNOR000. Please read all instructions carefully before assembly and use, and keep this manual for future reference. Your child's safety is your responsibility.

2. Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always secure your child in the restraint system.
• Never leave your child unattended.
• Ensure all locking devices are engaged before use.
• Do not use accessories or replacement parts other than those approved by the manufacturer.
• This product is suitable for children from birth up to 3 years, or as indicated by weight/height limits.
• Regularly check the product for loose parts, damaged components, or signs of wear. Discontinue use if any damage is found.
• Keep away from fire and other strong heat sources.

3. Product Overview

The Joie i-GEMM SIGNATURE is an infant car seat designed for safety and comfort. It features a robust shell, a comfortable padded interior, and an adjustable canopy.

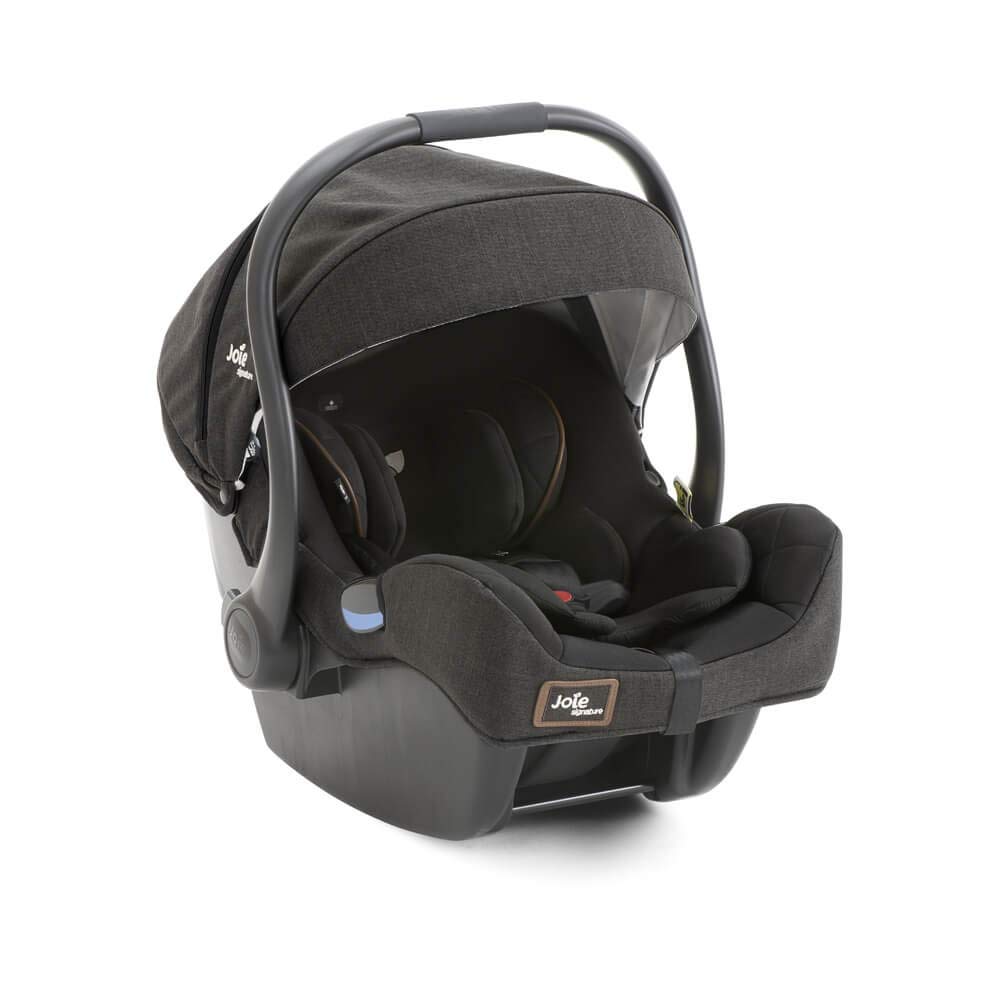

Figure 3.1: Joie i-GEMM SIGNATURE infant car seat, front-side view with canopy extended. This image shows the overall design of the car seat, including the ergonomic handle, the protective canopy, and the padded seating area.

Figure 3.2: Joie i-GEMM SIGNATURE infant car seat, side view with canopy. This view highlights the side impact protection and the curvature of the car seat shell.

Figure 3.3: Joie i-GEMM SIGNATURE infant car seat, front view without canopy. This image displays the harness system, the infant insert, and the Joie Signature branding.

Figure 3.4: Joie i-GEMM SIGNATURE infant car seat, front view with canopy extended. This perspective shows the full coverage of the canopy and the overall compact design.

Key Components:

• Carry Handle: Ergonomically designed for easy transport.
• Canopy: Adjustable and extendable for sun and weather protection.
• Harness System: 5-point harness with shoulder pads for secure restraint.
• Infant Insert: Removable padding for newborns, providing extra support and comfort.
• Base (Sold Separately/Integrated): For secure installation in a vehicle.
• Release Button: For detaching the car seat from its base or compatible stroller.

4. Setup and Installation

4.1 Car Seat Installation (with ISOFIX Base - if applicable)

1. Position the ISOFIX base (if included or purchased separately) on the vehicle seat.
2. Extend the ISOFIX connectors and push them onto the vehicle's ISOFIX anchorage points until they click securely. Green indicators should appear.
3. Adjust the load leg to the vehicle floor, ensuring it is firmly planted and the indicator shows green.
4. Place the i-GEMM SIGNATURE infant car seat onto the installed base, pressing down firmly until it clicks into place. Check for green indicators on the car seat release mechanism.
5. Always check for a secure fit by pulling on the car seat and base. There should be minimal movement.

4.2 Car Seat Installation (without Base - using vehicle seat belt)

1. Place the infant car seat rear-facing on the vehicle seat.
2. Route the vehicle's lap belt through the blue belt guides on the car seat.
3. Buckle the lap belt.
4. Route the shoulder belt through the blue belt guide at the back of the car seat.
5. Pull the shoulder belt tight to remove all slack, ensuring the car seat is securely fastened.
6. The car seat should not move more than 1 inch (2.5 cm) side-to-side or front-to-back at the belt path.

4.3 Adjusting the Harness

1. To loosen the harness, press the harness release button and pull the shoulder straps forward.
2. Place your child in the car seat. The shoulder straps should be at or just below your child's shoulders when rear-facing.
3. Buckle the harness clips together and insert them into the buckle until they click.
4. Pull the harness adjustment strap to tighten the harness until it is snug against your child's body. You should not be able to pinch any slack at the shoulder.

5. Operating Instructions

5.1 Carrying the Car Seat

• Ensure the carry handle is locked in the upright position before lifting.
• Always use two hands to lift and carry the car seat with your child inside.

5.2 Adjusting the Canopy

• The canopy can be extended or retracted by pulling it forward or pushing it back.
• Some models feature an extendable sun visor for additional protection.

5.3 Attaching to a Stroller (Travel System Functionality)

If using as part of a travel system, refer to your stroller's instruction manual for specific attachment procedures. Generally:

1. Ensure the stroller is fully unfolded and locked.
2. Align the car seat with the stroller's adapters (if required) or attachment points.
3. Press the car seat firmly onto the stroller until it clicks into place.
4. Always check that the car seat is securely attached to the stroller before use.

6. Maintenance and Care

6.1 Cleaning the Fabric

• The fabric covers are removable and machine washable on a delicate cycle with cold water. Do not bleach.
• Air dry only. Do not tumble dry.
• Refer to the care label on the fabric for specific instructions.

6.2 Cleaning the Hard Goods

• Wipe plastic parts with a damp cloth and mild soap.
• Do not use abrasive cleaners or solvents.

6.3 Storage

• Store the car seat in a clean, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues not listed here, please contact customer support.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

Joie products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Joie website. Keep your proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, replacement parts, or any questions regarding your Joie i-GEMM SIGNATURE Travel System, please contact Joie customer service. Contact information can typically be found on the Joie website or on the product packaging.
