BH Spazio Program G2567 Foldable Elliptical Bike User Manual

1. Introduction and Safety Instructions

This manual provides essential information for the safe assembly, operation, and maintenance of your BH Spazio Program G2567 Foldable Elliptical Bike. Please read all instructions carefully before use to ensure proper function and to prevent injury.

Important Safety Information:

• Consult a physician before starting any exercise program.
• Keep children and pets away from the equipment during operation.
• Place the elliptical on a flat, stable surface.
• Ensure all bolts and nuts are securely tightened before each use.
• Wear appropriate exercise clothing and footwear.
• Stop exercising immediately if you feel faint, dizzy, or experience pain.
• Do not exceed the maximum user weight limit (if specified, not provided in data).

2. Product Overview

The BH Spazio Program G2567 is a foldable elliptical bike designed for home fitness. It features a magnetic brake system, a 14 kg inertial system for smooth motion, and a comprehensive LCD display.

Figure 2.1: Overview of the BH Spazio Program G2567 Elliptical Bike. This image shows the full elliptical machine with its main components, including the console, handlebars, pedals, and base.

3. Setup and Assembly

Before assembly, ensure all parts are present and undamaged. Refer to the included assembly guide for detailed step-by-step instructions. Place the elliptical on a level surface with adequate space around it for safe operation.

3.1. Placement

Choose a location that is flat, stable, and provides sufficient clearance around the elliptical for safe entry and exit. Ensure the floor is protected from potential damage.

3.2. Transport Wheels

The elliptical is equipped with transport wheels for easy relocation. To move the machine, lift the rear stabilizer until the wheels engage the floor, then carefully push or pull the unit to the desired location.

Figure 3.1: Detail of the transport wheels and comfortable pedals. This image highlights the small wheels located at the front base of the elliptical for easy movement, and also shows the design of the foot pedals.

4. Components

• Console: Displays workout data and allows program selection.
• Handlebars: Fixed and movable handlebars for upper body engagement and heart rate monitoring.
• Pedals: Large, comfortable pedals with a 40 cm stride length and 20 cm distance between them.
• Inertial System: 14 kg flywheel for smooth and consistent motion.
• Magnetic Brake System: Provides quiet and precise resistance control.
• Folding Mechanism: Allows for vertical and horizontal folding for compact storage.
• Water Bottle Holder: Conveniently located for hydration during workouts.

Figure 4.1: Location of the water bottle holder. This image highlights the integrated water bottle holder on the main body of the elliptical, indicating where a water bottle can be placed.

Figure 4.2: Measurement of the 40 cm stride length between pedals. This image illustrates the distance covered by the pedals during a full cycle, indicating a 40 cm stride for effective exercise.

5. Operating Instructions

5.1. Console Functions

The backlit LCD monitor displays key workout metrics. Familiarize yourself with the buttons and display areas.

Figure 5.1: Close-up of the LCD console display. This image shows the illuminated screen displaying various metrics such as time, speed, distance, RPM, calories, watts, and pulse, along with program indicators.

Figure 5.2: Console with button layout. This image provides a detailed view of the console's control panel, highlighting buttons for 'BODY FAT', 'RECOVERY', 'START/STOP', 'RESET', and a central 'UP/DOWN/MODE/ENTER' dial for navigation and selection.

• Display Metrics: Speed, Pulse, RPM, Calories, Distance, Time, Watts.
• MODE/ENTER: Used to select modes and confirm settings.
• UP/DOWN: Adjusts resistance levels or navigates menu options.
• START/STOP: Begins or ends a workout.
• RESET: Clears current workout data.
• BODY FAT: Initiates the BodyFat test.
• RECOVERY: Initiates the Recovery Test.

5.2. Workout Programs

The elliptical offers various programs to diversify your training.

• 12 Predefined Programs: These programs offer 16 levels of resistance, providing varied workout challenges. Select a program using the console controls.
• 1 Customizable Profile (uPrg): Design and save your own workout profile based on your preferences and fitness goals.
• 4 Heart Rate Control (HRC) Programs: These programs allow you to select cardiovascular zones during exercise. The machine adjusts resistance to maintain your target heart rate. Use the pulse sensors on the handlebars for accurate readings.

5.3. Special Functions

• BodyFat Test: This function helps monitor the evolution of your body fat percentage. Follow the on-screen instructions to perform the test.
• Recovery Test (RT): Perform this test to determine how long it takes for your heart rate to return to its resting level after exercise.

6. Folding and Storage

The BH Spazio Program G2567 features a special folding system for convenient storage, minimizing its footprint when not in use.

6.1. Folding Procedure

To fold the elliptical, locate the folding mechanism (typically a pin or lever) and follow the instructions in your assembly guide. The machine can be folded vertically or horizontally.

Figure 6.1: Detail of the folding mechanism. This image shows a close-up of the locking pin or clamp that secures the elliptical in its upright position and allows it to be folded for storage.

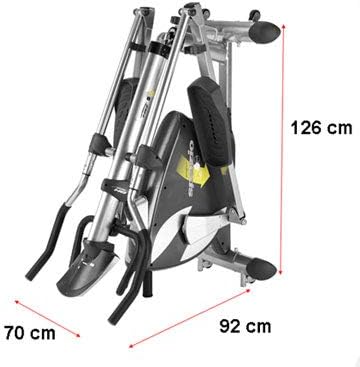

Figure 6.2: Vertical folded dimensions of the elliptical. This image displays the elliptical in its vertically folded position, with measurements indicating a height of 126 cm, width of 70 cm, and depth of 92 cm.

6.2. Folded Dimensions

• Vertical Folded (L x W x H): 92 cm x 70 cm x 126 cm
• Horizontal Folded (L x W x H): 126 cm x 70 cm x 92 cm

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your elliptical bike.

• Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Lubrication: Periodically check moving parts and apply lubricant as recommended in the full product manual (if applicable).
• Tightening: Regularly inspect all bolts, nuts, and connections to ensure they are secure. Tighten any loose components.
• Storage: Store the elliptical in a dry, cool place away from direct sunlight and extreme temperatures.

8. Troubleshooting

If you encounter issues with your elliptical, refer to the following common solutions. For more complex problems, contact customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official BH Fitness website. For technical support, spare parts, or service inquiries, please contact BH customer service through their official channels. Keep your purchase receipt as proof of purchase.

You can find more information and support on the BH Fitness Store on Amazon.
