Lizipai TSA007 3-Digit Combination Luggage Lock

Introduction

Thank you for choosing the Lizipai TSA007 3-Digit Combination Luggage Lock. This lock is designed to provide security for your luggage, suitcases, toolboxes, golf bags, backpacks, and gym bags. It features a 3-digit resettable combination and is 100% TSA and Sentry approved, allowing security personnel to inspect your baggage without damaging the lock.

A black Lizipai TSA007 3-digit combination lock, showing the three number wheels and the TSA keyhole.

Setup: Setting Your Combination

The factory default combination for your new lock is 0-0-0. Follow these steps to set your personal combination:

1. Ensure the lock is set to the default combination (0-0-0) and is unlocked.
2. Locate the small reset button or coding lever on the side or bottom of the lock. This is often a small, recessed button that requires a pen or pointed object to press.
3. Press and hold the reset button/coding lever.
4. While holding the reset button, rotate the three number wheels to your desired 3-digit combination. Choose a memorable number.
5. Release the reset button. Your new combination is now set.
6. Test your new combination by scrambling the numbers and then entering your new combination to unlock the device.

To change the combination again, repeat the steps above, starting with the lock set to its currently active combination.

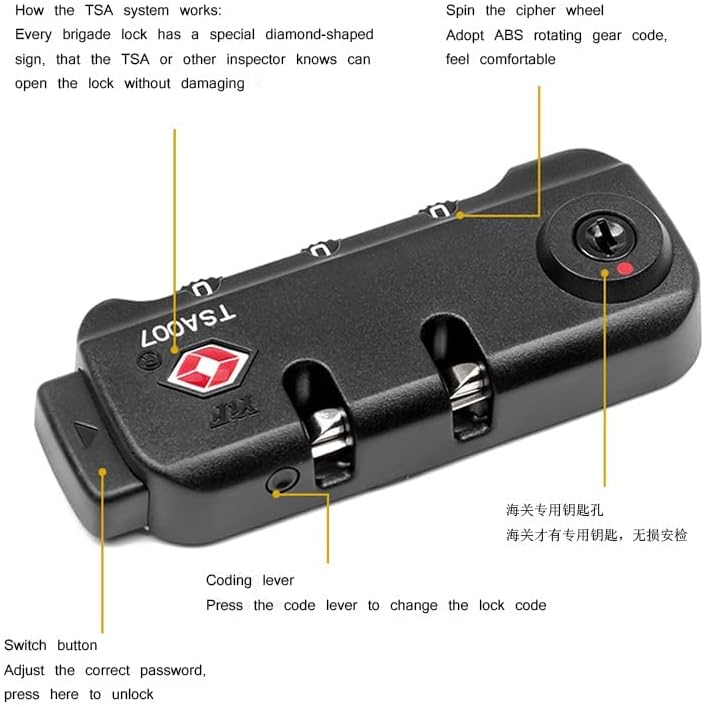

An annotated diagram highlighting key features of the Lizipai TSA007 lock, such as the coding lever, switch button, password wheels, and TSA keyhole.

Operating the Lock

To lock your item:

1. Align the zipper pulls or locking points of your item into the lock's designated slot.
2. Push the locking mechanism into place until it clicks, securing the zipper pulls.
3. Scramble the number wheels to a random combination to secure the lock.

To unlock your item:

1. Rotate the number wheels to your personal 3-digit combination.
2. Press the release button or slide the switch button (depending on the lock design) to open the locking mechanism.
3. Remove the zipper pulls from the lock.

TSA Keyhole: The small keyhole on the lock is for use by authorized TSA (Transportation Security Administration) agents only. They possess special master keys to open and re-lock your baggage for inspection without damaging your lock. This keyhole is not for user access.

This image displays the front of the Lizipai TSA007 lock, its rear with mounting points, and an example of it securing luggage zippers.

Maintenance

The Lizipai TSA007 lock requires minimal maintenance. Keep the lock clean and free from dirt or debris. If the number wheels become stiff, a small amount of silicone-based lubricant can be applied. Avoid using oil-based lubricants as they can attract dust.

Troubleshooting

• Lock will not open: Ensure the correct 3-digit combination is aligned precisely. If you have forgotten your combination, there is no master reset function for the user. You may need to try all 1000 combinations (000-999) or replace the lock.
• Number wheels are stiff: Apply a small amount of silicone lubricant to the wheels and rotate them several times to distribute the lubricant.
• Lock mechanism is stuck: Check for any foreign objects obstructing the mechanism. Ensure the combination is correctly set before attempting to open.

Specifications

A technical diagram showing the precise measurements of the Lizipai TSA007 lock, including length (75mm), width (31mm), and height (14mm).

Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For support or further inquiries, please refer to the retailer or manufacturer's contact information provided at the point of purchase.
