REPTI ZOO Dual Reptile Light Fixture Instruction Manual

1. Product Overview

The REPTI ZOO Dual Reptile Light Fixture is designed to provide optimal lighting and heating for various reptiles and amphibians. Its dual lamp cap integration allows for two different bulbs to be used simultaneously, offering flexibility for your pet's habitat needs. Each ceramic lamp cap can support up to 150W, making it suitable for a range of bulbs including ceramic heat lamps, UVB/UVA basking spot lamps, and nightlight lamps. The fixture features independent power lines for each lamp, ensuring precise control over your pet's environment. Built with durable, heat-resistant materials, it also incorporates radiating and ventilating holes for efficient heat dissipation and extended lamp life.

Figure 1: REPTI ZOO Dual Reptile Light Fixture

2. Setup Instructions

1. Unpack Contents: Carefully remove all components from the packaging. Verify that all parts are present: the dual light fixture, two independent power lines with switches, and the hanging hook.
2. Select Bulbs: Choose two appropriate bulbs (e.g., ceramic heat lamp, UVB/UVA basking spot lamp, daylight lamp, nightlight lamp, Infrared Spot Lamp) with a maximum wattage of 150W each. Ensure the bulb base is E26.
3. Install Bulbs: Screw the selected bulbs firmly into each of the two ceramic lamp caps.
4. Positioning: Place the fixture securely above your reptile's habitat. The integrated hanging hook can be used with a lamp stand (not included, or use the included stand if suitable for your setup) to suspend the fixture at the desired height. Ensure adequate distance from the animal to prevent burns.
5. Connect Power: Plug each independent power line into a suitable electrical outlet (100-120 Volts, 60 Hertz).

Figure 2: Product Dimensions (11.2"W x 7.5"H)

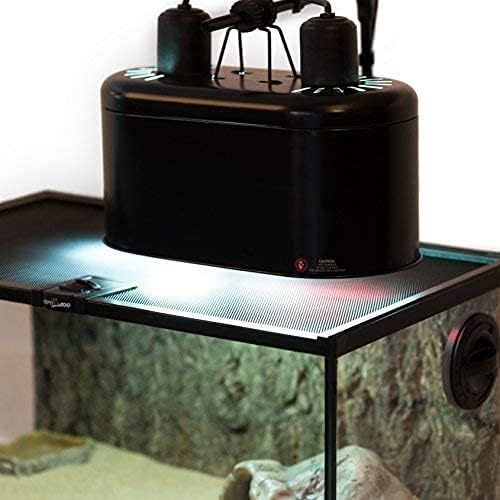

Figure 3: Example installation on a reptile enclosure.

3. Operating Instructions

The REPTI ZOO Dual Reptile Light Fixture is designed for simple and independent operation of each lamp.

• Independent Control: Each lamp cap is connected to its own power cord with an individual ON/OFF switch. This allows you to control each light source separately, providing flexibility for day/night cycles or specific heating/lighting requirements.
• Turning On/Off: Locate the ON/OFF switch on each power cord. Slide the switch to the "ON" position to activate the respective lamp, and to the "OFF" position to turn it off.
• Heat Dissipation: The fixture is equipped with radiating and ventilating holes on the top to ensure proper heat dissipation. Do not obstruct these holes during operation.

Figure 4: Top view showing lamp caps and ventilation holes.

Figure 5: Example of bulbs illuminated within the fixture.

Figure 6: Independent ON/OFF switches for each lamp.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your REPTI ZOO Dual Reptile Light Fixture.

• Cleaning: Disconnect the fixture from power before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners or immerse the unit in water.
• Bulb Replacement: Always ensure the fixture is unplugged and bulbs have cooled completely before attempting to replace them. Handle bulbs carefully to avoid breakage.
• Ventilation: Periodically check that the radiating and ventilating holes on the top of the fixture are free from dust and debris to maintain optimal heat dissipation.
• Safety: Keep the fixture and its components away from children.

5. Troubleshooting

If you encounter issues with your REPTI ZOO Dual Reptile Light Fixture, please refer to the following common solutions:

• Light Not Turning On:
  • Check if the power cord is securely plugged into the outlet.
  • Ensure the individual ON/OFF switch for the specific lamp is in the "ON" position.
  • Verify that the bulb is screwed in tightly and is not burnt out. Replace if necessary.
  • Test the outlet with another device to confirm it is receiving power.
• Overheating:
  • Ensure the wattage of the installed bulbs does not exceed 150W per cap.
  • Check that the ventilation holes on top of the fixture are not blocked.
  • Ensure there is adequate air circulation around the fixture.

For any further inquiries or persistent issues, please contact REPTI ZOO customer support. We aim to respond promptly to assist you within 24 hours.

6. Specifications

7. Warranty and Support

The REPTI ZOO Dual Reptile Light Fixture holds an ETL certification, ensuring it meets recognized safety standards.

Should you have any inquiries regarding your product, please reach out to REPTI ZOO customer support. We are committed to providing assistance and will respond promptly to help you within 24 hours.

For more information and product details, visit the official REPTI ZOO store: REPTI ZOO Store
