1. Product Overview
The GE Lighting Relax LED 3-Way A21 Light Bulb is an energy-efficient LED bulb designed to provide a warm, soft white light. This bulb features a 3-way functionality, allowing for adjustable brightness levels to suit various lighting needs in spaces such as bedrooms, family rooms, and dining rooms. It is engineered to enhance color appearance and contrast compared to standard LED bulbs.

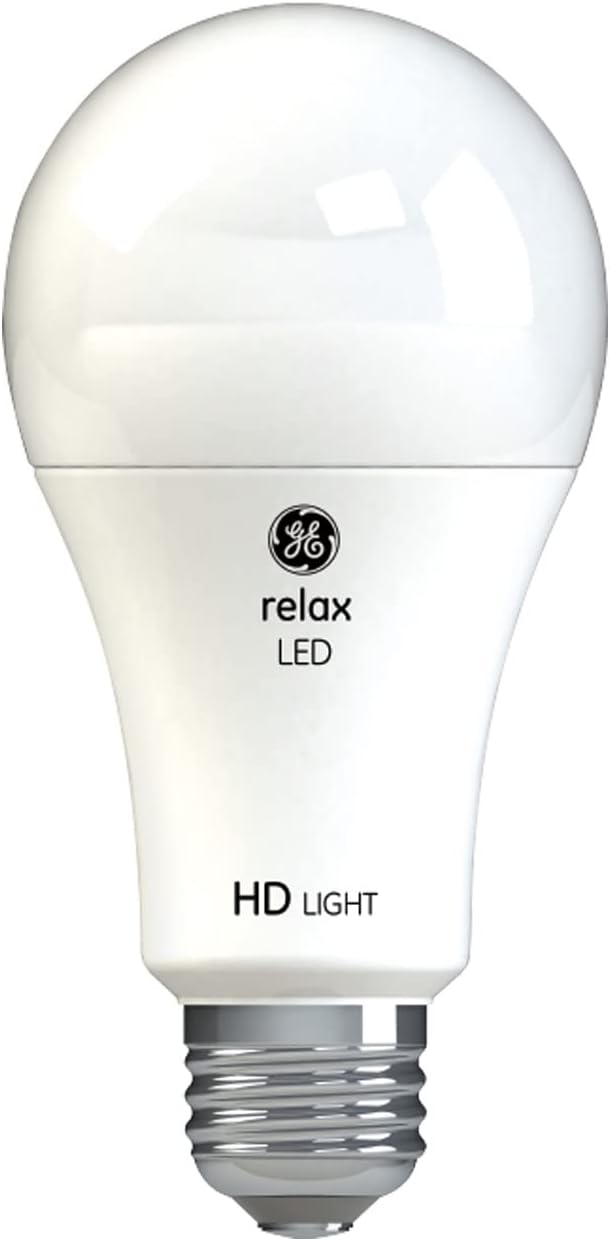

Image 1: GE Relax LED 3-Way A21 Light Bulb. This image displays the bulb itself, highlighting its A21 shape and the 'relax LED HD LIGHT' branding.
2. Safety Information
- Always turn off power to the fixture before installing or removing the bulb.
- Do not use with dimmers other than 3-way compatible sockets, as this is a 3-way bulb and not a standard dimmable bulb.
- Ensure the bulb is securely screwed into the socket.
- Do not disassemble the bulb.
- Suitable for indoor use in dry locations.
- Avoid direct contact with water.
- This bulb is designed for standard E26 medium base sockets.
3. Setup and Installation
Follow these steps to properly install your GE Lighting Relax LED 3-Way A21 Light Bulb:
- Power Off: Before installation, ensure the power to the light fixture is turned off at the switch and, if necessary, at the circuit breaker.
- Remove Old Bulb: Carefully unscrew the existing light bulb from the fixture. Allow it to cool if it was recently in use.
- Inspect Socket: Check the light fixture's socket for any damage or debris. Ensure it is clean and dry.
- Install New Bulb: Gently screw the GE Lighting Relax LED 3-Way A21 Light Bulb into the E26 medium base socket until it is finger-tight. Do not overtighten.
- Restore Power: Turn the power back on at the switch or circuit breaker.
Image 2: Diagram showing the dimensions of the GE Relax LED bulb, indicating a medium E26 base with a width of 1.03 inches and height of 1.05 inches.
4. Operating Instructions
The GE Lighting Relax LED 3-Way A21 Light Bulb provides three distinct brightness levels. To cycle through these levels, use a compatible 3-way lamp socket or fixture. Each click of the lamp's switch will change the brightness setting.
- First Click: Activates the lowest brightness setting (5 Watts / 400 Lumens). Ideal for ambient or night lighting.
- Second Click: Activates the medium brightness setting (11 Watts / 850 Lumens). Suitable for general room illumination.
- Third Click: Activates the highest brightness setting (16 Watts / 1500 Lumens). Provides maximum light output for tasks or bright illumination.
- Fourth Click: Turns the bulb off.
This bulb is designed to replace traditional 30/70/100-watt incandescent bulbs while consuming significantly less energy.
Image 3: Product packaging illustrating the 3-way functionality with corresponding wattages (5W, 11W, 16W) and lumen outputs (400, 850, 1500 lumens).
5. Specifications
| Feature | Specification |
|---|---|
| Model Number | 46226 |
| Light Type | LED |
| Special Feature | 3-Way (5W/11W/16W equivalent to 30W/70W/100W incandescent) |
| Brightness (Lumens) | 400 / 850 / 1500 |
| Light Color | Soft White |
| Color Temperature | 2700 Kelvin |
| Bulb Shape Size | A21 |
| Bulb Base | E26 (Medium Base) |
| Voltage | 120 Volts |
| Average Life | 15,000 Hours (approx. 13.7 years based on 3 hrs/day) |
| Indoor/Outdoor Usage | Indoor |
| Material | Glass |
| Energy Efficiency | Energy Star Certified |
Image 4: Lighting Facts label for the GE Relax LED bulb, detailing brightness, estimated yearly energy cost, life expectancy, light appearance (2700K), and energy used.
6. Maintenance
The GE Lighting Relax LED 3-Way A21 Light Bulb requires minimal maintenance.
- Cleaning: Ensure the bulb is cool and the power is off before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: Due to its long lifespan, frequent replacement is not anticipated. Replace the bulb when it no longer illuminates or if its performance degrades.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. | No power to the fixture, bulb not screwed in properly, faulty bulb. | Check power switch and circuit breaker. Ensure bulb is securely tightened. Test bulb in another working fixture. |
| Bulb flickers or dims unexpectedly. | Incompatible fixture/socket, loose connection, power fluctuations. | Ensure fixture is designed for 3-way bulbs. Tighten bulb. Check household wiring for stability. |
| Only one brightness level works. | Fixture is not a 3-way compatible socket, or the socket is faulty. | Confirm the lamp or fixture is specifically designed for 3-way bulbs. Test the bulb in a known working 3-way fixture. |
8. Warranty and Support
This GE Lighting product comes with a limited warranty. For specific details regarding the warranty period and terms, please refer to the product packaging or contact GE Lighting customer support.
For further assistance or technical support, please visit the official GE Lighting website or contact their customer service department.
Online Resources: www.gelighting.com
