1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Manitowoc CNF0202A-161L Countertop Nugget Ice Maker and Dispenser. Please read all instructions carefully before using the appliance to ensure proper function and to prevent injury or damage.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Ensure the unit is properly grounded.
• Do not operate the appliance with a damaged power cord or plug.
• Keep ventilation openings clear of obstructions.
• Only use potable water for ice production.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Refer all servicing to qualified service personnel.

3. Product Overview

The Manitowoc CNF0202A-161L is a countertop nugget ice maker and dispenser designed for commercial use, producing chewable nugget ice. It features a durable exterior and an integrated dispensing system.

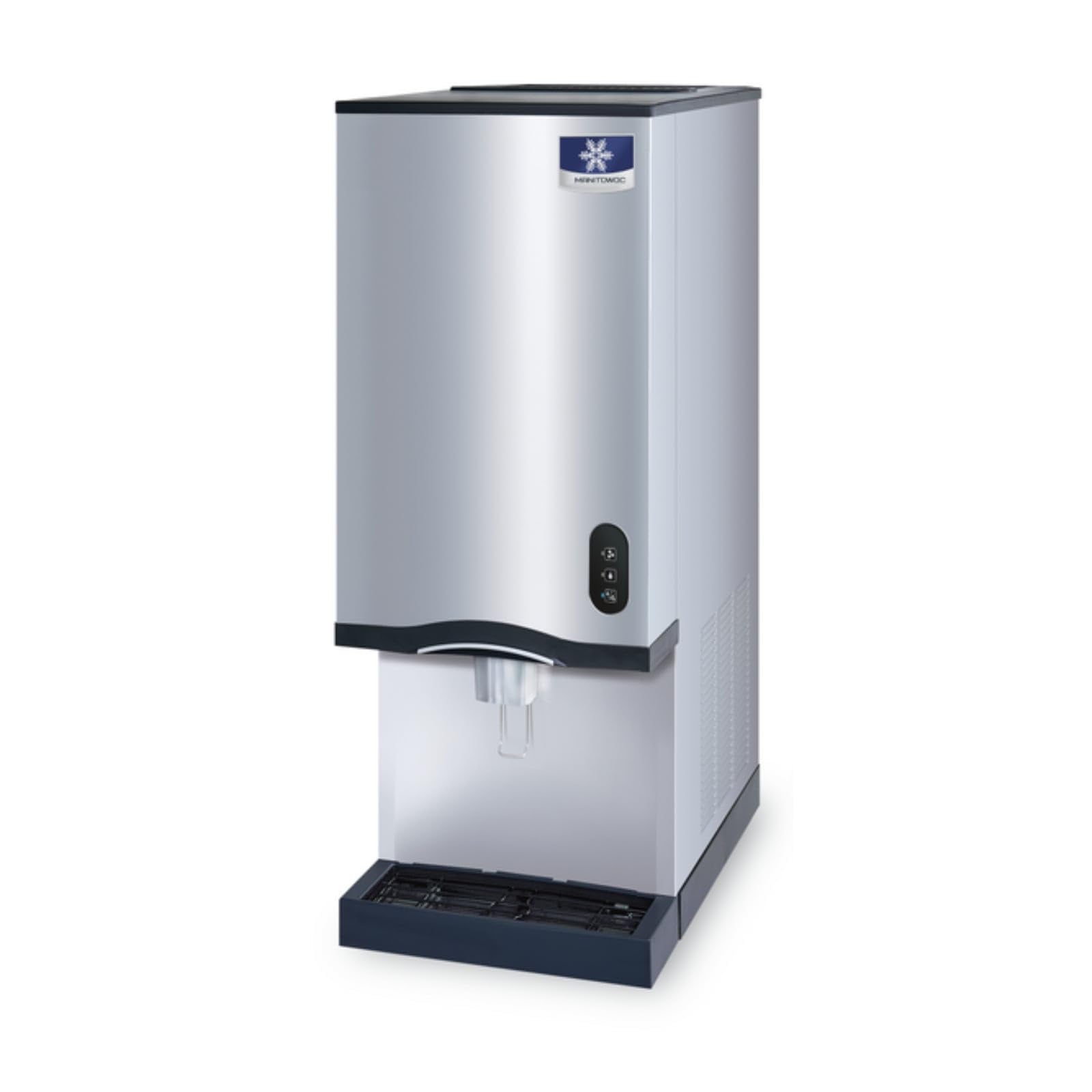

Image 3.1: Front view of the Manitowoc CNF0202A-161L ice maker and dispenser, showing its dimensions: 42 inches high, 16.25 inches wide, and 24 inches deep.

Key Features:

• Produces bite-sized nugget ice with 85% ice content.
• Daily ice production capacity up to 315 lbs (143 kgs) at 70°F/50°F ambient/water temperature.
• Features a DuraTech front panel for enhanced durability and reduced hard water staining.
• Equipped with Manitowoc's patented cleaning technology for simplified maintenance.

Image 3.2: A close-up view of the chewable nugget ice produced by the machine, showing its characteristic small, irregular shape.

4. Setup

4.1 Unpacking

Carefully remove the ice maker from its packaging. Inspect the unit for any shipping damage. Retain packaging materials for future transport if needed.

4.2 Placement

• Place the unit on a sturdy, level surface capable of supporting its weight when full of ice and water.
• Ensure adequate air circulation around the unit. Maintain at least 6 inches (15 cm) of clearance from walls and other objects for proper ventilation of the air-cooled condenser.
• Avoid direct sunlight or proximity to heat sources.
• The ambient temperature should be between 50°F (10°C) and 100°F (38°C).

4.3 Water Connection

Connect the ice maker to a potable cold water supply using a dedicated water line with a shut-off valve. Water pressure should be between 20 psi and 80 psi. A water filter is recommended to improve ice quality and extend the life of the unit.

4.4 Drain Connection

Connect the unit's drain line to an open, vented drain. Ensure the drain line has a continuous downward slope to prevent standing water.

4.5 Electrical Connection

Connect the ice maker to a dedicated 115V, 60Hz, 15A electrical outlet. Do not use extension cords or adapter plugs. Ensure the electrical supply matches the requirements specified on the unit's data plate.

4.6 Initial Cleaning

Before first use, clean the ice storage bin and dispensing area with a mild, food-safe sanitizer solution. Rinse thoroughly with clean water.

5. Operating Instructions

5.1 Powering On

Once all connections are secure and the unit is cleaned, plug the power cord into the electrical outlet. The unit will initiate its startup sequence.

5.2 Ice Production

The ice maker will automatically begin producing ice once powered on and water supply is detected. The first batch of ice may take longer to produce and should be discarded.

5.3 Dispensing Ice and Water

To dispense ice, place a cup or container under the dispenser chute and activate the lever. The unit is designed for lever-activated dispensing. If equipped with a water dispensing feature, a separate lever or button will activate water flow.

Image 5.1: Two clear cups filled with nugget ice, positioned on a black tray, demonstrating the dispensed ice.

6. Maintenance

Regular maintenance is crucial for the longevity and efficient operation of your ice maker. Always disconnect power before performing any maintenance.

6.1 Exterior Cleaning

Clean the DuraTech exterior panels regularly with a soft cloth and mild soap or stainless steel cleaner. Avoid abrasive cleaners that can scratch the surface.

6.2 Interior Cleaning and Sanitization

The ice storage bin and dispensing chute should be cleaned and sanitized weekly or as needed. Use a food-safe cleaner and sanitizer. Rinse thoroughly to remove all chemical residues.

6.3 Condenser Cleaning

The air-cooled condenser coils should be cleaned every 3-6 months, or more frequently in dusty environments. Use a brush or vacuum cleaner to remove dust and lint from the fins. Ensure the power is disconnected before cleaning.

6.4 Descaling and Sanitization Cycle

This unit features Manitowoc's patented cleaning technology. Follow the instructions provided on the unit's control panel or in the full service manual for initiating the automatic descaling and sanitization cycle. This process helps prevent mineral buildup and ensures hygienic ice production.

7. Troubleshooting

Before contacting service, review the following common issues and their potential solutions.

If the problem persists after attempting these solutions, contact a qualified service technician.

8. Specifications

Technical specifications for the Manitowoc CNF0202A-161L Countertop Nugget Ice Maker and Dispenser.

9. Warranty and Support

This Manitowoc product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, parts, or service inquiries, please contact Manitowoc customer service or your authorized dealer.
