HOMCOM 6.6FT Sliding Barn Door Hardware Kit Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your HOMCOM 6.6FT Sliding Barn Door Hardware Kit. This kit is designed to convert a standard wooden door into a sliding barn door, offering a space-saving and aesthetically pleasing solution for various interior spaces. Please read all instructions carefully before beginning installation to ensure proper setup and safe operation.

2. Package Contents

Verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

• 2 x Hanging Rails
• 2 x Hangers (J-Shape)
• 2 x Door Stoppers
• 2 x Anti-Fall Blocks
• 1 x Floor Guide
• Screws (suitable for wood wall)
• Hex Wrench
• Note: Door panel is NOT included.

Figure 2.1: The complete HOMCOM 6.6FT Sliding Barn Door Hardware Kit, including the track, hangers, door stoppers, anti-fall blocks, floor guide, and various screws. An inset shows a close-up of the installed track and hangers.

Figure 2.2: A detailed view of the J-shape hanger attached to the sliding track, highlighting the smooth-rolling wheel mechanism and the black powder-coated finish.

Figure 2.3: This image shows the two floor guides and the hex wrench, essential components for stabilizing the bottom of the barn door and for assembly.

3. Specifications

Figure 3.1: This diagram illustrates key installation requirements: a minimum of 13 cm clearance above the door, a track length of 200 cm, a maximum load capacity of 100 kg, a maximum door width of 100 cm, and suitability for door thicknesses between 35-45 mm. It also explicitly states that installation must be on cement, not hollow or foam brick, and is for wooden doors only.

Figure 3.2: A visual representation of the track, indicating its total length of 78.7 inches (200 cm) and a height of 1.6 inches (4 cm).

4. Safety Information

While no specific safety warnings are provided beyond general installation guidelines, please observe the following:

• Always ensure the hardware is installed on a solid, load-bearing wall. Installation on hollow or foam brick walls is not recommended and can lead to product failure and injury.
• This hardware is designed for wooden doors only.
• Ensure all screws and fasteners are securely tightened during installation.
• Keep children and pets away from the installation area.
• Use appropriate safety gear, such as eye protection, during installation.

Figure 4.1: This image illustrates the critical warning: install the hardware only on solid walls, not on hollow or foam brick structures, to ensure stability and safety.

5. Setup and Installation

The HOMCOM Sliding Barn Door Hardware Kit features pre-drilled holes for straightforward installation. A two-person team is recommended for easier handling of the track and door panel.

Pre-Installation Checks:

1. Wall Type: Ensure your wall is a solid, load-bearing structure (e.g., cement or solid wood). Do not install on hollow walls, drywall without proper backing, or foam brick.
2. Clearance: A minimum of 13 cm (approximately 5.1 inches) clearance is required above the top of your door frame for the track installation.
3. Door Compatibility: This kit is designed for wooden doors with a thickness between 35-45 mm (1 3/8 - 1 3/4 inches) and a maximum width of 100 cm (39 inches).
4. Tools: Gather necessary tools such as a drill, level, measuring tape, pencil, and screwdriver.

Installation Steps:

1. Marking the Track Position: Measure and mark the desired height for the track, ensuring the 13 cm minimum clearance above the door opening. Use a level to ensure the marks are perfectly horizontal.
2. Mounting the Track: Align the pre-drilled holes on the hanging rails with your marks. Secure the rails to the wall using the provided screws. Ensure the track is firmly attached to a solid wall structure.
3. Attaching Hangers to Door: Mount the J-shape hangers to the top edge of your wooden door panel. Ensure they are evenly spaced and securely fastened.
4. Installing Anti-Fall Blocks: Attach the anti-fall blocks to the top edge of the door, above the hangers. These prevent the door from lifting off the track.
5. Hanging the Door: Carefully lift the door and hook the hanger wheels onto the track. This step is best performed with two people.
6. Adjusting Door Stoppers: Slide the door stoppers onto the track at both ends. Adjust their positions to control the door's travel distance and prevent it from hitting the wall or sliding off the track. Tighten them securely.
7. Installing Floor Guide: Position the floor guide on the floor directly below the door's path. Secure it to the floor to prevent the bottom of the door from swinging outwards.

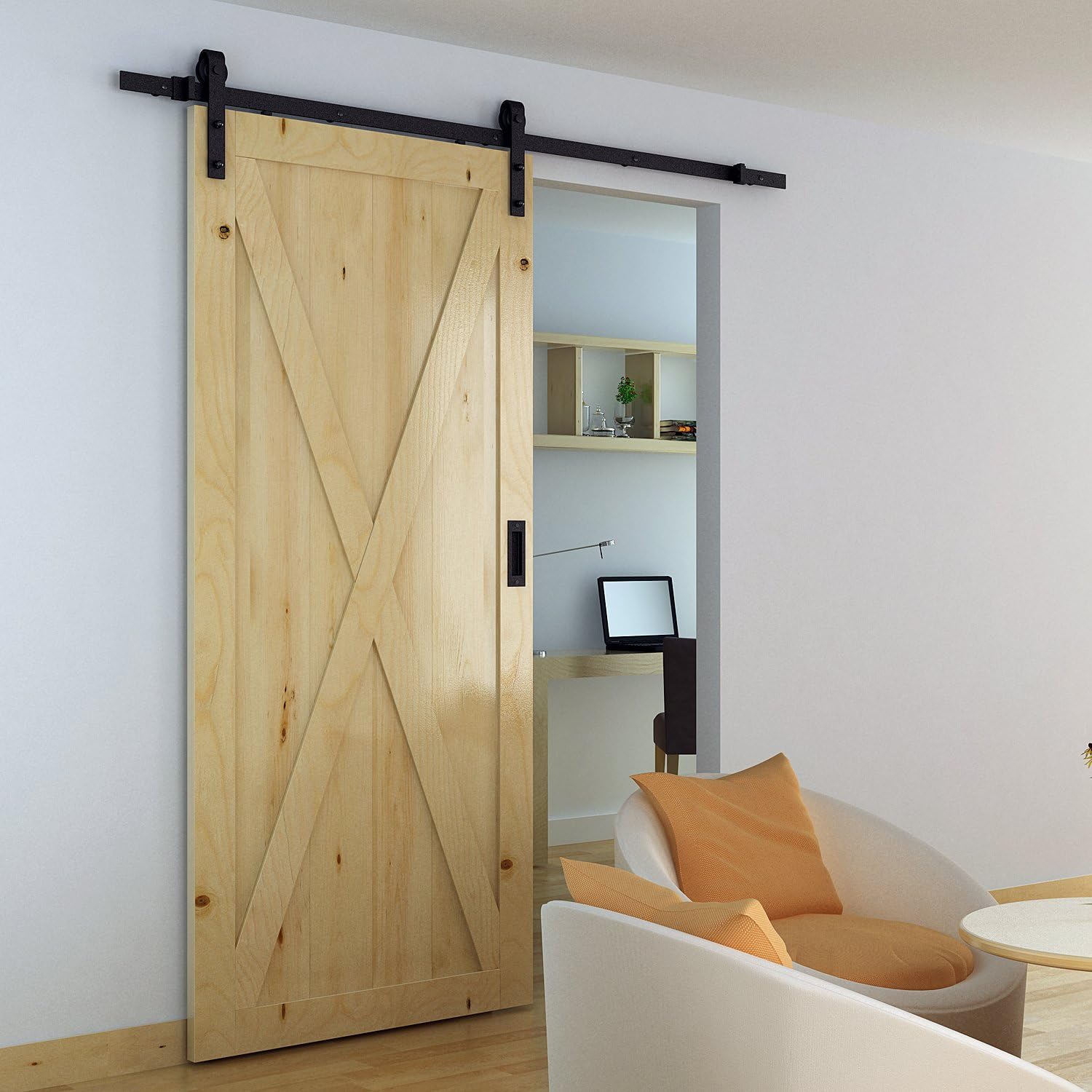

Figure 5.1: A wooden barn door, fitted with the HOMCOM sliding hardware, is shown partially open in a modern living room setting, demonstrating its aesthetic and functional integration.

Figure 5.2: A pair of J-shape hangers, featuring the wheels and mounting bolts, designed to support the barn door on the track.

Figure 5.3: A detailed image of a door stopper installed on the track, designed to prevent the door from sliding off the end.

6. Operating Instructions

Once installed, the barn door operates by sliding horizontally along the track. The design ensures quiet and smooth movement.

• To open the door, gently push or pull it along the track until it reaches the desired open position, or until it meets the door stopper.
• To close the door, gently push or pull it back along the track until it covers the doorway, or until it meets the other door stopper.
• The wheels are designed for smooth travel, and anti-slip discs prevent the door from jumping off the track during normal operation.

Figure 6.1: A close-up of the hanger's rollers, emphasizing their design for quiet and smooth operation along the track.

7. Maintenance

Regular maintenance will ensure the longevity and smooth operation of your barn door hardware.

• Cleaning: Wipe the track and hardware components with a soft, damp cloth to remove dust and debris. Avoid abrasive cleaners.
• Lubrication: Periodically apply a silicone-based lubricant to the wheels and track to maintain smooth sliding action.
• Fastener Check: Every few months, inspect all screws and bolts to ensure they remain tight. Re-tighten any loose fasteners to prevent sagging or instability.
• Track Alignment: Verify that the track remains level and securely attached to the wall.

8. Troubleshooting

If you encounter issues with your barn door hardware, refer to the following common problems and solutions:

• Door is difficult to slide:
  • Check the track for obstructions or debris.
  • Apply lubricant to the wheels and track.
  • Ensure the track is level and not warped.
• Door sways at the bottom:
  • Verify that the floor guide is properly installed and secured.
  • Ensure the door panel fits snugly within the floor guide.
• Door makes noise when sliding:
  • Clean the track and wheels.
  • Apply lubricant to the moving parts.
  • Check for any loose components that might be rattling.
• Door appears to be coming off the track:
  • Ensure the anti-fall blocks are correctly installed and tightened on the door.
  • Verify that the door stoppers are securely in place at the ends of the track.

9. Warranty and Support

This HOMCOM product is covered by a 90-day warranty against manufacturer defects. For warranty claims or technical support, please contact Aosom Canada, the manufacturer.

Manufacturer: Aosom Canada

Please retain your proof of purchase for warranty purposes.
