Introduction
This manual provides comprehensive instructions for the proper installation and maintenance of your BlueBird Filters Replacement HEPA Filter and Carbon Pre-Filter Kit. This kit is designed to ensure optimal air purification performance in compatible Honeywell air purifier models. Please read these instructions carefully before proceeding with installation.
Product Compatibility
This BlueBird Filters replacement kit is specifically designed to fit the following Honeywell Air Purifier Models:
- Honeywell 17000
- Honeywell 17005
- Honeywell 10500 (EV-10)
The compatible OEM Part Number for this replacement is Honeywell 20500. Please verify your air purifier model number before installation to ensure proper fit and function.

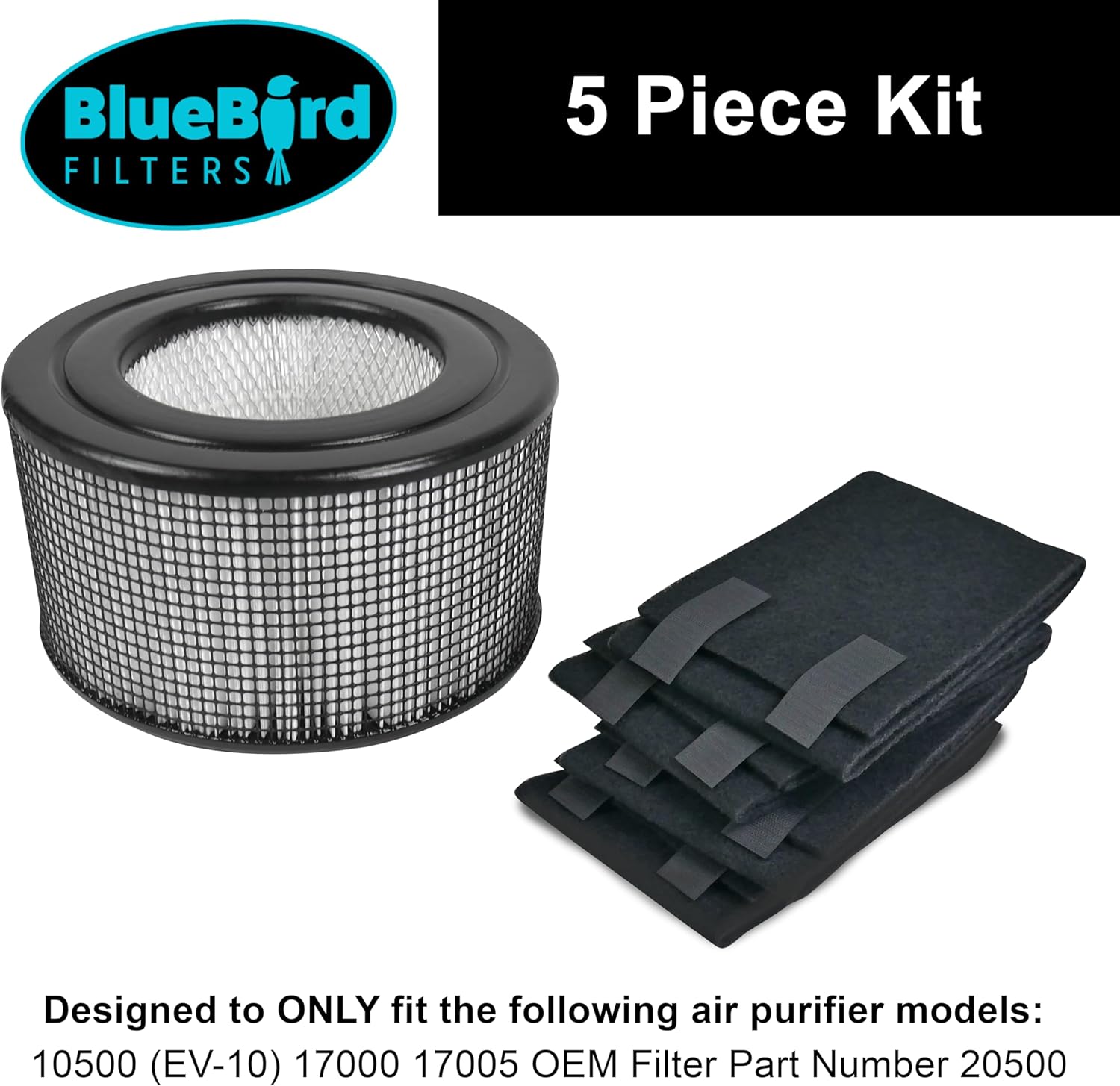

Image: The BlueBird Filters 5-piece kit, illustrating the HEPA filter and four pre-cut carbon pre-filters, with text indicating compatibility with Honeywell 10500 (EV-10), 17000, and 17005 models (OEM Part Number 20500).
What's Included in the Kit
Each BlueBird Filters Replacement Kit contains the following components:
- One (1) True HEPA Filter: This primary filter captures microscopic particles from the air.
- Four (4) Pre-Cut Carbon Pre-Filter Wraps: These pre-filters are designed to capture larger particles and reduce odors, and are pre-cut for exact fit and convenience.
Image: A visual representation of the kit contents, showing one cylindrical HEPA filter and four rectangular carbon pre-filters, ready for installation.
Installation Instructions
Follow these general steps to replace the filters in your compatible Honeywell air purifier. Always refer to your specific air purifier's user manual for detailed instructions on opening the unit and accessing the filter compartment.
- Power Off and Unplug: Before beginning any filter replacement, ensure your air purifier is turned off and unplugged from the electrical outlet.
- Access Filter Compartment: Open the air purifier's housing or filter compartment according to your unit's specific instructions. This usually involves removing a grille or cover.
- Remove Old Filters: Carefully remove the used HEPA filter and any old carbon pre-filters. Dispose of them responsibly.
- Install New HEPA Filter: Place the new BlueBird Filters HEPA filter into the designated slot or area within the air purifier. Ensure it is seated securely.
- Install Carbon Pre-Filters: Wrap one of the pre-cut carbon pre-filters around the HEPA filter or place it in its designated slot, as per your air purifier's design. Secure it tightly using the provided fasteners or clips if applicable. The pre-cut design simplifies this step, eliminating the need for manual cutting.
- Close Compartment: Reattach the air purifier's housing or cover, ensuring it is securely closed.
- Restore Power: Plug the air purifier back into the electrical outlet and power it on.
- Reset Filter Indicator (if applicable): If your air purifier has a filter change indicator light, follow your unit's instructions to reset it.
Image: A side view of the cylindrical HEPA filter, indicating its approximate dimensions of 6 inches in height and 10 3/4 inches in diameter, useful for confirming fit.
Maintenance and Filter Replacement Schedule
Regular filter replacement is crucial for maintaining the efficiency and effectiveness of your air purifier. The lifespan of filters can vary based on air quality and usage frequency.
- True HEPA Filter: It is recommended to replace the True HEPA filter approximately once every 12 months under normal operating conditions.
- Carbon Pre-Filter Wraps: The carbon pre-filter wraps should be replaced more frequently, typically every 3 to 6 months, depending on the air quality in your environment and the amount of odors present.
Adhering to this schedule helps ensure your air purifier continues to capture airborne particles and odors effectively.
Troubleshooting
If you encounter issues after installing your new filters, consider the following:
- Filter Does Not Fit: Double-check the compatibility section of this manual and your air purifier's model number. Ensure you have purchased the correct replacement kit for your specific Honeywell unit.
- Reduced Airflow: Verify that the filters are installed correctly and are not obstructed. Ensure the air purifier's housing is fully closed and sealed.
- Persistent Odors: If odors persist shortly after replacing the carbon pre-filter, it may indicate unusually high levels of airborne contaminants or that the pre-filter needs to be replaced more frequently.
Product Specifications
| Specification | Detail |
|---|---|
| Brand | BlueBird Filters |
| Model Number (OEM Part) | 20500 |
| Compatible Devices | Honeywell 10500 Air Purifier, Honeywell 17000 Air Purifier, Honeywell 17000-S Air Purifier, Honeywell 17005 Air Purifier, Honeywell EV-10 Air Purifier |
| Material Type | Fiberglass (HEPA), Activated Carbon (Pre-Filter) |
| Item Weight | 3.2 pounds |
| Package Dimensions | 12 x 12 x 8 inches |
| MERV Rating | 17 |
| Number of Items in Kit | 5 (1 HEPA filter, 4 Carbon pre-filters) |
| Manufacturing Location | Made in the USA |
Image: A magnified view of the filter material, highlighting its dense structure designed for effective particle capture.
Warranty and Support
For information regarding product warranty, returns, or technical support, please contact BlueBird Filters directly through their official channels. This product is manufactured in the USA, reflecting a commitment to quality and local production.
Image: An American flag, symbolizing the product's manufacturing origin in the USA.
