HIFROM Replacement Air Filter User Manual

1. Introduction

This manual provides essential information for the proper installation, function, and maintenance of your HIFROM replacement air filters. These filters are designed to be compatible with specific Karcher vacuum cleaner models, ensuring continued efficient operation and improved air quality.

Please read this manual thoroughly before installing the filters to ensure correct usage and to maximize the lifespan and performance of your vacuum cleaner.

2. Product Overview

The HIFROM replacement air filter is a HEPA-type filter designed to capture fine dust particles, sawdust, wood chips, job site debris, and pollen. This helps maintain a cleaner environment, especially beneficial for individuals with allergies.

Each package contains two (2) replacement filters. The dimensions of each filter are approximately 19.2 cm x 9.7 cm x 3.3 cm (7.56 inches x 3.82 inches x 1.3 inches).

Image 2.1: Two HIFROM replacement air filters. These filters feature a pleated design within a sturdy orange frame, designed for efficient particle capture.

Image 2.2: Top view of two HIFROM replacement air filters. This perspective highlights the dense pleating of the filter material, crucial for trapping microscopic particles.

3. Installation Instructions

Follow these general steps to replace the air filter in your compatible Karcher vacuum cleaner. Always refer to your specific Karcher vacuum cleaner's user manual for detailed instructions on accessing the filter compartment.

1. Power Off and Unplug: Before beginning any maintenance, ensure your vacuum cleaner is turned off and unplugged from the power outlet to prevent accidental operation.
2. Locate Filter Compartment: Identify the filter compartment on your Karcher DS5500, DS5600, DS5800, or DS6000 vacuum cleaner. This is typically located near the motor or dust collection area.
3. Remove Old Filter: Carefully open the filter compartment and remove the old, used filter. Dispose of the old filter responsibly.
4. Insert New Filter: Place the new HIFROM replacement filter into the compartment. Ensure it is seated correctly and securely, matching the orientation of the filter you removed. The filter should fit snugly without forcing.
5. Close Compartment: Securely close the filter compartment cover.
6. Test: Plug in and turn on your vacuum cleaner to ensure it operates correctly.

Important: These filters are non-original aftermarket parts. Verify the dimensions and compatibility with your specific Karcher model (DS5500, DS5600, DS5800, DS6000) before purchase and installation.

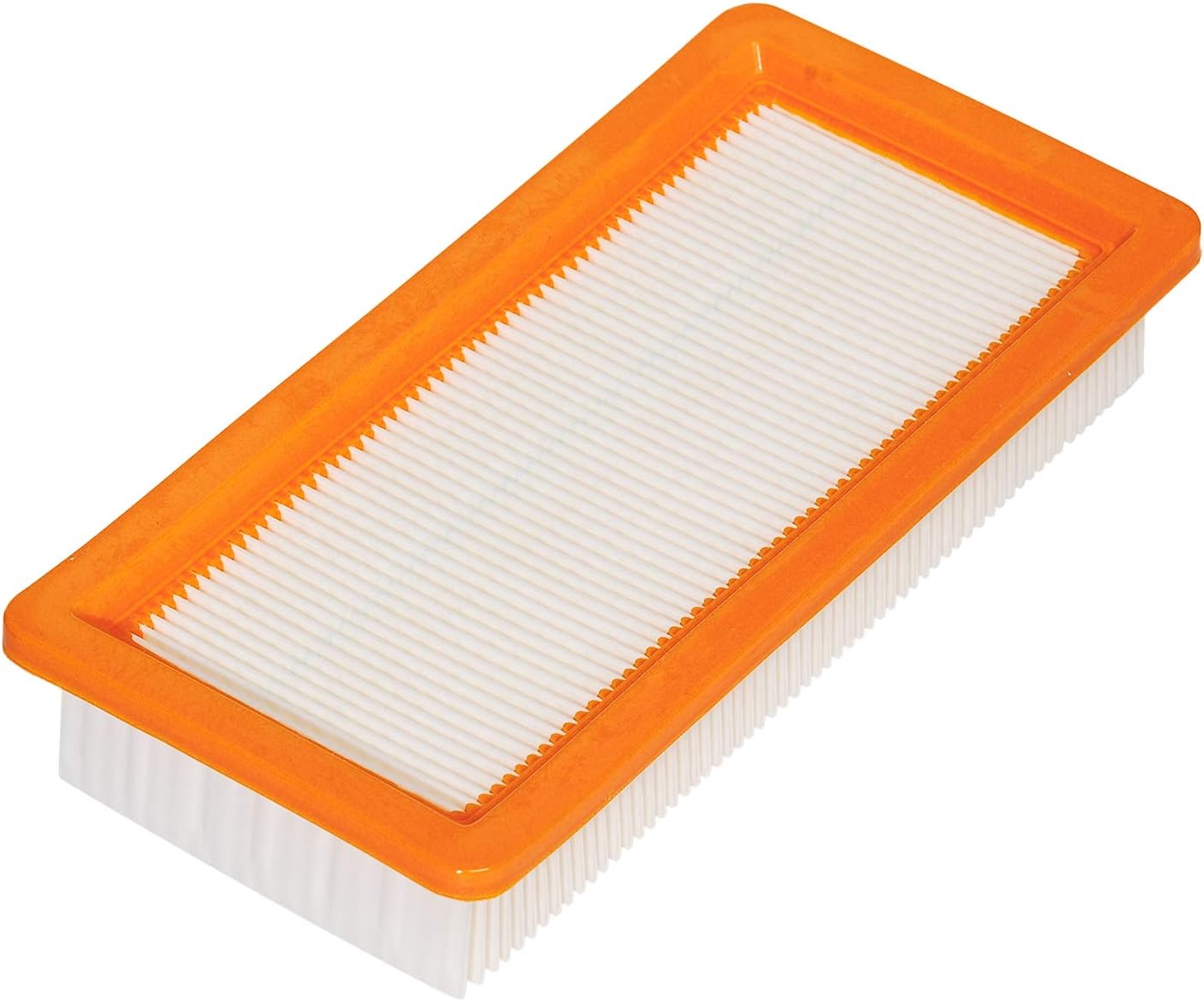

Image 3.1: Angled view of a single HIFROM replacement air filter. This view helps in understanding the filter's profile for correct insertion.

Image 3.2: Top view of a single HIFROM replacement air filter. The consistent pleating ensures maximum surface area for filtration.

4. Operating Principles

The HIFROM replacement air filter functions as a critical component in your vacuum cleaner's filtration system. As air is drawn into the vacuum, it passes through the pleated HEPA-type filter material. This material is designed with microscopic fibers that trap airborne particles, preventing them from being recirculated back into your environment.

The filter effectively captures dust, allergens, and other fine debris, contributing to cleaner exhaust air and protecting the vacuum's motor from particulate damage.

5. Maintenance

To ensure your Karcher vacuum cleaner operates at peak performance and maintains optimal air filtration, regular filter replacement is essential. Over time, filters become clogged with trapped particles, which can reduce suction power and diminish air quality.

• Replacement Frequency: It is recommended to change the replacement air filter every 1 to 3 months, depending on usage frequency and the level of dust and debris collected. Households with pets or allergy sufferers may require more frequent changes.
• Visual Inspection: Periodically inspect the filter for visible signs of dirt, discoloration, or damage. A heavily soiled filter indicates it's time for replacement.
• Disposal: Dispose of used filters according to local waste disposal guidelines.

Image 5.1: Close-up of the filter pleats. The intricate design of these pleats is crucial for trapping microscopic dust and allergens, highlighting the importance of regular replacement to maintain filtration efficiency.

6. Troubleshooting

If you experience reduced suction power or notice an increase in dust escaping from your vacuum cleaner, the air filter may be clogged or improperly installed.

• Reduced Suction: A primary indicator of a clogged filter is a noticeable decrease in vacuum suction. Replace the filter if this occurs.
• Dust Emission: If dust is being expelled from the vacuum's exhaust, the filter may be compromised or incorrectly seated. Check the installation and replace the filter if damaged.
• Unusual Noises: While less common for filters, a severely clogged filter can sometimes cause the vacuum motor to work harder, leading to unusual noises.

Ensure the filter is correctly installed and the compartment is sealed. If issues persist after replacing the filter, consult your Karcher vacuum cleaner's main user manual or contact Karcher customer support.

7. Specifications

Image 7.1: Front view of a single HIFROM replacement air filter. This image provides a clear view of the filter's overall shape and frame.

Image 7.2: Side view of a single HIFROM replacement air filter. This perspective illustrates the depth of the pleated filter material.

8. Warranty and Support

HIFROM provides a 3-month warranty for this product. If you are unsatisfied with your purchase, you may return it to our USA warehouse. Please contact HIFROM customer support for assistance with returns or any product-related inquiries.

For further technical support or specific vacuum cleaner operational questions, please refer to the original Karcher vacuum cleaner manual or contact Karcher customer service directly.
