5five Mix n Modul 4-Shelf Unit Instruction Manual

1. Introduction

Thank you for purchasing the 5five Mix n Modul 4-Shelf Unit. This versatile and stylish storage solution is designed to help you maximize space and organize your belongings efficiently. Its modular design allows for flexible placement in various rooms of your home. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

2. Safety Information

WARNING: Read all instructions and warnings carefully before use.

• Always follow the assembly instructions precisely.
• Do not overload the shelves. Distribute weight evenly.
• Ensure the unit is placed on a flat, stable surface to prevent tipping.
• Keep small parts away from children during assembly to avoid choking hazards.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. Refer to the parts list provided in your packaging. Typical components include:

• Side panels
• Shelf panels
• Connecting hardware (dowels, screws, cam locks, etc.)
• Assembly tools (if included, e.g., Allen key)

Image: The assembled 5five Mix n Modul 4-Shelf Unit, showcasing its four compartments and grey oak effect finish.

4. Setup and Assembly

Assembly is required for this product. It is recommended to assemble the unit with two people to ensure stability and ease of construction.

1. Prepare the Area: Clear a spacious, clean, and flat area for assembly. Lay down a blanket or cardboard to protect the floor and furniture components from scratches.
2. Identify Parts: Unpack all components and identify them using the provided parts list. Separate hardware into distinct groups.
3. Attach Dowels and Cam Bolts: Insert wooden dowels and cam bolts into the pre-drilled holes of the main panels as indicated in the diagram (refer to your packaging's assembly diagram for specific steps).
4. Connect Panels: Align the first set of panels (e.g., side panels to a base/top panel) and gently push them together. Secure them using cam locks by turning them clockwise with a screwdriver until tight.
5. Insert Shelves: Slide the shelf panels into their designated slots, ensuring they are fully seated. Secure them with the appropriate hardware.
6. Complete Assembly: Continue connecting the remaining panels and shelves following the numerical order in your specific assembly diagram.
7. Final Tightening: Once fully assembled, gently tighten all screws and cam locks to ensure the unit is sturdy. Do not overtighten.

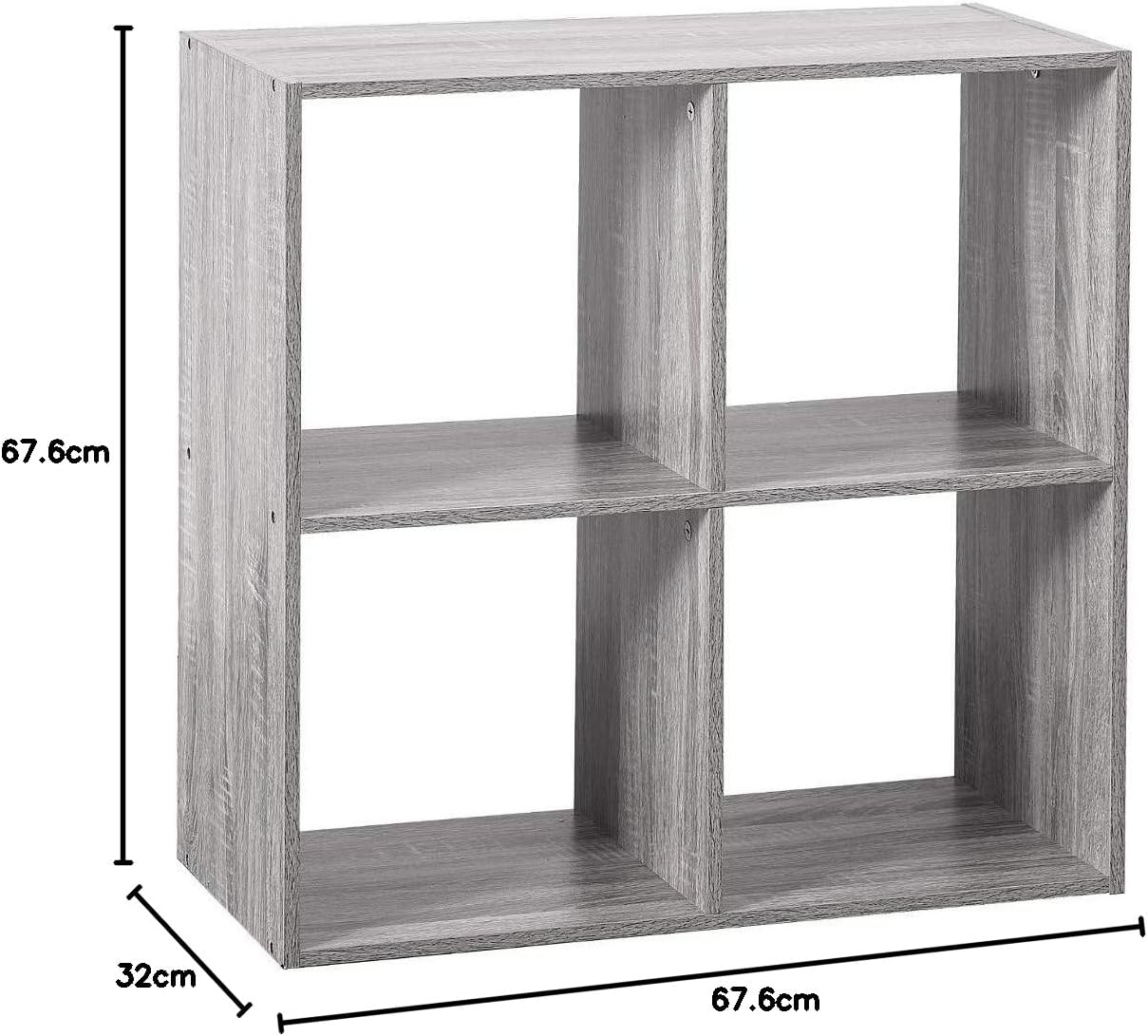

Image: Detailed dimensions of the 5five Mix n Modul 4-Shelf Unit, showing its height (67.6 cm), width (67.6 cm), and depth (32 cm).

5. Operating and Usage

The 5five Mix n Modul 4-Shelf Unit is designed for versatile storage in various rooms such as bedrooms, hallways, or dining areas. Its four compartments provide ample space for books, decorative items, storage bins, or other personal belongings.

• Placement: Position the unit against a wall or in a corner for optimal stability.
• Weight Distribution: Distribute items evenly across the shelves to maintain balance and prevent strain on the structure. Avoid placing heavy items exclusively on one side or shelf.
• Modularity: This unit is modular, meaning it can be combined with other compatible Mix n Modul units to create larger or customized storage solutions. Ensure proper connection if combining units.

6. Maintenance

To ensure the longevity and appearance of your 5five Mix n Modul 4-Shelf Unit, follow these simple maintenance guidelines:

• Cleaning: Clean the unit with a dry cloth. For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth to prevent moisture damage.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• Regular Checks: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Sunlight Exposure: Avoid prolonged direct sunlight exposure, which can cause fading or discoloration of the wood effect finish.

7. Troubleshooting

If you encounter any issues with your 5five Mix n Modul 4-Shelf Unit, please refer to the following common troubleshooting tips:

• Unit is Wobbly:
  • Ensure all screws and cam locks are fully tightened.
  • Verify that the unit is placed on a level surface. Use furniture glides or shims if the floor is uneven.
  • Check that all panels are correctly aligned and fully seated in their respective connections.
• Missing or Damaged Parts:
  • Carefully re-check the packaging and all packing materials. Small hardware can sometimes be overlooked.
  • If parts are genuinely missing or damaged upon arrival, do not attempt to assemble the unit. Contact customer support for assistance.
• Difficulty Assembling:
  • Review the assembly instructions and diagrams carefully. Ensure you are using the correct hardware for each step.
  • Ensure panels are oriented correctly before attempting to connect them.
  • Do not force parts together. If they don't fit, re-check alignment and part identification.

8. Specifications

9. Warranty and Support

This product is subject to the standard return policy of the retailer. For specific details regarding returns, refunds, or exchanges, please refer to the purchase platform's policies or contact the seller directly. For any product-related inquiries, missing parts, or assembly assistance, please contact the manufacturer or seller through the platform where the product was purchased.
