1. Introduction
Thank you for choosing the Winflo 36 Inch Convertible Stainless Steel Island Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read these instructions thoroughly before installation and use, and retain them for future reference.
This island range hood is designed to effectively remove smoke, grease, moisture, and odors from your cooking area, enhancing air quality in your kitchen. Its convertible design allows for both ducted and non-ducted (recirculating) installation options.
2. Important Safety Information
To reduce the risk of fire, electric shock, or injury, observe the following:
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel-burning equipment to prevent back-drafting.
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Ducted fans must always be vented to the outdoors.
- Do not use this unit with any external solid-state speed control device.
- To reduce the risk of fire, use only metal ductwork.
- Clean grease laden surfaces frequently. Grease accumulated on filters or surfaces can ignite.
3. Setup and Installation
This range hood is designed for island mounting and can be configured for either ducted or non-ducted (recirculating) operation.
3.1 Components Overview
Familiarize yourself with the main components of your range hood.
Image 1: Front view of the Winflo 36 Inch Island Range Hood, showcasing the stainless steel finish, black control panel, and baffle filters.

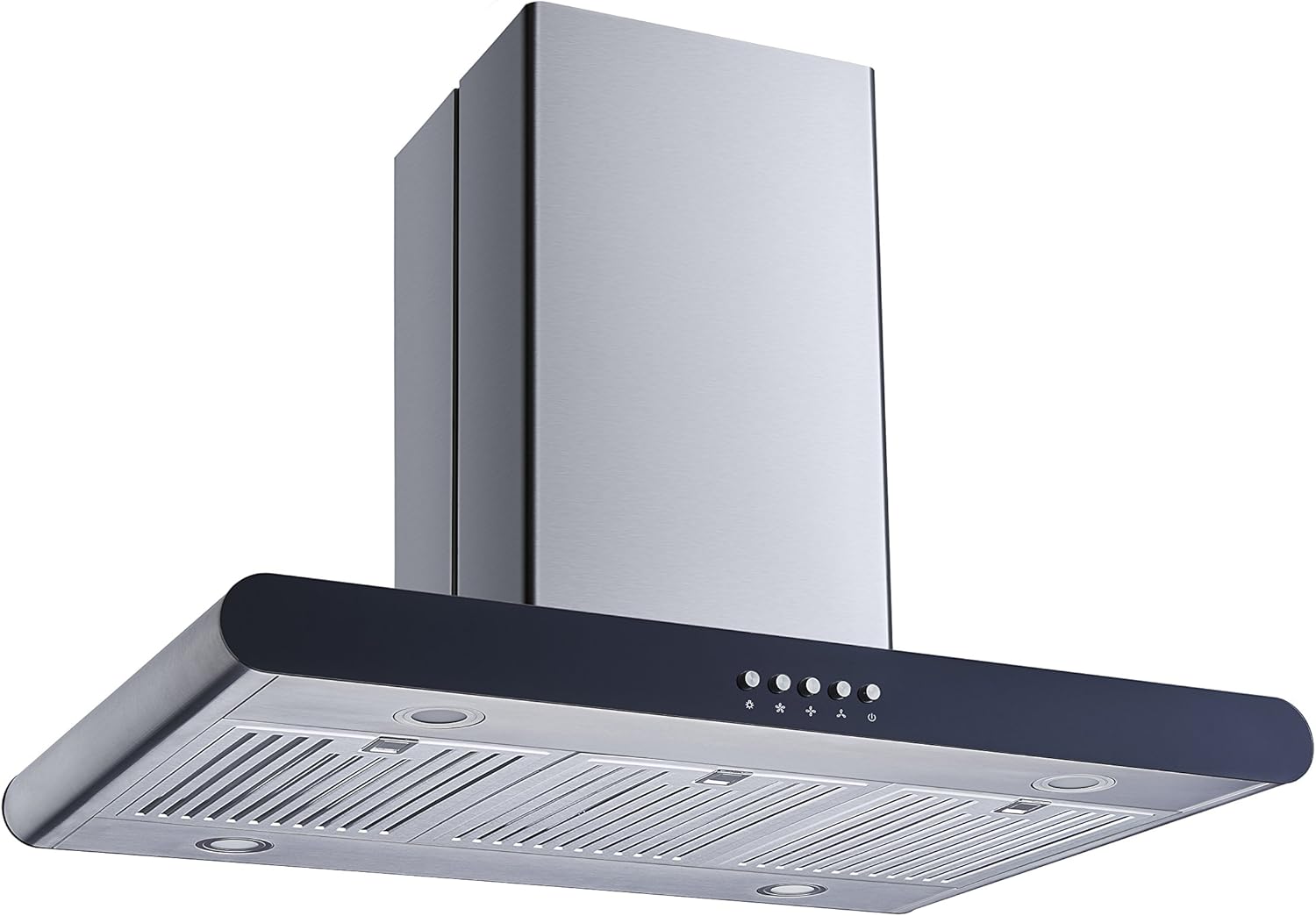

Image 2: Angled view of the range hood, illustrating its island mount design and the two-piece chimney structure.
Image 3: Underside view of the range hood, clearly showing the three stainless steel baffle filters and the four integrated LED lights.
3.2 Installation Requirements
- Ceiling Height: The adjustable and telescoping chimney is designed to fit ceilings between 8 feet and 9 feet. A chimney extension (part# WRHCEI2) is available for higher ceilings (sold separately).
- Ventilation: The vent location is on the top of the unit. For ducted installation, connect to flexible ductwork (included) and vent outdoors.
- Non-Ducted Option: For recirculating (non-ducted) installation, charcoal filters (WRHF005S2) are required and sold separately. These filters help remove odors when air is not vented outside.
- Electrical: The unit operates on 110 Volts. Ensure a proper electrical outlet is available.
3.3 Mounting
Installation and mounting hardware, flexible ductwork, and a plug are all included for easy installation. Refer to the detailed diagram for precise measurements and mounting points.
Image 4: Technical drawing providing detailed dimensions of the Winflo 36 Inch Island Range Hood, including height, width, depth, and chimney measurements.
4. Operating Instructions
The Winflo Island Range Hood features intuitive push-button controls for easy operation.
Image 5: Close-up view of the control panel, showing the five push buttons for light, fan speed (three levels), and power.
4.1 Control Panel Functions
- Power Button (⏻): Press to turn the range hood on or off.
- Fan Speed Buttons (❄︎, ❄︎❄︎, ❄︎❄︎❄︎): Select from three fan speed levels to adjust suction power. The highest speed provides 286 CFM for powerful ventilation.
- Light Button (💡): Press to turn the LED lights on or off. The four bright, energy-saving soft white LED lights illuminate your cooking area.
4.2 Noise Level
The range hood operates quietly, with a noise level less than 65dB at its highest speed setting.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your range hood.
5.1 Cleaning Baffle Filters
The stainless steel baffle filters are durable, easily removable, and dishwasher safe. Clean them regularly (monthly or more frequently depending on cooking habits) to prevent grease buildup and maintain efficient air filtration.
- Ensure the range hood is turned off and unplugged before removing filters.
- Locate the release latches on each baffle filter.
- Push the latch and pull down the filter to remove it.
- Wash filters in a dishwasher or by hand with hot, soapy water.
- Allow filters to dry completely before re-installing.
- Insert the filters back into their slots, ensuring they click securely into place.
5.2 Exterior Cleaning
Clean the exterior stainless steel surfaces with a non-abrasive stainless steel cleaner and a soft cloth. Avoid using abrasive pads or cleaners that could scratch the surface.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
- Range Hood Does Not Operate:
- Check if the power cord is securely plugged into the outlet.
- Verify that the circuit breaker or fuse is not tripped.
- Ensure the power button on the control panel is pressed.
- Poor Suction Performance:
- Clean the baffle filters; clogged filters reduce airflow.
- Check for obstructions in the ductwork (for ducted installations).
- Ensure the correct fan speed is selected for the cooking task.
- For non-ducted installations, ensure charcoal filters are installed correctly and not saturated.
- Excessive Noise:
- Ensure all mounting screws are tightened.
- Check if the baffle filters are properly seated.
- Inspect ductwork for loose connections or obstructions.
- Lights Not Working:
- Press the light button to ensure it is activated.
- Check if the LED lights need replacement (refer to manufacturer for specific replacement instructions).
7. Specifications
Detailed technical specifications for the Winflo 36 Inch Convertible Stainless Steel Island Range Hood.
| Feature | Specification |
|---|---|
| Model Number | A-WH152C36D |
| Air Flow Capacity | 350 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Noise Level | Less than 65 dB |
| Mounting Type | Island Mount |
| Included Components | LED Lights |
| Controls Type | Push Button |
| Voltage | 110 Volts |
| Number of Speeds | 3 |
| Item Weight | 44 Pounds |
| Light Source Type | LED |
| Wattage | 152.40 W |
| Filter Type | Baffle |
| Ventilation Type | Ducted (Convertible to Non-Ducted) |
| Product Dimensions (D x W x H) | 35.82" x 23.62" x 46.45" |
| Special Features | Adjustable, Noise Reduction, Removable Filters |
8. Warranty Information
This Winflo range hood comes with a 3-year limited warranty on parts. Please note that labor costs are not included under this warranty. For warranty claims or inquiries, please retain your proof of purchase and contact Winflo customer support.
9. Customer Support
For further assistance, technical support, or to inquire about replacement parts (such as charcoal filters WRHF005S2 or chimney extension WRHCEI2), please contact Winflo customer service. Refer to the product packaging or the Winflo website for current contact information.
Image 6: The Winflo 36 Inch Island Range Hood seamlessly integrated into a contemporary kitchen setting, demonstrating its aesthetic appeal and functional placement above a cooking island.
