1. Introduction
Thank you for choosing the vidaXL Retractable Awning. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new awning. Designed for versatility, this manual awning offers shade and protection for windows, terraces, balconies, and gardens.
Key features of your vidaXL Retractable Awning include:
- Sturdy Construction: Supported by a robust steel frame for durability.
- Weather Resistant Fabric: High-quality polyester with PU coating, water and dirt repellent, UV and weather resistant.
- Manual Operation: Features a handle crank for easy extension and retraction.
- Adjustable Design: Height and angle can be adjusted to suit your specific needs.
2. Safety Information
Please read all safety warnings and instructions carefully before installation and operation to prevent injury or damage.
- Moving Parts: Keep hands, clothing, and objects clear of all moving parts during operation.
- Secure Installation: Ensure the awning is properly installed and securely anchored to a stable structure to prevent it from being blown away by strong winds.
- Weather Conditions: Retract the awning during strong winds, heavy rain, or snow to prevent damage to the awning and potential injury.
- Assembly: Assembly often requires two people for safe and efficient installation.
- Children and Pets: Keep children and pets away from the awning during operation.
3. Package Contents and Components
Before beginning assembly, verify that all parts are present and undamaged. Refer to the included parts list in your packaging for a complete inventory. Below are examples of key components:
Image: Close-up views of the awning's fabric, mounting bracket, support base, and decorative valance.
Familiarize yourself with the various parts before proceeding with assembly.
4. Setup and Installation
Proper installation is crucial for the stability and longevity of your awning. It is highly recommended that two people perform the assembly and installation due to the size and weight of the components.

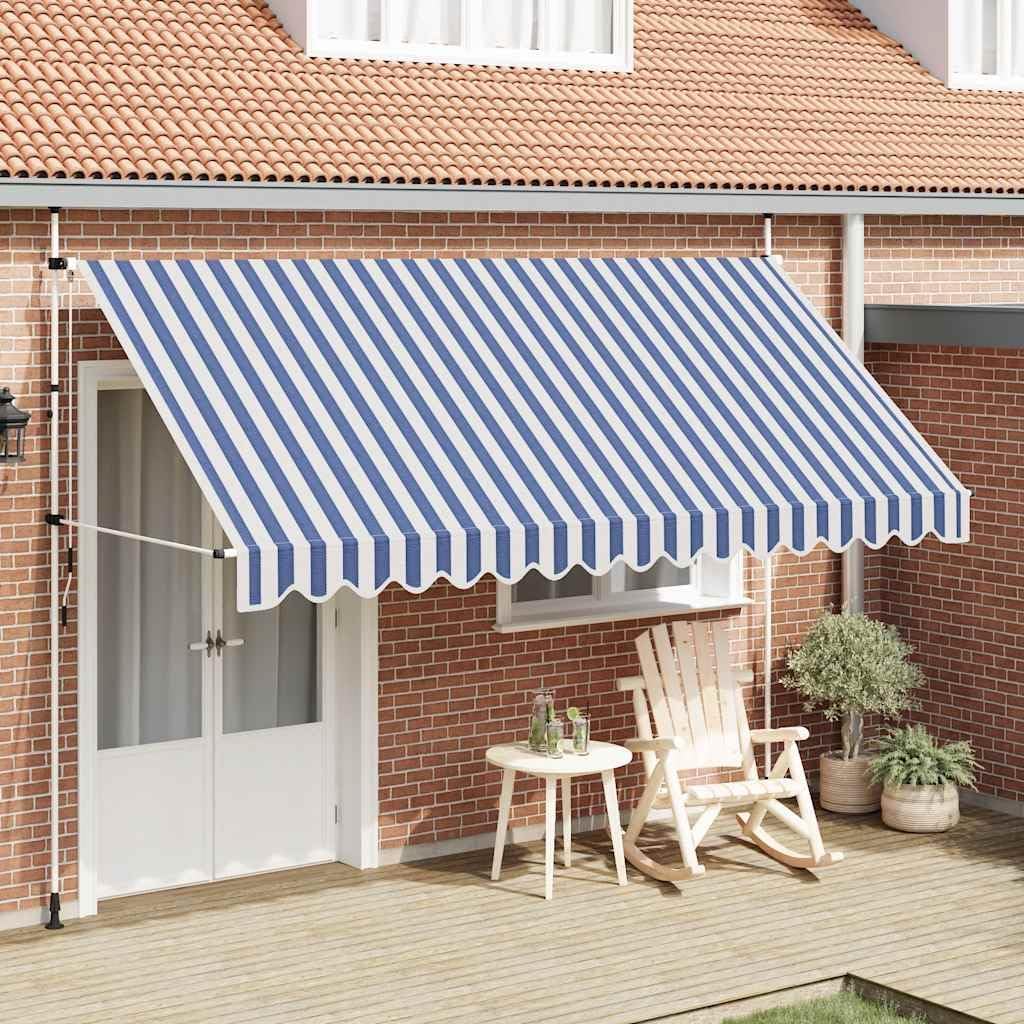

Image: A vidaXL retractable awning installed on a house, demonstrating typical setup.
4.1 Assembly Steps (General Guidelines):
- Unpack and Identify: Carefully unpack all components and identify them using the parts list.
- Assemble Frame: Connect the steel frame components according to the diagram provided in your specific assembly instructions. Ensure all connections are secure.
- Attach Fabric: Slide the awning fabric onto the designated rails of the frame.
- Mounting Location: Choose a suitable, sturdy mounting surface (e.g., a wall or sturdy patio structure). Ensure the surface can support the weight of the awning and withstand operational forces.
- Secure Mounting Brackets: Install the mounting brackets firmly to the chosen surface using appropriate hardware (not always included, depending on surface type).
- Attach Awning to Brackets: Carefully lift and attach the assembled awning frame to the installed mounting brackets. Secure it in place.
- Install Support Poles: Extend and secure the adjustable support poles to the desired height and angle.

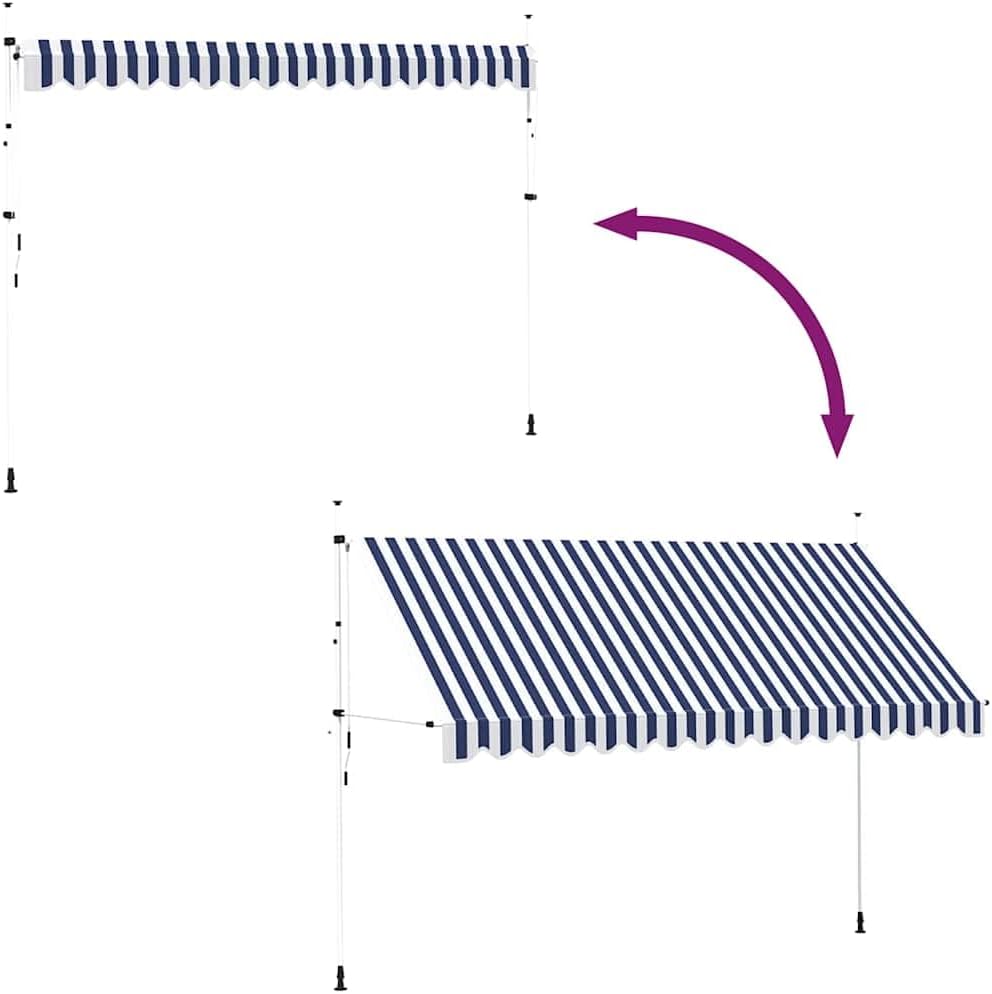

Image: Illustration of the awning's retraction and extension mechanism.
4.2 Dimensions and Placement:
Consider the dimensions of your awning for optimal placement and functionality.
Image: Detailed dimensions of the awning, including width (157.5"), maximum projection (47.2"), and adjustable installation height (78.7"-118.1").
5. Operating Instructions
Your vidaXL Retractable Awning is operated manually using a crank handle.
Image: The vidaXL Retractable Awning fully extended.
5.1 Extending the Awning:
- Insert the crank handle into the designated loop or hook on the awning mechanism.
- Turn the crank handle clockwise to extend the awning to your desired projection.
- Ensure the support poles are properly adjusted and secured once the awning is extended.
5.2 Retracting the Awning:
- Insert the crank handle into the designated loop or hook.
- Turn the crank handle counter-clockwise to retract the awning fully.
- Ensure the awning is fully retracted when not in use or during adverse weather conditions.
5.3 Adjusting Height and Angle:
The height and angle of the awning can be adjusted by manipulating the support poles. Loosen the locking mechanisms on the poles, adjust to the desired position, and then securely tighten the mechanisms.
6. Maintenance and Care
Regular maintenance will help prolong the life and appearance of your awning.
- Fabric Cleaning: The polyester fabric is easy to clean. Use a mild soap solution and a soft brush or cloth to clean the fabric. Rinse thoroughly with clean water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Frame Inspection: Periodically inspect the steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or screws.
- Moving Parts: Lubricate moving parts of the crank mechanism annually with a silicone-based spray to ensure smooth operation.
- Winter Storage: In areas with harsh winters, it is recommended to fully retract the awning and, if possible, remove it for indoor storage to protect it from heavy snow and ice accumulation.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Awning difficult to extend/retract | Mechanism needs lubrication; obstruction; damaged crank. | Lubricate moving parts. Check for obstructions. Inspect crank for damage. |
| Awning sags or is unstable | Support poles not properly extended/locked; loose mounting. | Ensure support poles are fully extended and locked. Check mounting brackets for secure attachment. |
| Fabric appears dirty or stained | Accumulation of dirt, dust, or mildew. | Clean fabric with mild soap and water. Allow to dry completely. |
| Awning makes unusual noises during operation | Lack of lubrication; loose components; worn parts. | Lubricate moving parts. Inspect all connections and tighten if necessary. If noise persists, contact customer support. |
8. Specifications
Detailed specifications for the vidaXL Retractable Awning (Model: 43224):
| Attribute | Value |
|---|---|
| Brand | vidaXL |
| Model Number | 43224 |
| Material | Polyester (Fabric), Steel (Frame) |
| Color | Blue and white striped |
| Size (Width) | 157.5 inches (400 cm) |
| Product Dimensions (D x W x H) | 47.2"D x 157.5"W x 118.1"H (120 cm D x 400 cm W x 300 cm H) |
| Maximum Projection Distance | 47.2 inches (120 cm) |
| Installation Height Range | 78.7" - 118.1" (200 cm - 300 cm) |
| Operation Mode | Manual (Crank) |
| Fabric Type | Polyester with PU Coating |
| Assembly Required | Yes |
| Item Weight | 23 pounds (10.46 Kilograms) |
9. Warranty and Support
vidaXL products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official vidaXL website. Keep your proof of purchase for any warranty claims.
For technical support, missing parts, or any questions not covered in this manual, please contact vidaXL customer service through their official channels. Provide your product model number (43224) and purchase details when contacting support to ensure efficient assistance.
