1. Product Overview
The Inter Link 3-in-1 Multi-functional Trundle Bed is a versatile and space-saving solution crafted from natural solid pine wood. Designed to adapt to various needs, it offers three sleeping possibilities: a single bed, a double bed by extending the upper section, and a third sleeping surface by pulling out the integrated trundle drawer. Its robust construction and natural finish make it a practical addition to guest rooms or children's bedrooms.
Image 1.1: The Inter Link 3-in-1 Multi-functional Trundle Bed in its compact single bed configuration, showcasing its natural solid wood finish.
- Functional and Versatile: Offers three sleeping surfaces, ideal as an extra bed, children's bed, or teen bed. The upper bed unfolds to provide a double sleeping surface, while the third bed can be pulled out like a drawer.
- Flexible and Space-Saving Design: Can be used as a sofa during the day and offers multiple sleeping options at night. The lower sleeping surface can also be used as storage space.
- High-Quality Solid Wood: Made from solid pine with visible grain, resistant, easy to maintain, and water-repellent.
- Dimensions: Approximately 97 cm (width) x 209 cm (length) x 65 cm (height).
- Material: Solid wood. Delivered without decoration.
2. Safety Information
This bed frame requires assembly. Please follow the assembly instructions carefully to prevent instability or collapse. Ensure the bed frame is securely fastened and all parts are safely connected. Do not exceed the maximum weight limit of the bed frame. This product is not intended for children under 3 years of age. Keep away from fire or flame. For additional information, please refer to the product manual or contact the manufacturer.
- Always ensure all screws and fasteners are tightened securely after assembly and periodically check for looseness.
- Do not allow children to play on or around the bed without supervision, especially when converting between configurations.
- Ensure adequate clearance around the bed when extending or retracting the sleeping surfaces to prevent pinching or injury.
- Use only mattresses of the recommended height to ensure proper fit and safe operation. The maximum height for the upper mattress is 12 cm, and for the lower mattress is 13 cm.
3. Package Contents
The Inter Link 3-in-1 Multi-functional Trundle Bed is delivered in three separate packages. Please ensure all packages are received before beginning assembly.
| Item | Description | Quantity |
|---|---|---|
| Bed Frame Components | Solid pine wood panels and beams for the main bed structure. | 1 set |
| Slatted Bed Bases | Two slatted bases for the main and pull-out beds. | 2 |
| Trundle Bed Components | Components for the third pull-out sleeping surface, including wheels. | 1 set |
| Assembly Hardware | Screws, bolts, hinges, and other necessary fasteners. | 1 set |
| Assembly Instructions | Detailed and illustrated assembly manual. | 1 |
Total weight of packages: Approximately 62 kilograms.
4. Setup and Assembly
Assembly of the Inter Link 3-in-1 Multi-functional Trundle Bed is required. A detailed and illustrated assembly manual is provided with the product. Please follow the instructions step-by-step to ensure correct and stable construction.
4.1. Before You Begin
- Unpack all three packages and lay out all components on a clean, soft surface to prevent scratches.
- Verify that all parts listed in the assembly manual are present.
- Gather necessary tools: typically a screwdriver (Phillips head), and possibly a rubber mallet.
- It is recommended to assemble the bed with two people for ease and safety.
4.2. Assembly Steps (General Guidance)
- Assemble the Main Bed Frame: Connect the side rails and head/footboards using the provided hardware. Ensure all connections are tight and secure.
- Install Slatted Bases: Place the slatted bed base for the main bed onto the designated supports within the frame.
- Assemble the Trundle Bed: Construct the frame for the pull-out trundle bed and attach the wheels. Install its slatted base.
- Integrate Pull-Out Mechanism: Attach the hinges and connecting mechanisms that allow the upper bed to extend into a double bed. Pay close attention to the orientation of these parts as shown in the manual.
Image 4.1: Detail of the slatted bed base, showing the sturdy construction for mattress support.

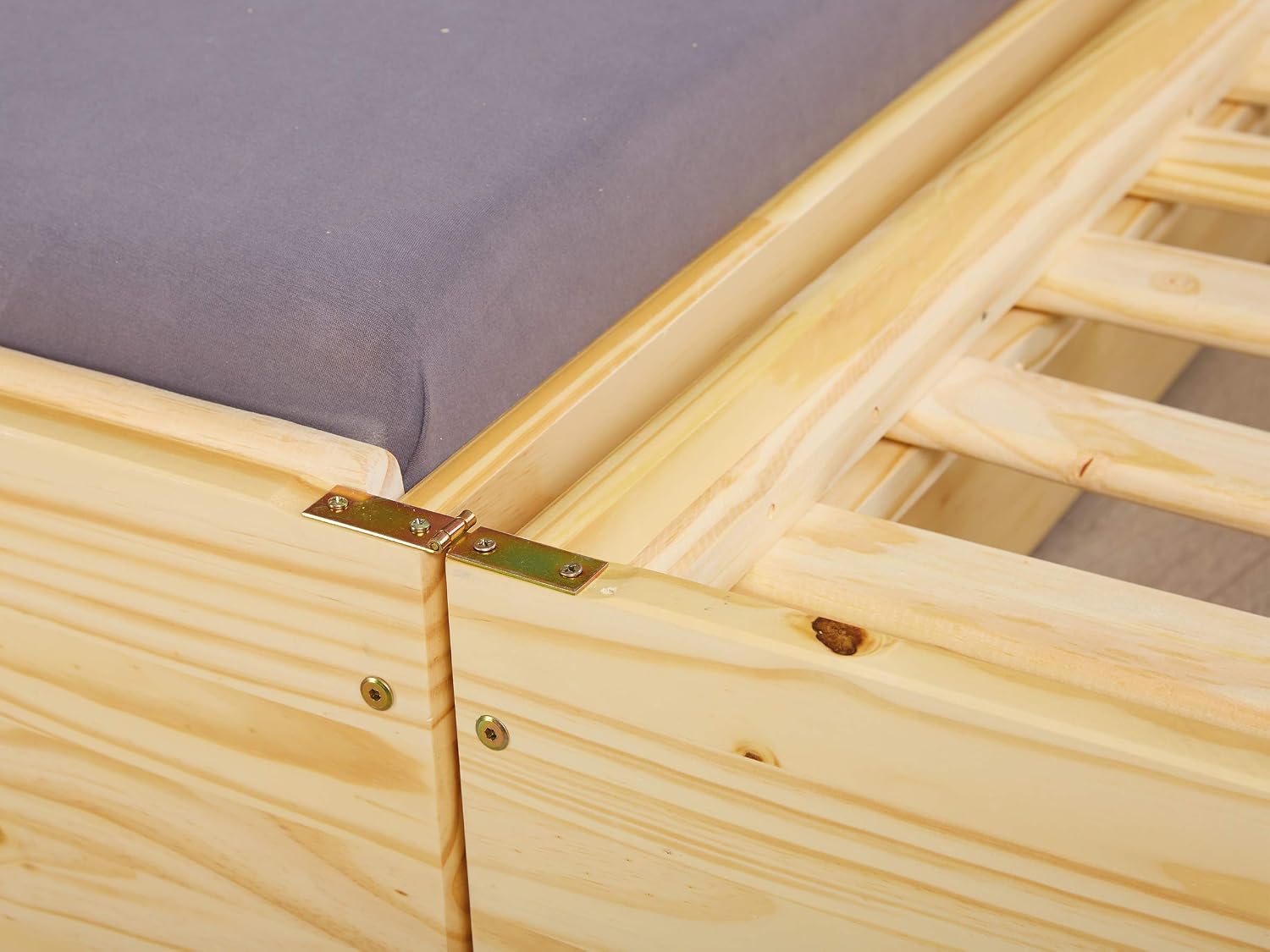

Image 4.2: View of the robust hinges that enable the bed to transform from a single to a double sleeping surface.
Image 4.3: Detail of the smooth-rolling wheels on the trundle bed, designed for effortless extension and retraction.
If you encounter any difficulties during assembly, please refer to the detailed instructions provided in the box or contact the manufacturer for assistance.
5. Operating Instructions
The Inter Link 3-in-1 Multi-functional Trundle Bed offers flexible sleeping arrangements. Follow these instructions to convert the bed between its configurations.
5.1. Single Bed Configuration
In its most compact form, the bed functions as a comfortable single bed (90x200 cm). The trundle bed is stored underneath, and the upper section is folded to its single-bed position.
Image 5.1: The bed in its standard single bed setup, ready for daily use.
5.2. Double Bed Configuration
To convert the single bed into a double bed (approximately 180x200 cm), follow these steps:
- Remove any bedding or mattress from the upper section if it obstructs the folding mechanism.
- Carefully lift and unfold the hinged section of the upper bed frame. This section will extend outwards, creating a wider sleeping surface.
- Ensure the extended section is fully locked into place and stable before placing mattresses.
Image 5.2: The bed fully extended, providing a spacious double sleeping area.
5.3. Triple Bed Configuration (with Trundle)
For a third sleeping surface, the trundle bed can be pulled out from underneath the main frame. This is possible in both single and double bed configurations of the main bed.
- Gently pull the trundle bed drawer outwards from beneath the main bed frame. The wheels will facilitate smooth movement.
- Position the trundle bed as desired, either directly next to the main bed or as a separate sleeping area.
Image 5.3: The trundle bed pulled out from under the main frame, offering an additional sleeping space.
Image 5.4: An illustrative image showing the bed in its triple sleeping configuration, with the main bed extended and the trundle bed pulled out.
Important Note on Mattresses: The maximum mattress height for the upper bed is 12 cm, and for the trundle bed is 13 cm. Using thicker mattresses may hinder the proper folding and storage of the bed components.
6. Maintenance
Proper care and maintenance will extend the life of your Inter Link 3-in-1 Multi-functional Trundle Bed.
- Cleaning: The product is water-repellent and easy to maintain. It can be easily cleaned with a damp cloth and wiped dry with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the natural wood finish.
- Regular Checks: Periodically inspect all screws, bolts, and hinges to ensure they remain tight. Tighten any loose fasteners to maintain the bed's stability and safety.
- Wood Care: As solid wood is a natural product, slight variations in shade, finish, and wood density may occur. These are characteristic and attest to the authenticity of natural wood. Protect the wood from excessive moisture and direct sunlight to prevent warping or fading.
- Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame or floor.
7. Troubleshooting
This section addresses common issues you might encounter with your Inter Link 3-in-1 Multi-functional Trundle Bed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels unstable or wobbly after assembly. | Loose fasteners or incorrect assembly. | Review the assembly manual and ensure all screws and bolts are fully tightened. Check that all components are correctly aligned. |
| Difficulty extending or retracting the upper bed section. | Obstruction, misaligned hinges, or mattress too thick. | Ensure no bedding or objects are blocking the mechanism. Check hinges for damage or misalignment. Verify mattress height (max 12cm for upper). |
| Trundle bed does not slide smoothly. | Wheels obstructed, damaged, or floor surface uneven. | Check wheels for debris or damage. Ensure the floor surface is clean and level. Lubricate wheel axles if necessary. |
| Bed makes creaking noises. | Loose joints or friction between wood parts. | Tighten all assembly screws. Apply a small amount of furniture wax or silicone spray to contact points between wood components if creaking persists. |
| Slats breaking or showing signs of weakness. | Excessive weight, improper mattress support, or manufacturing defect. | Ensure the bed's weight limit is not exceeded. Replace broken slats immediately. Contact customer support if multiple slats break under normal use. |
If the problem persists after attempting these solutions, please contact Inter Link customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 30500257 |
| Brand | Inter Link |
| Color | Natural |
| Product Dimensions (L x W x H) | 209 x 97 x 65 cm (82.3 x 38.2 x 25.6 inches) |
| Sleeping Surface (Single) | 90 x 200 cm (35.4 x 78.7 inches) |
| Sleeping Surface (Double, extended) | Approx. 180 x 200 cm (70.9 x 78.7 inches) |
| Material | Solid Pine Wood |
| Finish Type | Painted (Natural Varnish) |
| Assembly Type | Requires Assembly |
| Item Weight | 62 Kilograms (approx. 136.7 lbs) |
| Number of Packages | 3 |
| Included Components | 1 x Functional Bed (frame, slatted bases, trundle components, hardware) |
| Max. Upper Mattress Height | 12 cm |
| Max. Lower Mattress Height (Trundle) | 13 cm |
9. Warranty and Support
Your Inter Link 3-in-1 Multi-functional Trundle Bed comes with a manufacturer's warranty.
- Warranty Period: 2-year manufacturer's warranty.
- Claiming Warranty: In case of defects or issues covered by the warranty, please retain your proof of purchase.
- Customer Support: The manufacturer is at your disposal if needed. You can use the contact form included with the delivery or refer to the contact information provided in the assembly manual.
- Spare Parts: Information regarding spare parts availability is currently unavailable. Please contact customer support for inquiries about specific components.
For any questions or assistance, please reach out to Inter Link customer service.
