Body-Solid G6B G-Series Home Gym User Manual

Introduction

This manual provides essential information for the safe and effective use of your Body-Solid G6B G-Series Home Gym. Please read this manual thoroughly before assembly or operation. Proper assembly, operation, and maintenance are crucial for optimal performance and user safety.

Figure 1: Full view of the Body-Solid G6B G-Series Home Gym, showcasing its red frame and various exercise stations.

Safety Information

• Consult a Physician: Before starting any exercise program, consult with a healthcare professional.
• Read All Instructions: Ensure you understand all assembly and operating instructions before using the equipment.
• Proper Setup: Assemble the gym on a flat, stable surface. Ensure all bolts and nuts are securely tightened before use.
• Clearance Area: Maintain a minimum of 2 feet (0.6 meters) of clear space around the equipment during use.
• Children and Pets: Keep children and pets away from the equipment during operation.
• Weight Limits: Do not exceed the maximum recommended user weight or weight stack capacity.
• Inspect Before Use: Before each workout, inspect the cables, pulleys, and all moving parts for wear or damage. Do not use if any components are damaged.
• Proper Form: Use proper exercise form to prevent injury. If you experience pain or discomfort, stop immediately.
• Pinch Points: Be aware of pinch points, especially around the weight stack and moving parts.

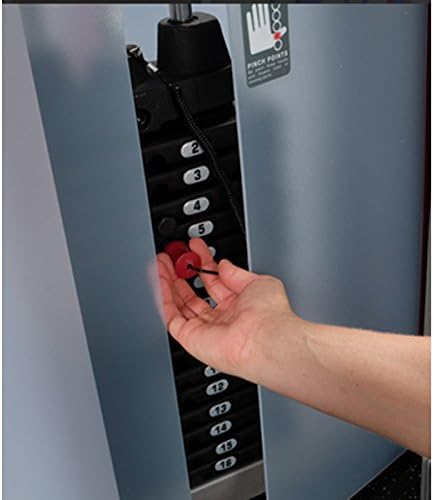

Figure 2: A hand adjusting the selectorized weight stack. Always be mindful of pinch points when changing weights.

Components and Features

The Body-Solid G6B Home Gym is designed with multiple stations to provide a comprehensive full-body workout. Key features include:

• Bi-Angular Press Arms: Patented design for chest, incline, and shoulder presses, increasing muscle interaction by 25%.
• Lat Pulldown / High Pulley Station: For back and triceps exercises.
• Ab Crunch / Mid Pulley Station: Targets abdominal muscles.
• Perfect Pec Station: Equipped with swivel arms for chest development.
• Leg Extension / Leg Curl Station: For quadriceps and hamstring development.
• Seated Row / Low Pulley Station: Essential for back and bicep exercises.
• 210 lb. Selectorized Weight Stack: Smooth and quiet operation with easy weight selection.
• DuraFirm Pads: High-density padding with lumbar support for comfort.
• Aircraft Cables and Pulleys: Durable 2,200 lb. tension strength cables and fiberglass reinforced nylon pulleys with precision bearings.

Figure 3: Close-up of the "25 Body-Solid Years Strong" emblem, highlighting the product's anniversary edition.

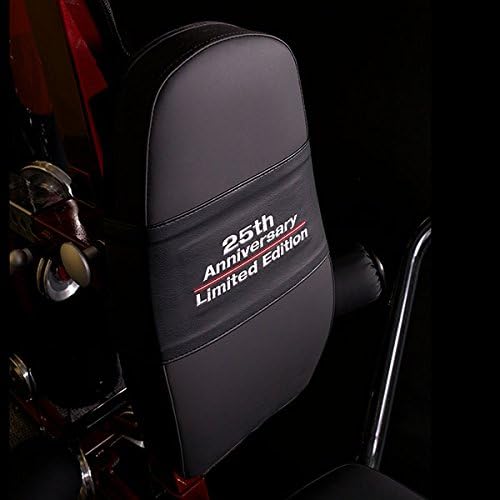

Figure 4: The "25th Anniversary Limited Edition" branding visible on the backrest of the gym's seat.

Setup and Assembly

Detailed assembly instructions are provided in a separate assembly guide included with your purchase. Please follow these steps carefully:

1. Unpack Components: Carefully unpack all boxes and identify all parts against the packing list.
2. Organize Hardware: Separate and identify all nuts, bolts, washers, and other hardware.
3. Frame Assembly: Begin by assembling the main frame components according to the diagrams.
4. Attach Stations: Install the various exercise stations (press arms, pec deck, leg developer, etc.) to the main frame.
5. Cable Routing: Carefully route all cables through the pulleys as indicated in the assembly guide. Ensure cables are not twisted or pinched.
6. Weight Stack Installation: Install the weight stack plates and selector pin.
7. Final Inspection: Before first use, double-check all connections, bolts, and cables to ensure they are secure and properly installed.

Figure 5: A detailed view of the precision-machined pulleys and durable steel aircraft cables, critical components for smooth operation.

Figure 6: An example of an adjustment knob used for quick and smooth positioning of components like the seat post.

Operating Instructions

The Body-Solid G6B Home Gym offers a variety of exercises. Always select an appropriate weight and use controlled movements.

Adjusting Weight:

To adjust the weight, insert the selector pin fully into the desired weight plate in the stack. Ensure the pin is securely seated before beginning your exercise.

Using the Bi-Angular Press Arms:

Sit on the seat with your back firmly against the backrest. Grasp the handles with an overhand grip. Push forward to perform chest presses, or adjust the seat and angle for incline or shoulder presses. The unique design provides resistance from two directions.

Figure 7: A user demonstrating the chest press exercise using the Bi-Angular Press Arms, ensuring proper form and engagement.

Using the Lat Pulldown / High Pulley Station:

Attach the lat bar to the high pulley cable. Sit facing the machine, securing your thighs under the hold-down pads. Pull the bar down towards your upper chest, squeezing your shoulder blades together. Release slowly.

Figure 8: A user performing a lat pulldown, demonstrating the use of the high pulley station for back muscle development.

Using the Ab Crunch / Mid Pulley Station:

Attach the ab/triceps strap to the mid pulley. Kneel or sit facing away from the machine, grasping the strap behind your head. Crunch forward, engaging your abdominal muscles.

Using the Leg Extension / Leg Curl Station:

For leg extensions, sit on the seat with your shins behind the leg pads. Extend your legs fully. For leg curls, lie prone on the bench (if applicable) or sit facing the opposite direction, hooking your heels under the pads and curling your legs.

Using the Seated Row / Low Pulley Station:

Attach the revolving straight bar or V-bar to the low pulley. Sit on the floor or bench with your feet against the foot brace. Pull the handle towards your abdomen, keeping your back straight.

Figure 9: A user performing a triceps pushdown, illustrating the versatility of the mid or high pulley station for arm exercises.

Maintenance

Regular maintenance ensures the longevity and safe operation of your home gym.

• Clean Regularly: Wipe down the frame and upholstery with a damp cloth after each use to prevent sweat buildup and corrosion.
• Inspect Cables and Pulleys: Periodically check cables for fraying, kinks, or wear. Ensure pulleys spin freely and are not cracked or damaged. Replace worn components immediately.
• Lubricate Moving Parts: Apply a silicone-based lubricant to guide rods and pivot points as recommended in the assembly guide to ensure smooth operation.
• Tighten Fasteners: Routinely check all nuts and bolts and tighten them as necessary. Loose fasteners can lead to instability and wear.
• Check Upholstery: Inspect pads for tears or excessive wear.

Troubleshooting

Specifications

• Model: G6B25YR
• Brand: BodySolid Inc.
• Dimensions (L x W x H): 84" x 58" x 84" (213.36 cm x 147.32 cm x 213.36 cm)
• Weight Stack: 210 lbs (95 kg) selectorized
• Frame Material: 2" x 3", 11-gauge mainframe construction (Aluminum)
• Cable Strength: 2,200 lb. tension strength, military spec steel aircraft cables
• Pulleys: 4½” impact resistant fiberglass reinforced nylon with precision machined steel ball bearings
• Color: Red
• Handle Type: Fixed Handle
• Strap Type: Cable/Pulley straps, Linear bearing straps, Elastic resistance straps
• Package Weight: Approximately 547 lbs (248 kg)

Figure 10: Diagram illustrating the dimensions of the Body-Solid G6B Home Gym: 84 inches in length, 58 inches in width, and 84 inches in height.

Warranty and Support

BodySolid Inc. stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Body-Solid website. For technical support, parts, or service inquiries, please contact Body-Solid customer service.

Contact Information: Please refer to your product registration or the Body-Solid Inc. official website for the most current contact details.

Online Resources: Additional resources, including exercise charts and FAQs, may be available on the manufacturer's website.
