Generic 1606-6201 Water Pump Instruction Manual

Product Overview

This manual provides essential information for the installation, operation, and maintenance of the Generic 1606-6201 Water Pump. This high-quality aftermarket replacement part is designed for various Allis Chalmers models, including 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8030, 8050, and 8070. Proper installation and regular maintenance are crucial for optimal performance and longevity of the water pump.

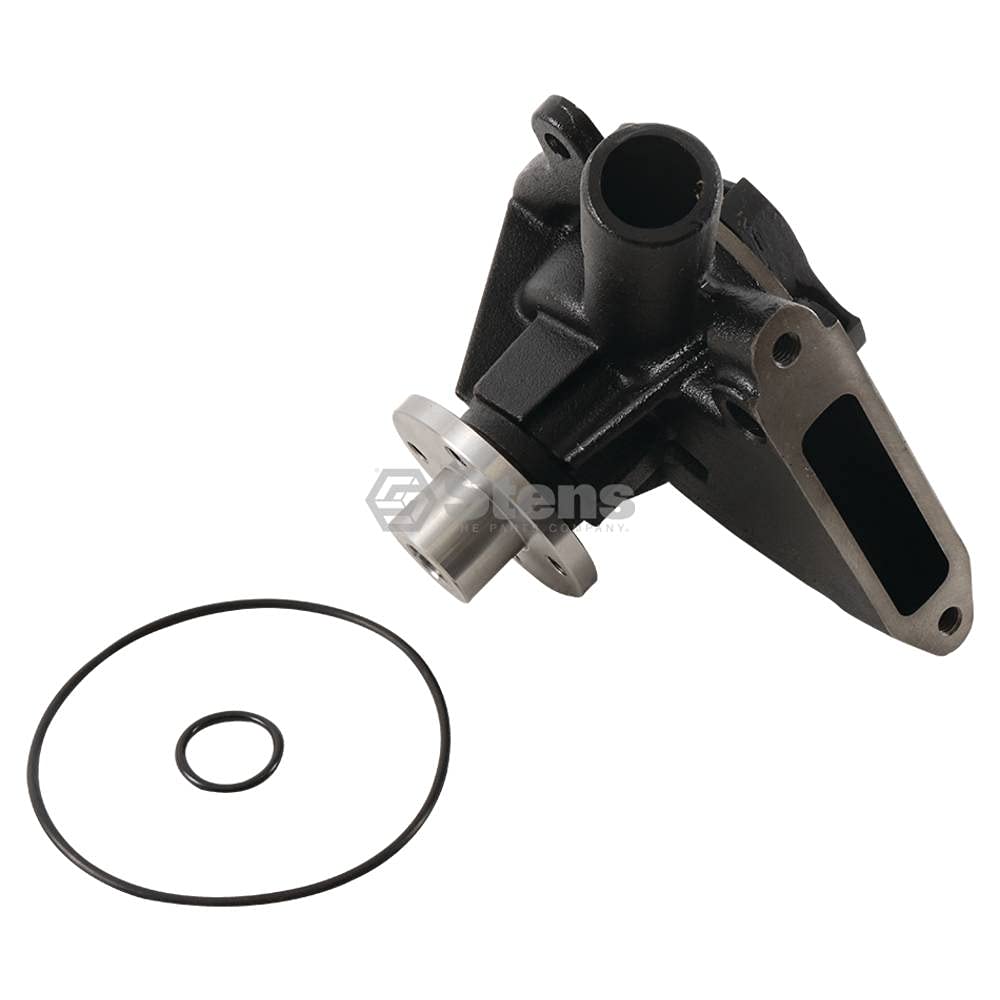

Image: The 1606-6201 Water Pump, a black cast metal component with a cylindrical inlet and a flat mounting flange, accompanied by two black rubber O-rings of different sizes.

Installation Guide

The 1606-6201 Water Pump is a critical component of the engine cooling system. Proper installation is essential to prevent leaks and ensure efficient engine cooling. It is highly recommended that installation be performed by a qualified mechanic or technician.

Before Installation:

• Ensure the engine is cool and the cooling system is depressurized.
• Drain the engine coolant completely.
• Gather all necessary tools and replacement parts. Note: This water pump is not supplied with a gasket; a new gasket must be acquired separately.
• Refer to your specific Allis Chalmers model's service manual for detailed removal and installation procedures.

Installation Steps (General):

1. Carefully remove the old water pump, ensuring all old gasket material is thoroughly cleaned from the mounting surface.
2. Inspect the mounting surface for any damage or corrosion.
3. Apply a new gasket (not included) to the mounting surface of the new water pump or engine block as per manufacturer recommendations.
4. Position the new 1606-6201 water pump and secure it with the appropriate fasteners. Tighten bolts to the torque specifications outlined in your vehicle's service manual.
5. Reconnect all hoses and belts that were removed during the process.
6. Refill the cooling system with the recommended coolant type and bleed any air from the system.
7. Start the engine and check for leaks. Monitor engine temperature.

Operation and Function

The water pump is responsible for circulating coolant through the engine block, cylinder head, radiator, and heater core. This continuous circulation dissipates heat generated by the engine, maintaining optimal operating temperatures and preventing overheating.

Once installed, the water pump operates continuously when the engine is running. There are no user-adjustable settings for the water pump itself. Its proper function is indicated by stable engine temperature readings and the absence of coolant leaks.

Key Indicators of Proper Operation:

• Engine temperature gauge remains within the normal operating range.
• No visible coolant leaks around the water pump housing or connections.
• Consistent heating from the vehicle's heater (if applicable).

Maintenance

While the water pump itself requires minimal direct maintenance, regular care of the entire cooling system is vital for its longevity and efficient operation.

• Coolant Level Check: Regularly inspect the coolant level in the reservoir and radiator. Top up with the manufacturer-recommended coolant type if necessary.
• Coolant Flush and Replacement: Adhere to the vehicle manufacturer's recommended intervals for coolant flushes and replacement. Old or contaminated coolant can lead to corrosion and premature wear of cooling system components, including the water pump.
• Hose and Clamp Inspection: Periodically check all cooling system hoses for cracks, swelling, or softness. Ensure all hose clamps are secure.
• Belt Inspection: If the water pump is driven by a serpentine or V-belt, inspect the belt for cracks, fraying, or excessive wear. Ensure proper belt tension.
• Leak Detection: Visually inspect the water pump and surrounding areas for any signs of coolant leaks (e.g., drips, stains, or residue). A sweet smell can also indicate a coolant leak.

Troubleshooting

If you experience issues with your cooling system, the water pump may be a contributing factor. Below are common symptoms and potential causes related to the water pump.

For any persistent issues, consult a certified automotive technician. Attempting repairs without proper knowledge and tools can lead to further damage or injury.

Specifications

Warranty and Support

For information regarding warranty coverage, returns, or technical support for the 1606-6201 Water Pump, please refer to the original seller or the manufacturer, Generic. Contact details are typically provided on your purchase receipt or the seller's website.

Always retain your proof of purchase for any warranty claims.
