CALEFFI SATK20303 High Temperature Satellite Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the CALEFFI SATK20303 High Temperature Satellite. This unit is designed as a 40 kW heat exchanger for both heating and domestic hot water (DHW) production. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Product Overview: The SATK20303 is an overhead utility satellite system, integrating components for efficient heat exchange and control.

2. Safety Information

Always adhere to local regulations and safety standards during installation and operation. Installation should only be performed by qualified personnel. Disconnect power before any maintenance or service.

• Ensure proper grounding.
• Do not operate the unit if any damage is visible.
• Keep children away from the unit during operation.
• Refer to the full manufacturer's manual for comprehensive safety guidelines.

3. Product Features

The CALEFFI SATK20303 High Temperature Satellite includes the following key features:

• Heating Function:
  • ON/OFF control.
  • 2-way valve (P max allowed 0.9 bar).
  • Template for heat meter (cod. 755404K / 755405K).
• Domestic Hot Water (DHW) Production:
  • 40 kW brazed exchanger.
  • DHW temperature sensor.
  • Primary modulating valve for the exchanger (P max allowed 0.9 bar).
  • DHW priority flow meter.
  • DHW temperature range: 42 – 60 °C (max. 18 l/min).
  • Electronic controller with preheating function for the DHW exchanger.
• General:
  • Maximum operating pressure: 10 bar.
  • Power supply: 230 V - 50 Hz.
  • Power consumption: 20 W.

4. Setup and Installation

Installation of the CALEFFI SATK20303 must be carried out by a certified professional in accordance with all applicable local and national codes. This section provides a general overview; refer to the complete installation manual for detailed instructions and diagrams.

1. Unpacking: Carefully remove the unit from its packaging and inspect for any shipping damage.
2. Mounting: Securely mount the satellite unit in the designated location, ensuring adequate space for ventilation and maintenance access.
3. Hydraulic Connections: Connect the primary heating circuit, domestic cold water inlet, and domestic hot water outlet to the appropriate ports on the unit. Ensure all connections are watertight and sealed correctly.
4. Electrical Connections: Connect the unit to a 230 V - 50 Hz power supply. Ensure proper grounding and follow all electrical safety guidelines.
5. System Filling and Venting: Fill the heating system and the DHW circuit, then carefully vent all air from the system.
6. Initial Checks: Before powering on, perform a visual inspection of all connections and ensure no leaks are present.

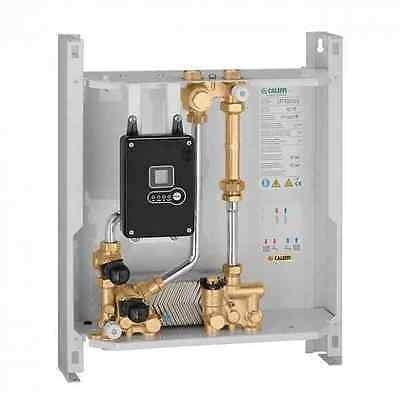

Figure 1: CALEFFI SATK20303 High Temperature Satellite unit. This image shows the compact design of the satellite, highlighting its various connection points for integration into a heating and domestic hot water system.

5. Operating Instructions

The CALEFFI SATK20303 features an electronic controller for managing its functions. Once installed and powered, the unit is designed for automated operation based on demand for heating and domestic hot water.

• Power On: After successful installation, switch on the main power supply to the unit. The electronic controller will initiate its startup sequence.
• Heating Control: The heating function operates with ON/OFF control. The unit will respond to the demand from the heating system, typically regulated by a thermostat in the living space.
• Domestic Hot Water (DHW) Production: When a hot water tap is opened, the flow meter detects water flow, activating the DHW production. The unit prioritizes DHW production, ensuring hot water is supplied within the specified temperature range (42 – 60 °C). The preheating function for the DHW exchanger can be activated via the electronic controller for faster hot water availability.
• Temperature Adjustment: Refer to the electronic controller's specific interface for adjusting DHW temperature settings within the allowed range.

For detailed programming and advanced settings of the electronic controller, consult the dedicated controller manual provided with the product.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your CALEFFI SATK20303. All maintenance procedures should be performed by qualified service personnel.

• Annual Inspection: It is recommended to have the unit inspected annually by a qualified technician. This includes checking all connections, valves, and the heat exchanger for wear or blockages.
• Cleaning: Periodically check and clean any accessible filters to maintain optimal flow and efficiency.
• Pressure Check: Ensure the system pressure remains within the recommended operating range.
• Descaling: In areas with hard water, the DHW heat exchanger may require descaling to prevent efficiency loss. This should be performed by a professional.

Warning: Always disconnect the power supply to the unit before performing any maintenance or cleaning.

7. Troubleshooting

This section provides basic troubleshooting steps for common issues. For complex problems, contact a qualified service technician.

8. Technical Specifications

9. Warranty and Support

Warranty Information: CALEFFI products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official CALEFFI website. Keep your proof of purchase for warranty claims.

Customer Support: If you encounter any issues that cannot be resolved using the troubleshooting guide, or require technical assistance, please contact your installer or an authorized CALEFFI service center. Contact details can typically be found on the CALEFFI website or in your product documentation.

For further information, please visit the official CALEFFI website: www.caleffi.com
