House of Marley No Bounds Sport Portable Bluetooth Speaker User Manual

1. Product Overview

The House of Marley No Bounds Sport is a durable and stylish outdoor speaker designed to deliver a full 360° audio experience. It features a 12-hour battery life and an IP67 certification, making it both water and dust-proof, and capable of floating. The speaker is constructed from sustainable materials, including Marley’s exclusive Rewind Fabric, Regrind Silicone, Regrind Cork, and Recyclable Aluminum.

Figure 1: House of Marley No Bounds Sport Speaker.

2. Key Features

• 12-Hour Battery Life with Quick Charge: Enjoy extended playtime with the internal lithium-ion battery. Quick Charge technology minimizes charging time to approximately 2 hours for a full charge.
• Waterproof and Dust-Proof (IP67 Rated): The IP67 rating ensures the speaker is protected against water and dust, making it suitable for various outdoor environments, including beaches, pools, and campsites.
• Wireless Dual Speaker Pairing with 360° Sound: Connect two No Bounds Sport speakers wirelessly for an enhanced stereo or mono listening experience. The cylindrical design projects sound in all directions.
• Buoyant Design: Crafted from sustainable materials, the speaker is designed to float for easy retrieval if dropped in water.
• Integrated Carabiner Clip: A metal carabiner clip is included for convenient portability, allowing you to attach the speaker to bags or belts.
• Speakerphone & AUX-In: Features a built-in microphone for speakerphone functionality and an auxiliary input for wired connection to compatible devices.
• Charging Cable Storage: The charging cable can be conveniently stashed inside the speaker's cylindrical base.

Figure 2: Rotary Volume Control and Key Features.

Figure 3: Speaker Features and Materials.

3. Setup

3.1 Charging the Speaker

1. Locate the charging port, typically found within the stash compartment at the base of the speaker.
2. Connect the provided charging cable to the speaker and a suitable USB power source.
3. The LED indicator will show charging status. A full charge takes approximately 2 hours.

3.2 Powering On/Off

• To power on, press and hold the power button until the indicator light illuminates.
• To power off, press and hold the power button again until the indicator light turns off.

3.3 Bluetooth Pairing

1. Ensure the speaker is powered on and in pairing mode (indicated by a flashing LED).
2. On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "No Bounds Sport" from the list to connect. The LED will turn solid when connected.

3.4 Dual Speaker Pairing

1. Power on both No Bounds Sport speakers.
2. Pair one speaker to your device via Bluetooth (this will be the primary speaker).
3. On the primary speaker, activate dual pairing mode (refer to specific button combination in quick start guide if available).
4. The primary speaker will search for and connect to the second speaker. Once connected, audio will play through both.

4. Operating Instructions

4.1 Adjusting Volume

• The No Bounds Sport features a rotary volume control on the top surface.
• Rotate the top section clockwise to increase volume.
• Rotate the top section counter-clockwise to decrease volume.

4.2 Using the AUX Input

• Open the protective cover on the side of the speaker to access the AUX input.
• Connect an audio cable (not included) from your device's headphone jack to the speaker's AUX input.
• The speaker will automatically switch to AUX mode.

4.3 Speakerphone Functionality

• When connected via Bluetooth, incoming calls will be routed through the speaker.
• Press the play/pause button to answer or end a call.
• The built-in microphone allows for hands-free communication.

4.4 Portability and Placement

• Utilize the integrated metal carabiner clip to attach the speaker to your bag, belt, or other secure points for easy transport.
• The 360° sound design allows for flexible placement, ensuring consistent audio quality from any angle.
• Due to its buoyant design, the speaker can be safely used near or in water.

Figure 4: Enjoying 360° Superior Sound.

Figure 5: Speaker with Carabiner for Portability.

5. Maintenance

5.1 Cleaning

• To clean the speaker, use a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Ensure all port covers are securely closed before cleaning or exposing to water.

5.2 Storage

• Store the speaker in a cool, dry place when not in use.
• The charging cable can be stored in the dedicated compartment within the speaker's base.

6. Troubleshooting

6.1 No Power

• Ensure the speaker is fully charged. Connect it to a power source and check the charging indicator.
• Press and hold the power button for a few seconds to ensure it's not just in standby mode.

6.2 Bluetooth Connectivity Issues

• Make sure the speaker is within the 10-meter Bluetooth range of your device.
• Turn off and on Bluetooth on your device, then try pairing again.
• Forget the speaker from your device's Bluetooth list and re-pair.
• Restart both the speaker and your connected device.

6.3 No Sound or Distorted Sound

• Check the volume levels on both the speaker and your connected device.
• If using AUX, ensure the cable is fully inserted and not damaged.
• If sound is distorted, try reducing the volume on your device or the speaker.

7. Specifications

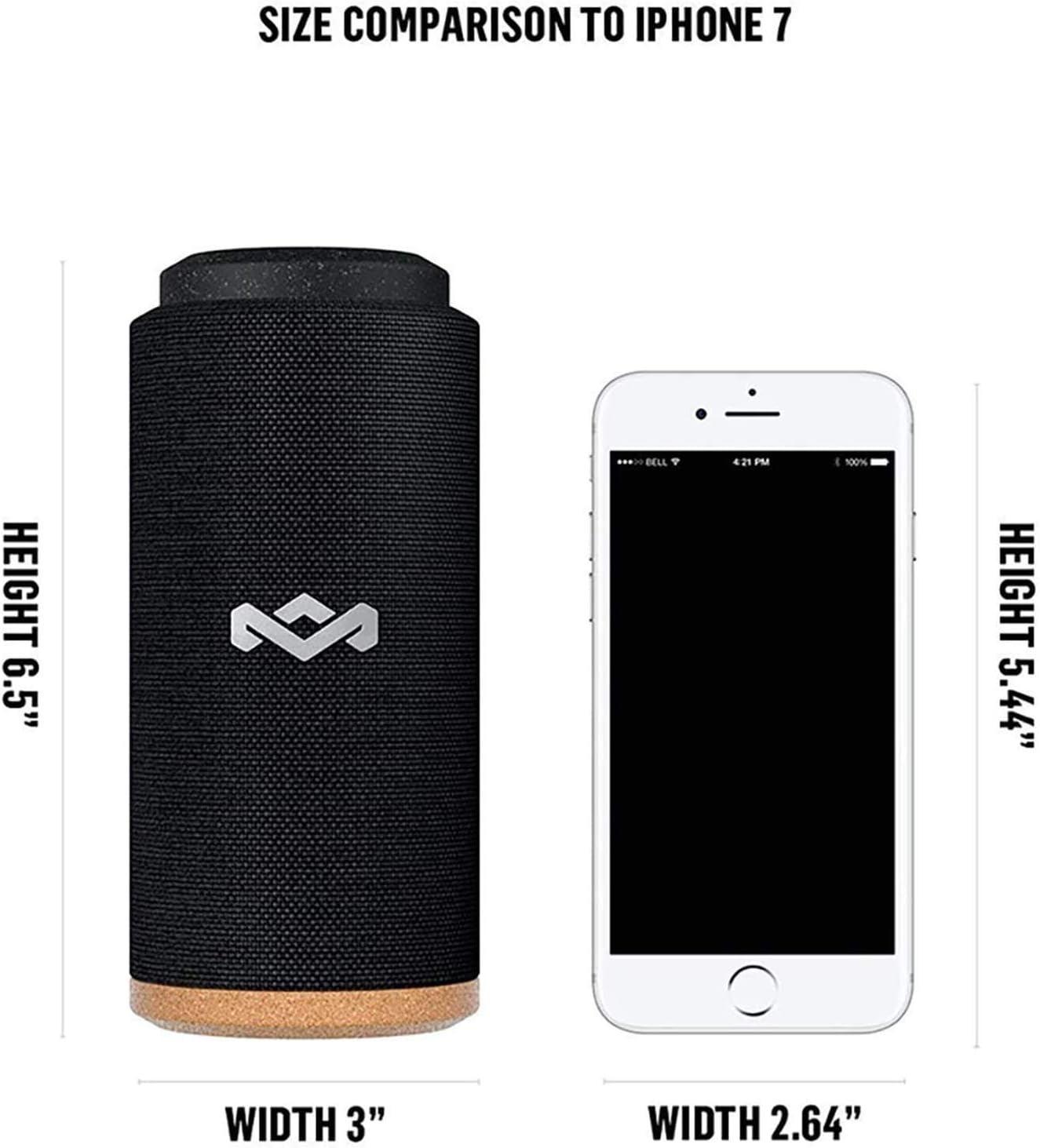

Figure 6: Size Comparison.

Figure 7: Durable, Waterproof, & Dust-Proof Design.

Figure 8: Wireless Bluetooth Connectivity.

8. Warranty & Support

8.1 Limited Warranty

The House of Marley No Bounds Sport speaker comes with a limited warranty. Please refer to the warranty card included in your product packaging or visit the official House of Marley website for detailed terms and conditions.

8.2 Customer Support

For further assistance, technical support, or inquiries regarding your No Bounds Sport speaker, please contact House of Marley customer service through their official website or the contact information provided in your product documentation.
