1. Product Overview
The Prominence Home River Run 52-inch Farmhouse LED Ceiling Fan combines rustic charm with modern functionality. Designed for medium to large rooms, this fan features a bronze finish, dual-finish blades, and an integrated LED light kit. Its quiet, reversible motor ensures comfort year-round.
Image: The Prominence Home River Run 52-inch Farmhouse LED Ceiling Fan, showcasing its bronze finish, five wood-grain blades, and three seeded glass light shades.
Key Features:
- Rustic Farmhouse Design: Bronze finish with rustic seeded glass light kit and harmonizing barn wood blades.
- Dual Finish Blades: Reversible blades with rustic barn wood on one side and warm tumbleweed on the other.
- Integrated LED Lighting: Open-lantern style light kit with three Edison-style LED bulbs (2700K color temperature) included. Dimmable from 20% to 100%.
- Quiet, Reversible Motor: 3-speed motor operates quietly and can be reversed for summer cooling or winter heat circulation.
- Ideal Room Size: 52-inch fan suitable for rooms around 350 square feet, such as living rooms, bedrooms, and dining rooms.
- Pull Chain Control: Convenient pull chains for adjusting fan speed and light.
- Multiple Mounting Options: Supports closemount, standard, and angled installations (Tri-Mount).
2. Safety Information
Please read and understand all instructions before beginning installation. Improper installation can lead to electric shock, fire, or personal injury. Always consult a qualified electrician if you are unsure about any part of the installation process.
- Ensure the power is disconnected at the circuit breaker before installation or maintenance.
- All wiring must be in accordance with national and local electrical codes.
- The mounting structure must be capable of supporting the fan's weight (approximately 20.6 lbs).
- Do not operate the fan with damaged blades or housing.
- Maintain a minimum clearance of 7 feet from the floor to the bottom of the fan blades.
Image: Certifications indicating compliance with safety and efficiency standards, including ETLus, DOE, and CA CEPA/CARB/CEC Regulations.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Motor Housing Assembly
- 5 Fan Blades (Dual Finish)
- Light Kit Assembly with 3 Seeded Glass Shades
- 3 Edison-Style LED Bulbs
- Downrod (4 inches)
- Mounting Bracket
- Pull Chains (for fan speed and light)
- Hardware Pack (screws, washers, wire nuts, etc.)
- Instruction Manual
4. Installation Guide
Professional installation is recommended. Ensure you have the necessary tools and follow all local electrical codes. This fan offers three mounting options: closemount, standard, and angled.
4.1 Choosing a Mounting Option:
Image: Visual representation of the three available mounting options: closemount for low ceilings, standard with a downrod, and angled for sloped ceilings.
4.2 Pre-Installation Considerations:
- Room Size: This 52-inch fan is ideal for large rooms (up to 12 ft x 18 ft or 350 sq ft).
- Dimensions: The fan has a 52-inch blade span and measures approximately 19.8 inches from the ceiling to the bottom of the light kit.
Image: Diagram illustrating the fan's dimensions, including a 52-inch blade span and a 19.8-inch drop from the ceiling to the bottom of the light kit.
Image: A guide recommending fan sizes based on room dimensions, indicating this 52-inch fan is suitable for large rooms.
4.3 Step-by-Step Installation (Summary):
- Turn off power at the circuit breaker.
- Install the mounting bracket to the ceiling junction box.
- Assemble the downrod and motor housing.
- Hang the fan assembly from the mounting bracket.
- Complete electrical wiring connections.
- Attach the fan blades, ensuring the desired finish (Rough Pine or Tumbleweed) is facing down.
- Install the light kit and seeded glass shades.
- Insert the LED bulbs and attach the pull chains.
- Restore power and test the fan and light functions.

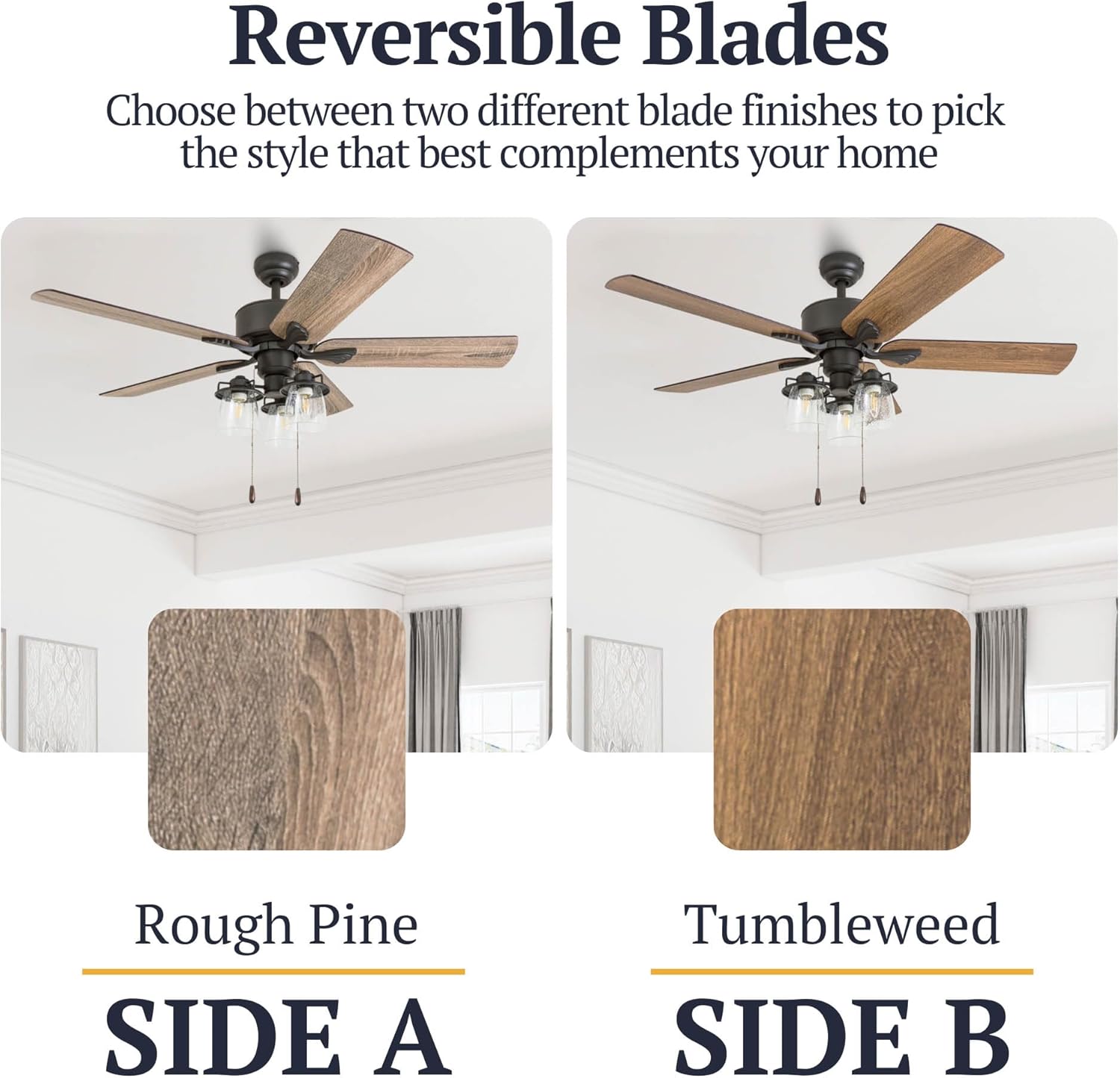

Image: Close-up of the dual-finish fan blades, showing "Rough Pine" (Side A) and "Tumbleweed" (Side B) options.
5. Operating Instructions
The River Run ceiling fan is controlled by two pull chains and features a reversible motor for seasonal use.
5.1 Fan Speed Control:
- Locate the pull chain designated for fan speed (often marked with a fan icon or a specific fob).
- Pull the chain repeatedly to cycle through the three available speeds (High, Medium, Low) and Off.
5.2 Light Control:
- Locate the pull chain designated for the light (often marked with a light bulb icon or a different fob).
- Pull the chain to turn the light On or Off.
- The integrated LED lighting is dimmable from 20% to 100%. Consult your electrician for compatible dimmer switch installation if desired.
Image: Detail of the light kit, showing the three clear seeded glass shades, Edison-style LED bulbs (2700K), and an indication of 20%-100% dimmable lighting.
5.3 Reversible Motor Function:
The fan's reversible motor allows for optimal air circulation in both warm and cool seasons.
- Summer Mode (Downward Airflow): Blades rotate counter-clockwise to create a cooling breeze.
- Winter Mode (Upward Airflow): Blades rotate clockwise to circulate warm air trapped near the ceiling.
- To change direction, turn off the fan and wait for the blades to stop. Locate the reverse switch on the motor housing (usually a small slide switch) and slide it to the opposite position. Turn the fan back on.
Image: Illustration demonstrating the reversible motor's effect on airflow, showing warm air distribution in winter and cooling breeze in summer.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Light Bulbs: Replace LED bulbs as needed. Ensure power is off before changing bulbs. Use only compatible Edison-style LED bulbs.
- Tighten Fasteners: Periodically check all screws and fasteners on the fan blades and mounting hardware to ensure they are secure.
7. Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; loose wire connections; blown fuse/tripped breaker. | Check circuit breaker and wall switch. Ensure all wire connections are secure. |
| Fan is noisy | Loose screws; blades unbalanced; motor hum. | Tighten all screws. Check blade balance. Ensure proper mounting. |
| Light does not work | Loose wire connections; faulty bulb; light switch off. | Check light pull chain. Ensure bulbs are securely tightened. Verify wiring. |
| Excessive wobbling | Loose blades; unbalanced blades; improper mounting. | Ensure all blade screws are tight. Use a balancing kit if necessary. Verify mounting bracket is secure. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Prominence Home |
| Model Name | River Run |
| Model Number | 50566-01 |
| Color | Bronze |
| Electric Fan Design | Ceiling Fan |
| Power Source | Corded Electric |
| Style | Farmhouse |
| Product Dimensions | 52"D x 52"W x 19.86"H |
| Room Type | Bedroom, Dining Room, Home Office, Kitchen, Living Room, Playroom |
| Special Feature | Reversible Airflow |
| Recommended Uses | Air Circulation |
| Wattage | 69.17 watts |
| Finish Type | Painted |
| Number of Blades | 5 |
| Air Flow Capacity | 4292.78 Cubic Feet Per Minute |
| Blade Length | 52 Inches |
| Speed | 172 RPM |
| Voltage | 120 Volts (AC) |
| Item Weight | 20.6 Pounds |
| Included Components | Blades, Downrod, Light Kit, Pull Chain |
| Indoor/Outdoor Usage | Indoor |
| Specification Met | cETLus |
| Control Method | Pull Chain (Touch for dimming if compatible switch installed) |
| Number of Power Levels | 3 |
| Downrod Length | 4 Inches |
| Type of Bulb | LED (Edison style) |
9. Warranty and Support
The Prominence Home River Run Ceiling Fan comes with a comprehensive warranty to ensure your satisfaction.
- Warranty Description: 1 Year (Parts), Limited Lifetime (Motor).
- For technical assistance, replacement parts, or warranty claims, please contact Prominence Home customer support. Refer to the contact information provided in your product packaging or visit the official Prominence Home website.
