Svago ZGR Plus SV-395 Dual Power Zero Gravity Recliner Instruction Manual

1. Introduction

The Svago ZGR Plus SV-395 Dual Power Zero Gravity Recliner is designed to provide optimal comfort and relaxation. This recliner features a zero gravity position, heat therapy, and vibration massage, all controllable via a handheld remote. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your recliner.

Image 1.1: The Svago ZGR Plus Dual Power Zero Gravity Recliner.

2. Safety Information

Please read all safety warnings before operating the recliner to prevent injury or damage.

• Avoid using the heat feature on bare skin or over certain types of clothing, such as corduroy or velvet, that can be damaged by heat.
• The vibration massage feature should not be used by individuals with certain health conditions, such as pregnant women or those with heart conditions. Consult a physician before use if you have any medical conditions.
• Ensure the power cord is not pinched or damaged. Do not operate the recliner if the cord is compromised.
• Keep children and pets away from the moving parts of the recliner during operation.
• Do not attempt to disassemble or repair the recliner yourself. Contact authorized service personnel for any maintenance or repair needs.
• Ensure adequate clearance around the recliner when reclining to prevent obstruction or damage. A distance of 30 inches from the wall is recommended.

3. Product Features

• Zero Gravity Position: Elevates your legs above your heart, distributing body weight evenly and reducing pressure on the spine.
• Dual Power Recline: Independent control for back and footrest adjustments, allowing for infinite positioning.
• Heat Therapy: Soothing heat function to relax muscles and enhance comfort.
• Vibration Massage: Six motors provide relaxing vibration therapy to the upper and lower back. Features two vibration programs.
• Handheld Remote: Intuitive control for all functions, including position adjustments, heat, massage programs, memory settings, and a Smart Wake-Up timer.
• Memory Foam Pillows: High-density plush pillows for head and lumbar support, designed to eliminate pressure points.
• Synthetic Polyurethane Leather: Durable, soft, environmentally friendly, and easy-to-clean upholstery.

Image 3.1: Front view of the recliner, showcasing its design.

Image 3.2: Side view of the recliner, demonstrating its profile.

4. Setup and Assembly

The Svago ZGR Plus SV-395 recliner requires minimal assembly. It is recommended to have two people for unboxing and initial placement due to the product's weight.

1. Unpack Components: Carefully remove all components from the packaging. Retain packaging materials for future transport or returns if necessary.
2. Position the Base: Place the recliner base in your desired location, ensuring it is on a flat, stable surface. Allow at least 30 inches of clearance from any wall for full recline.
3. Attach Backrest: Align the backrest with the base and slide it into place until it securely locks. Refer to the included assembly instructions for specific details.
4. Connect Power: Plug the power cord into the recliner and then into a grounded electrical outlet. The power supply wiring length is approximately 9 feet.
5. Connect Remote: Ensure the handheld remote control is securely connected to the recliner.
6. Initial Test: Before first use, test all functions using the remote control to ensure proper operation.

5. Operating Instructions

The recliner's functions are controlled by the wired handheld remote. Familiarize yourself with the remote's buttons for optimal use.

Image 5.1: Handheld remote control for the Svago ZGR Plus recliner.

5.1 Remote Control Functions

• Power Button (Red): Turns the recliner on or off. When turned off, the chair will return to the home position.
• ZGR Button: Activates the Zero Gravity position.
• Back Adjustment Arrows: Use the up and down arrows to adjust the backrest angle independently.
• Foot Adjustment Arrows: Use the up and down arrows to adjust the footrest angle independently.
• Heat Button: Toggles the heat therapy function on or off. The heat feature automatically turns off after 1 hour.
• V1 / V2 Buttons: Select between two vibration massage programs. Six motors provide massage to the upper and lower back.
• Save Button: Press to save your current recliner position.
• M1 / M2 Buttons: Recall one of two saved memory positions.
• Timer Button: Sets the Smart Wake-Up timer from 1 to 6 hours in 1-hour increments. When the timer expires, the vibrator will start, and the chair will move to the home position.

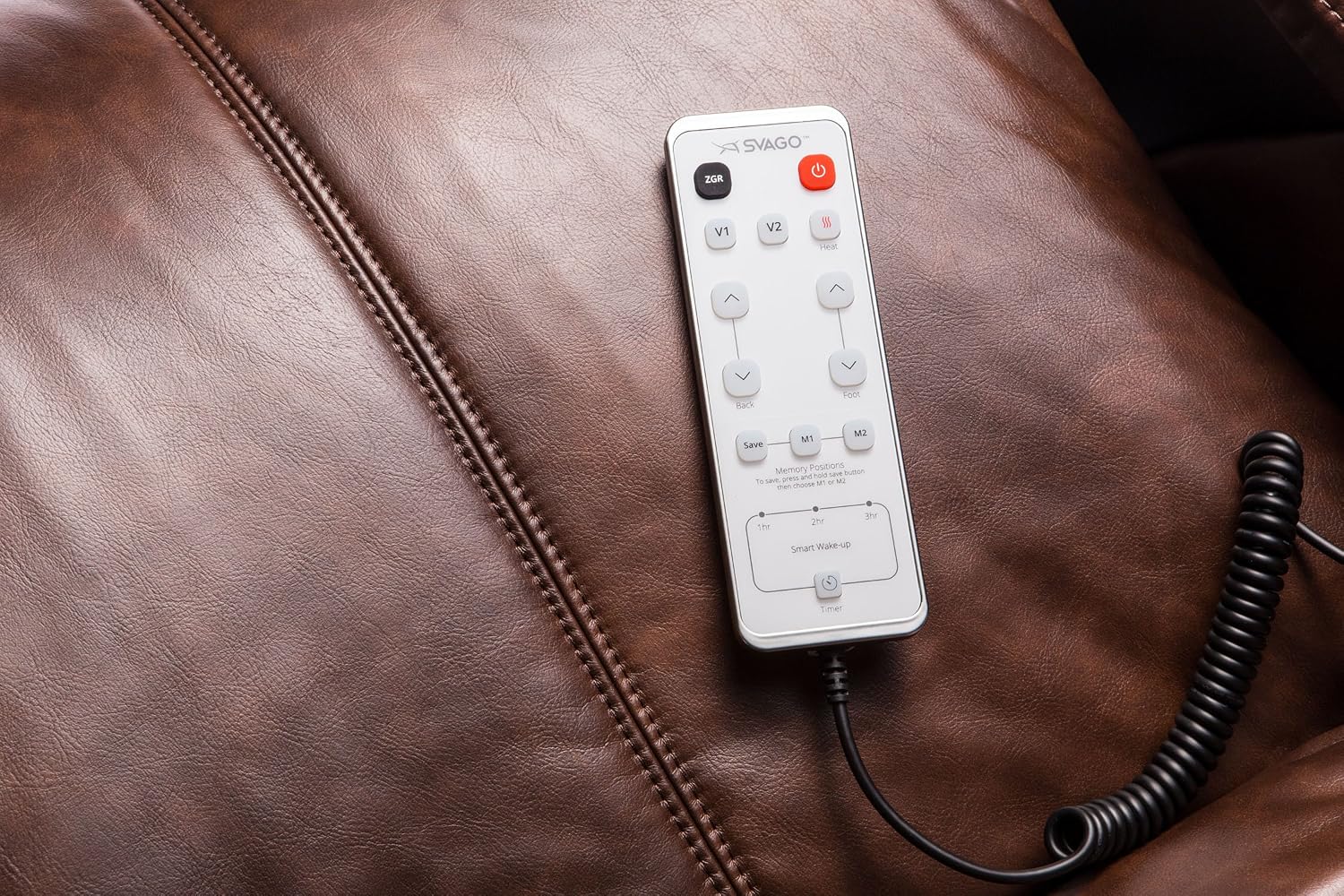

Image 5.2: Remote control on the recliner's armrest.

6. Maintenance and Care

Proper care will extend the life and appearance of your Svago ZGR Plus SV-395 recliner.

• Cleaning: The synthetic polyurethane leather upholstery is easy to clean. For spills or stains, spot wash immediately with a soft, damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners.
• Regular Dusting: Dust the recliner regularly with a soft, dry cloth to prevent dust buildup.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or damage to the upholstery. Position the recliner away from direct sunlight.
• Inspect Cords: Periodically check the power cord and remote control cord for any signs of wear or damage. If damage is found, discontinue use and contact customer support.
• Moving the Recliner: When moving the recliner, lift it carefully to avoid dragging and damaging the base or flooring.

7. Troubleshooting

If you encounter any issues with your Svago ZGR Plus SV-395 recliner, refer to the following common troubleshooting steps:

• Recliner Not Responding:
  • Ensure the power cord is securely plugged into both the recliner and a working electrical outlet.
  • Check if the power outlet is functional by plugging in another device.
  • Verify that the remote control cable is firmly connected to the recliner.
• Heat or Massage Not Working:
  • Confirm the recliner is powered on.
  • Press the respective Heat or V1/V2 buttons on the remote control.
  • Note that the heat feature has an automatic 1-hour shut-off.
• Unusual Noises During Operation:
  • Ensure there are no obstructions around or under the recliner's moving parts.
  • If noises persist, discontinue use and contact customer support.

For issues not resolved by these steps, please contact Svago customer support.

8. Specifications

Detailed technical specifications for the Svago ZGR Plus SV-395 Dual Power Zero Gravity Recliner.

Image 8.1: Technology Specifications Diagram.

Note: There is a discrepancy in weight capacity between the product description (300 lbs) and the image (400 lbs). Please refer to the most current product labeling for the accurate weight limit.

9. Warranty and Support

Your Svago ZGR Plus SV-395 recliner is covered by a manufacturer's warranty.

• Warranty Coverage: Svago Factory provides a 1-Year In-Home Parts & Labor Service, with 2 Years Parts coverage.
• Customer Support: For warranty claims, technical assistance, or any questions regarding your recliner, please contact Svago customer support. Refer to your purchase documentation or the official Svago website for contact information.
