1. Introduction
This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your HECHT 624 Electric Garden Shredder. Please read these instructions carefully before using the appliance and keep them for future reference. Proper use and adherence to safety guidelines will ensure optimal performance and prolong the life of your shredder.
2. Safety Instructions
General Safety:
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy gloves.
- Ensure the work area is clear of bystanders, children, and pets.
- Operate the shredder on a firm, level surface to prevent tipping.
- Never insert hands or feet into the feeding chute or discharge opening while the machine is running.
- Disconnect the power supply before performing any maintenance, cleaning, or if the machine becomes jammed.
- Do not operate the shredder in wet conditions or rain.
- Only shred materials specified for the machine (e.g., branches, garden waste). Avoid metal, stones, plastic, or glass.
Electrical Safety:
- Ensure the power supply matches the specifications on the product label.
- Use only extension cords suitable for outdoor use and rated for the shredder's power consumption.
- Regularly inspect the power cord for damage. Do not use the machine if the cord is damaged.
- Always plug the shredder into a grounded outlet.
3. Product Overview
The HECHT 624 is an electric garden shredder designed to process garden waste such as branches and plant material into smaller chips for composting or disposal. Key components include the feeding chute, motor housing, control panel, chassis with wheels, and a collection bag attachment point.
Figure 3.1: Overview of the HECHT 624 Electric Garden Shredder, showing its main body, wheels, and the optional collection bag attached.

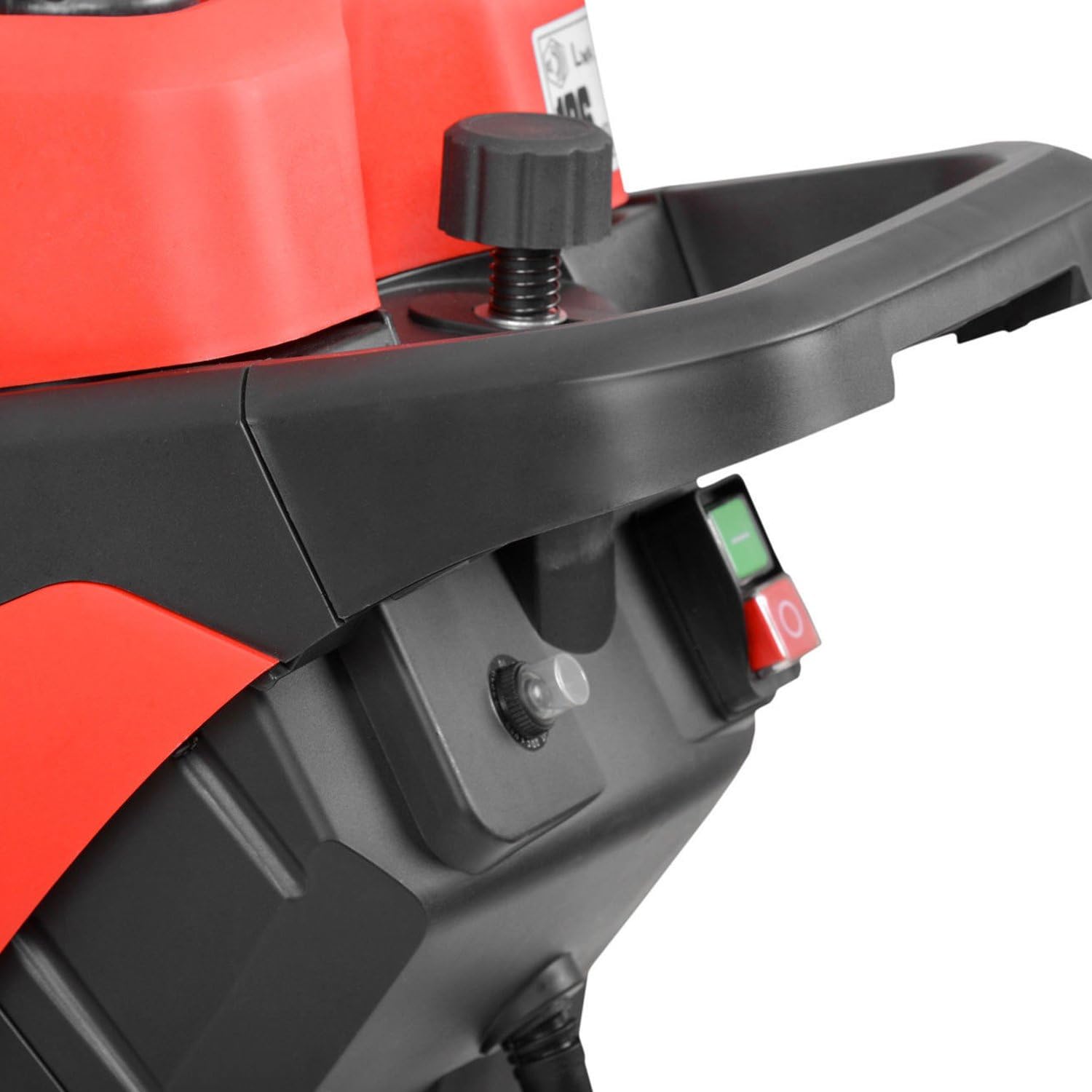

Figure 3.2: Detail of the feeding chute opening, where garden waste is inserted, and the adjustment knob for controlling the feed.
4. Assembly / Setup
The HECHT 624 shredder requires minimal assembly. Follow these steps:
- Attach the Wheels: Securely fasten the wheels to the chassis using the provided hardware.
- Mount the Stand: Attach the support stand to the main unit, ensuring it is stable.
- Install the Collection Bag Holder: If included, attach the frame for the collection bag to the discharge opening.
- Connect Power: Ensure the shredder is switched off before connecting it to a suitable power outlet.
5. Operating Instructions
Preparation:
- Place the shredder on a stable, level surface.
- Ensure the collection bag or container is correctly positioned under the discharge opening.
- Inspect the material to be shredded. Remove any foreign objects like stones, metal, or plastic.
- Wear all recommended PPE.
Starting the Shredder:

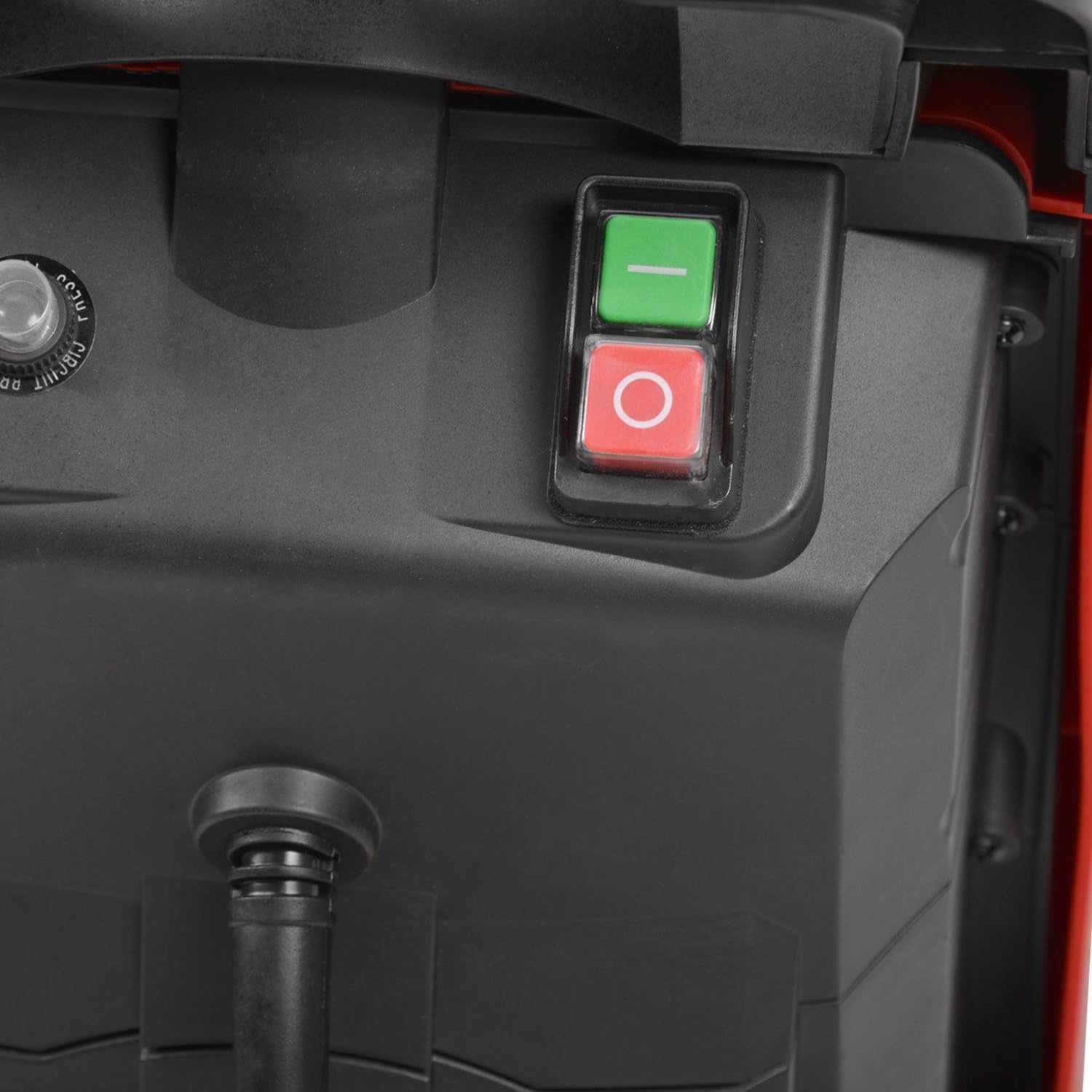

Figure 5.1: The control panel featuring the green 'ON' button and red 'OFF' button for operating the shredder.
- Plug the power cord into a suitable electrical outlet.
- Press the green 'I' button on the control panel to start the motor. Allow the motor to reach full speed before feeding material.
Feeding Material:
- Feed branches and garden waste into the feeding chute one piece at a time.
- Do not force material into the shredder. Allow the machine to draw the material in.
- For thicker branches (up to 45 mm), feed them slowly.
- Use the pusher tool (if provided) to guide shorter pieces of material into the chute, never your hands.
Figure 5.2: The integrated handle on the feeding chute, used to safely guide material into the shredding mechanism.
Stopping the Shredder:
- To stop the shredder, press the red 'O' button on the control panel.
- In case of emergency or a jam, immediately press the red 'O' button and disconnect the power.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your shredder.
- Cleaning: After each use, disconnect the power and clean the feeding chute and discharge opening. Remove any accumulated debris. Use a brush or a piece of wood to clear blockages.
- Blade Inspection: Periodically check the shredding blades for sharpness and damage. Dull blades reduce efficiency and can strain the motor. Refer to the service manual or contact customer support for blade replacement.
- Storage: Store the shredder in a dry, secure location, away from moisture and direct sunlight. Ensure it is clean and free of debris before storage.
Figure 6.1: View of the internal shredding mechanism, showing the blades responsible for processing garden waste.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shredder does not start. | No power supply; safety switch not engaged; thermal overload. | Check power connection; ensure all covers are closed; allow motor to cool down. |
| Material is not shredding effectively. | Dull blades; incorrect material; material too wet. | Inspect/replace blades; only shred dry, appropriate material. |
| Shredder jams frequently. | Overfeeding; material too thick; foreign object. | Feed material slowly; check maximum branch diameter; clear blockage after disconnecting power. |
8. Technical Specifications
- Model: HECHT 624
- Power: 2400 Watt
- Max. Branch Diameter: 45 mm
- Manufacturer: Hecht
- Package Dimensions: 97 x 24 x 10 cm
- Weight: 12 kg
- ASIN: B07BHRP8T3
- First Available: January 15, 2020
Figure 8.1: The product rating label, showing electrical specifications and model information.
9. Warranty and Support
For warranty information, technical support, or spare parts, please refer to the warranty card included with your product or contact your local Hecht dealer or customer service. Keep your purchase receipt as proof of purchase.
