Hobart Wash Curtain Instruction Manual

Product Overview

This document provides essential information for the installation, operation, and maintenance of the Hobart 00-936429 Wash Curtain. This component is a genuine OEM (Original Equipment Manufacturer) part designed for Hobart conveyor type dishwashers, specifically the CL64e series.

The wash curtain is a 3-ply component crucial for efficient washing cycles within the dishwasher, helping to contain water and optimize spray patterns.

Product Visual Reference

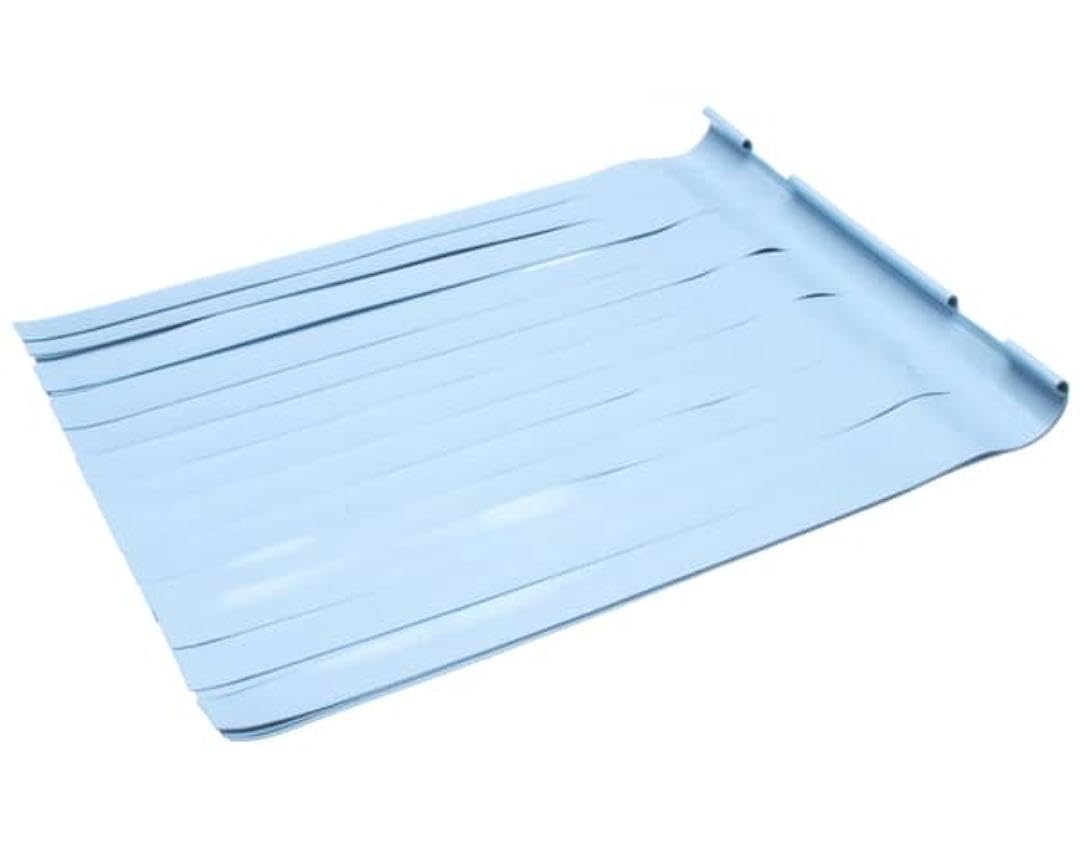

Image: A light blue, rectangular wash curtain with multiple vertical slits, designed to hang within a dishwasher. It features a rolled top edge for mounting.

Installation and Setup

The Hobart 00-936429 Wash Curtain is designed as a replacement part for specific Hobart dishwasher models, particularly the CL64e series. Refer to your dishwasher's service manual or parts diagram (often indicated as "43 on diagram" for this part) for precise installation location and procedure.

1. Safety First: Before beginning any installation, ensure the dishwasher is completely powered off and disconnected from its power source.
2. Access: Open the dishwasher's access panels or doors as required to reach the wash curtain mounting area. This part is typically associated with the "DOORS" section of the dishwasher.
3. Remove Old Curtain: Carefully detach the old wash curtain from its mounting points. Note how the old curtain was oriented and secured.
4. Install New Curtain: Align the new Hobart 00-936429 Wash Curtain with the mounting points. The rolled top edge is designed to fit into a specific channel or clips. Ensure it hangs freely and is not obstructed.
5. Secure: Secure the new curtain firmly. Verify that it is properly seated and will not dislodge during operation.
6. Restore Access: Close and secure all dishwasher access panels or doors.
7. Test: Reconnect power to the dishwasher and perform a test cycle to ensure the curtain functions correctly and there are no leaks or obstructions.

Note: Professional installation is recommended if you are unfamiliar with dishwasher component replacement.

Operation

The wash curtain operates passively as part of the dishwasher's wash cycle. Its primary function is to prevent water and spray from escaping designated wash zones and to guide water flow effectively within the machine. Once correctly installed, no further user interaction is required for its operation during a wash cycle.

• Ensure the curtain hangs freely and is not caught or folded, which could impede water flow or cause leaks.
• Verify that the curtain is not damaged or torn, as this can compromise the efficiency of the wash cycle.

Maintenance

Regular inspection and cleaning of the wash curtain will extend its lifespan and ensure optimal dishwasher performance.

• Daily Inspection: Briefly inspect the curtain for any visible damage, tears, or excessive debris accumulation during routine dishwasher cleaning.
• Cleaning: If the curtain appears soiled, it can typically be wiped down with a damp cloth and mild detergent. For stubborn buildup, it may be necessary to temporarily remove the curtain for a more thorough cleaning. Rinse thoroughly to remove all detergent residue.
• Check for Wear: Over time, the curtain material may show signs of wear, such as hardening, cracking, or excessive fraying of the individual strips. Replace the curtain if significant wear is observed to maintain wash efficiency.

Troubleshooting

Common issues related to the wash curtain are usually straightforward to diagnose.

Specifications

Warranty and Support

As a genuine OEM (Original Equipment Manufacturer) part, this Hobart wash curtain is manufactured to high standards. For specific warranty information, please refer to the warranty policy provided by Hobart or the authorized distributor from whom the part was purchased.

For technical support, service, or to inquire about other genuine Hobart parts, please contact Hobart customer service or visit their official website. Using genuine OEM parts ensures safety, reliability, and performance of your equipment.

Hobart Official Website: www.hobartcorp.com
