PB SWISS TOOLS Insulated Slotted Screwdriver

1. Introduction

Thank you for choosing the PB SWISS TOOLS Insulated Slotted Screwdriver. This tool is designed for precision work, particularly in electrical applications where protection against electric shock is essential. It features high-quality materials and insulation compliant with international safety standards, ensuring both durability and user safety.

This manual provides important information regarding the safe and effective use, maintenance, and specifications of your screwdriver. Please read it thoroughly before use and retain it for future reference.

2. Safety Information

WARNING: Always prioritize safety when working with electrical components. Failure to follow these safety guidelines may result in serious injury or death.

• This insulated screwdriver is designed for working on live parts up to 1000 V AC / 1500 V DC, in accordance with IEC/EN 60900 standards.
• Always inspect the screwdriver for any damage to the insulation before each use. Do not use if the insulation is cracked, cut, or otherwise compromised.
• Ensure the power supply to the circuit is disconnected whenever possible before commencing work.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
• Do not modify the tool in any way. Any modification may compromise its insulation properties and safety.
• Keep the tool clean and dry. Moisture can compromise insulation.

This image highlights the ergonomic handle and the full insulation of the screwdriver, certified for up to 1000V AC / 1500V DC according to IEC/EN 60900. The handle is made from high-quality raw materials for durability and comfort.

3. Setup

The PB SWISS TOOLS Insulated Slotted Screwdriver is ready for use directly out of its packaging. No assembly is required.

1. Unpacking: Carefully remove the screwdriver from its packaging.
2. Initial Inspection: Before first use, and before every subsequent use, visually inspect the entire screwdriver for any signs of damage, especially to the red insulation layer on the shaft and handle. Ensure there are no cracks, cuts, or abrasions that could expose the metal shaft.
3. Cleanliness: Ensure the screwdriver is clean and free from any grease, oil, or moisture.

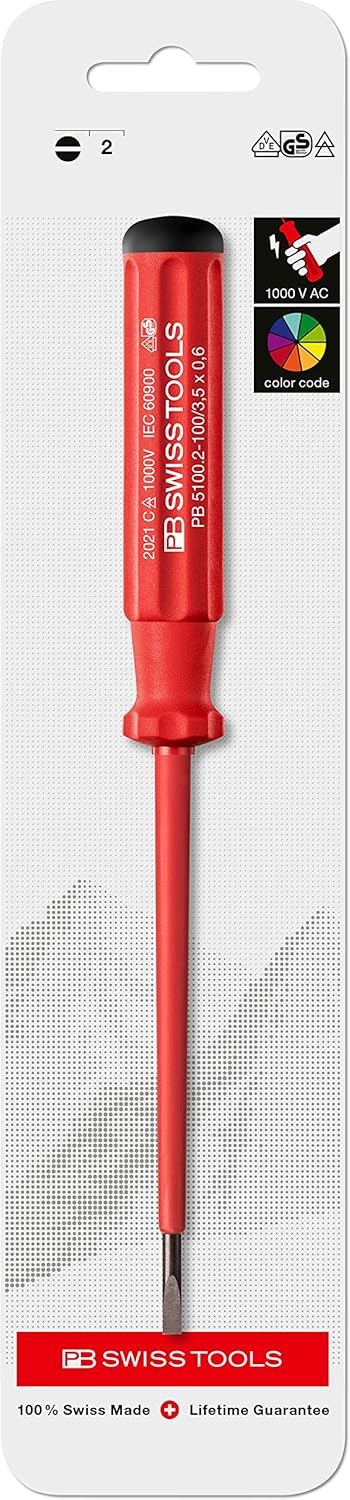

The screwdriver as it appears in its packaging, ready for initial inspection and use. Note the clear safety markings and product information.

4. Operating Instructions

This insulated slotted screwdriver is designed for turning slotted head screws, particularly in environments requiring electrical insulation.

1. Select the Correct Size: Choose the screwdriver with a tip size that matches the screw head slot precisely. Using an incorrect size can damage the screw head or the screwdriver tip.
2. Insert the Tip: Place the screwdriver tip firmly into the screw slot, ensuring full engagement.
3. Apply Pressure and Turn: Apply firm, steady downward pressure while turning the handle clockwise to tighten or counter-clockwise to loosen the screw. Maintain a straight alignment to prevent cam-out.
4. Maintain Insulation Integrity: Always hold the screwdriver by the insulated handle. Ensure no part of your hand or body comes into contact with the metal shaft or tip when working on live circuits.

This image shows the insulated screwdriver being used in an electrical application, highlighting its intended use for working on live components with appropriate safety measures.

Another view of the screwdriver in use, demonstrating its application in detailed electrical work where insulation is critical for user protection.

5. Maintenance

Proper maintenance ensures the longevity and continued safety of your insulated screwdriver.

• Cleaning: After each use, wipe the screwdriver clean with a dry, soft cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, ensuring the tool is completely dry before storage. Do not use abrasive cleaners or solvents that could damage the insulation.
• Storage: Store the screwdriver in a clean, dry place, away from direct sunlight, extreme temperatures, and corrosive substances. Protect the tip from damage.
• Regular Inspection: Periodically inspect the insulation for any signs of wear, damage, or degradation. If any damage is found, discontinue use immediately.

6. Troubleshooting

Most issues with a hand tool like a screwdriver relate to wear or damage. Here are common concerns:

• Screwdriver Tip is Worn or Damaged: If the tip is rounded, bent, or chipped, it will not properly engage with screw heads, leading to cam-out and potential damage to the screw or tool. Solution: A worn tip cannot be effectively repaired for precision work. Replace the screwdriver.
• Insulation is Damaged: Cracks, cuts, or abrasions on the red insulation layer compromise the safety features of the tool. Solution: Immediately discontinue use. The insulation cannot be reliably repaired. Replace the screwdriver to ensure continued electrical safety.
• Screw Head is Stripped: This is often due to using the wrong size screwdriver or insufficient downward pressure. Solution: Use a screw extractor or other appropriate method to remove the stripped screw. Ensure you use the correct screwdriver size and technique for future applications.

7. Specifications

8. Warranty

PB SWISS TOOLS offers a Lifetime Guarantee against material and manufacturing defects. This guarantee ensures that your tool will perform reliably under normal use. The guarantee does not cover damage caused by misuse, abuse, normal wear and tear, or unauthorized modifications. For warranty claims, please retain your proof of purchase and contact PB SWISS TOOLS customer support.

This image emphasizes the '100% Swiss Made' quality and the 'Lifetime Guarantee' offered by PB SWISS TOOLS, underscoring the product's durability and precision engineering.

9. Support

For further assistance, technical inquiries, or warranty service, please visit the official PB SWISS TOOLS website or contact their customer support directly. Always refer to the model number (5100-2-100CN) when seeking support.

Official Website: www.pbswisstools.com
