DeWalt DCM561PBS XR 18V Brushless String Trimmer User Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DeWalt DCM561PBS XR 18V Brushless String Trimmer. Please read this manual thoroughly before using the product to ensure proper handling and to prevent injury or damage.

The DeWalt DCM561 XR Brushless Split Shaft Trimmer is designed for efficient trimming tasks, featuring a two-speed control for versatile performance and extended runtime. Its patented brushless gear motor delivers increased torque while maintaining cutting speed under load. The trimmer includes a professional-style guard for improved cutting access and visibility, a fully variable trigger for precise power control, and a padded AUX handle for optimal user comfort.

Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this tool.

• Read all instructions carefully before use.
• Wear appropriate personal protective equipment (PPE), including eye protection, gloves, and sturdy footwear.
• Ensure the work area is clear of debris and obstacles.
• Keep bystanders, especially children and pets, at a safe distance.
• Do not operate the trimmer in wet conditions or in the presence of flammable liquids or gases.
• Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
• Use only DeWalt recommended accessories and replacement parts.
• Store the tool in a dry, secure place out of reach of children.

Product Overview

Familiarize yourself with the components of your DeWalt string trimmer.

Figure 1: Full view of the DeWalt DCM561PBS XR 18V Brushless String Trimmer, showcasing its long shaft, handle, and trimmer head.

Figure 2: Close-up view of the trimmer's handle and motor housing, highlighting the ergonomic design and battery slot.

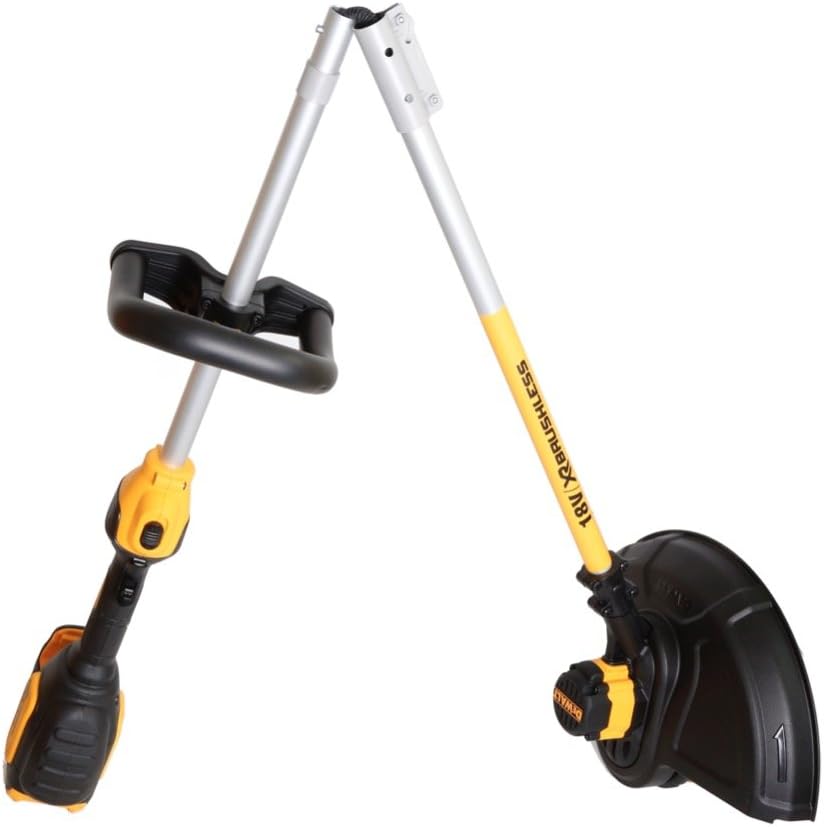

Figure 3: The DeWalt string trimmer shown in its folded or split-shaft configuration, demonstrating its compact storage capability.

Figure 4: Detailed view of the trimmer head and professional-style guard, designed for optimal cutting and debris protection.

Setup

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
2. Assembly: The trimmer features a split shaft design for easy assembly and storage.
   • Align the two shaft sections and push them together until they click securely into place.
   • Tighten any locking mechanisms or clamps as per the visual instructions provided on the product or in supplementary guides.
   • Attach the professional-style guard to the trimmer head as indicated.
   • Adjust the padded AUX handle to a comfortable and secure position for optimal balance and control.
3. Battery Installation: This is a bare unit, meaning the battery and charger are sold separately.
   • Ensure the battery is fully charged before first use.
   • Slide the charged 18V XR Li-Ion battery pack into the battery port on the trimmer handle until it locks into place.
   • To remove, press the battery release button and slide the battery out.

Operating Instructions

1. Starting the Trimmer:
   • Ensure the battery is securely installed.
   • Hold the trimmer firmly with both hands, maintaining a balanced stance.
   • Press the safety lock-off button (if present) and then squeeze the variable speed trigger to start the motor.
2. Speed Control: The trimmer features two-speed control and a fully variable trigger.
   • Use the speed selector switch to choose between low speed for extended runtime or high speed for increased power and performance.
   • The variable trigger allows you to precisely control the cutting speed by varying the pressure applied.
3. Trimming Technique:
   • Swing the trimmer from side to side, keeping the cutting head parallel to the ground.
   • Use the tip of the line for best results and to avoid tangling.
   • Avoid hitting hard objects like rocks, fences, or concrete, as this can damage the line and the trimmer head.
4. Line Feeding: The trimmer is equipped with an automatic line feed system. If the line becomes too short, lightly tap the trimmer head on the ground while the motor is running to advance more line.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your trimmer.

• Cleaning: After each use, disconnect the battery and clean the trimmer with a damp cloth. Remove any grass clippings or debris from the guard and motor housing vents.
• Line Replacement: Refer to the product's specific instructions for replacing the trimmer line. Use only the recommended line diameter.
• Brushless Motor: The brushless motor design requires less maintenance compared to brushed motors, offering extended motor life and reduced wear.
• Storage: Store the trimmer in a clean, dry, and secure location, out of reach of children. If storing for an extended period, remove the battery pack. The split shaft design allows for more compact storage.

Troubleshooting

Specifications

• Model Number: DCM561PBS-XJ
• Power Source: Battery Powered (18V XR Li-Ion, bare unit)
• Motor Type: Brushless
• Cutting Width: 33 cm
• Speed: 6000 RPM (Revolutions Per Minute)
• Product Dimensions: 90 x 31 x 12.7 cm
• Item Weight: 3.6 kg
• Power Output: 400.0 Watts
• Color: Yellow

Warranty and Support

DeWalt products are manufactured to high quality standards and are guaranteed for a professional period. For detailed warranty information, please refer to the warranty card included with your product or visit the official DeWalt website.

For technical assistance, spare parts, or service, please contact your local authorized DeWalt service center or visit the DeWalt Brand Store.
