Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Briggs & Stratton 44T977-0009-G1 Commercial Turf Series V-Twin engine. Please read this manual thoroughly before operating the engine to ensure proper use and to prevent injury or damage.
Safety Information
Always prioritize safety when working with internal combustion engines. Failure to follow safety instructions can result in serious injury or death.
- Read the Manual: Understand all instructions and warnings before operating the engine.
- Fuel Safety: Gasoline is highly flammable. Store fuel in approved containers, refuel in a well-ventilated area with the engine off and cool. Do not smoke near fuel.
- Exhaust Fumes: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Operate the engine only in well-ventilated outdoor areas.
- Hot Surfaces: Engine components, especially the muffler, become very hot during operation and remain hot for a period after shutdown. Avoid contact to prevent burns.
- Moving Parts: Keep hands, feet, and clothing away from moving parts such as the flywheel and fan.
- Maintenance Safety: Disconnect the spark plug wire before performing any maintenance or adjustments to prevent accidental starting.
- Proposition 65 Warning: This product can expose you to chemicals including engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Overview
The Briggs & Stratton 44T977-0009-G1 is a Commercial Turf Series V-Twin engine designed for demanding applications. It features a 1" x 3-5/32" crankshaft and incorporates several advanced technologies for performance and durability.

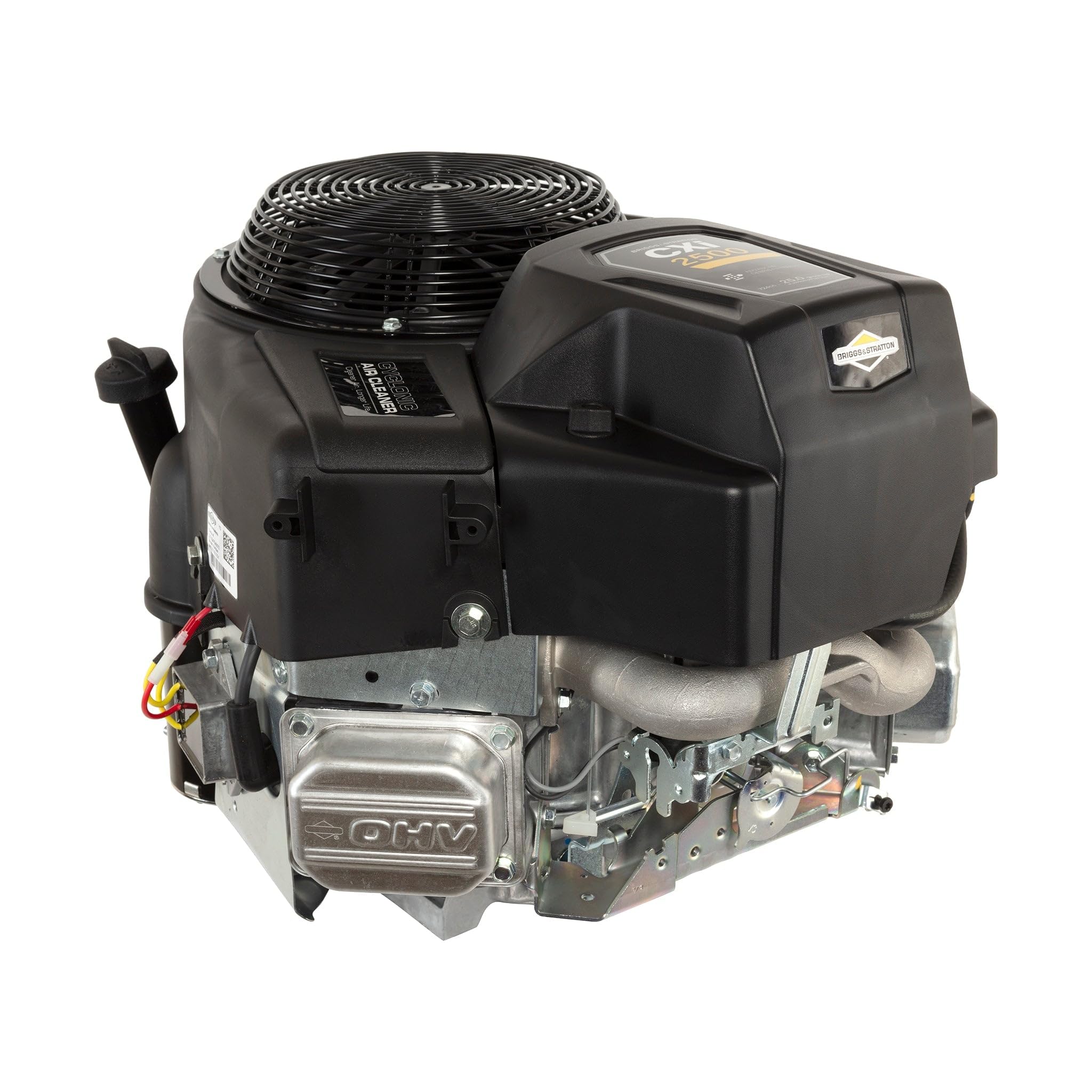

Figure 1: Overall view of the Briggs & Stratton Commercial Turf Series V-Twin engine.
Figure 2: Frontal perspective of the engine, highlighting the integrated cyclonic air cleaner.
Figure 3: Side view of the engine, detailing electrical connections and starter motor.
Figure 4: Side view of the engine, showing the oil filter and emission control label.
Key Features:
- Cast Iron Sleeve: Enhances durability and wear resistance, contributing to improved oil control.
- Integrated Cyclonic Air Cleaner: Provides advanced protection against airborne debris, extending engine life.
- Mechanical Governor: Regulates engine speed to deliver consistent power under varying loads.
- Full Pressure Lubrication with Oil Filter: Ensures continuous oil delivery to critical engine components for maximum lubrication and extended engine life, similar to automotive engines.
- Magnetron Electronic Ignition System: Offers maintenance-free and reliable starting.
- OHV Technology: Optimizes performance for longer engine life and improved fuel economy.
- Float Feed Carburetor: Designed for optimized fuel delivery, improving starting and overall performance.
- Higher Torque: Delivers increased power for enhanced equipment productivity.
- High Oil Fill Tube: Facilitates easier oil maintenance.
Setup
Proper installation and initial setup are crucial for the engine's performance and longevity. Refer to the equipment manufacturer's manual for specific installation instructions related to your application.
- Mounting: Securely mount the engine to the equipment frame using appropriate hardware. Ensure proper alignment of the crankshaft with the driven component.
- Crankshaft Dimensions: The engine features a 1" diameter crankshaft with a length of 3-5/32". Ensure compatibility with your equipment's drive system.
Figure 5: Diagram illustrating the 1" x 3-5/32" crankshaft dimensions.
- Fuel Connection: Connect the fuel line from the equipment's fuel tank to the engine's fuel inlet. Ensure all connections are secure and leak-free.
- Electrical Connections: Connect all necessary electrical wiring, including ignition, starter, and any accessory circuits, according to the equipment manufacturer's wiring diagram.
- Oil Fill: Before starting, fill the engine crankcase with the recommended type and amount of engine oil. Refer to the "Maintenance" section for oil specifications. The high oil fill tube facilitates this process.
- Air Filter: Ensure the integrated cyclonic air cleaner is properly installed and secured.

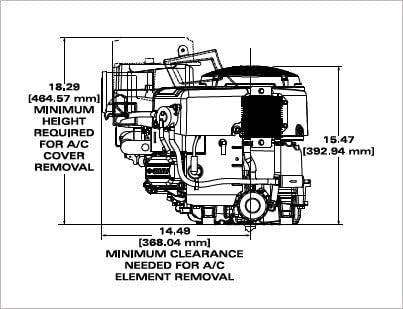

Figure 6: Technical drawing showing engine side view with dimensions.
Figure 7: Technical drawing showing engine top view with dimensions.
Operating Instructions
Follow these general guidelines for starting and operating your engine. Always refer to your equipment's specific operating instructions.
Pre-Start Checklist:
- Check engine oil level and add if necessary.
- Ensure fuel tank is adequately filled with fresh, clean gasoline.
- Verify all connections (fuel, electrical) are secure.
- Clear the area around the equipment of any obstructions.
Starting the Engine:
- Throttle Control: Move the throttle control to the "FAST" position. This engine model may not have a separate choke control; the "FAST" throttle setting often engages the choke function for starting.
- Ignition: Turn the ignition key to the "START" position or engage the starter switch. Release the key/switch once the engine starts. Do not crank for more than 5 seconds at a time. If the engine does not start, wait 10 seconds before trying again.
- Warm-up: Allow the engine to warm up for a few minutes before applying a load.
Stopping the Engine:
- Reduce Speed: Move the throttle control to the "SLOW" or "IDLE" position.
- Turn Off: Turn the ignition key to the "OFF" position or engage the stop switch.
Maintenance
Regular maintenance is essential for optimal performance and extended engine life. Always perform maintenance with the engine off and cool, and the spark plug wire disconnected.
Maintenance Schedule:
| Service Item | Interval |
|---|---|
| Check Engine Oil Level | Before each use |
| Clean Air Filter | Every 25 hours or annually (more often in dusty conditions) |
| Change Engine Oil & Oil Filter | First 5 hours, then every 50 hours or annually |
| Check Spark Plugs | Every 100 hours or annually |
| Inspect Fuel System | Annually |
Detailed Maintenance Procedures:
- Engine Oil:
Check the oil level using the dipstick. Add Briggs & Stratton SAE 30W oil or a high-quality detergent oil classified as API Service SF, SG, SH, SJ, SL, or SM. Do not overfill. The full pressure lubrication system with an oil filter ensures optimal engine protection.
- Air Filter:
The integrated cyclonic air cleaner provides superior protection. Inspect the air filter element regularly. Clean or replace as needed. Refer to the engine service manual for specific cleaning instructions.
- Spark Plugs:
Inspect spark plugs for wear, fouling, or damage. Replace with the recommended spark plug type and gap according to the engine service manual. The Magnetron Electronic Ignition System ensures reliable ignition.
- Fuel System:
Inspect fuel lines and connections for leaks or damage. Ensure the fuel cap is properly sealed. Use fresh, clean gasoline. The float feed carburetor is designed for efficient fuel delivery.
Troubleshooting
This section provides solutions to common engine problems. For more complex issues, consult an authorized service dealer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, stale fuel, incorrect choke/throttle position, fouled spark plug, low oil level. | Check fuel level, replace stale fuel, ensure throttle is in "FAST" position, clean/replace spark plug, check oil level. |
| Engine runs rough or misfires | Dirty air filter, fouled spark plug, stale fuel, carburetor issues. | Clean/replace air filter, clean/replace spark plug, replace fuel, consult service manual for carburetor adjustment. |
| Loss of power | Dirty air filter, incorrect engine speed (governor), low oil, carburetor issues. | Clean/replace air filter, ensure mechanical governor is functioning, check oil level, consult service manual. |
| Excessive smoke | Overfilled oil, incorrect oil type, worn engine components. | Drain excess oil, use recommended oil, consult service dealer for internal engine inspection. |
Specifications
Key specifications for the Briggs & Stratton 44T977-0009-G1 engine:
- Model Number: 44T977-0009-G1
- Engine Type: Commercial Turf Series V-Twin
- Power Source: Gas Powered
- Crankshaft Dimensions: 1" x 3-5/32"
- Material: Cast Iron (sleeve)
- Item Weight: 91 Pounds
- Operation Mode: Manual
- Ignition System: Magnetron Electronic Ignition
- Lubrication System: Full Pressure with Oil Filter
- Air Cleaner: Integrated Cyclonic
- UPC: 047282026816
Warranty Information
Briggs & Stratton engines are backed by a limited warranty. For specific warranty terms, conditions, and duration, please refer to the warranty statement included with your engine or visit the official Briggs & Stratton website. Keep your proof of purchase for warranty claims.
