Schumacher SC1308 Starter/Charger User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Schumacher SC1308 Starter/Charger. This unit is designed to charge and maintain various battery types, and can also provide a powerful boost for starting vehicles. It features microprocessor control for automatic amperage adjustment, multi-stage charging for optimal battery health, and includes a battery and alternator tester for diagnostic purposes.

Image 1.1: The Schumacher SC1308 Starter/Charger unit with its attached battery clamps.

2. Important Safety Instructions

Please read and understand all safety information before operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always wear eye protection and protective clothing when working with batteries.
• Ensure the work area is well-ventilated.
• Keep children and unauthorized persons away from the work area.
• Never smoke or allow sparks or flames in the vicinity of a battery or charger.
• Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged.
• Disconnect the AC power cord before making or breaking connections to the battery.
• Do not charge frozen batteries.
• Refer to the vehicle manufacturer's manual for specific instructions on charging or jump-starting.

3. Package Contents

Verify that all items are present upon unpacking:

• 100/30/12/2 Amp Starter/Charger Unit (Schumacher SC1308)
• User Manual (this document)

Image 3.1: The Schumacher SC1308 unit and a visual representation of its included components.

4. Setup

Before initial use, ensure the unit is placed on a stable, non-conductive surface. Confirm that the AC power cord and battery clamps are free from damage. The unit is designed for ease of use with a compact form factor.

Image 4.1: The compact size of the SC1308 unit, illustrating its small footprint for storage and portability.

5. Operating Instructions

5.1. Charging a Battery

Follow these steps to safely charge a vehicle battery:

1. Turn off all the vehicle's accessories. Connect the positive (red) clamp to the positive (+) battery post. Connect the negative (black) clamp to the vehicle chassis or engine block, away from the battery.
2. Connect the charger's AC power cord to a 120V AC outlet.
3. Select the battery type and then press the Rate Selection button until the desired charge rate (e.g., 2A, 12A, 30A) is selected. If a rate is not selected, the charger will begin charging at the Boost rate.
4. When charging is complete (indicated by a green Charged/Maintaining LED), press the Rate Selection button, unplug the power cord, and then remove clamps in reverse order of step 1.

Note: Marine/boat batteries should be removed from the vessel and charged on shore.

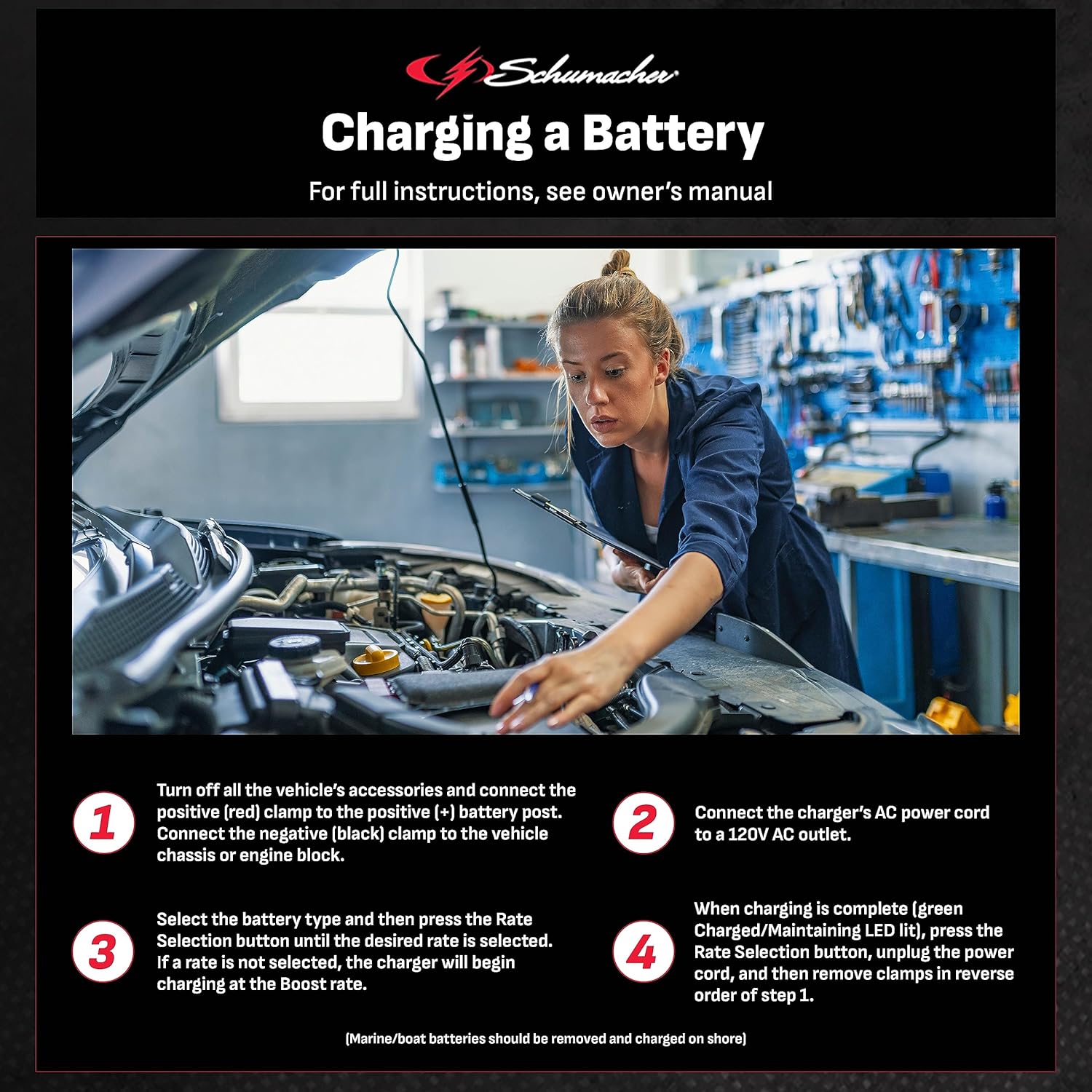

Image 5.1: Visual guide for connecting the charger and initiating the charging process.

5.2. Battery and Alternator Testing

The SC1308 includes a built-in battery and alternator tester. This feature provides information on the battery's charge level and assists in diagnosing potential electrical system problems. Refer to the display and LED indicators for diagnostic feedback.

Image 5.2: The SC1308 unit highlighting its built-in diagnostic capabilities for battery and alternator testing.

5.3. Jump Starting

For jump-starting a vehicle, ensure the battery clamps are securely connected as described in step 1 of 'Charging a Battery'. Select the 100A Start rate. The unit will provide a powerful boost to assist in starting the engine. Once the engine starts, disconnect the unit following the reverse order of connection.

5.4. Microprocessor Control and Multi-Stage Charging

The SC1308 features microprocessor control, which automatically adjusts the amperage rate to charge and maintain batteries efficiently. It utilizes multi-stage charging for enhanced precision, safety, and to prolong battery life. The digital display and LED indicators provide real-time status updates.

Image 5.3: The SC1308 unit connected to a vehicle battery, demonstrating its practical application.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Schumacher SC1308.

• Cleaning: Disconnect the unit from all power sources before cleaning. Wipe the case and cables with a soft, dry cloth. Do not use solvents or abrasive cleaners.
• Cable Care: Inspect cables and clamps for damage before each use. Replace any damaged components immediately. Store cables neatly to prevent tangling or damage.
• Storage: Store the unit in a cool, dry place when not in use. Keep it away from moisture, direct sunlight, and extreme temperatures.

7. Troubleshooting

If you encounter issues with your SC1308, refer to the following common problems and solutions:

If problems persist after attempting these solutions, contact Schumacher Electric customer support.

8. Technical Specifications

9. Warranty and Support

Schumacher Electric products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Schumacher Electric website. For technical support or service inquiries, please contact Schumacher Electric customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Schumacher Electric Customer Service: Please refer to the contact information provided on the official Schumacher Electric website or in your product packaging.
