Introduction
This manual provides essential information for the proper installation and maintenance of the OMNI5 K2395 Engine Motor & Transmission Mount Kit. This kit is designed for specific 2003-2005 Kia Rio 1.6L models. Please read all instructions carefully before proceeding with installation.
Product Overview
The OMNI5 K2395 kit includes three motor and transmission mounts, engineered to replace original equipment components in compatible vehicles.
- GP9346 / A6754 / 9346: Right Motor Mount
- GP8914 / A7189 / 8914: Rear Motor Mount
- GP8914 / A7189 / 8914: Front Motor Mount
Note: The rear and front motor mounts share the same part number (GP8914 / A7189 / 8914).
Vehicle Compatibility
This engine and transmission mount kit is compatible with:
- 2003 Kia Rio 1.6L
- 2004 Kia Rio 1.6L
- 2005 Kia Rio 1.6L
Technical Specifications
- Brand: OMNI5
- Model Number: MK2395-03
- Interchange Numbers: A6754, A7189
- Other Numbers: 9346, 8914
- Manufacturer: Autopartsman Corporation
- ASIN: B07B4MLJ8N
Installation Guide
Safety Precautions
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands or a lift before working underneath.
- Disconnect the vehicle's battery to prevent accidental electrical shorts.
- Consult a professional mechanic if you are unsure about any step of the installation process.
General Installation Steps
Replacing engine and transmission mounts typically involves supporting the engine/transmission, unbolting the old mounts, and installing the new ones. Specific steps may vary by vehicle and mount location. Refer to a service manual for your specific vehicle for detailed instructions.
- Locate the existing engine and transmission mounts. There are three mounts in this kit: one right motor mount, one rear motor mount, and one front motor mount.
- Carefully support the engine and transmission using a jack and a block of wood to prevent damage.
- Remove the bolts securing the old mount to the engine/transmission and the vehicle frame.
- Remove the old mount.
- Position the new OMNI5 mount in place, ensuring proper alignment.
- Install the bolts and tighten them to the manufacturer's specified torque settings. Do not overtighten.
- Repeat the process for all three mounts.
- Carefully lower the engine/transmission and remove the support.
- Reconnect the vehicle's battery.
Image 1: The complete OMNI5 K2395 Engine Motor & Transmission Mount Kit, showing all three mounts included in the package.

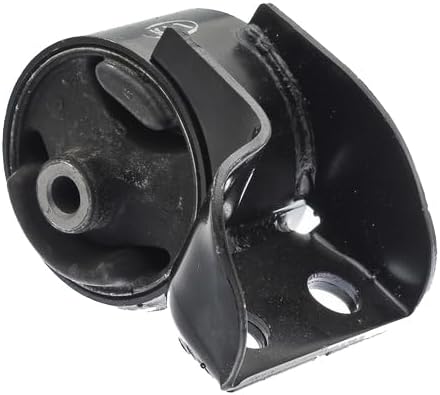

Image 2: A detailed view of one of the OMNI5 engine mounts, featuring its rubber bushing and metal bracket design.
Image 3: A close-up of a different OMNI5 engine mount, highlighting its robust construction and mounting studs.
Post-Installation Considerations
After installation, it is normal for new mounts to require a 'break-in' period. You may notice a slight change in engine vibration or noise initially, which should subside as the mounts settle. If excessive vibration or noise persists, re-check installation.
Maintenance
Engine and transmission mounts are critical components for vehicle stability and comfort. Regular inspection can help identify potential issues before they become severe.
- Periodically inspect mounts for signs of wear, cracking, or fluid leakage (if hydraulic type).
- Check for loose bolts or excessive movement of the engine/transmission.
- Replace mounts if significant wear or damage is observed to maintain optimal vehicle performance and prevent further damage to other components.
Troubleshooting Common Issues
- Increased Vibration: If you experience increased vibration after installation, ensure all bolts are properly tightened and that the mounts are correctly seated. New mounts may also require a short break-in period.
- Clunking or Banging Noises: These noises, especially during acceleration, deceleration, or shifting, can indicate a loose or failed mount. Inspect all mounts for damage or improper installation.
- Engine/Transmission Movement: Excessive movement of the engine or transmission can be a sign of worn or broken mounts. This can be observed by carefully watching the engine while someone briefly applies throttle in park/neutral (with brakes applied and vehicle secured).
Warranty Information
This OMNI5 product comes with a five-year warranty. In the event of a defect, a one-time replacement for parts is provided. Please retain your proof of purchase for warranty claims.
Customer Support
For further assistance, technical questions, or warranty claims, please contact OMNI5 customer support through the retailer where the product was purchased or visit the official OMNI5 store page on Amazon.
