ebm-papst 3212J/2NU-343 DC Fan User Manual
Model: 3212J/2NU-343 | Brand: ebm-papst
1. Introduction
This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your ebm-papst 3212J/2NU-343 DC Axial Fan. Please read this manual thoroughly before using the product and retain it for future reference.
2. Product Overview
The ebm-papst 3212J/2NU-343 is a high-performance DC axial fan designed for various cooling applications. It features a robust construction with IP68 protection, making it suitable for environments requiring high resistance to dust and water ingress. Its ball bearing design ensures long-term reliability and efficient airflow.

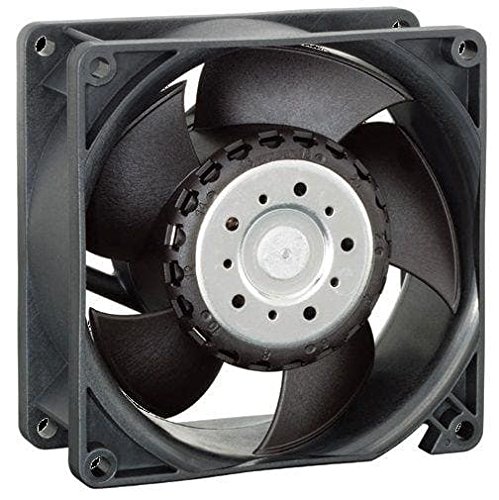

Figure 1: A front view of the ebm-papst 3212J/2NU-343 DC Axial Fan, showing its black square frame, four fan blades, and the central motor hub with visible mounting holes.
3. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Ensure power is disconnected before installation, maintenance, or troubleshooting.
- Do not operate the fan if it is damaged or has exposed wiring.
- Keep fingers and foreign objects away from rotating blades.
- Install the fan in a well-ventilated area, away from flammable materials.
- Use only the specified voltage (12VDC) for operation.
4. Setup and Installation
Follow these steps for proper installation:
- Mounting: Secure the fan using appropriate screws through the mounting holes on the fan frame. Ensure the fan is mounted firmly to prevent vibration. The fan dimensions are 92x38mm.
- Orientation: Observe the airflow direction indicated by arrows on the fan housing to ensure proper cooling.
- Wiring: Connect the fan to a stable 12VDC power source. Typically, the red wire is positive (+) and the black wire is negative (-). Ensure correct polarity to avoid damage.
- Power Connection: Once mounted and wired, connect the power supply.
5. Operating Instructions
The ebm-papst 3212J/2NU-343 fan is designed for continuous operation. Once properly installed and powered, it will begin to rotate, providing airflow. The fan operates at a maximum rotational speed of 3500 RPM, generating 76.5 CFM of airflow with a noise level of 51 dB. No user intervention is typically required during normal operation.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your fan:
- Cleaning: Periodically inspect the fan blades and housing for dust and debris accumulation. Disconnect power and use a soft brush or compressed air to gently clean the fan. Do not use liquid cleaners directly on the fan.
- Inspection: Check for any signs of wear, loose connections, or unusual noises during operation. Address any issues promptly.
- Environment: While the fan has IP68 protection, avoid exposing it to extreme conditions beyond its specified operating range.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power, incorrect wiring, faulty power supply | Check power connection, verify wiring polarity (red to +, black to -), test power supply. |
| Fan runs slowly or with reduced airflow | Dust accumulation, obstruction, insufficient voltage | Clean fan blades, remove obstructions, ensure stable 12VDC supply. |
| Excessive noise or vibration | Loose mounting, foreign object, worn bearings | Tighten mounting screws, inspect for and remove foreign objects. If bearings are worn, replacement may be necessary. |
8. Specifications
| Specification | Value |
|---|---|
| Model | 3212J/2NU-343 |
| Brand | ebm-papst |
| Item Weight | 1 Pounds |
| Voltage | 12 Volts DC |
| Wattage | 3.6 watts |
| Cooling Method | Air |
| Noise Level | 51 dB |
| Material | Copper (internal components) |
| Maximum Rotational Speed | 3500 RPM |
| Airflow | 76.5 CFM |
| Dimensions | 92x38mm (Axial) |
| Protection Rating | IP68 |
| Bearing Type | Ball |
| UPC | 653958452225 |
9. Warranty and Support
ebm-papst products are manufactured to high quality standards. For information regarding warranty coverage, please refer to the warranty statement provided with your purchase or visit the official ebm-papst website. For technical support or further assistance, please contact ebm-papst customer service through their official channels.
