Janome 415 Sewing Machine User Manual

1. Introduction

Thank you for choosing the Janome 415 Sewing Machine. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your new sewing machine. Please read these instructions carefully before using the machine to ensure optimal performance and longevity.

The Janome 415 is a robust mechanical sewing machine designed for various sewing tasks, offering ease of use and reliable performance. It features a selection of stitches, an automatic buttonhole function, and convenient automatic needle threading.

Note: While this manual is provided in English, the original product instructions may be available in other languages, such as French, as indicated by product packaging.

2. Product Overview

2.1 Key Features

• 15 built-in stitches, including 7 stitches suitable for stretchy fabrics.
• Automatic 4-step buttonhole function.
• Automatic needle threader for quick and easy threading.
• Convertible free arm for sewing cuffs, sleeves, and other small circular items.
• Adjustable stitch length (up to 4 mm) and stitch width (up to 5 mm).
• Adjustable needle position and thread tension.
• Lowering feed dogs for free-motion sewing and darning.
• Automatic bobbin winding system.
• Durable hard case for protection and transport.

2.2 Machine Components

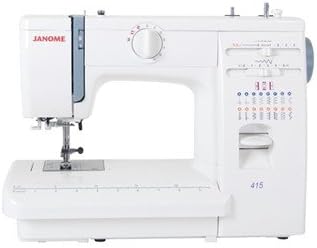

Figure 1: Front view of the Janome 415 Sewing Machine. This image displays the main body of the machine, including the stitch selection dial, tension dial, and the stitch pattern chart on the right side. The Janome logo is visible on the left arm.

Figure 2: Another perspective of the Janome 415 Sewing Machine, showing the full machine body. This view highlights the overall compact design and the various controls accessible to the user.

Figure 3: The Janome 415 Sewing Machine with its approximate dimensions. The machine measures approximately 46 cm in length, 38 cm in height, and 26 cm in depth, providing a visual reference for its size.

2.3 Included Accessories

Your Janome 415 Sewing Machine comes with the following accessories:

• Screwdriver
• Assortment of needles
• Lubrication oil
• Hemming foot
• Automatic buttonhole foot
• Hard case

3. Setup

3.1 Unpacking and Placement

1. Carefully remove the machine from its packaging.
2. Place the machine on a stable, flat surface.
3. Ensure there is adequate lighting and space for comfortable operation.

3.2 Power Connection

1. Connect the power cord to the machine's power input.
2. Plug the power cord into a suitable electrical outlet.
3. Turn on the machine using the power switch, usually located on the side or back.

3.3 Winding the Bobbin

The Janome 415 features an automatic bobbin winding system:

1. Place a spool of thread on the spool pin.
2. Guide the thread through the bobbin winding tension disc.
3. Place an empty bobbin onto the bobbin winder spindle.
4. Wrap the thread around the bobbin a few times, then push the spindle to the right.
5. Press the foot controller gently to start winding. The machine will stop automatically when the bobbin is full.
6. Cut the thread and remove the bobbin.

3.4 Threading the Machine

Proper threading is crucial for good stitch quality. Follow these steps for upper thread and bobbin insertion:

Upper Threading:

1. Raise the needle to its highest position.
2. Place the thread spool on the spool pin.
3. Guide the thread through the thread guides as indicated by the numbered path on the machine.
4. Pass the thread through the take-up lever.
5. Use the automatic needle threader: Lower the presser foot, lower the needle threader lever, hook the thread, and release. The thread will pass through the needle eye.
6. Pull about 15 cm of thread through the needle eye.

Bobbin Insertion:

1. Open the bobbin cover plate.
2. Insert the wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
3. Guide the bobbin thread through the tension spring slot.
4. Close the bobbin cover plate.
5. Hold the upper thread, turn the handwheel towards you to lower and raise the needle, catching the bobbin thread. Pull both threads to the back under the presser foot.

4. Operating Instructions

4.1 Stitch Selection

The Janome 415 offers 15 stitch patterns. To select a stitch:

1. Turn the stitch selector dial, located on the front of the machine, to the desired stitch symbol.
2. Refer to the stitch chart on the machine for available patterns.
3. For stretchy fabrics, select one of the 7 designated stretch stitches.

4.2 Adjusting Stitch Length and Width

• Stitch Length: Use the stitch length dial to adjust the length of your stitches, up to a maximum of 4 mm. Shorter lengths create denser stitches, longer lengths create looser stitches.
• Stitch Width: Use the stitch width dial to adjust the width of zigzag or decorative stitches, up to a maximum of 5 mm.

4.3 Thread Tension Adjustment

The thread tension dial controls the balance between the upper and bobbin threads. Adjust as needed to achieve a balanced stitch where both threads meet evenly between the fabric layers. A common starting point is usually around '3' or '4'.

4.4 Automatic 4-Step Buttonhole

To create a buttonhole:

1. Attach the automatic buttonhole foot.
2. Select the first buttonhole step on the stitch selector dial.
3. Sew the first side of the buttonhole.
4. Select the next step and sew the bar tack.
5. Continue through all four steps, following the machine's stitch pattern guide.

4.5 Free Arm Sewing

To convert the machine to a free arm:

1. Remove the accessory box or flatbed attachment from the base of the machine.
2. The narrow arm is now exposed, allowing you to sew cylindrical items like sleeves, pant hems, and cuffs.

4.6 Lowering the Feed Dogs

For free-motion quilting, darning, or embroidery, you may need to lower the feed dogs. Locate the feed dog drop lever (refer to your machine's specific diagram if unsure) and engage it to lower the feed dogs below the needle plate. Remember to raise them for regular sewing.

5. Maintenance

Regular maintenance ensures your Janome 415 operates smoothly and extends its lifespan.

5.1 Cleaning and Oiling

1. Disconnect Power: Always unplug the machine before cleaning or oiling.
2. Clean the Bobbin Area: Remove the needle plate and bobbin case. Use the provided brush or a small soft brush to remove lint and dust from the bobbin area and feed dogs.
3. Oil the Machine: Apply a small drop of the provided lubrication oil to the designated oiling points (refer to your machine's internal diagrams, typically around the hook race and needle bar). Do not over-oil.
4. Clean Exterior: Wipe the exterior of the machine with a soft, dry cloth.

5.2 Needle Replacement

Replace needles regularly, especially when sewing different fabric types or if a needle becomes bent or dull. Using the correct needle for your fabric is essential for preventing skipped stitches and fabric damage.

1. Raise the needle to its highest position and turn off the machine.
2. Loosen the needle clamp screw with the screwdriver.
3. Remove the old needle.
4. Insert a new needle from your assortment, ensuring the flat side of the needle faces the back of the machine. Push it up as far as it will go.
5. Tighten the needle clamp screw securely.

6. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, please contact customer support.

6.1 Common Issues and Solutions

• Skipped Stitches:
  • Ensure the needle is inserted correctly and is not bent or dull.
  • Use the correct needle size and type for your fabric.
  • Re-thread the machine completely, both upper and bobbin threads.
• Thread Breaking:
  • Check for correct threading and proper thread tension.
  • Ensure the thread is not snagging on the spool or machine parts.
  • Replace a dull or bent needle.
  • Use good quality thread.
• Uneven Stitches / Looping:
  • Adjust the thread tension (upper or bobbin).
  • Ensure the bobbin is wound evenly and inserted correctly.
  • Clean lint from the bobbin case area.
• Machine Not Feeding Fabric:
  • Check if the feed dogs are raised (not in darning position).
  • Ensure the presser foot is lowered.

7. Specifications

8. Warranty and Support

8.1 Product Warranty

The Janome 415 Sewing Machine comes with a 5-year guarantee. This guarantee typically covers telephone assistance, parts, labor, and transport costs for returns. Please note that specific terms and conditions may apply, and this guarantee is generally valid for metropolitan France, Corsica, and Belgium. For warranty claims or detailed information, please refer to your purchase documentation or contact Janome customer service.

8.2 Customer Support

For further assistance, technical support, or inquiries not covered in this manual, please contact Janome customer support. Contact details can usually be found on the official Janome website or in your product packaging.
