Osprey Global 10-22x50 Binoculars Instruction Manual

1. Introduction

Thank you for choosing the Osprey Global 10-22x50 Binoculars. This manual provides detailed instructions for the proper use, care, and maintenance of your binoculars. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Image 1.1: The Osprey Global 10-22x50 Binoculars, showcasing their robust design.

2. Safety Information

• Do not look directly at the sun: Viewing the sun through binoculars can cause permanent eye damage.
• Keep out of reach of children: Small parts may pose a choking hazard.
• Handle with care: Avoid dropping or subjecting the binoculars to severe impacts, which can damage the optical components.
• Operating temperature: Do not expose the binoculars to extreme temperatures.

3. Package Contents

Upon unpacking, please verify that all the following items are included:

• Osprey Global 10-22x50 Binoculars
• Carrying Case
• Lens Caps (Objective and Eyepiece)
• Cleaning Cloth
• Neck Strap

Image 3.1: The Osprey Global 10-22x50 Binoculars alongside their protective carrying case.

4. Parts of the Binoculars

Familiarize yourself with the key components of your binoculars:

1. Objective Lenses: The large lenses at the front that gather light.
2. Eyepieces: The lenses you look through.
3. Center Focus Wheel: Adjusts the focus for both barrels simultaneously.
4. Diopter Adjustment Ring: Located on the right eyepiece, used to compensate for differences in vision between your eyes.
5. Zoom Lever/Ring: Adjusts the magnification from 10x to 22x.
6. Interpupillary Distance (IPD) Hinge: Allows adjustment of the distance between the two barrels to match your eye spacing.
7. Eyecups: Can be twisted up or down for comfortable viewing with or without eyeglasses.

Image 4.1: Top view of the binoculars, highlighting the center focus wheel and zoom control.

Image 4.2: Rear view of the binoculars, illustrating the adjustable eyecups and diopter ring on the right eyepiece.

5. Setup

5.1 Adjusting Interpupillary Distance (IPD)

Hold the binoculars with both hands and look through the eyepieces. Bend the body of the binoculars at the hinge until you see a single, clear circular field of view. This adjusts the distance between the eyepieces to match the distance between your pupils.

5.2 Adjusting Eyecups

• For non-eyeglass wearers: Twist the eyecups up to their fully extended position.
• For eyeglass wearers: Twist the eyecups down to their lowest position. This allows your eyes to be closer to the eyepiece lenses, providing a full field of view.

5.3 Focusing

To achieve a sharp image:

1. Close your right eye and look through the left eyepiece with your left eye. Rotate the center focus wheel until the image is sharp.
2. Close your left eye and look through the right eyepiece with your right eye. Rotate the diopter adjustment ring (on the right eyepiece) until the image is sharp.
3. Now, with both eyes open, the binoculars are adjusted for your vision. Use only the center focus wheel for subsequent focusing on objects at different distances.

6. Operating

6.1 Using the Zoom Feature

The Osprey Global 10-22x50 Binoculars feature variable magnification. To adjust the zoom:

• Locate the zoom lever or ring, typically near the right eyepiece.
• Rotate the lever/ring to increase or decrease the magnification from 10x to 22x.
• After changing the magnification, you may need to slightly readjust the center focus wheel to maintain a sharp image.

Image 6.1: Side view of the binoculars, indicating the position of the zoom control.

6.2 General Viewing Tips

• For extended viewing, consider using a tripod adapter (not included) to stabilize the binoculars and reduce hand shake, especially at higher magnifications.
• Always use the neck strap to prevent accidental drops.

7. Maintenance

7.1 Cleaning the Lenses

To clean the lenses, follow these steps:

1. Gently brush away any dust or loose debris from the lens surface using a soft lens brush or compressed air.
2. Apply a few drops of lens cleaning fluid (specifically designed for optics) onto a clean microfiber cleaning cloth.
3. Wipe the lens surface in a circular motion, starting from the center and moving outwards.
4. Do not use abrasive cloths, paper towels, or household cleaners, as these can scratch or damage the lens coatings.

7.2 Cleaning the Body

Wipe the body of the binoculars with a soft, damp cloth. Avoid using harsh chemicals or solvents.

7.3 Storage

When not in use, store the binoculars in their protective carrying case in a cool, dry place. Ensure lens caps are in place to protect the lenses from dust and scratches.

Image 7.1: Binoculars with objective and eyepiece lens caps in place for protection during storage.

8. Troubleshooting

• Image is blurry: Ensure the center focus wheel and diopter adjustment are correctly set for your eyes and the object's distance.
• Double image or two circles: Adjust the interpupillary distance (IPD) by bending the binoculars at the hinge until a single, clear field of view is achieved.
• Dark edges in the field of view: Ensure eyecups are correctly positioned for your viewing preference (up for non-eyeglass wearers, down for eyeglass wearers).
• Fogging of lenses: While the binoculars are fog-proof, rapid temperature changes can sometimes cause external condensation. Allow the binoculars to acclimate to the ambient temperature, or gently wipe with a clean, dry microfiber cloth.

9. Specifications

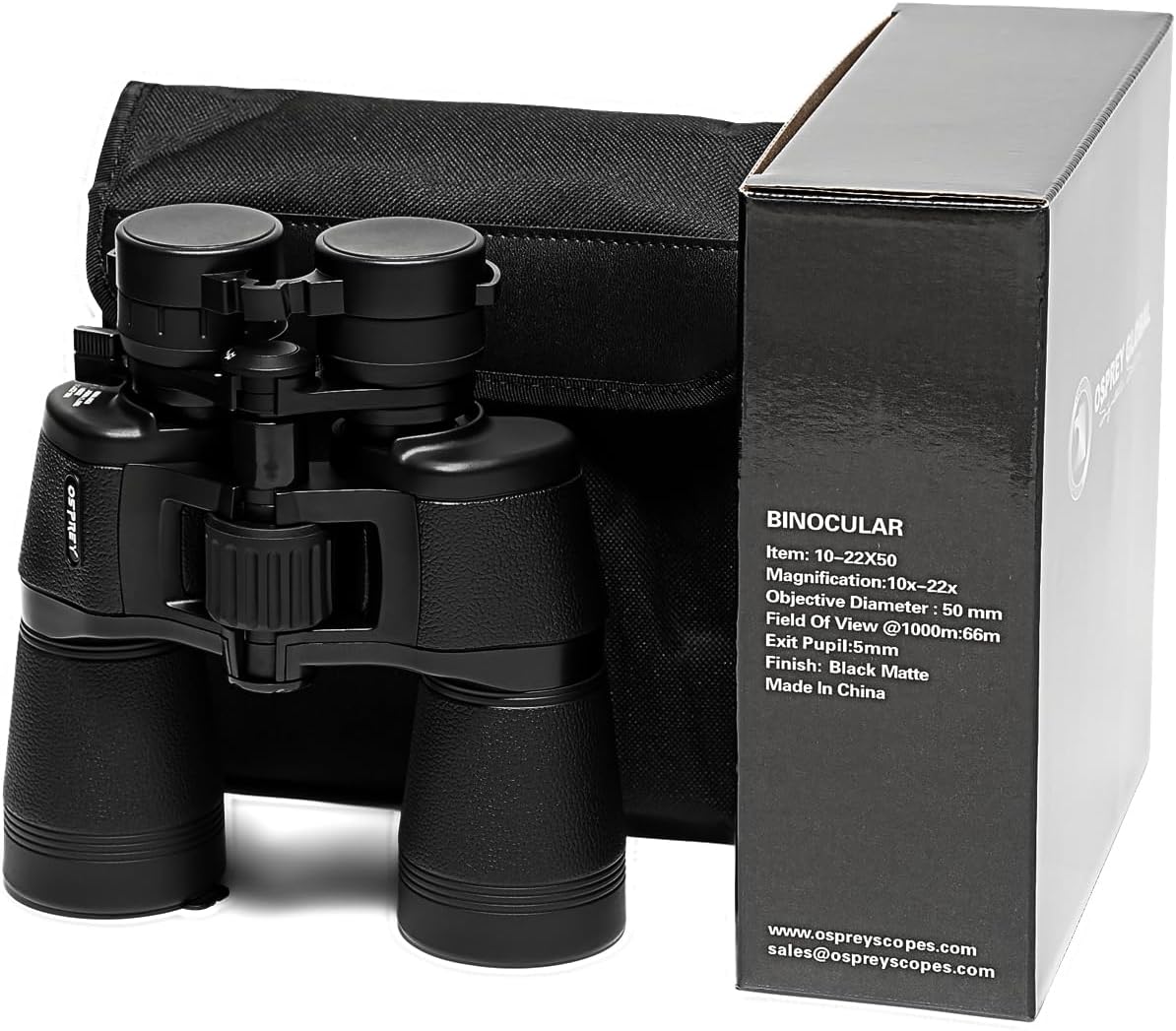

Image 9.1: Binoculars with packaging, displaying key specifications.

10. Warranty and Support

Osprey Global products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Osprey Global website. For technical support or service inquiries, please contact Osprey Global customer service through their official channels.

Contact Information:

• Official Website: www.ospreyscopes.com
• Email: sales@ospreyscopes.com
