Vanity Art 12 Inch Bathroom Vanity Base Cabinet with 3 Soft Closing Shaker Drawers, Model VA4012-3G Instruction Manual

Introduction

This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Vanity Art 12 Inch Bathroom Vanity Base Cabinet, Model VA4012-3G. Please read all instructions carefully before beginning assembly or use. Keep this manual for future reference.

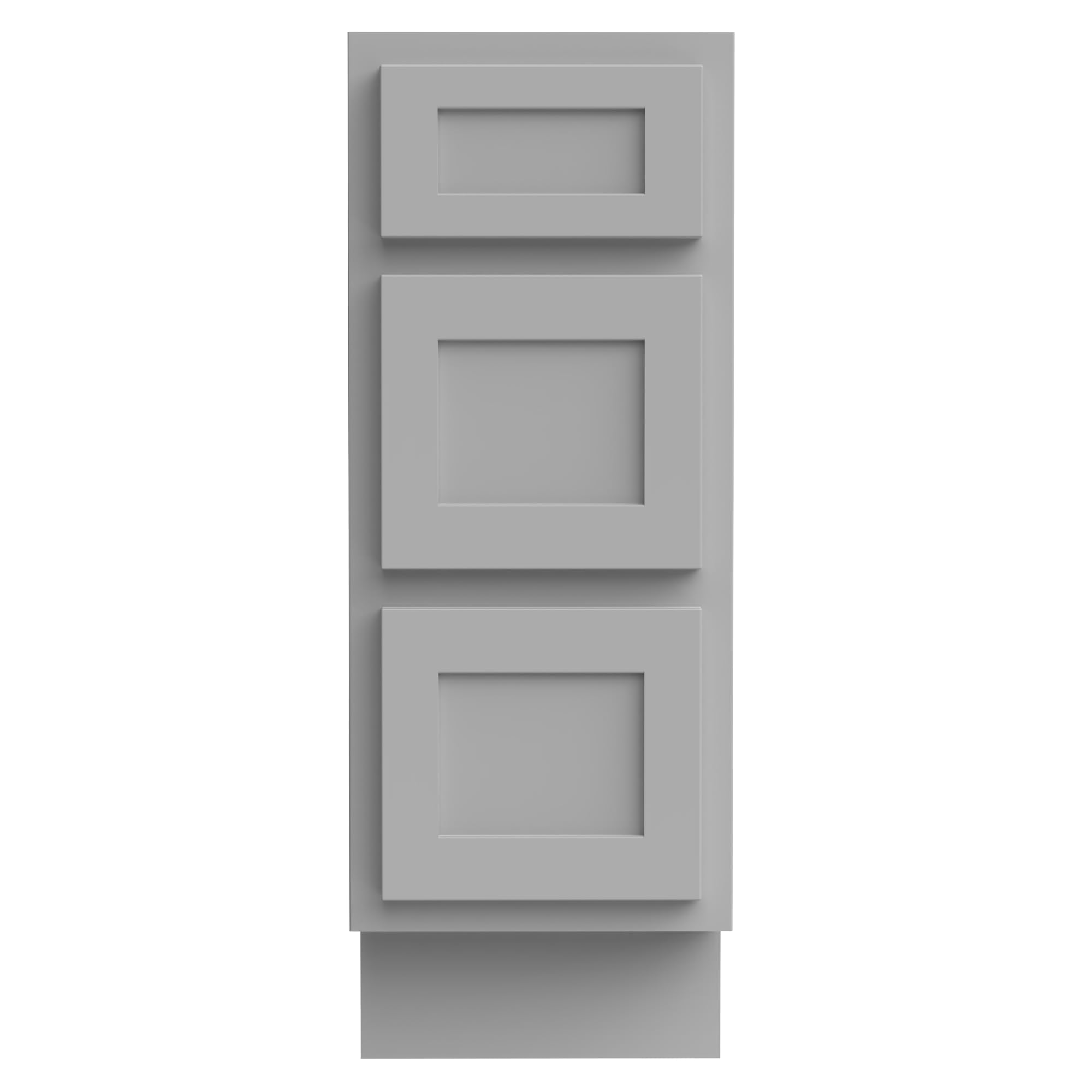

Image: The Vanity Art 12-inch bathroom vanity base cabinet with three shaker-style soft-closing drawers, shown in a grey finish.

Safety Information

• Always use two people to assemble and move the cabinet due to its weight.
• Be cautious of pinch points during assembly, especially with drawer slides and hinges.
• Ensure the cabinet is stable and securely installed before use to prevent tipping.
• Do not exceed the weight limit of 55 pounds on the cabinet top.
• Keep small parts and hardware away from children to prevent choking hazards.

Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Cabinet Frame Panels (sides, back, bottom, top supports)
• 3 Drawer Boxes
• 3 Drawer Fronts (Shaker style)
• Drawer Slides (6 pieces, 2 for each drawer)
• Handles/Knobs for Drawers
• Assembly Hardware (screws, cam locks, dowels, brackets)
• Instruction Manual

Specifications

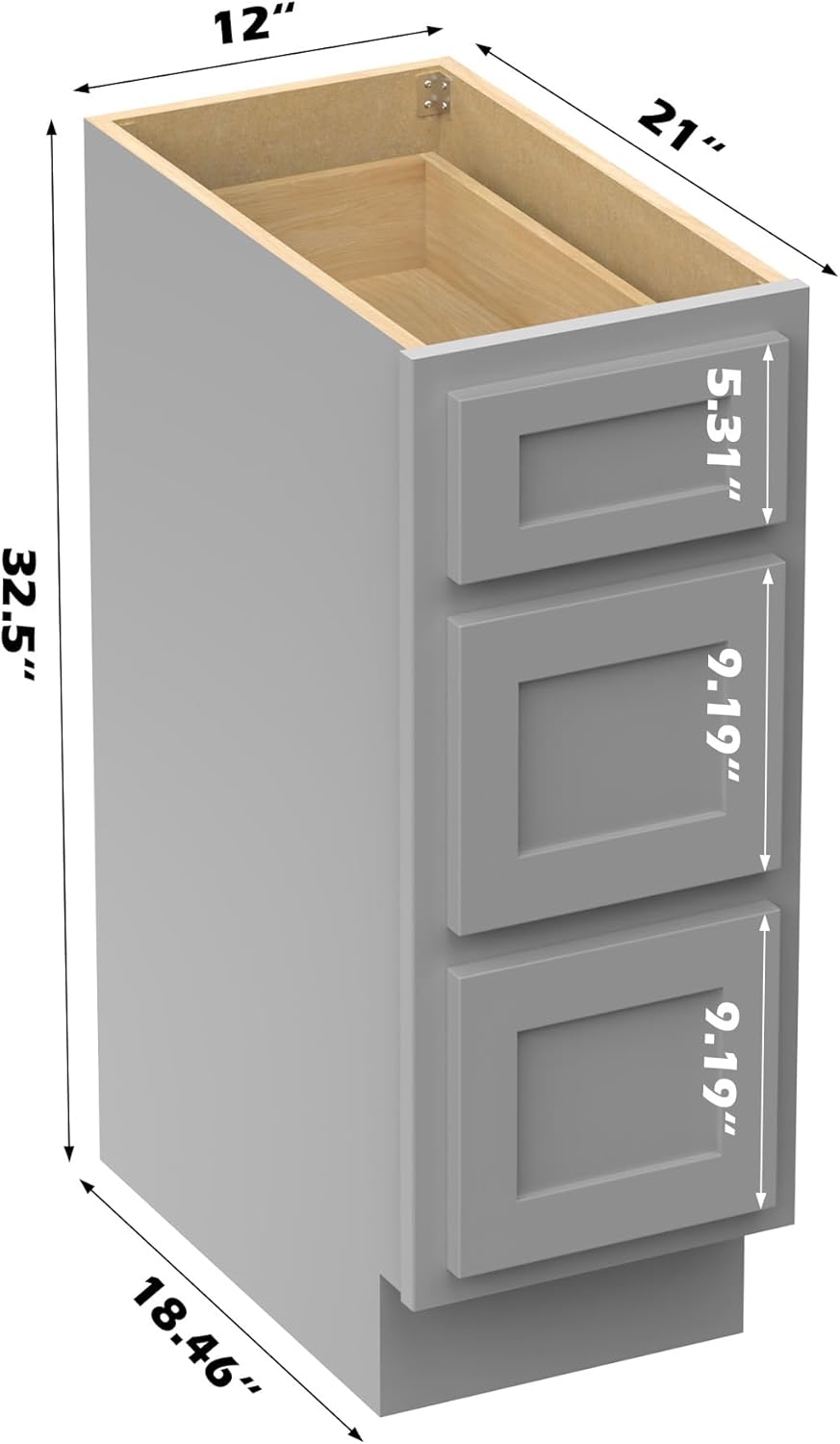

Image: Detailed dimensions of the 12-inch vanity base cabinet, showing width, depth, and height measurements.

Setup and Assembly

Tools required: Phillips head screwdriver, flathead screwdriver, hammer, measuring tape, pencil, and optionally, a drill with appropriate bits for pilot holes.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches. Compare all parts against the package contents list.
2. Assemble the Cabinet Frame: Follow the diagrams in the provided manual to connect the side panels, back panel, and bottom panel using the supplied hardware (dowels, cam locks, screws). Ensure all connections are tight and secure.
3. Install Drawer Slides to Cabinet: Attach the cabinet-side drawer slides to the interior of the cabinet frame. Pay close attention to the orientation and height to ensure drawers will align properly. It is recommended to pre-drill pilot holes if not already present, to prevent wood splitting.
4. Assemble Drawer Boxes: Construct each of the three drawer boxes. Secure the drawer sides, front, and back panels, then slide the bottom panel into the grooves.
5. Install Drawer Slides to Drawer Boxes: Attach the drawer-side slides to the assembled drawer boxes. Ensure they are level and parallel to the cabinet slides.
6. Attach Drawer Fronts: Align and attach the shaker-style drawer fronts to the assembled drawer boxes. Adjust as needed for even spacing.
7. Install Handles/Knobs: Secure the chosen handles or knobs to the drawer fronts.
8. Insert Drawers: Carefully slide each assembled drawer into its corresponding position in the cabinet, engaging the drawer slides. Test the soft-closing mechanism.
9. Position the Cabinet: Place the assembled cabinet in its desired location. Ensure it is level and stable. For added stability, consider securing it to the wall using appropriate anchoring hardware (not included).

Image: The vanity cabinet with its three soft-closing drawers partially extended, showcasing the internal drawer boxes.

Operating Instructions

Your Vanity Art cabinet features soft-closing drawers for quiet and smooth operation.

• Opening Drawers: Gently pull the drawer handle to open. The smooth slides will allow for easy access to contents.
• Closing Drawers: Push the drawer gently until it is almost closed. The soft-closing mechanism will engage and slowly pull the drawer shut, preventing slamming and reducing wear and tear.
• Weight Distribution: Distribute items evenly within the drawers. Avoid overloading individual drawers to maintain smooth operation and prevent damage to the slides.

Image: A close-up detail highlighting the soft-close hinge mechanism and the waterproof properties of the cabinet material.

Maintenance

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Spills: Immediately wipe up any spills to prevent water damage, especially on the top and drawer fronts.
• Hardware: Periodically check all screws and connections to ensure they remain tight. Tighten if necessary.
• Drawer Slides: If drawer operation becomes stiff, clean the slides and apply a small amount of silicone-based lubricant.

Troubleshooting

Warranty Information

Vanity Art products are manufactured with quality and durability in mind. For specific warranty details regarding your VA4012-3G cabinet, please refer to the warranty card included with your purchase or contact Vanity Art customer support directly. Keep your proof of purchase for warranty claims.

Customer Support

For any questions, missing parts, or assistance with your Vanity Art product, please contact our customer support team.

• Contact Method: Email or phone. (Specific contact details may be found on the product packaging or official website.)
• Shipping Inquiries: Items are generally shipped within 48 hours of order placement.
