HP Sprocket 2-in-1 Portable Photo Printer & Instant Camera User Manual
Model: Sprocket 2-in-1 (2FB98A)
Introduction
This manual provides instructions for the HP Sprocket 2-in-1 Portable Photo Printer & Instant Camera. This device combines a portable photo printer with an instant camera, allowing users to capture and print 2x3-inch sticky-backed photos directly or from a connected smartphone. Key features include Bluetooth connectivity, ZINK Zero Ink technology, and compatibility with the HP Sprocket app for photo customization.
What's in the Box
Verify that all components are present in the packaging:
- HP Sprocket 2-in-1 (Red)
- Wrist strap
- Micro USB cable
- Setup card
- Regulatory and warranty sheets
- HP ZINK® Sticky-Backed Photo Paper (10 sheets)
Image: All items included in the HP Sprocket 2-in-1 product box.
Product Overview
Familiarize yourself with the physical components and controls of your HP Sprocket 2-in-1 device.
Front View (Camera Mode)
Image: The front of the HP Sprocket 2-in-1, featuring the camera lens and branding.
Key Components and Ports
Image: Labeled diagram showing the pop-up viewfinder, selfie mirror, LED flash, and print output slot.
Image: Labeled diagram showing the loop for accessories, power switch, shutter button, 10-second timer, and USB charging port.
Image: Labeled diagram showing the tripod mount and Micro SD card slot.
- Camera Lens: Captures images.
- Pop-up Viewfinder & Selfie Mirror: Used for framing shots and taking selfies.
- LED Flash: Provides illumination in low-light conditions.
- Print Output Slot: Where printed photos exit the device.
- Power Switch: Turns the device on or off.
- Shutter Button: Activates the camera to take a photo.
- 10-second Timer Button: Sets a delay before taking a photo.
- USB Charging Port: Connects the device to a power source for charging.
- Micro SD Card Slot: For optional storage of photos.
- Tripod Mount: Allows attachment to a tripod for stable shots.
- Loop for Charms/Wrist Strap: For attaching accessories.
Setup
1. Charge the Device
Before initial use, fully charge your HP Sprocket 2-in-1. Connect the included Micro USB cable to the device's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status.
Image: Connecting the Micro USB cable to the HP Sprocket 2-in-1 for charging.
2. Load HP ZINK Photo Paper
The HP Sprocket 2-in-1 uses HP ZINK 2x3-inch photo paper. This paper features peel-and-stick backing and does not require ink cartridges.
- Open the paper tray cover on the device.
- Insert up to 10 sheets of HP ZINK Photo Paper with the HP logos facing down. Ensure the blue Smartsheet is at the bottom of the stack, facing down.
- Close the paper tray cover securely.
Image: Loading HP ZINK photo paper into the device.
3. Install the HP Sprocket App
For printing from your smartphone and accessing customization features, download the free HP Sprocket app from your device's app store (iOS or Android).
4. Pair via Bluetooth
To print from your smartphone, establish a Bluetooth connection:
- Ensure your HP Sprocket 2-in-1 is powered on.
- Enable Bluetooth on your smartphone.
- Open the HP Sprocket app and follow the on-screen instructions to connect to your device.
Operating
Using as an Instant Camera
- Power on the device using the power switch.
- Flip the device to camera mode (lens facing forward).
- Use the pop-up viewfinder to frame your shot. For selfies, use the selfie mirror.
- Press the shutter button to take a photo.
- The photo will automatically print from the output slot.
- Optionally, press the 10-second timer button before the shutter for a delayed photo.
Image: The device can be used as an instant camera or a portable printer.
Printing from the HP Sprocket App
- Ensure the device is powered on and connected via Bluetooth to your smartphone.
- Open the HP Sprocket app on your smartphone.
- Select a photo from your gallery or social media accounts within the app.
- Utilize the app's editing tools to customize your photo (filters, borders, emojis, text).
- Tap the print icon in the app. The photo will be sent to your Sprocket 2-in-1 for printing.

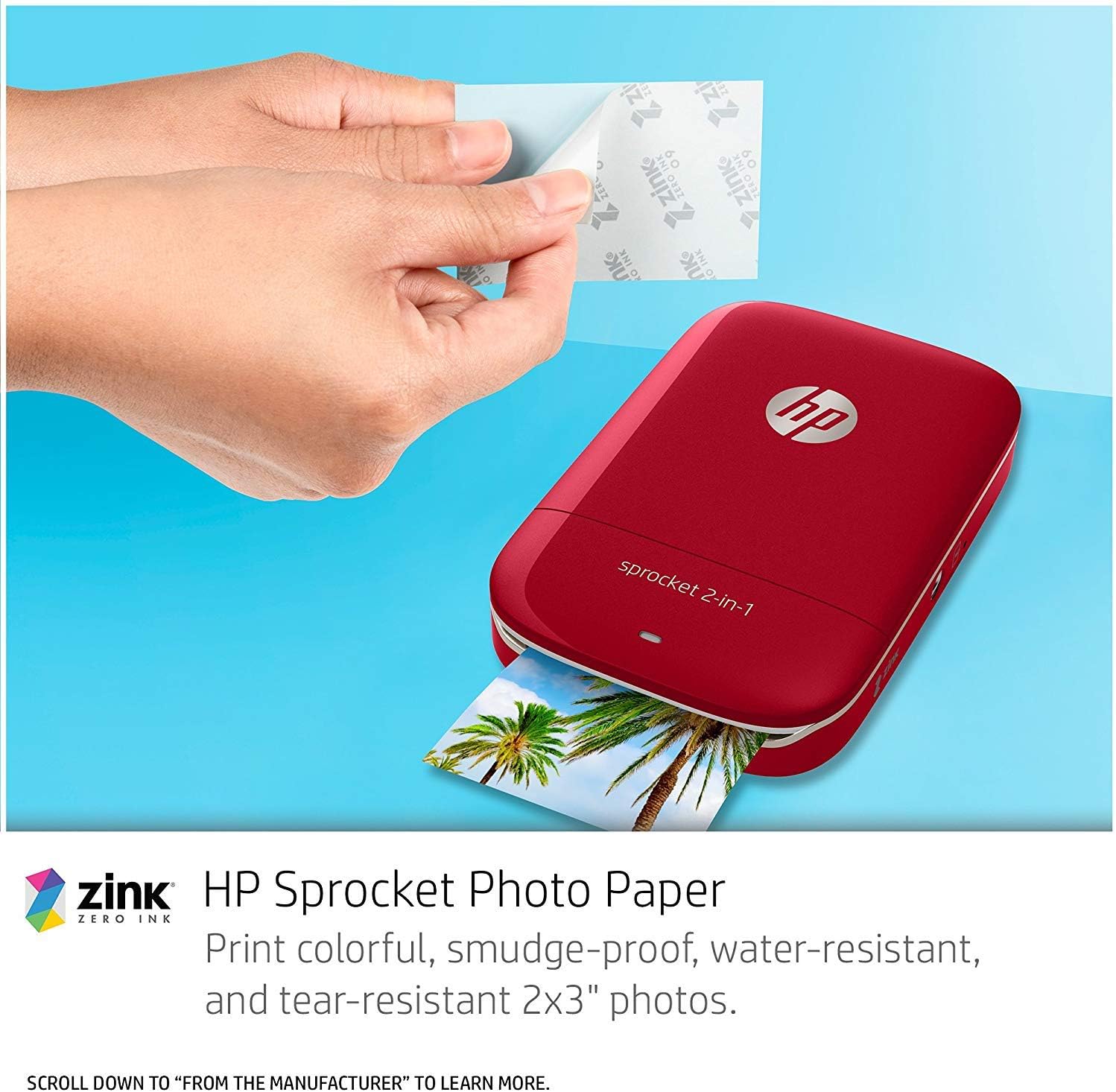

Image: The HP Sprocket 2-in-1 printing a photo, demonstrating its function as a portable printer.
Image: The HP Sprocket app interface showing photo customization options.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the device. Do not use liquid cleaners or abrasives.
- Paper Handling: Store HP ZINK Photo Paper in its original packaging in a cool, dry place to prevent damage and ensure print quality. Avoid touching the printing surface of the paper.
- Battery Care: To prolong battery life, avoid exposing the device to extreme temperatures. Charge the device regularly, even if not in frequent use.
Troubleshooting
| Issue | Possible Solution |
|---|---|
| Device does not power on | Ensure the device is fully charged. Connect to a power source and allow it to charge for at least 30 minutes before attempting to power on again. |
| Photos are not printing | Check if HP ZINK Photo Paper is loaded correctly and that there is enough paper. Ensure the device is connected via Bluetooth to the app. Restart the device and the app. |
| Poor print quality | Ensure you are using genuine HP ZINK Photo Paper. Check if the paper is loaded correctly. The blue Smartsheet should be at the bottom of the stack. Avoid exposing paper to moisture or extreme temperatures. |
| Bluetooth connectivity issues | Ensure Bluetooth is enabled on your smartphone and the device. Move the device closer to your smartphone. Try unpairing and re-pairing the device in your smartphone's Bluetooth settings. Restart both devices. |
| Camera photos are blurry | Ensure the camera lens is clean and free of smudges. Hold the device steady when taking a photo. Ensure adequate lighting. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | Sprocket 2-in-1 |
| Item Model Number | 2FB98A#B1H |
| Connectivity Technology | Bluetooth |
| Printing Technology | Thermal (ZINK Zero Ink) |
| Printer Output | Color |
| Maximum Print Speed (Color) | 40 seconds per print |
| Compatible Devices | Smartphones (iOS, Android) |
| Print Media | HP ZINK 2x3 inch Glossy Photo Paper |
| Max Input Sheet Capacity | 10 sheets |
| Item Weight | 6.7 ounces (190 grams) |
| Product Dimensions | 4.8 x 3.05 x 1.14 inches (12.2 x 7.7 x 2.9 cm) |
| Batteries | 1 Lithium Polymer battery (included) |
| Memory Storage Capacity | 512 MB |
Warranty and Support
Warranty Information
The HP Sprocket 2-in-1 Portable Photo Printer & Instant Camera comes with a one-year limited hardware warranty. Please refer to the included warranty sheets for detailed terms and conditions.
Customer Support
For further assistance, technical support, or to inquire about replacement parts and accessories, please visit the official HP support website or contact HP customer service. Contact information can typically be found on the HP website or in the documentation included with your product.
