Amerex 240, 2.5 Gallon Water Class A Fire Extinguisher User Manual

1. Introduction

The Amerex 240 is a 2.5-gallon water fire extinguisher specifically designed for combating Class A fires. Class A fires involve ordinary combustible materials such as wood, paper, cloth, rubber, and many plastics. This manual provides essential information for the safe and effective use, maintenance, and storage of your Amerex 240 fire extinguisher. Always prioritize safety and understand the proper operation before an emergency occurs.

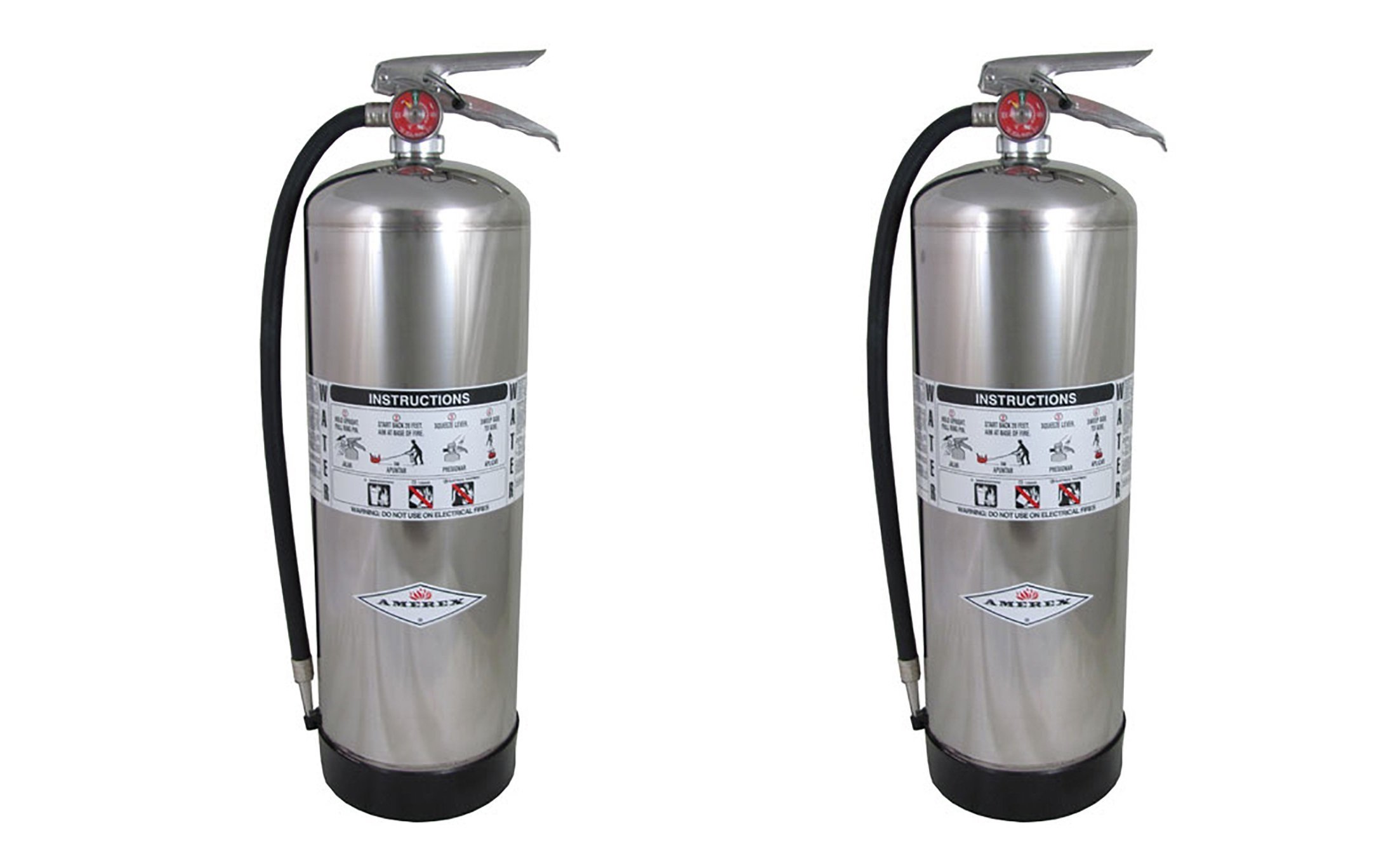

Image: Amerex 240, 2.5 Gallon Water Class A Fire Extinguisher

2. Product Features

• 2.5 Gallon capacity for extended discharge.
• UL Rating: 2A, indicating effectiveness against Class A fires.
• Constructed from durable stainless steel.
• Features a large loop stainless pull pin for easy activation.
• Includes a wall mount bracket for secure and accessible storage.
• Refillable design allows for repeated use after proper servicing.

3. Setup

The Amerex 240 fire extinguisher is shipped empty and requires proper filling and pressurization before it can be used. Follow these steps carefully:

1. Filling: Carefully unscrew the valve assembly from the cylinder. Fill the cylinder with approximately 2.5 gallons of clean, fresh water. Do not overfill.
2. Pressurization: Reattach the valve assembly securely. The unit must be pressurized to the recommended level, typically indicated on the pressure gauge. This process usually requires a specialized air compressor and appropriate adapters. It is recommended to have this done by a qualified fire equipment service center or a facility with the necessary equipment, such as a local car shop. Ensure the pressure gauge needle is within the green operating range.
3. Mounting: Use the included wall mount bracket to secure the extinguisher in an easily accessible location. Choose a spot away from potential fire hazards, out of reach of children, and where it can be quickly retrieved in an emergency. Ensure the mounting height allows for easy removal.

4. Operating Instructions

The Amerex 240 is designed for use on Class A fires only. Understanding its limitations is crucial for safety.

WARNING: DO NOT USE ON ELECTRICAL FIRES (Class C), FLAMMABLE LIQUID FIRES (Class B), or METAL FIRES (Class D). Using water on these types of fires can be extremely dangerous and may cause electrocution, fire spread, or violent reactions.

To operate the fire extinguisher, follow the P.A.S.S. method:

• PULL the Pin: Break the tamper seal and pull the pin from the handle.
• AIM the Nozzle: Stand back approximately 20 feet from the fire. Aim the nozzle at the base of the fire, not at the flames.
• SQUEEZE the Lever: Squeeze the operating lever to discharge the water.
• SWEEP Side to Side: Sweep the nozzle from side to side, covering the entire area of the fire, until the fire is completely extinguished.

If the fire re-ignites, repeat the process. If the fire is large, spreading rapidly, or you feel unsafe, evacuate immediately and call emergency services.

5. Maintenance

Proper maintenance ensures your fire extinguisher is ready for use when needed.

• Regular Inspection: Inspect the extinguisher monthly. Check the pressure gauge to ensure the needle is within the green operating range. Verify that the pull pin is intact and the tamper seal is not broken. Ensure the nozzle and hose are free from obstructions and damage.
• Refilling After Use: After any use, even a partial discharge, the extinguisher must be refilled with water and re-pressurized. This should be performed by a qualified technician or using appropriate equipment to ensure correct pressure and functionality.
• Cold Weather Considerations: If the extinguisher is stored in an environment where temperatures may drop below freezing, it is essential to use an Amerex-approved antifreeze solution instead of plain water. This prevents the water from freezing and damaging the unit or rendering it inoperable.
• Professional Servicing: It is recommended to have the extinguisher professionally inspected and serviced annually by a certified fire equipment company to ensure it meets all safety standards and remains in optimal working condition.

6. Troubleshooting

If you encounter issues with your Amerex 240 fire extinguisher, consider the following:

• No Discharge or Low Pressure:
  • Check the pressure gauge. If the needle is outside the green operating range, the unit needs to be re-pressurized.
  • Ensure the pull pin has been completely removed and the operating lever is fully squeezed.
  • Inspect the nozzle and hose for any blockages or kinks.
• Ineffective on Fire:
  • Confirm that the fire is a Class A fire (wood, paper, etc.). This extinguisher is not suitable for Class B, C, or D fires.
  • Ensure you are aiming the nozzle directly at the base of the fire and sweeping effectively to cover the burning material.
  • If the fire is too large, spreading rapidly, or you are unsure of its type, evacuate immediately and contact emergency services.

7. Specifications

8. Warranty and Support

For detailed warranty information, technical support, or professional servicing inquiries regarding your Amerex 240 fire extinguisher, please contact Amerex directly. You can typically find their official contact information, including customer service numbers and website, through their official brand channels or product packaging.

Always refer to the manufacturer's official documentation for the most up-to-date warranty terms and conditions, as these may vary.
