1. Product Overview
This document provides instructions for the ShelterLogic 10x15x8 Peak Replacement Cover Kit, model 805434 90526. This kit is designed to replace the cover components of specific ShelterLogic Auto Shelter frames. It includes the double zipper front panel, solid rear panel, and the main cover. Please note: The frame is not included with this replacement cover kit.

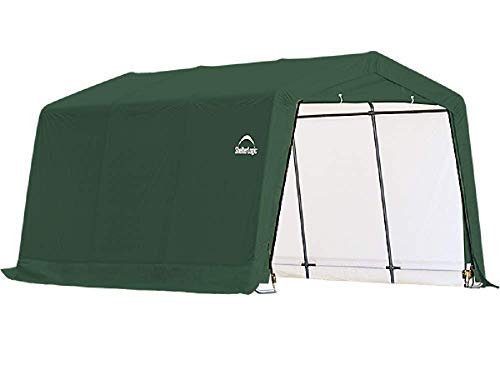

Image 1.1: Example of the ShelterLogic 10x15x8 Peak Replacement Cover Kit. This image shows the green PVC material and general appearance of the cover components.
2. Compatibility
This replacement cover kit (model 805434 90526) is specifically designed for ShelterLogic 10x15x8 Auto Shelter Peak models 62681 or 68217. It replaces the original cover kit components, which typically included:
- Double zipper front panel (original part number 803020)
- Solid rear panel (original part number 803019)
- Main cover (original part number 801231 or 802912)
To ensure proper fit, verify that your existing ShelterLogic frame corresponds to models 62681 or 68217, and that your original cover kit part numbers match those listed above. If your original part numbers do not match, please contact ShelterLogic for assistance.
3. Setup and Installation
This section provides general guidance for installing the replacement cover kit onto a compatible ShelterLogic frame. Ensure the frame is securely anchored before proceeding with cover installation.
- Prepare the Frame: Ensure the existing ShelterLogic frame is clean, free of debris, and in good structural condition.
- Unpack the Cover: Carefully unroll and unfold the main cover, front panel, and rear panel.
- Install Main Cover: Drape the main cover over the frame, aligning it centrally. The cover kits are designed with specific slits and pockets to fit the frame's structure. These are intentional design features, not defects or damage.
- Attach Front and Rear Panels: Secure the double zipper front panel and the solid rear panel to the frame according to the frame's design, typically using bungee cords or straps (not included with cover kit).
- Tension the Cover: Gradually tension the cover components, working from one end to the other, to ensure a snug fit and minimize wrinkles. This helps prevent wind damage and water pooling.
- Secure All Points: Double-check that all attachment points are securely fastened to the frame.
For detailed frame assembly instructions, refer to the manual provided with your original ShelterLogic frame.
4. Maintenance
Proper maintenance will extend the life of your ShelterLogic replacement cover.
- Regular Cleaning: Clean the cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the PVC material.
- Inspect for Damage: Regularly inspect the cover for any tears, punctures, or signs of wear. Promptly repair small damages to prevent them from worsening.
- Snow Removal: In snowy conditions, gently remove accumulated snow from the cover to prevent excessive weight and potential damage to the cover and frame.
- Secure Fastenings: Periodically check all bungee cords, straps, and other fastenings to ensure they remain tight and secure.
5. Troubleshooting
Issue: Cover appears to have slits or pockets.
Resolution: The cover kits are manufactured with slits and pockets specifically designed to accommodate the frame's structure. These are integral to the cover's fit and function and are not indicative of a defective or damaged item. Proceed with installation as described in Section 3, ensuring these features align with the frame components.
6. Specifications
| Model Number | 805434 90526 |
| Dimensions (Approximate) | 10 ft (width) x 15 ft (length) x 8 ft (peak height) |
| Material | 14.5oz PVC (Green) |
| Item Weight | 71 pounds |
| Package Dimensions | 34 x 18 x 16 inches |
| Manufacturer | ShelterLogic |
7. Warranty Information
ShelterLogic provides the following manufacturer pro-rated warranties for their cover materials:
- 14.5oz PVC Industrial Material (Green): 10-Year Manufacturer Pro-Rated Warranty on the main cover, 3-Year on the ends.
- 21.5oz PVC Ultra-Duty Material (Other options): 15-Year Manufacturer Pro-Rated Warranty. (Note: This specific kit is 14.5oz PVC Green.)
For full details regarding warranty terms, conditions, and claims, please refer to the official ShelterLogic warranty documentation or contact their customer service.
8. Support Information
If you have questions regarding the compatibility of this replacement cover kit with your specific ShelterLogic frame model, or require further assistance with installation or maintenance, please contact ShelterLogic customer support directly. Ensure you have your frame model number and original cover kit part numbers available when contacting support.
For general inquiries, you may visit the official ShelterLogic website.
