Castelgarden GGP 181003095/0 Lawnmower Gearbox Instruction Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Castelgarden GGP 181003095/0 lawnmower gearbox. This component is a direct replacement for the original part number 181003095/0 and is designed for use with Castelgarden Multiclip 500 PD lawnmowers. Please read these instructions carefully before proceeding with any installation or maintenance to ensure safe and correct usage.

Product Overview

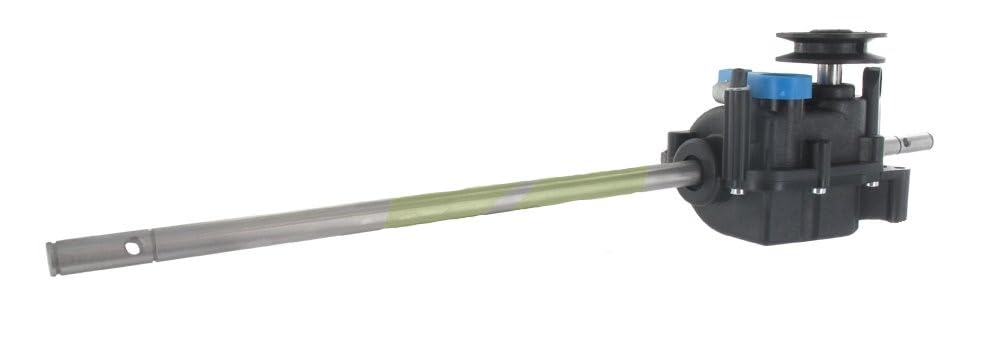

Image 1: The Castelgarden GGP 181003095/0 lawnmower gearbox. This image displays the complete transmission unit, highlighting its compact design and connection points for the drive belt and rear wheels. The housing is typically made of durable metal or composite material, designed to withstand the operational stresses of a lawnmower.

The Castelgarden GGP 181003095/0 gearbox is a critical component of the lawnmower's self-propelled system, responsible for transmitting power from the engine to the rear wheels. It ensures consistent drive and efficient operation across various terrains. This unit is specifically engineered to meet the performance requirements of Castelgarden Multiclip 500 PD models.

Setup and Installation

Installation of the gearbox requires mechanical aptitude and appropriate tools. If you are not confident in performing this procedure, it is recommended to seek assistance from a qualified service technician.

1. Safety First: Before beginning any work, ensure the lawnmower engine is turned off and the spark plug lead is disconnected to prevent accidental starting. Allow the engine to cool down completely.
2. Access: Depending on your specific lawnmower model, you may need to remove the deck cover, drive belt cover, or other components to gain access to the existing gearbox. Refer to your lawnmower's original service manual for detailed disassembly instructions.
3. Removal of Old Gearbox: Disconnect the drive belt from the gearbox pulley. Unbolt the old gearbox from its mounting points. Carefully detach any linkages or cables connected to the gearbox.
4. Installation of New Gearbox: Position the new Castelgarden GGP 181003095/0 gearbox in place. Secure it using the original mounting bolts, ensuring they are tightened to the manufacturer's specifications. Reconnect any linkages or cables.
5. Belt Installation: Reinstall the drive belt onto the gearbox pulley. Ensure the belt is properly tensioned according to the lawnmower's specifications.
6. Reassembly: Reattach all covers and components that were removed during disassembly.
7. Final Check: Before starting the engine, manually rotate the wheels to ensure the drive system moves freely and without obstruction. Reconnect the spark plug lead.

Operating Instructions

Once the gearbox is correctly installed, its operation is integrated with the lawnmower's self-propelled system. There are no direct user controls for the gearbox itself.

• Engaging Drive: To engage the rear-wheel drive, typically squeeze the drive lever or handle on your lawnmower's handlebar. The gearbox will then transmit power to the wheels, propelling the mower forward.
• Disengaging Drive: Release the drive lever to disengage the self-propelled function. The wheels should then move freely.
• Smooth Operation: A properly functioning gearbox should provide smooth and consistent power to the wheels without excessive noise or jerking.

Maintenance

Regular inspection and maintenance can extend the life of your gearbox and ensure optimal performance.

• Visual Inspection: Periodically inspect the gearbox for any signs of damage, cracks, or leaks. Check the mounting bolts for tightness.
• Drive Belt: Ensure the drive belt connected to the gearbox is in good condition, free from cracks or excessive wear, and properly tensioned. A worn or loose belt can affect drive performance.
• Cleaning: Keep the exterior of the gearbox clean and free from grass clippings, dirt, and debris. This helps prevent overheating and allows for easier inspection.
• Lubrication: Most modern gearboxes are sealed units and do not require user lubrication. If your specific model has grease fittings, consult your lawnmower's original manual for lubrication schedules and recommended lubricants. Do not attempt to open a sealed gearbox.

Troubleshooting

If you experience issues with your lawnmower's self-propelled drive, consider the following common troubleshooting steps:

• No Drive or Weak Drive:
  • Check the drive belt for proper tension and condition. Replace if worn or broken.
  • Ensure the drive engagement lever is fully engaged.
  • Inspect the gearbox pulley for damage or obstruction.
• Unusual Noises (Grinding, Clicking):
  • This could indicate internal wear or damage within the gearbox. Discontinue use and have the unit inspected by a qualified technician.
  • Check for foreign objects caught in the drive mechanism.
• Difficulty Engaging/Disengaging Drive:
  • Inspect the drive cable and linkage for proper adjustment and freedom of movement.
  • Ensure the gearbox is securely mounted.

For persistent issues, it is advisable to consult a professional lawnmower service center.

Specifications

Warranty Information

Specific warranty terms for this replacement part are typically provided by the retailer or the manufacturer at the time of purchase. Please retain your proof of purchase. For detailed warranty information, contact the vendor from whom you purchased this gearbox or refer to the official Castelgarden website.

Support

If you require further assistance with the installation, operation, or troubleshooting of your Castelgarden GGP 181003095/0 gearbox, please contact your authorized Castelgarden dealer or the retailer where the product was purchased. They can provide expert advice and access to genuine spare parts.
