SKMEI Model 9108 Analog Chronograph Watch User Manual
Brand: SKMEI | Model: 9108
Introduction
This manual provides instructions for the operation and maintenance of your SKMEI Model 9108 Analog Chronograph Watch. This timepiece features a quartz movement, analog display, and chronograph functions with three sub-dials for 1/10 second, minutes, and seconds, along with a date display window.
Key Features:
- Quartz Movement with Analog Display
- Chronograph Functionality (1/10 Sec, Minutes, Seconds Sub-dials)
- Date Display Window
- Durable Hardlex Dial Glass
- Stainless Steel Band and Bezel
- Water Resistance Depth: 30 meters (3 ATM)
Watch Components Diagram
Image Description: A diagram illustrating the various components of the SKMEI Model 9108 watch, including the main dial, sub-dials, crown, and push-buttons. This image helps identify the parts mentioned in the instructions.

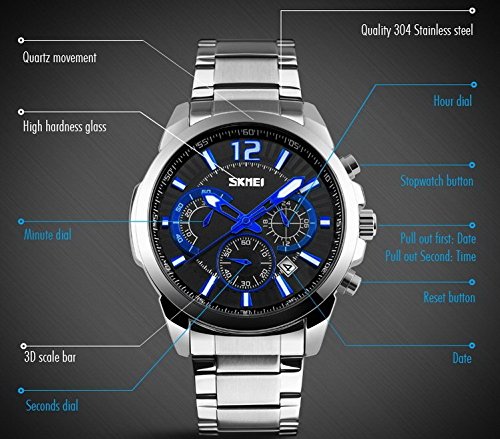

Image Description: An annotated image of the SKMEI Model 9108 watch, pointing out key features such as the hour dial, minute dial, seconds dial, 3D scale bar, stopwatch button, reset button, and date window. It also highlights the quartz movement and high hardness glass.
Setup
Setting Time
- Pull the crown (middle button on the right side) out to the second position.
- Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time.
- Push the crown back into the first position to start the watch.
Setting Date
- Pull the crown out to the first position.
- Turn the crown clockwise or counter-clockwise to adjust the date in the date display window.
- Once the correct date is displayed, push the crown back into the closed position.
- Note: Avoid setting the date between 9:00 PM and 3:00 AM, as this may interfere with the automatic date change mechanism.
Operating Instructions
Chronograph Function (Stopwatch)
The SKMEI 9108 features a chronograph function with three sub-dials:
- 1/10 Second Sub-dial: Measures fractions of a second.
- Minute Sub-dial: Measures elapsed minutes.
- Second Sub-dial: Measures elapsed seconds.
- Start: Press the top push-button (stopwatch button) to start the chronograph. The sub-dials will begin to move.
- Stop: Press the top push-button again to stop the chronograph. The elapsed time will be displayed on the sub-dials.
- Reset: Press the bottom push-button (reset button) to reset the chronograph hands to their zero positions. Ensure the chronograph is stopped before resetting.
Adjusting Chronograph Hands (if misaligned)
If the chronograph hands do not return to the zero position after resetting, they may need calibration:
- Pull the crown out to the second position.
- Press the top push-button repeatedly to advance the 1/10 second sub-dial hand until it points to the 12 o'clock (zero) position.
- Press the bottom push-button repeatedly to advance the minute and second sub-dial hands until they point to the 12 o'clock (zero) position.
- Once all chronograph hands are aligned to zero, push the crown back into the closed position.
Maintenance
Water Resistance
Image Description: An image highlighting the 50-meter water resistance feature of the SKMEI watch, showing the watch in a water-related setting. It indicates that the watch is suitable for daily use and can withstand splashes or brief immersion.
This watch is rated for 30 meters (3 ATM) water resistance. This means it is suitable for daily use, such as splashes, rain, or brief immersion in water. It is not suitable for swimming, diving, or showering with hot water.
- Do not operate the crown or push-buttons when the watch is wet or submerged in water.
- Ensure the crown is fully pushed in to maintain water resistance.
- Avoid exposing the watch to extreme temperature changes, which can compromise seals.
Cleaning
- Wipe the watch case and band with a soft, dry cloth regularly to remove dirt and sweat.
- For stainless steel bands, a slightly damp cloth can be used, followed by immediate drying.
- Avoid using chemical cleaners, solvents, or abrasive materials, as these can damage the watch's finish.
Battery Replacement
The watch is powered by a quartz movement, which requires a battery. When the watch stops or the second hand moves erratically, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and function.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch has stopped or runs intermittently. | Low battery. | Replace the battery by a professional watch technician. |
| Date does not change automatically at midnight. | Time is set to AM/PM incorrectly, or date was set during restricted hours. | Advance the time by 12 hours. Reset the date outside of 9 PM - 3 AM. |
| Chronograph hands do not reset to zero. | Chronograph hands are misaligned. | Follow the "Adjusting Chronograph Hands" procedure in the Operating Instructions section. |
| Condensation inside the watch. | Exposure to extreme temperature changes or compromised water resistance. | Seek professional service immediately to prevent damage to the movement. |

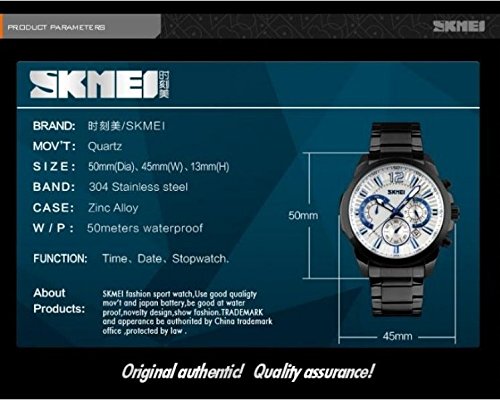

Specifications
- Model Number: 9108
- Movement Type: Quartz
- Display Type: Analog
- Case Material: Metal (Zinc Alloy)
- Case Diameter: 46 mm
- Case Thickness: 13 mm
- Band Material: Stainless Steel
- Band Width: 25 mm
- Dial Glass Material: Hardlex
- Water Resistance Depth: 30 meters (3 ATM)
- Functions: Time, Date, Chronograph (Stopwatch)
- Battery: 1 Lithium Ion battery required
- Item Weight: 200 g
Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or contact SKMEI customer service directly.
