Toastmaster Electric Pressure Cooker User Manual

Introduction

Welcome to your new Toastmaster Electric Pressure Cooker. This appliance is designed to simplify your cooking process, offering a versatile range of functions from pressure cooking to slow cooking and sautéing. With its intuitive digital controls and safety features, you can prepare delicious and healthy meals efficiently.

Important Safeguards

WARNING: To reduce the risk of fire, electric shock, or injury, read and understand all instructions before operating this appliance.

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or heating base in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating. See "Operating Instructions".
• Do not fill unit over 2/3 full. When cooking foods that expand during cooking such as rice or dried vegetables, do not fill unit over 1/2 full. Overfilling may cause a risk of clogging the vent pipe and developing excess pressure. See "Operating Instructions".
• Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth, sputter, and clog the pressure release device. These foods should not be cooked in a pressure cooker.
• Always check the pressure release device for clogging before use.
• Do not open the pressure cooker until the unit has cooled and internal pressure has been released. If the handles are difficult to push apart, this indicates that the cooker is still pressurized – do not force it open. Any pressure in the cooker can be hazardous. See "Operating Instructions".
• Do not use this pressure cooker for deep frying with oil.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Product Components

Familiarize yourself with the parts of your Toastmaster Electric Pressure Cooker.

• Main Unit (Stainless Steel Housing)
• Lid with Pressure Release Valve and Safety Locking Mechanism
• Removable Non-Stick Inner Pot (6-Quart capacity)
• Digital Control Panel
• Power Cord

Figure 1: Front view of the Toastmaster Electric Pressure Cooker with the lid securely in place.

Figure 2: Exploded view showing the main unit, removable inner pot, and lid.

Before First Use

1. Unpack all components and remove any packaging materials.
2. Wash the removable inner pot and lid thoroughly with warm, soapy water. Rinse and dry completely.
3. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all parts are dry before assembly.

Setup

1. Place the pressure cooker on a stable, level, heat-resistant surface away from heat sources and water.
2. Insert the clean, dry non-stick inner pot into the main unit. Ensure it sits properly.
3. Place the lid onto the cooker, aligning the arrow on the lid with the arrow on the base. Rotate the lid clockwise until it locks into place.
4. Ensure the pressure release valve is in the correct position for cooking (usually sealed).
5. Plug the power cord into a grounded 120V AC electrical outlet. The digital display will illuminate.

Operating Instructions

Your Toastmaster Electric Pressure Cooker offers various cooking functions.

Basic Operation

1. Add ingredients and liquid to the inner pot. Do not exceed the MAX fill line (2/3 full for most foods, 1/2 full for expanding foods like rice).
2. Secure the lid and ensure the pressure release valve is set to "Seal".
3. Select your desired cooking function from the control panel (e.g., SOUP, MEAT/STEW, RICE, SLOW COOK).
4. Adjust cooking time and pressure level using the "TIME" and "PRESSURE" buttons if needed.
5. Press "START" or wait for the program to begin automatically after a few seconds.
6. The cooker will preheat, build pressure, and then begin the cooking countdown.
7. Once cooking is complete, the unit will beep and automatically switch to "KEEP WARM" mode.

Releasing Pressure

There are two methods for releasing pressure:

Natural Release

Allow the cooker to cool down naturally. The pressure indicator will drop on its own. This method is suitable for foods that benefit from continued cooking or for larger cuts of meat.

Quick Release

Carefully turn the pressure release valve to the "Vent" position using tongs or a utensil (never your hand). Steam will rapidly escape. Keep hands and face clear of the steam. Once the pressure indicator drops, it is safe to open the lid.

Opening the Lid

After pressure has been fully released, rotate the lid counter-clockwise and lift it away from you to avoid residual steam.

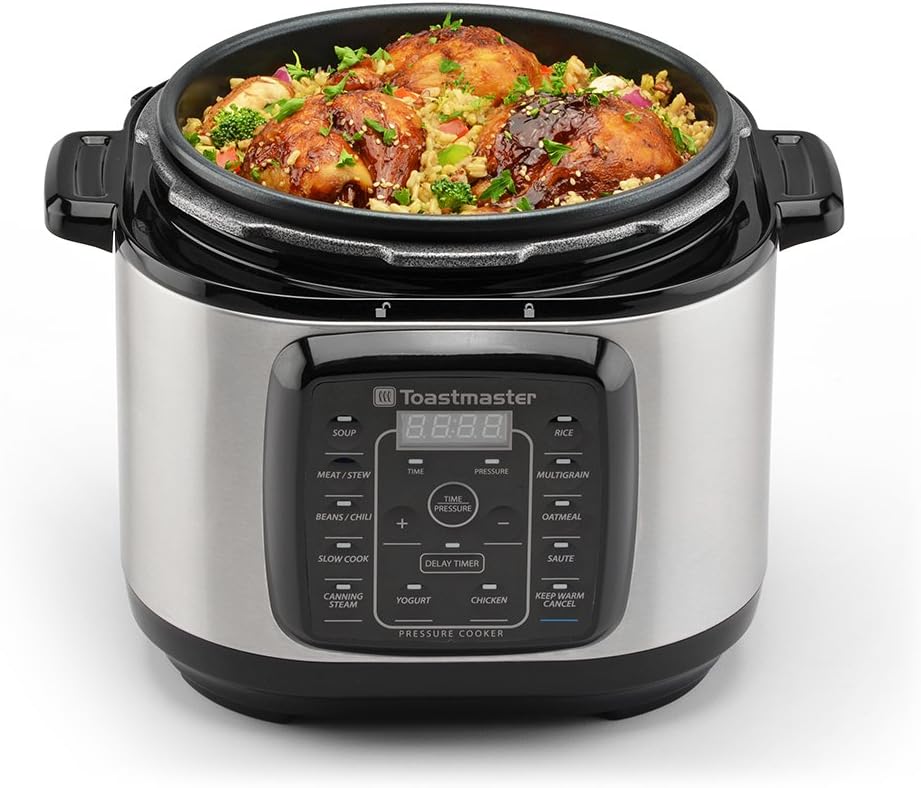

Figure 3: The inner pot containing a prepared meal.

Figure 4: Detailed view of the digital control panel.

Cooking Functions

The Toastmaster Electric Pressure Cooker features multiple preset functions for convenience:

• SOUP: Ideal for broths, stews, and liquid-based dishes.
• MEAT/STEW: Perfect for tenderizing meats and hearty stews.
• BEANS/CHILI: Designed for cooking various types of beans and chili.
• SLOW COOK: For traditional slow cooking without pressure.
• CANNING/STEAM: Use for canning or steaming vegetables and other foods.
• YOGURT: Specialized setting for making homemade yogurt.
• CHICKEN: Optimized for cooking poultry.
• RICE: For perfectly cooked rice.
• MULTIGRAIN: Suitable for various grains.
• OATMEAL: For preparing oatmeal.
• SAUTE: Allows browning ingredients before pressure cooking.
• KEEP WARM/CANCEL: Maintains food temperature after cooking or cancels a program.

Delay Start Function

The Delay Timer allows you to set a delayed start time for your cooking program. Press the "DELAY TIMER" button and use the "+" and "-" buttons to set the desired delay.

Care and Maintenance

Cleaning

1. Always unplug the cooker and allow it to cool completely before cleaning.
2. Remove the inner pot and wash it with warm, soapy water. The non-stick insert is dishwasher safe.
3. Wash the lid, including the sealing ring and pressure release valve, with warm, soapy water. Ensure no food particles are lodged in the valve.
4. Wipe the exterior of the main unit with a damp cloth. Never immerse the main unit in water or other liquids.
5. Dry all parts thoroughly before storing.

Storage

Store the pressure cooker in a dry place. You may place the lid upside down on the inner pot inside the main unit for compact storage.

Troubleshooting

Specifications

• Model: TM-670PC
• Capacity: 6 Quart (5.76 Liters)
• Power: 1000 Watts
• Voltage: 120 Volts (AC)
• Material: Stainless Steel, Non-stick inner pot
• Dimensions: 13 x 11.8 x 12.8 inches
• Item Weight: 10.8 Pounds
• Control Method: Touch, Push Button
• Dishwasher Safe: Inner Pot
• UPC: 655772016485

Warranty and Support

For warranty information, technical support, or replacement parts, please refer to the warranty card included with your product or visit the official Toastmaster website.

You can also visit the Toastmaster Store on Amazon for more product information.
