KASINGS JCEC201712251000006
User Manual: KASINGS Metal Bobbins
Model: JCEC201712251000006
Brand: KASINGS
Introduction
This manual provides essential information for the proper use, installation, and maintenance of your KASINGS 10 Metal Bobbins. These bobbins are designed as direct replacements for specific Mitsubishi industrial sewing machine models, ensuring reliable performance for your sewing projects.
Product Overview
The KASINGS metal bobbins are precision-engineered components crucial for the lower thread mechanism of compatible sewing machines. Each bobbin is made from durable metal, designed for longevity and consistent thread winding.

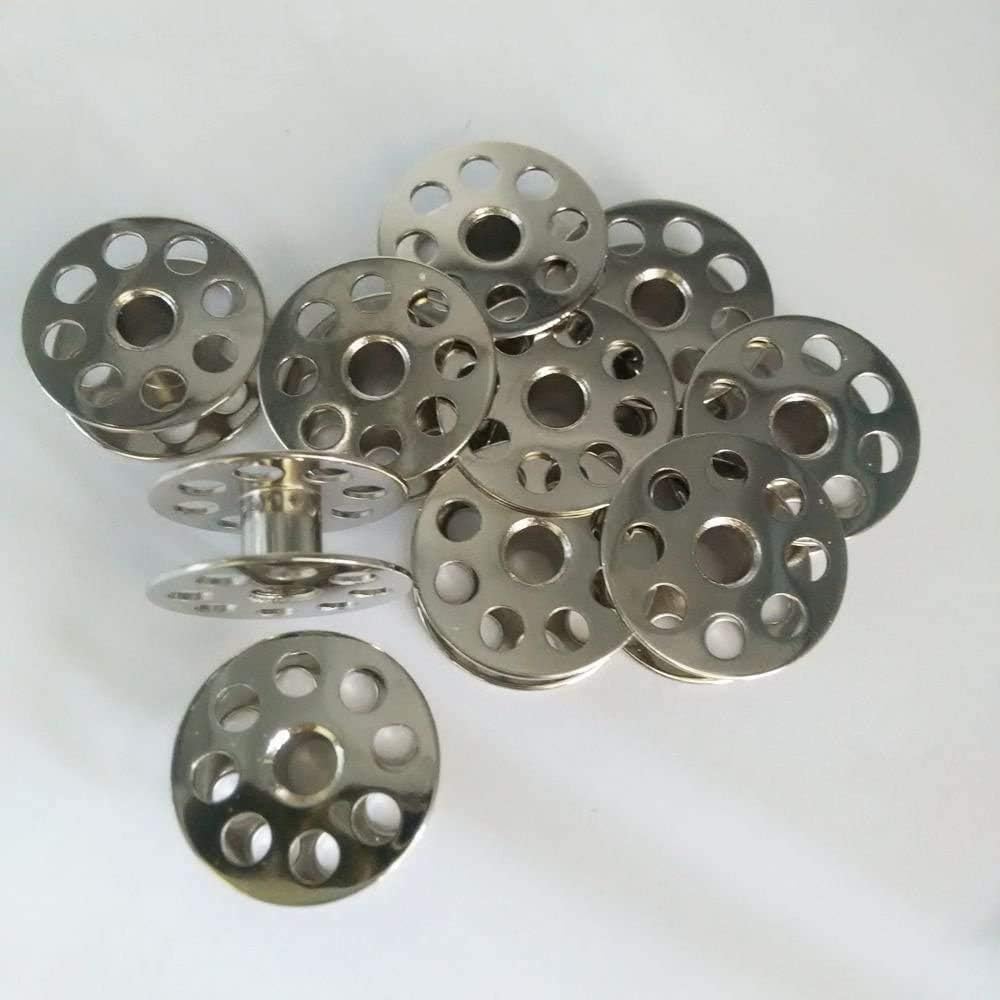

Image: A set of ten KASINGS metal bobbins. These bobbins are silver-colored, made of metal, and feature multiple perforations on their flat sides, designed for efficient thread winding and compatibility with specific sewing machine models.
Compatibility
These metal bobbins are specifically designed as replacements for the following Mitsubishi industrial sewing machine models:
- Mitsubishi DY-330
- Mitsubishi DY-337
- Mitsubishi DY-340
- Mitsubishi DY-349
- Mitsubishi DY-350
Ensure your sewing machine model matches one of the listed compatible models for proper fit and function.
Setup
Proper installation of the bobbin is crucial for smooth sewing operation. Refer to your sewing machine's specific user manual for detailed instructions on bobbin winding and insertion, as procedures may vary slightly between models.
- Winding the Bobbin: Place an empty KASINGS metal bobbin onto the bobbin winder spindle of your sewing machine. Follow your machine's instructions to wind thread evenly onto the bobbin. Do not overfill the bobbin.
- Inserting the Bobbin: Open the bobbin case or access panel on your sewing machine. Insert the wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
- Threading the Bobbin Case: Guide the bobbin thread through the tension spring or slot on the bobbin case as indicated by your machine's manual.
- Placing the Bobbin Case: Insert the bobbin case into the shuttle hook assembly of your sewing machine. Ensure it clicks securely into place.
- Drawing Up the Bobbin Thread: Hold the upper thread, turn the handwheel towards you to lower and raise the needle, catching the bobbin thread loop. Pull both threads under the presser foot and towards the back of the machine before beginning to sew.
Operating
Once the bobbin is correctly installed and threaded, the sewing machine is ready for operation. The bobbin works in conjunction with the upper thread to form stitches. Monitor the bobbin thread level periodically to avoid running out mid-seam.
- Thread Tension: If stitches appear uneven or loose, adjust the upper thread tension first. If issues persist, check the bobbin tension.
- Bobbin Thread Breakage: Ensure the bobbin is not overfilled, the thread is correctly seated in the bobbin case tension, and there are no burrs or rough spots on the bobbin or bobbin case that could snag the thread.
- Regular Checks: Periodically check the bobbin for any signs of wear or damage that could affect thread flow.
Maintenance
Proper maintenance extends the life of your bobbins and ensures consistent sewing performance.
- Cleaning: Regularly remove lint and dust from bobbins and the bobbin case area using a small brush or lint roller. Accumulation of debris can affect thread tension and lead to stitching problems.
- Storage: Store bobbins in a clean, dry bobbin box or organizer to prevent them from tangling, getting dirty, or becoming damaged.
- Inspection: Before each use, quickly inspect bobbins for any bends, nicks, or rough edges that could snag thread. Discard any damaged bobbins to prevent machine damage or thread issues.
Troubleshooting
If you encounter issues related to bobbin performance, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven stitches or looping on fabric underside | Incorrect bobbin tension or improper bobbin insertion. | Re-insert bobbin, ensuring thread is correctly seated in tension spring. Adjust bobbin tension screw slightly if necessary (refer to machine manual). |
| Bobbin thread breaking frequently | Overfilled bobbin, damaged bobbin, or lint in bobbin case. | Rewind bobbin with less thread. Inspect bobbin for damage and replace if necessary. Clean bobbin case thoroughly. |
| Machine jamming or loud noise from bobbin area | Thread tangled in bobbin case or incorrect bobbin type. | Remove bobbin and bobbin case, clear any tangled threads. Ensure you are using the correct type of bobbin for your machine. |
Specifications
- Product Type: Metal Bobbins
- Quantity: 10 per pack
- Material: Metal
- Compatibility: Mitsubishi DY-330, DY-337, DY-340, DY349, DY350
- Manufacturer: KASINGS
- Part Number: JCEC201712251000006
- First Available: December 25, 2017
Warranty and Support
KASINGS metal bobbins come with a Fit and Function Guarantee, ensuring that the product will fit the specified models and perform as expected upon receipt. As a brand new product, it is expected to be free from manufacturing defects.
For any questions or concerns regarding the fit or function of these bobbins, please refer to the seller's contact information on the original purchase platform. Always consult your sewing machine's official manual for specific bobbin installation and troubleshooting procedures.
