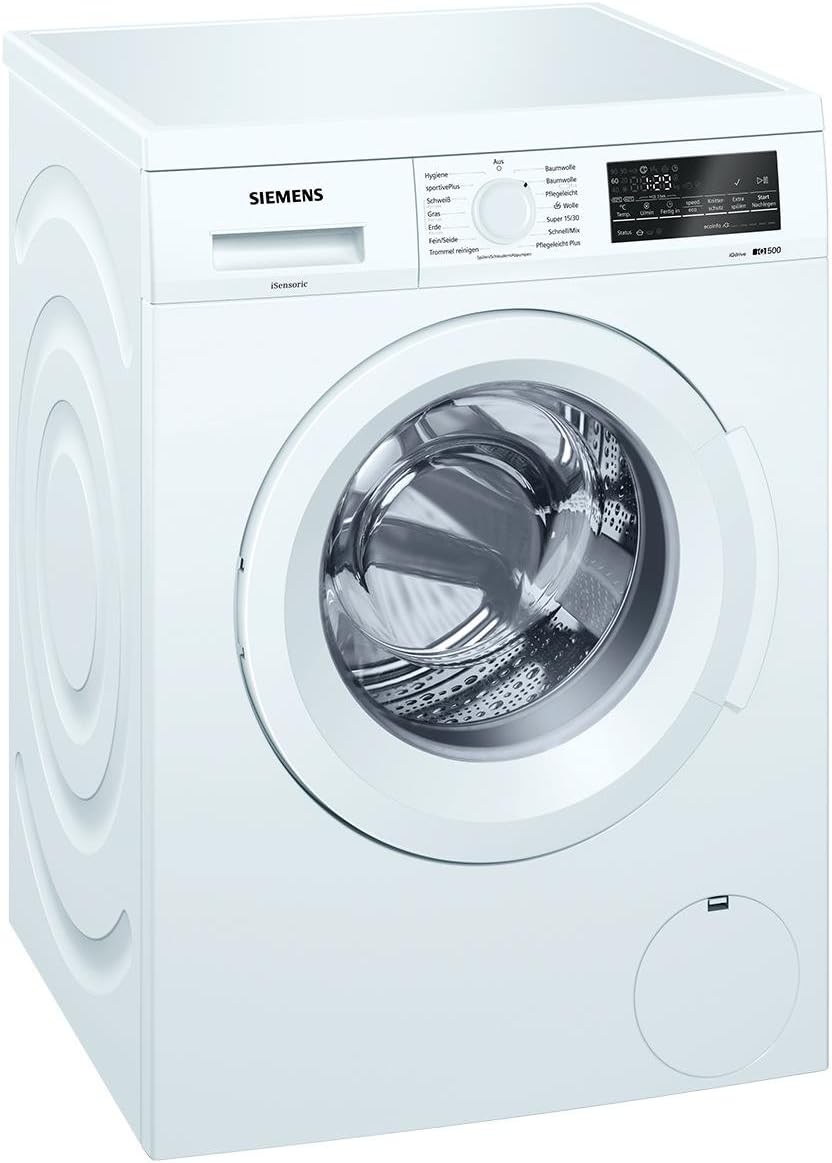

Siemens WU14Q420 Washing Machine User Manual

1. Product Overview

The Siemens WU14Q420 is a state-of-the-art washing machine designed for efficient and gentle laundry care. This freestanding front-loader model combines advanced technology with user-friendly features to deliver outstanding washing results.

Key Features:

• iQdrive Motor: Durable, quiet, and energy-efficient motor for optimal performance.
• iSensoric: Intelligent sensor technology for precise and efficient washing.
• speedPerfect: Reduces washing time by up to 65% without compromising results.
• Super15 Program: A quick wash program for lightly soiled laundry in just 15 minutes.
• Reload Function: Allows adding or removing laundry even after the wash cycle has started.
• Child Lock: Prevents unintended changes to settings during operation.
• Remaining Time Display: Provides clear information on the cycle progress.

2. Safety Information

Please read all safety instructions carefully before operating the appliance. Keep this manual for future reference.

General Safety:

• This appliance is intended for domestic use only.
• Ensure the appliance is properly installed and grounded before use.
• Do not allow children to play with or operate the appliance.
• Never touch the power plug with wet hands.
• Do not open the detergent dispenser or the door during operation, especially during high-temperature cycles.
• In case of malfunction, disconnect the appliance from the power supply and water supply immediately.

3. Setup and Installation

The Siemens WU14Q420 is a freestanding washing machine. Proper installation is crucial for its performance and longevity.

Unpacking:

1. Carefully remove all packaging materials.
2. Remove all transport bolts from the rear of the machine. Keep them for future transport.

Positioning:

• Place the machine on a firm, level surface.
• Adjust the feet to ensure the machine is perfectly level and stable.

Water and Electrical Connection:

• Connect the water inlet hose to a cold water tap with a 3/4" thread.
• Ensure the drain hose is properly secured to a drain pipe or sink.
• Plug the power cord into a grounded electrical outlet. The appliance operates on 2.3E+2 Volts (AC).

4. Operating Instructions

Operating your Siemens WU14Q420 washing machine is straightforward with its intuitive touch control panel.

Loading Laundry:

• Open the door and load laundry into the drum. Do not overload the machine; refer to program capacity.
• Close the door firmly.

Adding Detergent:

• Pull out the detergent dispenser drawer.
• Add appropriate amounts of detergent and fabric softener to the designated compartments.
• Push the drawer back in.

Selecting a Program:

• Turn the program selector dial to choose your desired washing program (e.g., Cotton, Synthetics, Super15).
• The display will show the default settings for the selected program.

Adjusting Settings:

• Use the touch buttons to adjust temperature, spin speed, or activate special functions like speedPerfect or pre-wash.
• The iSensoric system automatically optimizes settings based on load and fabric type.

Starting the Wash Cycle:

• Press the Start/Reload button to begin the cycle.
• To add or remove laundry after the cycle has started, press the Start/Reload button. The machine will pause and unlock the door if safe to do so.

Child Lock:

• Activate the child lock by pressing and holding the designated button (refer to control panel diagram) to prevent accidental program changes.

5. Washing Programs

The Siemens WU14Q420 offers a variety of programs to suit different fabric types and soil levels. There are 15 standard programs available.

Common Programs:

• Cotton: For durable cotton fabrics.
• Synthetics: For synthetic or mixed fabrics.
• Delicates/Silk: For delicate, washable silk and synthetic fabrics.
• Wool: For hand and machine washable wool.
• Super15: A very short program for lightly soiled items.
• Rinse/Spin/Drain: Separate cycles for rinsing, spinning, or draining water.
• Drum Clean: Program for cleaning the washing machine drum.

Consult the program table on the appliance or in the full manual for detailed information on each program, including maximum load, temperature ranges, and spin speeds.

6. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your washing machine.

Cleaning the Detergent Dispenser:

• Pull out the dispenser drawer completely.
• Remove any residue and clean with warm water.
• Reinsert the drawer.

Cleaning the Drum:

• Run the 'Drum Clean' program regularly, especially if you frequently wash at low temperatures.
• Leave the door slightly ajar after each wash to allow the drum to air dry and prevent odors.

Cleaning the Filter:

• Locate the filter cover at the bottom front of the machine.
• Place a shallow container underneath to catch any residual water.
• Open the cover, unscrew the filter, and remove any lint or foreign objects.
• Clean the filter under running water and screw it back in firmly.

Exterior Cleaning:

• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.

7. Troubleshooting

Before contacting customer service, please check the following common issues:

Note: The machine's airborne acoustical noise emission is 49 dB during washing and 76 dB during spinning.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your appliance or visit the official Siemens website. You can also find more information on the Siemens Brand Store on Amazon.
